<p><b>SPECIFICATIONS</b></p>
<table cellspacing="0" cellpadding="0" border="1" width="520">
<tbody style="text-align: center;">
<tr>
<td valign="middle" bgcolor="#333333" class="Title_white_bold"><div align="center"><span style="color: rgb(255, 255, 255);"><b>MODEL</b></span></div></td>
<td width="278" valign="middle" bgcolor="#333333" class="TableText"><div align="center" class="Title_white_bold">
<div align="center"><span style="color: rgb(255, 255, 255);"><b>GSH 30/13
</b></span></div>
</div></td>
</tr>
<tr>
<td width="236" valign="middle" bgcolor="#cccccc" class="TableText"><div align="center">Cutting Length</div></td>
<td valign="middle" class="TableText"><div align="center">121.26 in.</div></td>
</tr>
<tr>
<td valign="middle" bgcolor="#cccccc" class="TableText"><div align="center">Shearing Capacity - MS (450 N/mm2)</div></td>
<td valign="middle" class="TableText"><div align="center">1/2 in. </div></td>
</tr>
<tr>
<td valign="middle" bgcolor="#cccccc" class="TableText"><div align="center">Shearing Capacity - SS (700 N/mm2)</div></td>
<td valign="middle" class="TableText"><div align="center">5/16 in.</div></td>
</tr>
<tr>
<td valign="middle" bgcolor="#cccccc" class="TableText"><div align="center">No. of strokes/min.</div></td>
<td valign="middle" class="TableText"><div align="center">8_15/min</div></td>
</tr>
<tr>
<td valign="middle" bgcolor="#cccccc" class="TableText"><div align="center">Cutting Angle - Min.</div></td>
<td valign="middle" class="TableText"><div align="center">0.5°</div></td>
</tr>
<tr>
<td valign="middle" bgcolor="#cccccc" class="TableText"><div align="center">Cutting Angle - Max..</div></td>
<td valign="middle" class="TableText"><div align="center">2.3°</div></td>
</tr>
<tr>
<td valign="middle" bgcolor="#cccccc" class="TableText"><div align="center">Number of Holddown</div></td>
<td valign="middle" class="TableText"><div align="center">15</div></td>
</tr>
<tr>
<td valign="middle" bgcolor="#cccccc" class="TableText"><div align="center">Back Gauge Range</div></td>
<td valign="middle" class="TableText"><div align="center">39.37 in.</div></td>
</tr>
<tr>
<td valign="middle" bgcolor="#cccccc" class="TableText"><div align="center">Back Gauge Speed</div></td>
<td valign="middle" class="TableText"><div align="center">4</div></td>
</tr>
<tr>
<td valign="middle" bgcolor="#cccccc" class="TableText"><div align="center">Motor Power</div></td>
<td valign="middle" class="TableText"><div align="center">40</div></td>
</tr>
<tr>
<td valign="middle" bgcolor="#cccccc" class="TableText"><div align="center">Hydraulic Tank Capacity</div></td>
<td valign="middle" class="TableText"><div align="center">92 gal.</div></td>
</tr>
<tr>
<td valign="middle" bgcolor="#cccccc" class="TableText"><div align="center">Throat Depth</div></td>
<td valign="middle" class="TableText"><div align="center">5.9 in.</div></td>
</tr>
<tr>
<td valign="middle" bgcolor="#cccccc" class="TableText"><div align="center">Front Arm Support</div></td>
<td valign="middle" class="TableText"><div align="center">3</div></td>
</tr>
<tr>
<td valign="middle" bgcolor="#cccccc" class="TableText"><div align="center">Table Height</div></td>
<td valign="middle" class="TableText"><div align="center">3.0 ft</div></td>
</tr>
<tr>
<td valign="middle" bgcolor="#cccccc" class="TableText"><div align="center">Length</div></td>
<td valign="middle" class="TableText"><div align="center">12.8 ft</div></td>
</tr>
<tr>
<td valign="middle" bgcolor="#cccccc" class="TableText"><div align="center">Width</div></td>
<td valign="middle" class="TableText"><div align="center">7.4 ft</div></td>
</tr>
<tr>
<td valign="middle" bgcolor="#cccccc" class="TableText"><div align="center">Total Width</div></td>
<td valign="middle" class="TableText"><div align="center">9.7 ft</div></td>
</tr>
<tr>
<td valign="middle" bgcolor="#cccccc" class="TableText"><div align="center">Height</div></td>
<td valign="middle" class="TableText"><div align="center">7.7 ft</div></td>
</tr>
<tr>
<td valign="middle" bgcolor="#cccccc" class="TableText"> <div align="center">App. Weight</div></td>
<td valign="middle" class="TableText"><div align="center">28,329 lbs.</div></td>
</tr>
</tbody>
</table>
<p>For other lengths and sizes please contact us.</p>
<p><b>FEATURES:</b></p>
<ul>

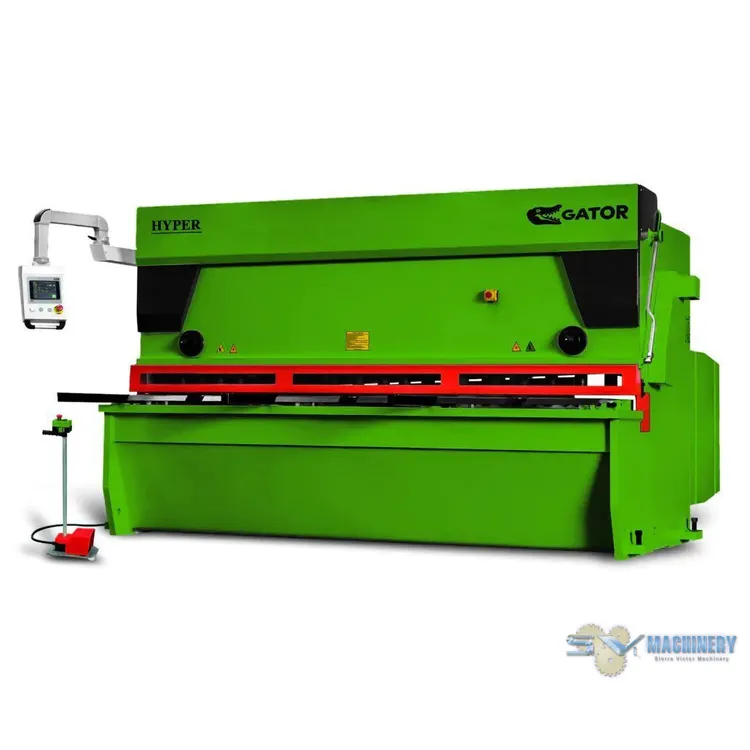

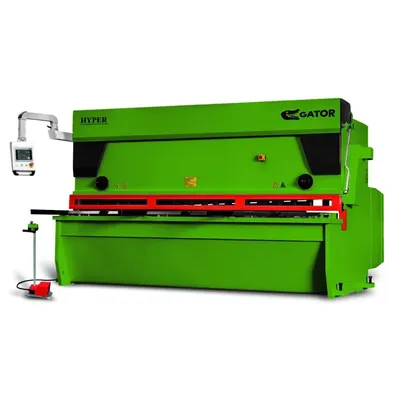

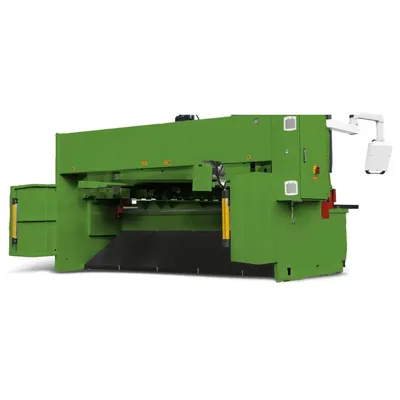

<li>GATOR Hyper Cut CNC Variable Rake Hydraulic Guillotine Shears that provide the appropriate solutions for your needs, proved to be user friendly with its advanced technological features produced with high efficiency, precision and performance criteria. The GATOR B Seires CNC Variable Rake Hydraulic Guillotine Shears has proved to be the best and strongest in the industry with its ease of use. </li>
<li>When you enter the length, thickness and material information of the sheet which will be cut into the easily programmable control unit; gap dis- tance, cutting angle stroke and cutting length are automatically adjusted instantaneously. </li>
<li>While providing flexibility for different production requirements, the time loss was totally eliminated by targeting high productivity.</li>
<li>The machine frame is manufactured with advanced technology with very precise tolerances and stress relieved with large welded components. All tensile points are designed with large radii and strain accumulation and possible welding cracks are eliminated.</li>
<li>The lower table and upper table inertia are designed for optimum value for the minimum deformation affecting the cutting quality.</li>
<li>The top plate is designed to be positioned vertically so that the roller bearings, piston bearings and felts can compensate for vertical loads.</li>
<li>The hydraulic cylinder is designed as double-sided and honed to a sur- face quality of 2 microns. Thus, minimum wear resistance is created for the felts. The cylinder bodies are manufactured as SAE 1040 material forged.</li>
<li>The hydraulic cylinders are specially designed and the upper table is mounted with cylinder springs and doubly secure to cylinders as spherical connection. At this point, the power that generated during cutting is evenly distributed to the machine body.</li>
<li>Piston head features: Omega-type felts are fitted with wide bronze bearings, semi-angled sleeves.</li>
<li>The Gator hydraulic system allows precise usage at all pressure values up to the maximum operating pressure. At the same time, with these pres- sure values, precise cylinder positioning, synchronization and repeatability are achieved.</li>
<li>Backgauge system is manufactured in accordance with environmental conditions.</li>
<li>Backgauge bearings are made for heavy conditions with double bearers. Scrapping type bearings are used against dust and other particles that will accumulate in the linear guideways against dusty environmental conditions. </li>
<li>The outer surface of the machine is painted with two layers of paint at least 60 microns in thickness to protect against weather conditions. Paint drying is done gradually in different time and temperature ranges in state- of-the-art ovens. </li>

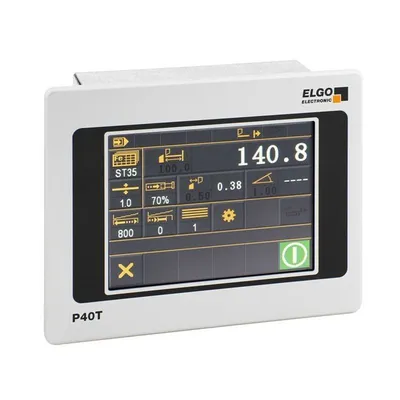

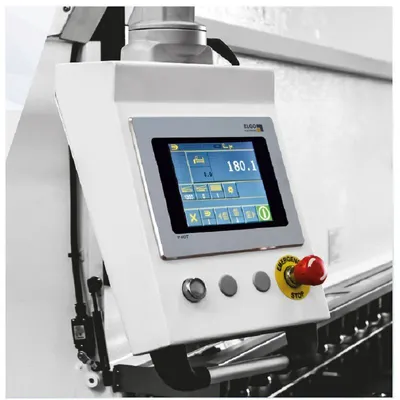

<li><strong>ELGO P40T</strong>
<ul>
<li>Programmable controller for the application of metal shares<br>
• Live Color & High Contrast TFT Touch Screen<br>
• Material depending gap, angle and pressure calculation.<br>
• Automatic Gap Adjustment<br>
• Automatic Cutting Angle Adjustment<br>
• Automatic Cutting Length Adjustment<br>
• Automatic Backgauge Correction<br>
• Automatic Backgauge Parking<br>
• Sheet Support<br>
• Hold-down pressure managment<br>
• System Pressure Managment<br>
• Program memory<br>
• Language Selection</li>
</ul>
</li>

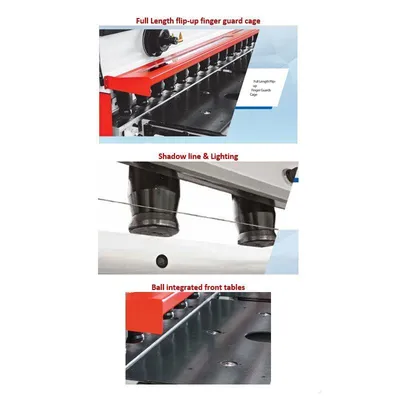

<li>Full Length flip-up finger guard cage</li>
<li>Shadow line and Lighting</li>
<li>Ball integrated front tables</li>

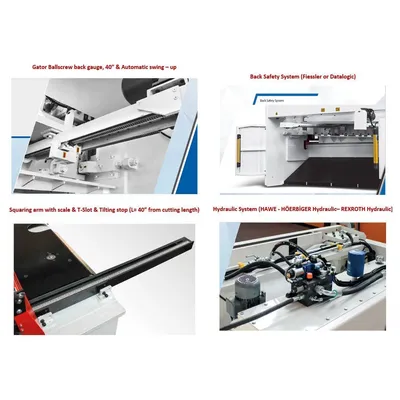

<li>Gator Ballscrew back gauge, 40” & Automatic swing – up</li>
<li>Squaring arm with scale & T-Slot & Tilting stop (L= 40” from cutting length)</li>
<li>Back Safety System (Fiessler or Datalogic) </li>
<li>Hydraulic System (HAWE - HÖERBİGER Hydraulic– REXROTH Hydraulic)</li>

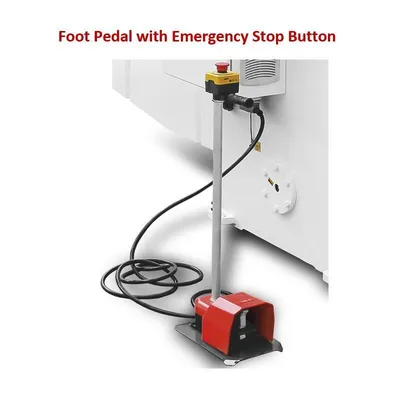

<li>Foot Pedal with Emergency Stop Button<br>
</li>
</ul>
<p><b>STANDARD EQUIPMENT:</b></p>
<ul>
<li>Elgo P40T Touch Screen Colour Control Unit</li>
<li>Automatically adjusted blade gap by CNC</li>
<li>Automatically adjusted cutting length by CNC</li>
<li>Automatically adjusted rake angle by CNC</li>
<li>Back Safety System</li>
<li>Full Length flip-up finger guard cage</li>
<li>Shadow line and Lighting</li>
<li>Ball integrated front tables</li>
<li>Gator Ballscrew back gauge, 40” and Automatic swing-up</li>
<li>Squaring arm with scale and T-Slot and Tilting stop (L= 40” from cutting length)</li>
<li>Support arm with T-Slot and Tilting stop (L= 40” from cutting lenght) </li>
<li>Foot Pedal with Emergency Stop Button</li>
<li>Top and Bottom Blades <br>
</li>
</ul>
<p><b> OPTIONAL ITEMS - CALL FOR PRICE:</b></p>
<ul>
<li>Pneumatic sheet support system (Fixed Type)</li>
<li>Pneumatic sheet support system (Modular Type)</li>
<li>0-180° Front angle gauge</li>
<li>Back Gauge Servo Motor Difference</li>
<li>Laser Cutting Line</li>
<li>Light Curtain for Finger Protection</li>
<li>Oil Coolant with Fan </li>
</ul>
