<p><b>SPECIFICATIONS:</b></p>
<table cellspacing="0" cellpadding="0" border="1" width="524">
<tbody style="text-align: center;">
<tr>
<td colspan="3" bgcolor="#CCCCCC" class="TableText11"><div align="center">Electrical Options</div></td>
<td class="TableText11"><div align="center">115-208-230/60/1<br>
208-230-460/60/3</div></td>
</tr>
<tr>
<td colspan="3" bgcolor="#CCCCCC" class="TableText11"><div align="center">Hydraulic System</div></td>
<td width="257" class="TableText11"><div align="center">Air over Oil / 2 gls</div></td>
</tr>
<tr>
<td colspan="3" bgcolor="#CCCCCC" class="TableText11"><div align="center">Feed Rate Control</div></td>
<td class="TableText11"><div align="center">Variable Hydraulic w/positive pressure</div></td>
</tr>
<tr>
<td colspan="3" bgcolor="#CCCCCC" class="TableText11"><div align="center">Band Wheels </div></td>
<td class="TableText11"><div align="center">15" Diameter Cast Iron</div></td>
</tr>
<tr>
<td colspan="3" bgcolor="#CCCCCC" class="TableText11"><div align="center">Stock Stop Projection</div></td>
<td class="TableText11"><div align="center">25"</div></td>
</tr>
<tr>
<td colspan="3" bgcolor="#CCCCCC" class="TableText11"><div align="center">Discharge Table</div></td>
<td class="TableText11"><div align="center">23"</div></td>
</tr>
</tbody>
</table>
<p><b>FEATURES:</b></p>
<ul>

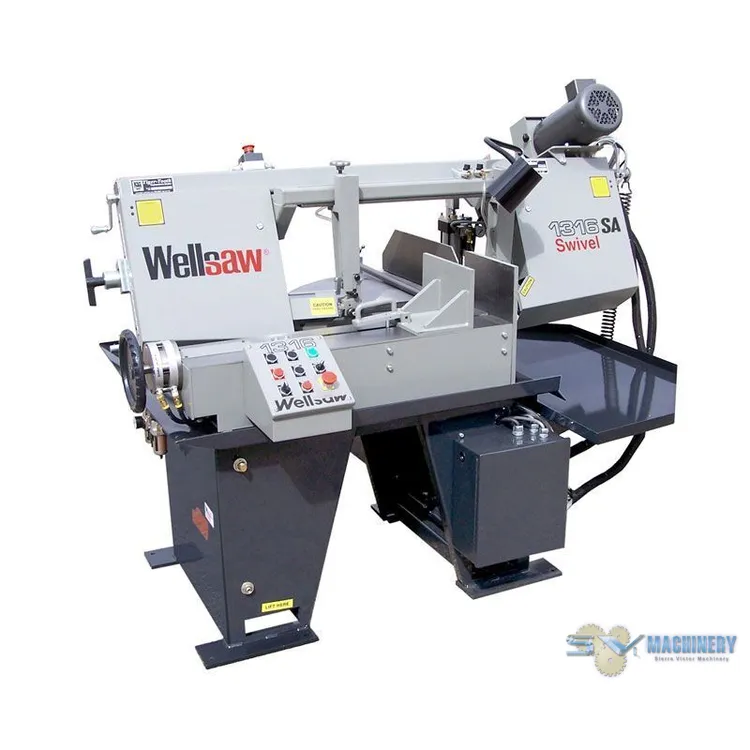

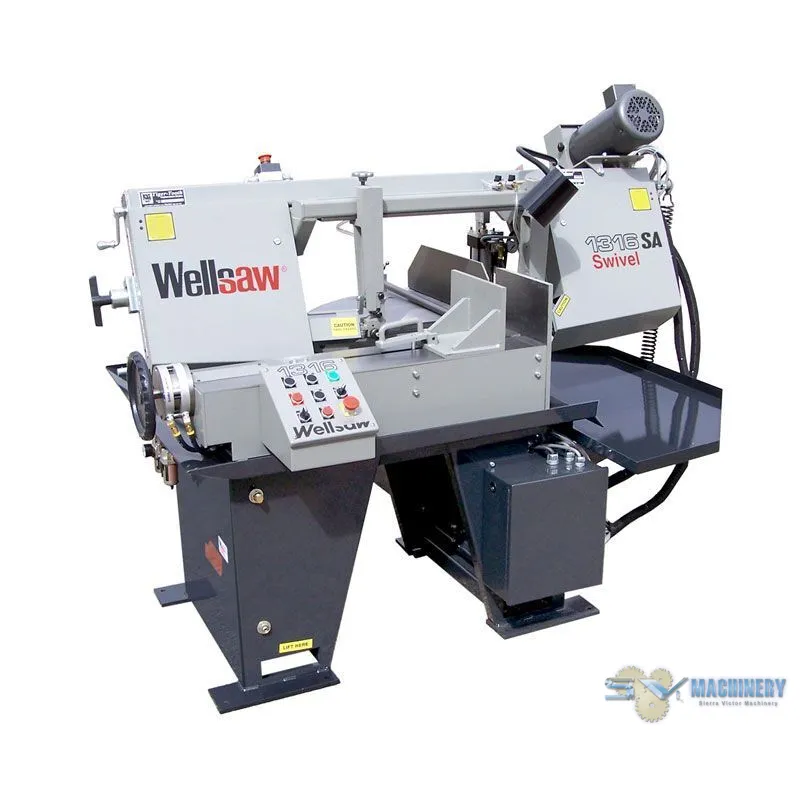

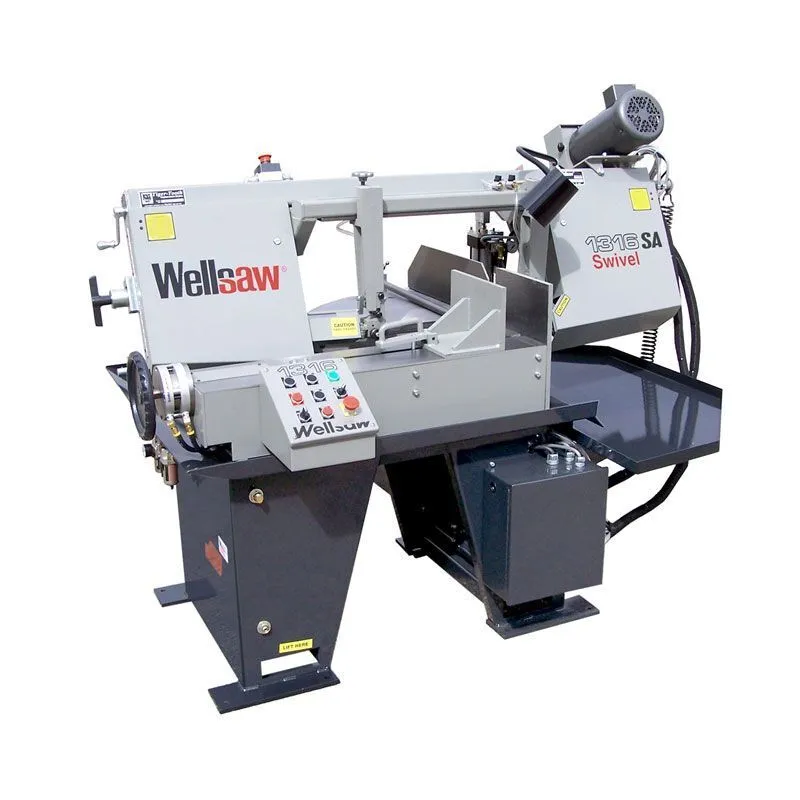

<li><strong>Wellsaw Model 1316S-SA </strong>
<ul>
<li>Swivel Head Miter Bandsaw w/ Semi-Automatic Operation</li>
<li>13” x 16” capacity at 90 degrees</li>
<li>13” x 11-1/2” capacity at 45 degrees</li>
<li>8” x 8-1/2” capacity at 60 degrees</li>
<li>1” Blade is standard </li>
<li>5 ft x 18 inch infeed gravity roller material conveyor is standard </li>
</ul>
</li>
<li><strong><u>Semi-Automatic Operation</u></strong>
<ul>
<li>The PLC controller is factory programed and manages the raise and lower functions of the saw head, and the open and close functions of the vise jaw in a programmed sequence. In high volume operations this increases productivity and reduces operator fatigue and error.</li>
</ul>
</li>
<li>Full Cycle Operation:
<ul>
<li>At the end of the cut the saw head rises to a pre-selected level</li>
<li>The vise opens</li>
<li>The operator advances the stock and presses the “Automatic” button</li>
<li>The vise closes and the saw head descends and starts the next cut<br>
</li>
</ul>
</li>
<li><strong>MANUFACTURED IN USA</strong></li>
</ul>
<p><b> STANDARD EQUIPMENT:</b></p>
<ul>
<li>5 ft. x 18” Infeed Roller Conveyor</li>
<li>Variable Hydraulic Feed Rate Control</li>
<li>Spring loaded Carbide Guides with Rollers</li>
<li>Work light with transformer</li>
<li>Combination Blade Drive</li>
<li>Reduction Gearbox and </li>
<li>Perimeter Ring & Pinion </li>
<li>Powered Blade Brush </li>
<li>110 Volts at Controls</li>
<li>Overload and Undervoltage Protection</li>
<li>Precision Ground Vise Jaws</li>
<li>Quick Positioning Vise</li>
<li>Replaceable Pivot Bushings</li>
<li>Adjustable Stock Stop</li>
<li>Auto Shut-Off at End of Cut</li>
<li>OSHA Blade Guarding</li>
<li>Tiger-Tooth® Bi-Metal Blade</li>
<li>Coolant for Initial Start-Up<br>
<br>
</li>
<li>Baldor® Motor </li>
<li>Complies with DOE Small Motor Rule</li>
<li>2 HP Single Phase / 3 HP Three Phase*</li>
<li>Infinitely Variable Blade Speeds</li>
<li>Rite-Tension® Blade Tensioning Device</li>
<li>Wet Cutting System, Flood Type w/ full surround pan<br>
</li>
</ul>
<p><b> OPTIONAL ITEMS:</b></p>
<ul>
<li>Flush Hose Kit DL 1316S-905...... <strong>$316.00</strong></li>
<li>Blade Break/Stall Switch DL 1316S-807...... <strong>$792.00</strong></li>
<li>VFD Variable Blade Speed (frequency drive)...... <strong>$2,113.00</strong></li>
<li>Laser Line Pointer...... <strong>$794.00</strong></li>
<li>Micro Lubricant System (“Near Dry” system)....... <strong>$906.00</strong></li>
<li>Lubricant for MQL system, one gallon ....... <strong>$71.00</strong></li>
<li>50 Hz or 575 Voltage......... <strong>Contact Factory</strong></li>
<li>Spare Parts Kit ......<strong>$756.00</strong></li>
<li>Spare Tiger-Tooth® Blades, package of six....... <strong>$586.80</strong></li>
<li><strong>Mounting Options
</strong>
<ul>
<li>Casters - Set of four (2 locking) 100113-003 .......<strong>$186.00</strong></li>
<li>Vibration mounts 098041-004.......... <strong>$110.00</strong></li>
</ul>
</li>
<li><strong>Disconnect Options
</strong>
<ul>
<li>Fused Disconnect Lever Type / NEMA 1 enclosure...... <strong>$838.00</strong></li>
<li>Fused Disconnect Rotary Type / NEMA 12 Enclosure....... <strong>$897.00 </strong></li>
</ul>
</li>
<li><strong>Material Handling
</strong>
<ul>
<li>Overhead Bundle Clamp, pneumatic DL 1316S-910....... <strong>$1,969.00</strong></li>
<li>Gravity Roller Conveyors,
<ul>
<li>5ft x 18” 098050-013....... <strong>$737.00</strong></li>
<li>10ft x 18” 098050-014........ <strong>$1,221.00</strong></li>
</ul>
</li>
<li>Mid-Duty Stock Stand, single roller </li>
<li>250 lb. capacity, 18" wide 098047-001....... <strong>$216.00</strong></li>
<li>Heavy Duty Stock Stand, single roller</li>
<li>6" wide 1000# capacity, pn M-325BM <br>
(use pn 325H if saw if saw is equipped with casters or vibration mounts) .......<strong>$586.00</strong></li>
<li>12" wide 1000# capacity M-326BM <br>
(use pn 326H if saw is equipped with casters or vibration mounts)....... <strong>$607.00</strong><br>
</li>
</ul>
</li>
</ul>
