<table cellspacing="0" cellpadding="0" border="1" width="520">
<tbody style="text-align: center;">
<tr>
<td colspan="2" valign="middle" bgcolor="#333333" class="Title_white_bold">
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>MODEL</strong></span>
</div>
</td>
<td width="257" valign="middle" bgcolor="#333333" class="TableText">
<div align="center"><strong><span style="color: rgb(255, 255, 255);">ADVANCED CAP 2080</span></strong>
</div>
</td>
</tr>
<tr>
<td width="148" rowspan="2" valign="middle" bgcolor="#cccccc" class="TableText">
<div align="center">Bending Force
</div>
</td>
<td valign="middle" bgcolor="#cccccc" class="TableText">
<div align="center">Metric Ton
</div>
</td>
<td valign="middle" class="TableText">
<div align="center">80
</div>
</td>
</tr>
<tr>
<td width="107" valign="middle" bgcolor="#cccccc" class="TableText">
<div align="center">US Ton
</div>
</td>
<td valign="middle" class="TableText">
<div align="center">88
</div>
</td>
</tr>
<tr>
<td colspan="2" valign="middle" bgcolor="#cccccc" class="TableText">
<div align="center">Bending Lenght
</div>
</td>
<td valign="middle" class="TableText">
<div align="center">82.7 in.
</div>
</td>
</tr>
<tr>
<td colspan="2" valign="middle" bgcolor="#cccccc" class="TableText">
<div align="center">Stroke
</div>
</td>
<td valign="middle" class="TableText">
<div align="center">8.5 in.
</div>
</td>
</tr>
<tr>
<td colspan="2" valign="middle" bgcolor="#cccccc" class="TableText">
<div align="center">Throat Depth
</div>
</td>
<td valign="middle" class="TableText">
<div align="center">12.2 in.
</div>
</td>
</tr>
<tr>
<td colspan="2" valign="middle" bgcolor="#cccccc" class="TableText">
<div align="center">Back Gauge X-Axis Stroke
</div>
</td>
<td valign="middle" class="TableText">
<div align="center">19.7 in.
</div>
</td>
</tr>
<tr>
<td colspan="2" valign="middle" bgcolor="#cccccc" class="TableText">
<div align="center">Daylight
</div>
</td>
<td valign="middle" class="TableText">
<div align="center">17.1 in.
</div>
</td>
</tr>
<tr>
<td colspan="2" valign="middle" bgcolor="#cccccc" class="TableText">
<div align="center">Distance Between Columns
</div>
</td>
<td valign="middle" class="TableText">
<div align="center">66.9 in.
</div>
</td>
</tr>
<tr>
<td colspan="2" valign="middle" bgcolor="#cccccc" class="TableText">
<div align="center">R-Axis Speed
</div>
</td>
<td valign="middle" class="TableText">
<div align="center">7.9 in/s
</div>
</td>
</tr>
</tbody>
</table>
<p>Specifications are subject to change without notice.
</p>
<p>NOTE: Data is provided by the manufacturer.
</p>
<p><strong>WARRANTY: 3 YEAR</strong> – Parts
</p>
<ul>
<li>Robust Frame Construction: Manufactured with advanced technology, featuring precision tolerances and stress relief with welded components.</li>
<li>Optimized Design: All tensile points designed with large radii to eliminate potential welding cracks.</li>
<li>Table Inertia: Lower and upper tables designed for optimal inertia, minimizing deformation.</li>
<li>Vertical Top Plate Positioning: Allows roller bearings, piston bearings, and felts to compensate for vertical loads.</li>
<li>Double-Sided Hydraulic Cylinders: Honed to 2 microns for minimal wear resistance, made from SAE 1040 forged material.</li>
<li>Bolted Hydraulic Cylinders: Ensures excellent leveling and load balancing.</li>
<li>Piston Design: Features omega-type felts with full bronze bearings and semi-angled sleeves for durability.</li>
<li>Precision Ground Pistons: Hard chrome plated for low friction and abrasion resistance.</li>
<li>Adjustable Top Tray Slides: Constructed for minimal friction and guided movement in multiple directions.</li>
<li>Hydraulic System: Ensures precise usage and repeatability at all pressure values up to maximum operating pressure.</li>

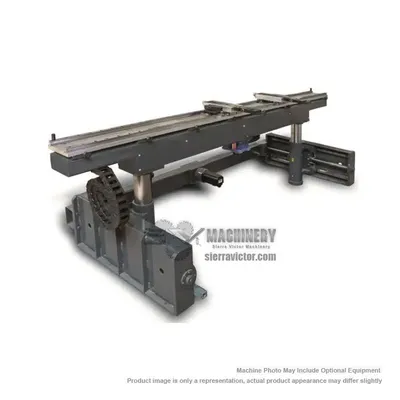

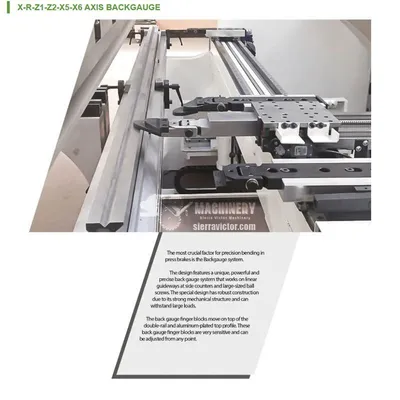

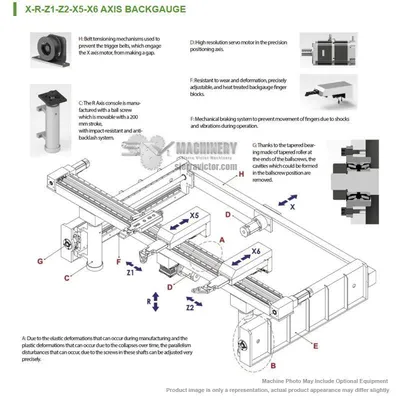

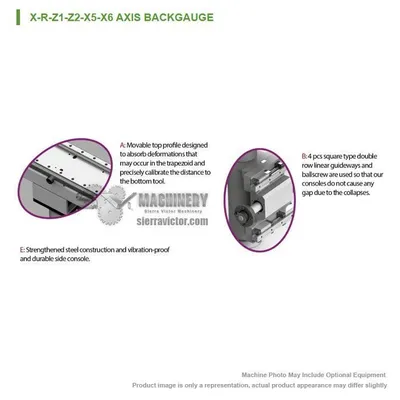

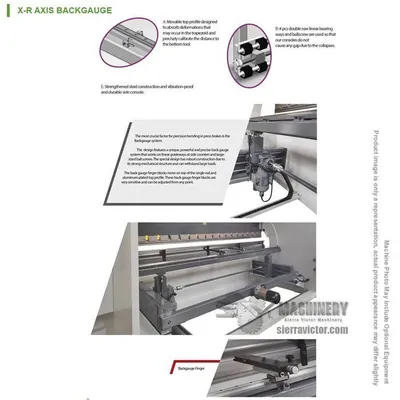

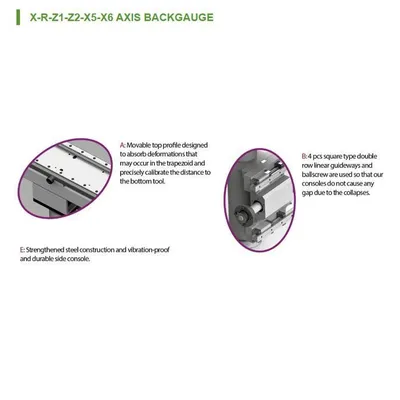

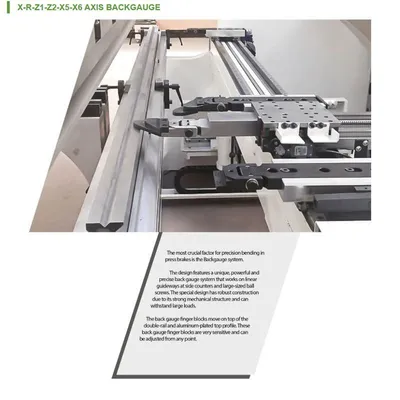

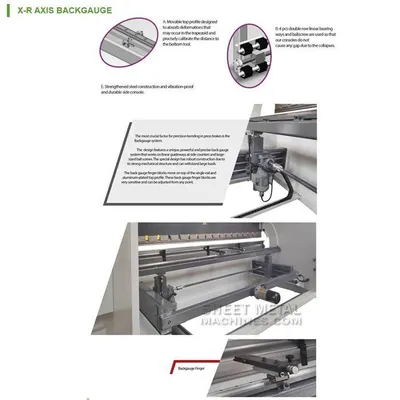

<li>Heavy-Duty Backgauge System: Designed for harsh conditions with scrapping type bearings to prevent dust accumulation.</li>
<li>Durable Surface Coating: Two layers of paint (60 microns) for weather resistance, dried in advanced ovens.</li>
<li>Standard Axes: Equipped with Y1, Y2, and X-axes.</li>
</ul>
<p><strong>STANDARD EQUIPMENT:</strong>
</p>
<ul>
<li>Axes: Y1, Y2, X – 3 Axes</li>
<li>Control Unit: Esa S625 Touch Screen</li>
<li>Back Gauge: X Axis with AC Motor</li>
<li>Bottom Narrow Table</li>
<li>Support Arm: Includes scale, T-Slot, and tilting stop.</li>
<li>Top Tool Clamping: European type.</li>
<li>Top Tool Specs: H: 66.6mm, 85° R: 08mm</li>
<li>Bottom Tool Specs: 4V H: 60x60mm, 85°</li>

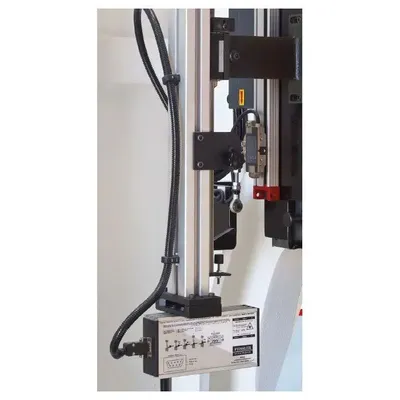

<li>Safety Features: Front laser safety manual (Fiessler Akas FPBS) and back safety light curtains.</li>
<li>Lighting Lamp</li>
<li>Foot Pedal: With emergency stop button.</li>
</ul>
<p><b>OPTIONAL ITEMS - CALL FOR PRICE:</b></p>
<ul>
<li>Crowning Options: Manual crowning or CNC controller motorized crowning.</li>

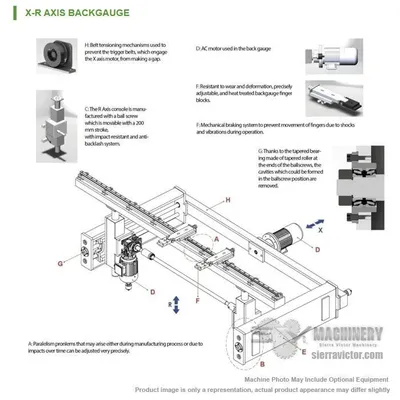

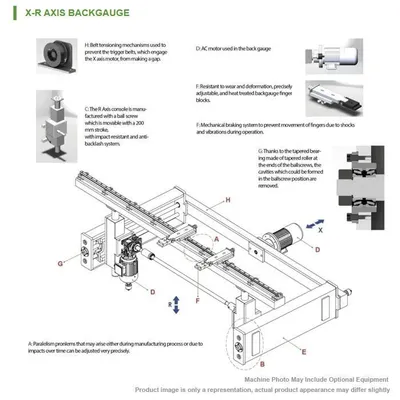

<li>Back Gauge Options: X, R axes with AC motor.</li>
<li>Foot Pedal: Stand type with emergency stop button.</li>
<li>Heating Options: Oil heater and oil coolant with fan.</li>
<li>Tool Clamping: Hydraulic top and bottom tool clamping available.</li>
<li>Lubrication: Manual or motorized central lubrication systems.</li>
<li>Safety Certifications: CE certified with manual (Fiessler AKAS II M-FMSC).</li>
<li>American Tool Holder: Available upon specification of details.</li>
</ul>
