<table cellspacing="0" cellpadding="0" border="1" width="520">
<tbody style="text-align: center;">
<tr class="TableText">
<td bgcolor="#cccccc" width="257" valign="middle" class="TableText1">
<div align="center"><span class="TableText">Table Size</span>
</div>
</td>
<td width="257" valign="middle" class="TableText1">
<div align="center"><span class="TableText">10 x 50 in.</span>
</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc" width="257" valign="middle" class="TableText1">
<div align="center"><span class="TableText">Table Load Capacity</span>
</div>
</td>
<td valign="middle" class="TableText1">
<div align="center" class="TableText">
<div align="center">727 lbs
</div>
</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc" valign="middle" class="TableText1">
<div align="center"><span class="TableText">X Axis Travel</span>
</div>
</td>
<td valign="middle" class="TableText">
<div align="center" class="TableText">
<div align="center">33 in.
</div>
</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc" valign="middle" class="TableText1">
<div align="center">X Travel with power feed
</div>
</td>
<td valign="middle" class="TableText">
<div align="center">28-3/4 in.
</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc" valign="middle" class="TableText1">
<div align="center"><span class="TableText">Y Axis Travel</span>
</div>
</td>
<td valign="middle" class="TableText">
<div align="center">12-1/2 in.with power feed
</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc" valign="middle" class="TableText1">
<div align="center"><span class="TableText"> Z Axis Travel</span>
</div>
</td>
<td valign="middle" class="TableText">
<div align="center">16 in.
</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc" valign="middle" class="TableText1">
<div align="center">Max. distance spindle to table
</div>
</td>
<td valign="middle" class="TableText1">
<div align="center">1-11/16 -17-5/8 in.
</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc" valign="middle" class="TableText1">
<div align="center">Max. distance spindle to column
</div>
</td>
<td valign="middle" class="TableText1">
<div align="center">17-1/4 in.
</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc" valign="middle" class="TableText1">
<div align="center">Min. distance spindle to column
</div>
</td>
<td valign="middle" class="TableText1">
<div align="center">8-1/4 in.
</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc" valign="middle" class="TableText1">
<div align="center"><span class="TableText">Spindle Taper Type</span>
</div>
</td>
<td valign="middle" class="TableText1">
<div align="center" class="TableText">
<div align="center">R-8
</div>
</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc" valign="middle" class="TableText1">
<div align="center"><span class="TableText">AC Spindle Motor</span>
</div>
</td>
<td valign="middle" class="TableText1">
<div align="center" class="TableText">
<div align="center">3 HP, 220V or 440V, 3 phase
</div>
</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc" valign="middle" class="TableText1">
<div align="center">Variable spindle speeds
</div>
</td>
<td valign="middle" class="TableText">
<div align="center">60-4,200 rpm
</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc" valign="middle" class="TableText1">
<div align="center"><span class="TableText">Quill ( Spindle ) diameter</span>
</div>
</td>
<td valign="middle" class="TableText">
<div align="center">3-3/8 in.
</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc" valign="middle" class="TableText1">
<div align="center"><span class="TableText">Quill ( Spindle ) travel</span>
</div>
</td>
<td valign="middle" class="TableText">
<div align="center">5 in.
</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc" valign="middle" class="TableText1">
<div align="center" class="TableText">
<div align="center">Ram travel
</div>
</div>
</td>
<td valign="middle" class="TableText">
<div align="center">17 in.
</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc" valign="middle" class="TableText1">
<div align="center">Table T-slot size
</div>
</td>
<td valign="middle" class="TableText">
<div align="center">5/8 in. x 3 slots
</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc" valign="middle" class="TableText1">
<div align="center">Head Swivel, Right to Left
</div>
</td>
<td valign="middle" class="TableText">
<div align="center">90 degree
</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc" valign="middle" class="TableText1">
<div align="center">Head Tilting
</div>
</td>
<td valign="middle" class="TableText">
<div align="center">45 degree
</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc" valign="middle" class="TableText1">
<div align="center">Machine Dimensions
</div>
</td>
<td valign="middle" class="TableText">
<div align="center">66 x 63 x 87 in.
</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc" valign="middle" class="TableText1">
<div align="center"><span class="TableText">Machine Weight</span>, approx.
</div>
</td>
<td valign="middle" class="TableText">
<div align="center">2,830 lbs
</div>
</td>
</tr>
</tbody>
</table>
<p>Specifications are subject to change without notice.
</p>
<p>NOTE: Data is provided by the manufacturer.
</p>
<p><strong>WARRANTY: 1 YEAR</strong> – Parts
</p>
<ul class="TableText">
<li>Made in Taiwan </li>
<li>Variable Speed</li>
<li>“Meehanite” casting </li>
<li>Turcite “B” coating on X/Y ways like CNC mills </li>
<li>ISO 9001 certified</li>
<li>Mechanical variable spindle speeds from 60-4,200 rpm </li>
<li>Heavy duty 3 HP AC spindle motor, 3 phase </li>
<li>Heavy Duty high grade castings </li>
<li>Hardened and ground ways, dovetail ways on X and Z , square ways on Y knee </li>
<li>Hardened and ground table and Ground table T-slots </li>

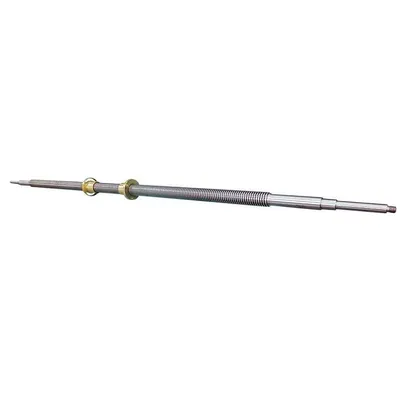

<li>Precision ground ACME Leadscrews</li>
<li>Chromed ground quill ( spindle ) </li>
<li>Chromed dials </li>
<li>Adjustable ways </li>
<li>Hand brake on mill head </li>

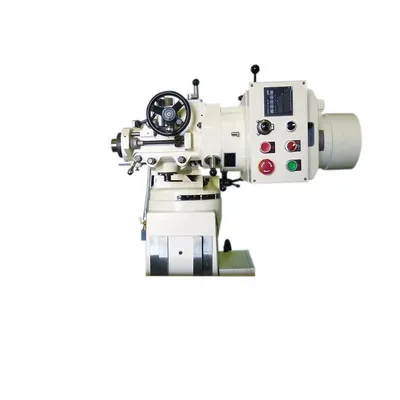

<li>Tilting and rotating head </li>
<li>Manual or automatic quill feeds 0.0015" , 0.003", 0.006" per spindle revolution</li>
<li>One shot lube system </li>
<li>front and rear rubber chip guards, and (1) manual draw bar </li>
<li>Tool box kit and leveling pads </li>
<li>Power source 220V OR 440V, 3 phase </li>
<li>One year industrial warranty for parts </li>
<li>*This machine is compatible with a phase converter. Please note that the phase converter must be installed by GMC Machine Tools to ensure warranty coverage. </li>
<li>**Once the machine is received and the phase converter is installed by us, it will be ready for use. For more information or if you have any further questions or need assistance, feel free to contact us.</li>
</ul>
<p><strong>STANDARD EQUIPMENT: </strong>
</p>
<ul class="TableText">

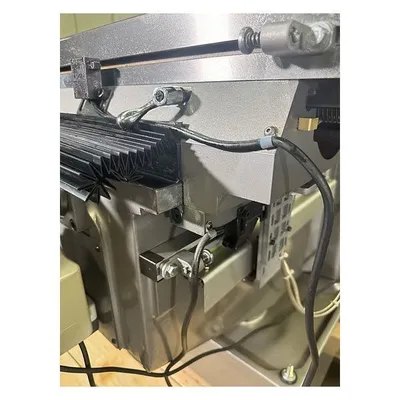

<li>2 axis CARMAR DRO installed on X and Y </li>

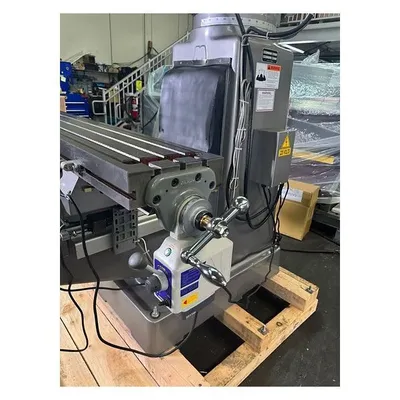

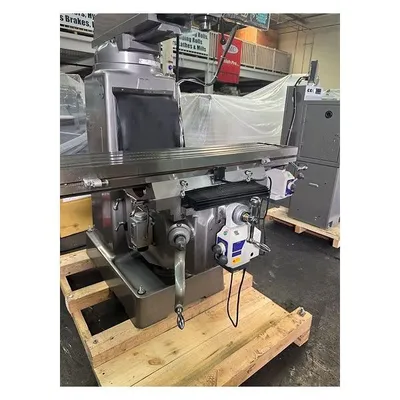

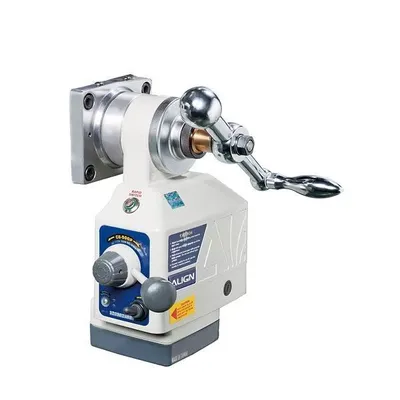

<li>Table power feeds X and Y installed </li>
<li>One shot lube </li>
<li>Draw bar </li>

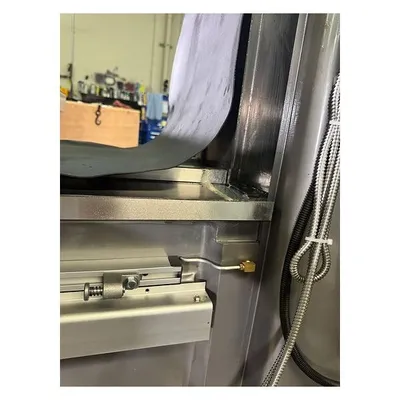

<li>Rubber way covers</li>
<li>Tool box </li>
</ul>
<p><b>OPTIONAL ITEMS:</b></p>
<table cellspacing="0" cellpadding="0" border="1" width="520" class="TableText">
<tbody style="text-align: center;">
<tr bgcolor="#333333" class="Title_white">
<td width="96" class="optional_accessories">
<div align="center" class="Title_white_bold">
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>PART # </strong></span>
</div>
</div>
</td>
<td width="338" bgcolor="#333333">
<div align="center" class="Title_white_bold">
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>ITEM</strong></span>
</div>
</div>
</td>
<td width="78" bgcolor="#333333" class="Title_white_bold">
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>PRICE</strong></span>
</div>
</td>
</tr>
<tr>
<td bgcolor="#CCCCCC" class="optional_accessories">
<div align="center">—
</div>
</td>
<td>
<div align="center">Coolant System
</div>
</td>
<td bgcolor="#CCCCCC" class="optional_accessories">
<div align="center">$550.00
</div>
</td>
</tr>
<tr>
<td bgcolor="#CCCCCC" class="optional_accessories">
<div align="center">COOL-PAN
</div>
</td>
<td>
<div align="center">Base coolant/chip drop pan
</div>
</td>
<td bgcolor="#CCCCCC" class="optional_accessories">
<div align="center">$450.00
</div>
</td>
</tr>
<tr>
<td bgcolor="#CCCCCC" class="optional_accessories">
<div align="center">900-0021
</div>
</td>
<td>

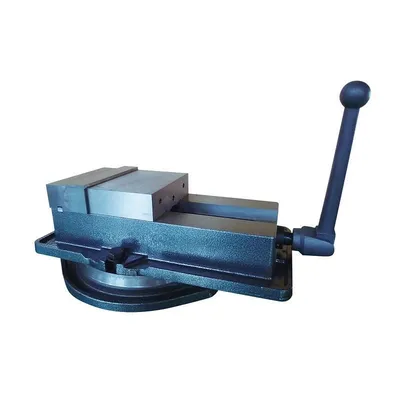

<div align="center">6" angle lock vise with swivel base
</div>
</td>
<td bgcolor="#CCCCCC" class="optional_accessories">
<div align="center">$595.00
</div>
</td>
</tr>
<tr>
<td bgcolor="#CCCCCC" class="optional_accessories">
<div align="center">900-0001
</div>
</td>
<td>
<div align="center">52 pcs clamping kit, 1/2”-13NC stud, 5/8” T-slot
</div>
</td>
<td bgcolor="#CCCCCC" class="optional_accessories">
<div align="center">$295.00
</div>
</td>
</tr>
<tr>
<td bgcolor="#CCCCCC" class="optional_accessories">
<div align="center">900-0007
</div>
</td>
<td>
<div align="center">11 pcs R 8 collets set, 1/8” – 7/8”
</div>
</td>
<td bgcolor="#CCCCCC" class="optional_accessories">
<div align="center">$275.00
</div>
</td>
</tr>
<tr>
<td bgcolor="#CCCCCC" class="optional_accessories">
<div align="center">PAM-300HD
</div>
</td>
<td>
<div align="center">Rotary Phase converter, 7HP, USA, <br>
for single phase conversion
</div>
</td>
<td bgcolor="#CCCCCC" class="optional_accessories">
<div align="center">$1,950.00
</div>
</td>
</tr>
<tr>
<td bgcolor="#CCCCCC" class="optional_accessories">
<div align="center">Mill package #3
</div>
</td>
<td>
<div align="center">Mill package #3, incl 6" vise # 3900-2103, <br>
Collet set #3900-0007, <br>
Clamping Kit #3900-0001,<br>
20pc Titanium end mill set #8000-0020, <br>
29pc Titanium drill bit set #5000-0001
</div>
</td>
<td bgcolor="#CCCCCC" class="optional_accessories">
<div align="center">$1,295.00
</div>
</td>
</tr>
</tbody>
</table>
