<table cellspacing="0" cellpadding="0" border="1" width="520">
<tbody style="text-align: center;">
<tr bgcolor="#333333" class="Title_white_bold">
<td width="270" class="TableText">
<div align="center" class="Title_white_bold">
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>MODEL</strong></span>
</div>
</div>
</td>
<td width="244" class="TableText">
<div align="center" class="Title_white_bold">
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>NO. PH-452</strong></span>
</div>
</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc" class="TableText">
<div align="center">Catalog No.
</div>
</td>
<td>
<div align="center">191314521 (230V) <br>
191414521 (460V)
</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc" class="TableText">
<div align="center">Operation type
</div>
</td>
<td class="TableText">
<div align="center">Hydraulic
</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc" class="TableText">
<div align="center">Maximum Shearing Capacity, Mild Steel
</div>
</td>
<td class="TableText">
<div align="center">16 ga.
</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc" class="TableText">
<div align="center">Maximum Shearing Capacity, Stainless Steel
</div>
</td>
<td class="TableText">
<div align="center">20 ga.
</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc" class="TableText">
<div align="center">Maximum Cutting Length
</div>
</td>
<td class="TableText">
<div align="center">52 in.
</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc" class="TableText">
<div align="center">Back Gauge Range
</div>
</td>
<td class="TableText">
<div align="center">30 in.
</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc" class="TableText">
<div align="center">Standard Motor
</div>
</td>
<td class="TableText">
<div align="center">2 HP, 1800 RPM, 3-phase
</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc" class="TableText">
<div align="center">Floor Space, Gauges in Position
</div>
</td>
<td class="TableText">
<div align="center">66 x 76 x 42 in.
</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc" class="TableText">
<div align="center">Dimensions
</div>
</td>
<td class="TableText">
<div align="center">72 x 48 x 36 in.
</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc" class="TableText">
<div align="center"> Weight
</div>
</td>
<td class="TableText">
<div align="center">1,350 lbs.
</div>
</td>
</tr>
</tbody>
</table>
<p>Specifications are subject to change without notice.
</p>
<p>NOTE: Data is provided by the manufacturer.
</p>
<p><strong>WARRANTY: 3 YEAR</strong> – Limited <br>Note: Consumable tooling is not covered under the 3 year manufacturer’s warranty.
</p>
<ul>

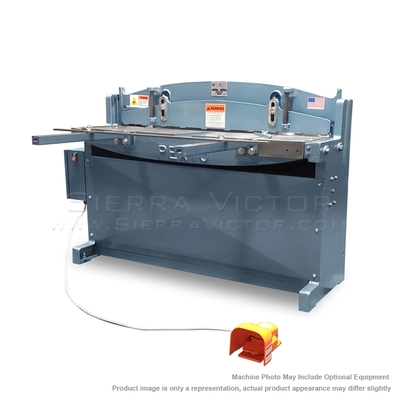

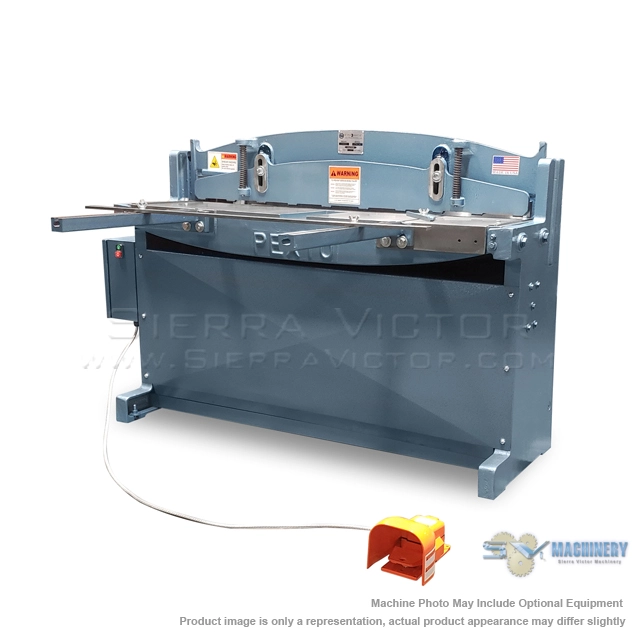

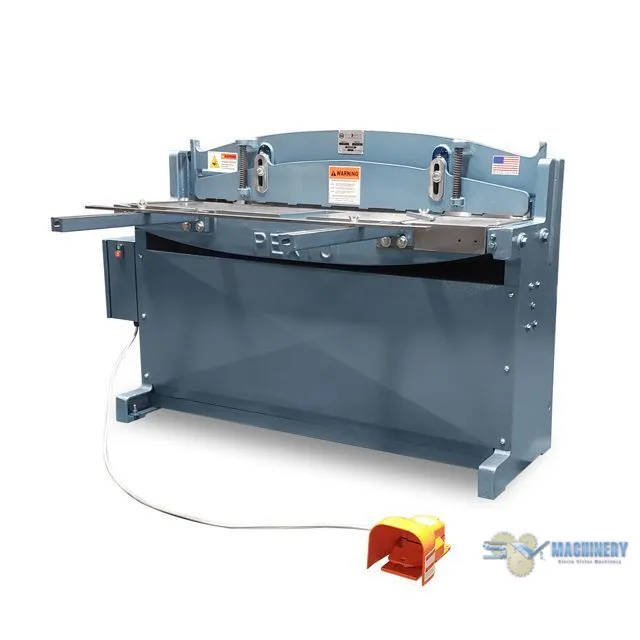

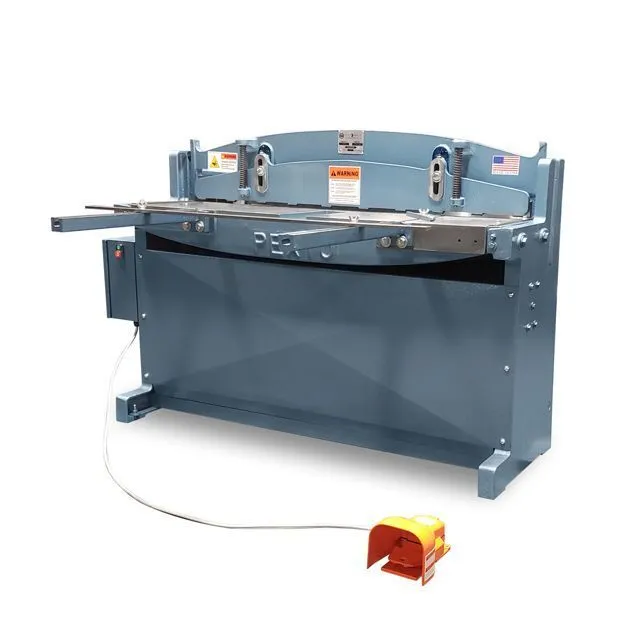

<li>Pexto power squaring shears provide features designed for shearing efficiently and accurately equal the demands of present day productivity. The PH-452 model has built-in ruggedness that will make them last for years of normal use. The shears offer triple-action shearing which includes relief on both edges of both the fixed and moving blades. The blade design eliminates blade-to-blade friction, provides “bite” to minimize sheet movement under shearing stress and produces double penetration in the cutting action. The shears will handle a 52″ sheet. Max. Rated Capacity – 16 gauge (mild steel)</li>
<li>Pexto’s PH-452 features compact, fully-integrated, hydraulically powered units that are ideal for many light gauge shearing applications. Pexto hydraulic power shears feature fast, smooth, oil-cushioned action. Both moving and fixed blades are shearing blades of Hi-Speed steel. One piece cast shear bed is recessed for easy sheet handling. Standard equipment includes a precision rack and pinion back gauge a solid finger guard. The PH-452 also includes front and side gauges, bevel gauges and two front arms. The bed is machined for optional side extension squaring gauge.</li>

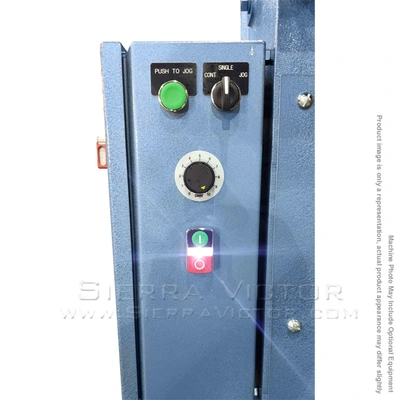

<li>Fully enclosed control panel, with magnetic starter, selector switch and relays</li>
<li>Single or continuous stroke operation.</li>
<li>Heavy duty foot switch. If released anywhere in the stroke, crosshead returns to “up” position.</li>
<li>Pressure relief valve to prevent overloading.</li>
<li>Electric solenoid hydraulic valve for instantaneous response.</li>
<li>Dial stroke control – accessible adjustment with stroke length indicator.</li>
<li>Hydraulic power uniformly applied through double-acting cylinders.</li>
<li>230V or 460V 3 phase power</li>
<li>Optional 230V single phase power upgrade</li>
<li><strong>MADE IN THE USA</strong></li>
</ul>
<p><b>OPTIONAL ITEMS - CALL FOR PRICE:</b></p>
<table class="TableText" width="520" cellspacing="0" cellpadding="0" border="1">
<tbody style="text-align: center;">
<tr class="Title_white" bgcolor="#333333">
<td class="optional_accessories" width="78">
<div class="Title_white_bold"><span style="color: #ffffff;"><strong>PART #</strong></span>
</div>
</td>
<td width="363" bgcolor="#333333">
<div class="Title_white_bold"><span style="color: #ffffff;"><strong>ITEM</strong></span>
</div>
</td>
</tr>
<tr>
<td class="optional_accessories" bgcolor="#CCCCCC">
<div>350700193
</div>
</td>
<td>
<div>Hi-Speed Replacement Blade<br> ( Upper & lower blades are identical - 16 lbs. shipping weight ): $CALL<br>
</div>
</td>
</tr>
<tr class="TableText">
<td class="optional_accessories" bgcolor="#CCCCCC">
<div>262006900
</div>
</td>
<td>

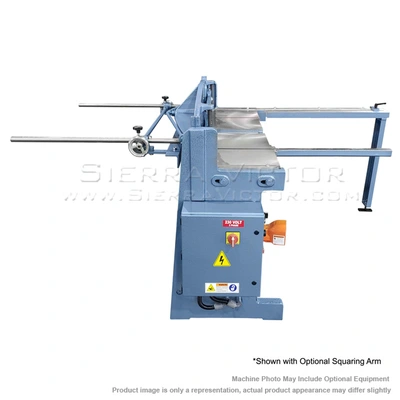

<div>4 Foot Squaring Arm: $CALL<br>
</div>
</td>
</tr>
<tr class="TableText">
<td class="optional_accessories" bgcolor="#CCCCCC">
<div>135003521
</div>
</td>
<td>
<div>Accessory Package - <br> Includes: Front gauge, Bevel gauge, T-Bolts, Front arms
</div>
</td>
</tr>
</tbody>
</table>
