<table cellspacing="0" cellpadding="0" border="1" width="520">
<tbody style="text-align: center;">
<tr bgcolor="#333333" class="Title_white">
<td class="TableText"><div align="center" class="Title_white_bold">
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>MODEL</strong></span> </div>
</div></td>
<td class="TableText"><div align="center" class="Title_white_bold">

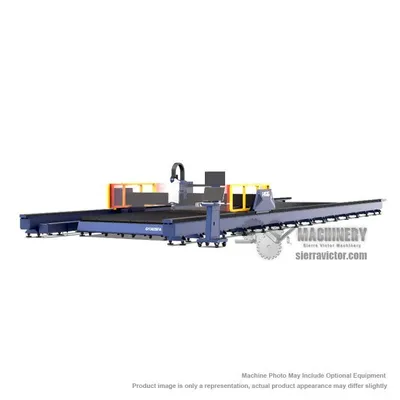

<div align="center">G12035FA</div>
</div></td>
</tr>
<tr>
<td bgcolor="#cccccc" width="257" class="TableText"><div align="center">Laser Power </div></td>
<td width="257" class="TableText"><div align="center">12-60kW (12000W-60000W)</div></td>
</tr>
<tr>
<td bgcolor="#cccccc" width="257" class="TableText"><div align="center">Cutting Area (Length*Width) </div></td>
<td class="TableText"><div align="center"> 12100 x 3500mm</div></td>
</tr>
<tr>
<td bgcolor="#cccccc" width="257" class="TableText"><div align="center">Maximum Acceleration </div></td>
<td class="TableText"><div align="center">0.5G</div></td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText"><div align="center">X/Y Axis Positioning Accuracy </div></td>
<td class="TableText"><div align="center">±0.05mm/m</div></td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText"><div align="center">X/Y Axis Re-positioning Accuracy </div></td>
<td class="TableText"><div align="center">±0.05mm</div></td>
</tr>
</tbody>
</table>
<p><strong>For more details, feel free to reach out to us!</strong><br></p>
<p>Specifications are subject to change without notice.</p>
<p>NOTE: Data is provided by the manufacturer.</p>
<p><strong>WARRANTY: 1 YEAR</strong> – Parts</p>
<ul>
<li><strong>LARGE FORMAT CUTTING</strong></li>

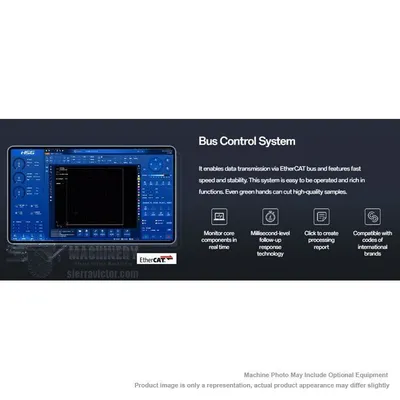

<li><strong>Bus Control System:</strong> It enables data transmission via EtherCAT bus and features fast speed and stability. This system is easy to be operated and rich in functions. Even green hands can cut high-quality samples.</li>

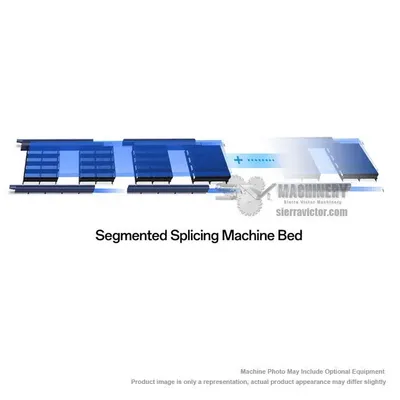

<li><strong>Segmented Splicing Machine Bed:</strong> The machine bed is made of several sections and allows to be customized as needed for infinite splicing machine beds. Cutting large-format sheet will be easily handled.</li>

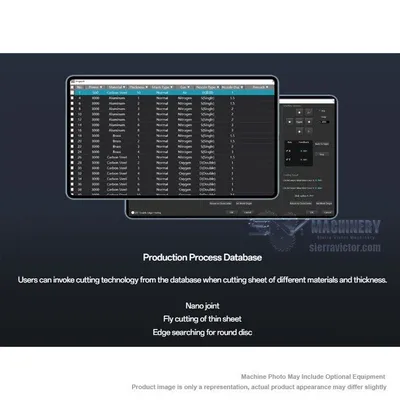

<li>Production Process Database: Users can invoke cutting technology from the database when cutting sheet of different materials and thickness.
<ul>
<li>Nano joint</li>
<li>Fly cutting of thin sheet</li>
<li>Edge searching for round disc</li>
</ul>
</li>

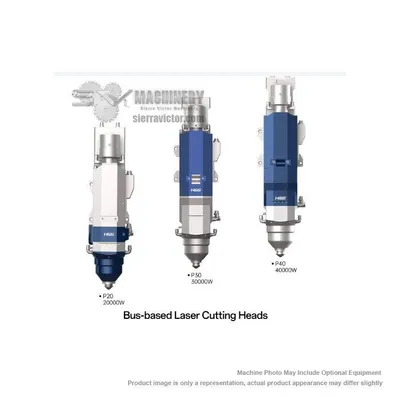

<li><strong>Bus-based Laser Cutting Heads:</strong> HSG has developed multiple high-power bus laser cutting heads that range from 10kW to 40kW based on its study on interaction between metal materials and laser. With that, thick sheets can be cut stably in batch.</li>

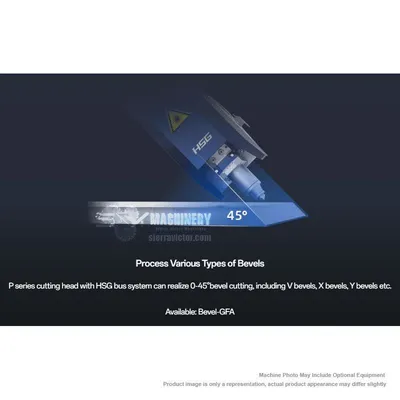

<li><strong>Process Various Types of Bevels: </strong>P series cutting head with HSG bus system can realize 0-45°bevel cutting, including V bevels, X bevels, Y bevels etc.
<ul>
<li>Available: Bevel-GFA</li>
</ul>
</li>
</ul>
