<table cellspacing="0" cellpadding="0" border="1" width="520">
<tbody style="text-align: center;">
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Bending Capacity
</div>
</td>
<td class="TableText">
<div align="center">2-1/2 in. Square 40
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Cylinder
</div>
</td>
<td class="TableText">
<div align="center">6 in.
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Bending Plane Height
</div>
</td>
<td class="TableText">
<div align="center">42 in.
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Motor
</div>
</td>
<td class="TableText">
<div align="center">7-1/2 HP
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" width="257" class="TableText">
<div align="center">Bending Power
</div>
</td>
<td width="257" class="TableText">
<div align="center">85,000 lbs.
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Oil Tank
</div>
</td>
<td class="TableText">
<div align="center">10 gal
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Foot Print
</div>
</td>
<td class="TableText">
<div align="center">24 W x 54 L in.
</div>
</td>
</tr>
</tbody>
</table>
<p>Specifications are subject to change without notice.
</p>
<p>NOTE: Data is provided by the manufacturer.
</p>
<p><strong>WARRANTY: 1 YEAR</strong> – Parts
</p>
<ul>
<li>Steel I-beam construction reinforced with heavy steel framing</li>
<li>Ergonomic design with a bending plane height of 42”</li>
<li>High efficiency with a quiet helical pump</li>
<li>Extra-large oil tank (10 gals) for continuous and multi-shift usage</li>
<li>7-1/2 horsepower, heavy-duty gates, and bushings</li>
<li>Small footprint of 24" wide and 54" long for any manufacturing space</li>
<li>Knee pedal activation for setup</li>
<li>Auto depth of bend selector</li>
<li>Ability to bend round, square, or rectangular tubing and pipe</li>
<li>Ability to handle schedule/thick wall pipe with ease</li>
<li>Available custom tooling for square, flat stock, common pipe and tube</li>
<li>Available built-in end-forming kit option</li>

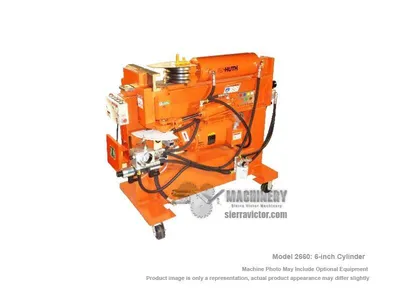

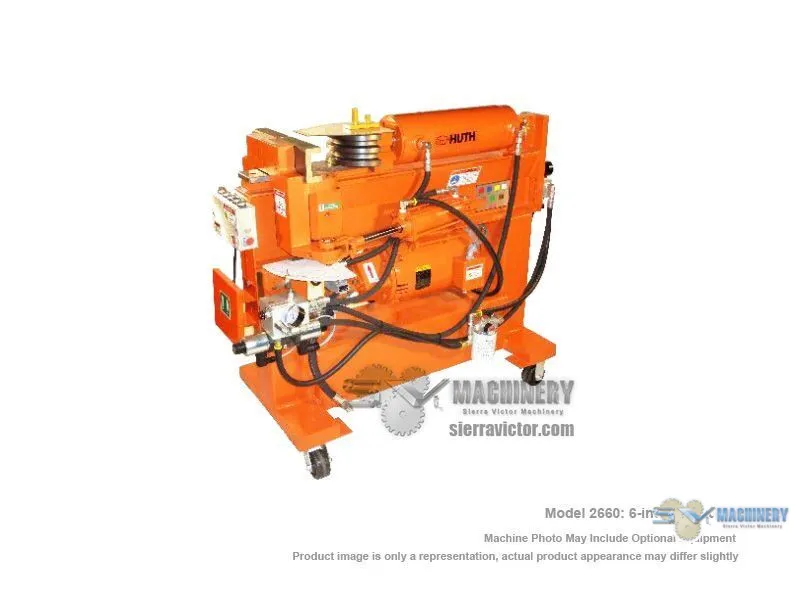

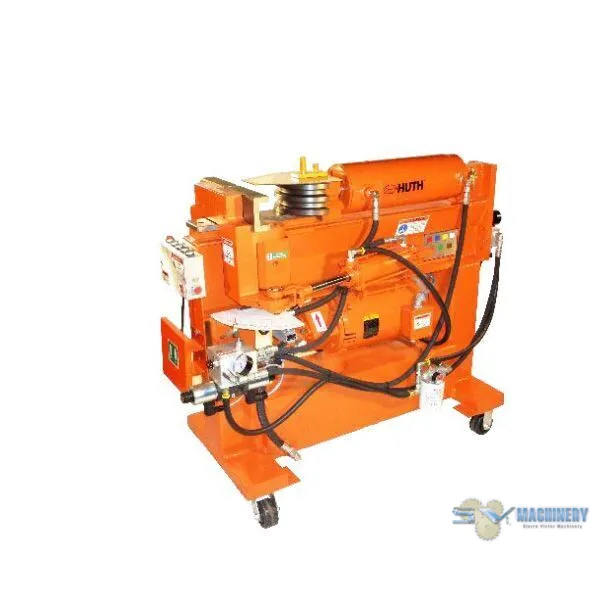

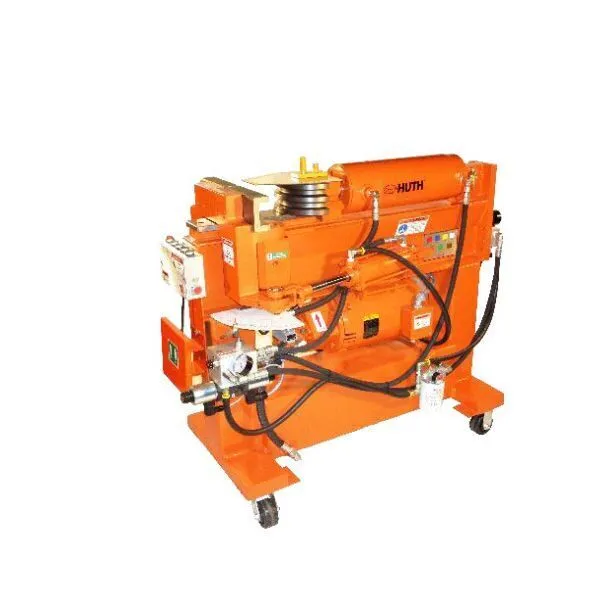

<li>Model 2660 features a 6-inch cylinder with 85,000 lbs. of bending force. This model can bend 2 ½ inch square 40.</li>
<li>Thanks to the reliable 7 ½ HP motor and rugged durability, a 3” tube can be bent to a 90-degree angle in the automatic mode in just 16 seconds. Fast, efficient, and reliable, Huth Fabrication Benders deliver with ease. </li>
<li>Fabrication Benders from Huth Ben Pearson International are strong, powerful, and fast working. We designed our Fabrication Benders to be extremely versatile to meet modern tooling needs. With a small footprint, <strong>our Model 2650 and 2660 Fabrication Benders are ideal for round, square, and rectangular tubing and pipe in many manufacturing applications</strong>.</li>
<li>Perfect for manufacturing tubing and frames, including those used in the building and transportation industries. Our metal Fabrication Benders are also ideal for sporting goods applications, fencing, panels, outdoor equipment, lawn furniture, and more.</li>
<li><strong>The 2650 and 2660 Fabrication Benders bend pipe, tubing, and solid bars</strong>. With steel I-beam construction and heavy steel framing, Huth Benders are built to last through heavy, repetitive use during frame fabrication. The high-efficiency helical pump offers quiet operation. In addition, 7 ½ horsepower motor and heavy-duty gates and bushings ensure that our Frame Benders work reliably year after year.</li>
<li>2650/2660 Fabrication Benders feature an extra-large 10-gallon oil tank ideally suited for continuous, multi-shift use. We know downtime is costly in manufacturing, and <strong>Huth Fabrication Benders work overtime to help you keep up with production</strong>. </li>
<li><strong>Huth Fabrication Benders feature an ergonomically designed knee control that allows for safe, hands-free operation</strong>. The feature is invaluable for prototyping and allows for quick tube location and securing.</li>
<li>The smart automatic mode features an adjustable return-to-home position control. This unique, time-saving feature increases efficiency, assuring fast and easy transitions between multiple bends. The automatic dept-of-bend selector is perfect for precise bending control with an easy-to-read and adjustable depth-of-bend plate, ensuring accuracy and repeatability.</li>
<li>The machine is high efficiency, made to run cool and continuously through many shifts. Make the same bend over and over, knowing it will continue to be accurate and precise throughout the run.</li>
<li>Features and upgrades are available. <strong>The Huth Fabrication Benders are affordable and customizable for your manufacturing needs</strong>. In addition, we carry the tooling and components needed to adjust the Benders for your unique applications.</li>
<li>The Huth Ben Pearson International Fabricators are ideal for many different fabrication uses, including:
<ul>
<li>Trailers</li>
<li>Fencing and Gates</li>
<li>Pole Barns</li>
<li>Carports</li>
<li>Sports Equipment</li>
<li>Farm Structures (Feed Rings, Panels, Saddle Racks)</li>
<li>Boat Frame-Lifts</li>
<li>Industrial Racking</li>
<li>And More….</li>
</ul>
</li>
<li>If you’re looking for fabrication equipment you can rely on, trust Huth. <strong>With over 50 years of experience in the manufacturing industry and unparalleled customer service, we’re ready to ensure that your machine and fabrication needs are met</strong>. Reach out today to learn how Huth Fabrication Benders can suit your requirements and offer reliable support for your manufacturing project.</li>
</ul>
<p><strong>OPTIONAL ITEMS - CALL FOR PRICE:</strong></p>
<ul>
<li>Custom tooling available!</li>
<li>Square Dies</li>
<li>Flat Stock Bending Dies</li>
<li>Square</li>
<li>Flat stock</li>
<li>Fabrication Benders- Sell Sheets</li>
<li>Common Pipe Tooling</li>
<li>Round Tube Tooling</li>
</ul>
