<table cellspacing="0" cellpadding="0" border="1" width="520">
<tbody style="text-align: center;">
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Bending Capacity
</div>
</td>
<td class="TableText">
<div align="center">3" Pipe
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Swager Capacity
</div>
</td>
<td class="TableText">
<div align="center">3/4 to 3 in. Tubing
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Expander Capacity
</div>
</td>
<td class="TableText">
<div align="center">1 to 5-1/2 in. Tubing
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Motor
</div>
</td>
<td class="TableText">
<div align="center">5 HP (7-1/2 HP optional)
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Electrics (please specify)
</div>
</td>
<td class="TableText">
<div>
<div align="center">220V, 60 Hz Operation. <br>
Single-Phase requires 30 amp service.<br>
Three-Phase requires 20 amp service.
</div>
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" width="257" class="TableText">
<div align="center">Bending Force
</div>
</td>
<td width="257" class="TableText">
<div align="center">58,000 lbs.
</div>
</td>
</tr>
</tbody>
</table>
<p>Specifications are subject to change without notice.
</p>
<p>NOTE: Data is provided by the manufacturer.
</p>
<p><strong>WARRANTY: 1 YEAR</strong> – Parts
</p>
<ul>
<li>Easy–to–use manual knee pedal control.</li>
<li>Push button control.</li>
<li>Automatic depth-of-bend selector.</li>
<li>Auxiliary on/off switch</li>
<li>58,000 lbs. of bending force - more than enough for 3" tubing.</li>
<li>Agricultural main cylinder.</li>
<li>Flat tool tray.</li>
<li>Bending die retainer.</li>
<li>Heavy-duty swager/expander.</li>
<li>Rugged I-beam construction.</li>
<li>Exclusive safety guard package.</li>
<li>Front swivel casters without brakes.</li>
<li>220 volt, 60HZ operation:
<ul>
<li>* Single phase req. 30-amp service.</li>
<li>* Three-phase req. 20-amp service.</li>
</ul>
</li>
<li>High-voltage and high-speed options are available.</li>
<li>Tooling not included.</li>

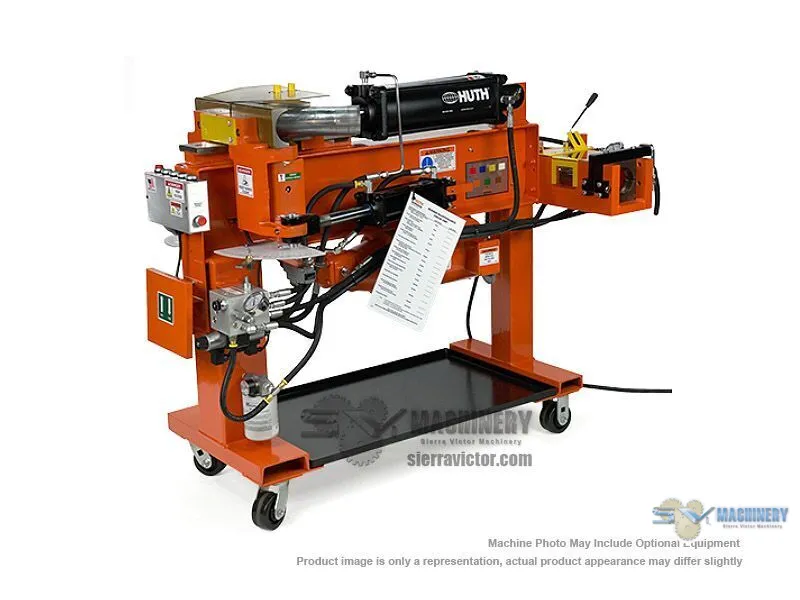

<li>Are you looking for a pipe and tube bender that can handle high-volume jobs while still maintaining speed and precision? <strong>The Huth 2806 bender is ideal for shops seeking a high-capacity machine with a small footprint.</strong> </li>
<li>The model 2806 bender is suited for many applications, including frame and equipment fabrication for agriculture and transportation applications. If you want to do more with your shop, a Huth 2806 bender can be a great choice.</li>
<li><strong>The Huth 2806 pipe and tube bender offers the convenience of knee pedal control, along with manual and automatic pushbuttons</strong>. In addition, a reduced size-control panel allows the operator to get closer to the work area for better precision and less fatigue.</li>
<li>The "Smart Automatic Mode" features an adjustable return-to-home position control. This unique timesaving feature increases efficiency by assuring fast, easy transitions between multiple bends. In the Automatic Mode, the automatic depth-of-bend selector ensures precise bending control through its easy-to-read, easy-to-adjust depth-of-bend plate. </li>
<li>The Huth Model 2806 bender has a 5-horsepower motor, providing an impressive <strong>58,000 lbs. of bending force</strong>—more than enough to bend up to 3" tubing and pipe. Need more speed? An optional 7.5 horsepower motor is also available with 25% faster bending to increase your output in record time.</li>
<li>The heavy-duty swager/expander offers you complete end-forming capabilities. The swager can accommodate 3/4" to 3" tubing. The expander allows for expansions from 1" to 5 ½". With Huth's Auccu-Sizer bullseye expanding system, you can dial in those precise expansions every time.</li>
<li><strong>The Huth 2806 bender is available with your choice of tooling packages</strong>. Explore the options below or reach out today to learn more about adding the 2806 bender to get more output from your application. </li>
</ul>
<p><strong>OPTIONAL ITEMS - CALL FOR PRICE:</strong></p>
<ul>
<li>High voltage and high speed options available. </li>
<li>010 Die Package Tooling</li>
<li>011 Die Package Tooling</li>
<li>013 Die Package Tooling</li>
<li>016 Die Package Metric Tooling - Export</li>
<li>028 Die Package Tooling</li>
<li>1992 3” Tooling Package</li>
<li>1993 3” Tooling Package</li>
<li>1995 2-3/4” Tooling Package</li>
<li>1996 3” Short Tooling Package</li>
<li>1997 2-3/4” Short Tooling Package</li>
<li>1988 3” End Finishing Package</li>
<li>1989 1-7/8” Optional Package</li>
<li>Swage Dies</li>
<li>Reducing Dies</li>
<li>Round Size Packs</li>
<li>Huth Tooling Fabrication Packs</li>
<li>Huth Tooling Size Packs</li>
</ul>
