<table cellspacing="0" cellpadding="0" border="1" width="520">
<tbody style="text-align: center;">
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Bending Capacity
</div>
</td>
<td class="TableText">
<div align="center">3 in. Pipe
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Swager Capacity
</div>
</td>
<td class="TableText">
<div align="center">1 - 3 in.Tubing
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Expander Capacity
</div>
</td>
<td class="TableText">
<div align="center">1 to 5-1/2 in. Tubing
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Electrics (please specify)
</div>
</td>
<td class="TableText">
<div>
<div align="center">220V, 60 Hz Operation. <br>
Single-Phase requires 30 amp service.<br>
Three-Phase requires 20 amp service.
</div>
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" width="257" class="TableText">
<div align="center">Bending Power
</div>
</td>
<td width="257" class="TableText">
<div align="center">58,000 lbs.
</div>
</td>
</tr>
</tbody>
</table>
<p>Specifications are subject to change without notice.
</p>
<p>NOTE: Data is provided by the manufacturer.
</p>
<p><strong>WARRANTY: 1 YEAR</strong> – Parts
</p>
<ul>

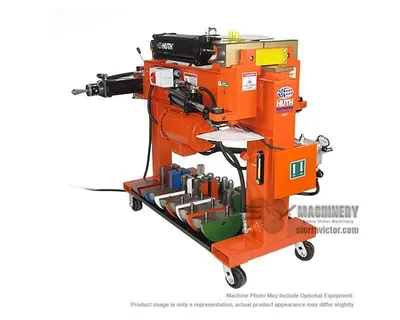

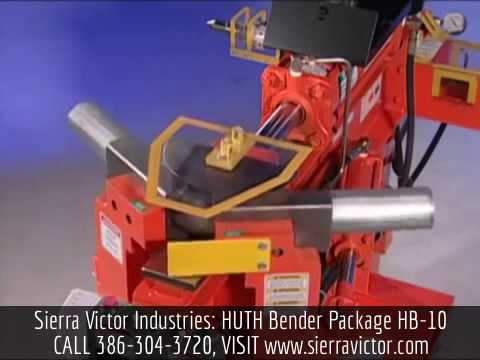

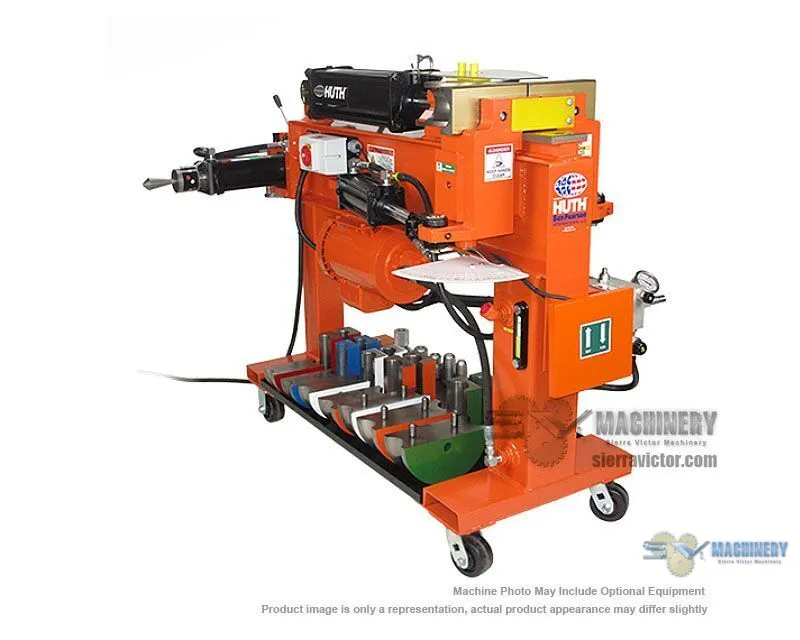

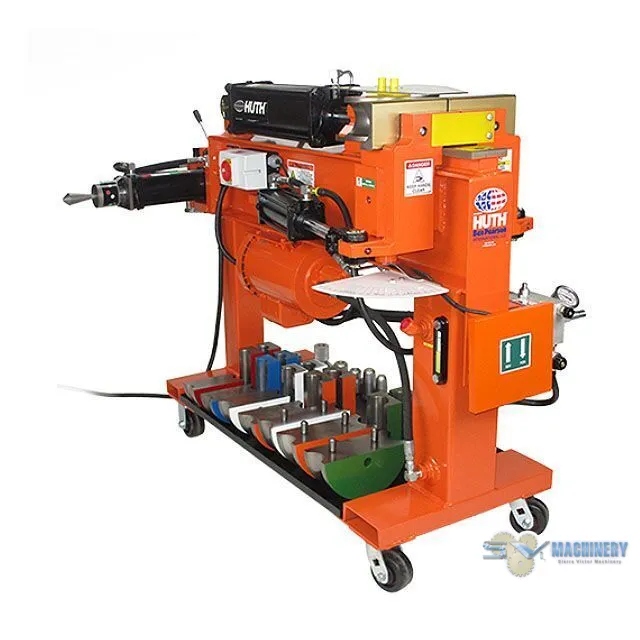

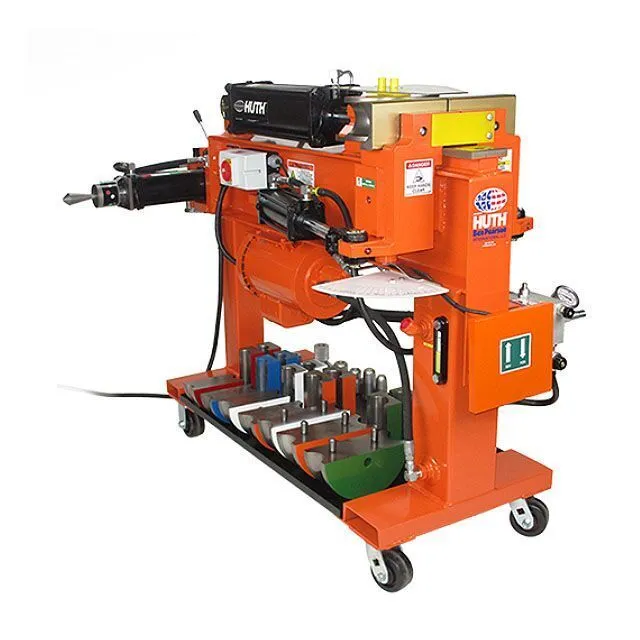

<li> For one low price you get everything you need to bend up to 3" pipes, including tooling and instruction video. </li>
<li> Huth’s HB-10 Complete Bender Package includes Huth’s newest Manual Knee Control Bender and comprehensive tooling package - everything you need to create O.E.- fit and custom-bent pipes. </li>
<li> The HB-10 is Huth’s entry level tube bender, designed to introduce you to Huth quality while showing you the incredible profit potential that awaits you. </li>
<li><span id="selection-marker-1" class="redactor-selection-marker"></span> The HB-10 features knee control activation, manual depth-of-bend control and 58,000 lbs. of bending power - more than enough for 3" tubing. <span id="selection-marker-2" class="redactor-selection-marker"></span></li>
<li> As with all Huth Benders, the HB-10 features a built-in swager/expander for complete end-finishing capability - 1" to 3" tubing on the swager end and 1" to 5½" tubing on the expander end. </li>
<li> Plus, you receive bending dies, end-finishing tooling and a Huth DVD - everything you need to start bending pipes for thousands of applications. </li>
<li> *HB-10 package comes as listed only. Additional tooling available at extra charge.</li>
<li>Perfect End-Finishing Every Time
<ul>
<li><strong>Built-In Swager/Expander</strong>:</li>
<li>The built-in heavy duty swager/expander gives you complete end-finishing capabilities - 1" to 3" tubing on the swager end and 1" to 5½" tubing on the expander end.</li>
<li>With Huth's Accu-Sizer automatic bull's-eye expanding system, you'll be able to dial in precise expansions every time.</li>
<li><strong>Knee Control:</strong></li>
<li>Slim Knee Control Activation allows you to get closer to your work for quick, precise bending. </li>
</ul>
</li>
<li><strong>NOW AVAILABLE WITH CE LISTING</strong></li>
<li>Comes with comprehensive tooling package and instructional DVD</li>
<li>Easy-To-Use Knee Pad Control</li>
<li>Manual Depth-of-Bend Indicator</li>
<li>Complete Manual Control</li>
<li>58,000 lbs of tube bending power - More than enough for 3" tubing</li>
<li>Agricultural Cylinders</li>
<li>Flat Tool Tray</li>
<li>Bending Die Retainer</li>
<li>Heavy-Duty Swager/Expander</li>
<li>Rugged I-Beam Construction</li>
<li>Exclusive Safety-Guard Package</li>
<li>Front Swivel Casters w/o Brakes</li>
<li>220V, 60 Hz Operation. Single-Phase requires 30 amp service. Three-Phase requires 20 amp service.</li>
</ul>
<p><strong> EQUIPPED WITH:</strong>
</p>
<ul>
<li>028 Die Package</li>
</ul>
<strong>OPTIONAL ITEMS - CALL FOR PRICE:</strong>
<ul>
<li>1992 3" Tooling Package</li>
<li>1993 3" Tooling Package</li>
<li>1995 2-3/4" Tooling Package</li>
<li>1997 2-3/4" Short Tooling Package</li>
<li>1988 3" End Finishing Package</li>
<li>1989 1-7/8" Optional Package</li>
<li>Huth Pipe & Tube Bending Dies </li>
<li>Swage Dies</li>
<li>Reducing Dies</li>
<li>Ball Joint Tools - Female</li>
<li>Flaring/Flanging Tools</li>
<li>Header Collector Tool</li>
<li>Clamp Collets (All Models After Jan ‘85) </li>
<li>Huth Tube Expanders</li>
</ul>
