<table width="520" cellspacing="0" cellpadding="0" border="1">
<tbody style="text-align: center;">
<tr>
<td class="TableText" width="257" valign="middle" bgcolor="#cccccc">
<div>
<div>Capacity - Mild Steel
</div>
</div>
</td>
<td class="TableText" width="257" valign="middle">
<div>
<div>16 ga
</div>
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div>Capacity - Stainless Steel
</div>
</td>
<td class="TableText" valign="middle">
<div>20 ga
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div>Throat
</div>
</td>
<td class="TableText" valign="middle">
<div>10"
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div>Distance, Shaft Center to Center
</div>
</td>
<td class="TableText" valign="middle">
<div>2.5"
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div>Gear Ratio
</div>
</td>
<td class="TableText" valign="middle">
<div>3:1
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div>Working Speed Variable
</div>
</td>
<td class="TableText" valign="middle">
<div>3 to 45 rpm
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div>Motor
</div>
</td>
<td class="TableText" valign="middle">
<div>3/4 HP
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div>Voltage
</div>
</td>
<td class="TableText" valign="middle">
<div>230v/3/60 or 220v/1/60 or 460/3/60
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div>
<div>Shipping Weight:
</div>
</div>
</td>
<td class="TableText" valign="middle">
<div>350 / 390 lbs.
</div>
</td>
</tr>
</tbody>
</table>
<p>Specifications are subject to change without notice.
</p>
<p>NOTE: Data is provided by the manufacturer.
</p>
<p><strong>WARRANTY: 3 YEAR</strong> – Limited
</p>
<ul>
<li><strong>MADE IN USA</strong></li>

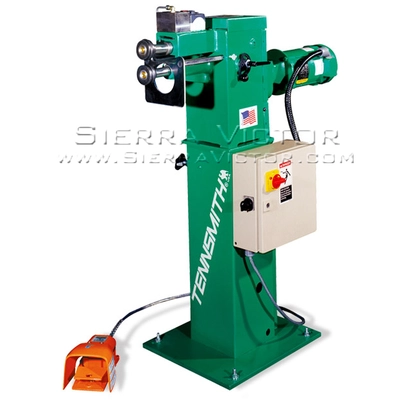

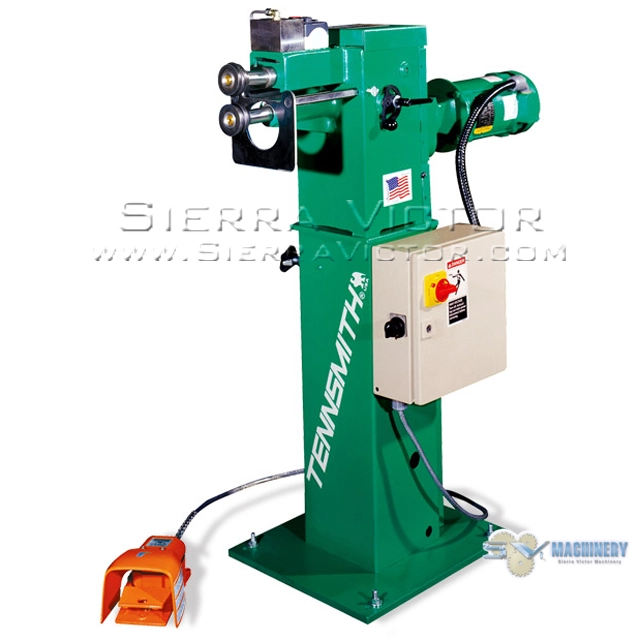

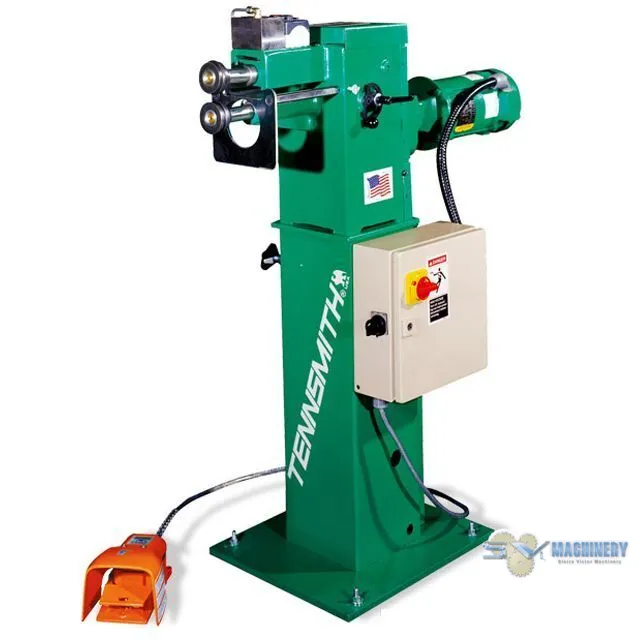

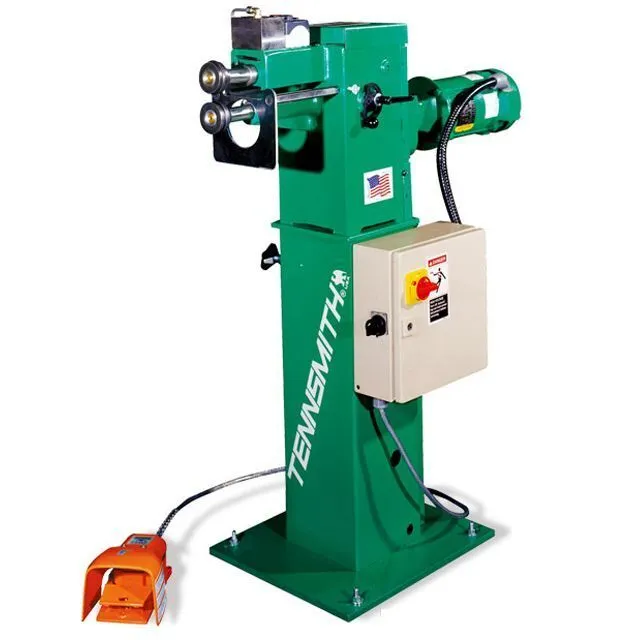

<li>TENNSMITH'S power rotary is versatile machine capable of forming numerous applications up to 16-gauge mild steel material. Standard features include variable speed control, heavy cast body with steel body stand.</li>
<li>A 3/4 HP gear motor provides smooth operation. The forming pressure is controlled by a crank on the top of the frame on the standard unit, an optional hydraulic powered forming pressure unit is available. Rolls are ordered separately for this unit.</li>
<li>Crimping, single beading, ogee beading, elbow edging, flattening, wiring, burring and turning rolls are available.</li>
<li>Included is One Set of 3/8 Single Bead Rolls</li>
<li><strong>NOTE</strong>: PR-16 Power Swaging Machine with variable speed drive included is one set of 3/8 single bead rolls</li>
<li>Contact Sierra Victor Machinery at <strong>386-304-3720</strong> for special application forming.</li>
</ul>
<p><b>OPTIONAL ITEMS:</b></p>
<ul>
<li>Wired for CSA Canadian Electrical Standard: ADD $525.00</li>
<li>86520: Single Bead Rolls Set 3/16: $225.00</li>
<li>86521: Single Bead Rolls Set 1/4: $225.00</li>
<li>86522: Single Bead Rolls Set 1/2: $225.00</li>
<li>86535: Ogee Bead Rolls Set: $350.00</li>
<li>86540: Flattening Rolls Set: $475.00</li>
<li>86545: Elbow Edging Rolls Set: $275.00</li>
<li>86550: Off Set Rolls Set: $250.00</li>
<li>86555: Flange Rolls Set: $175.00</li>
<li>86560: Turning Rolls Set: $275.00</li>
<li>86565: Burring Rolls Set: $275.00</li>
<li>86525: Crimping Rolls Set: $325.00</li>
<li>86530: Combination Bead/Crimp Rolls Set: $450.00</li>
<li>86570: Furnace Collar Rolls Set: $425.00</li>
</ul>
<p>Rolls Not Listed, Please Call 386-304-3720
