<table cellspacing="0" cellpadding="0" border="1" width="520">
<tbody style="text-align: center;">
<tr>
<td bgcolor="#cccccc" width="257" class="TableText">
<div align="center">Max. Part Width
</div>
</td>
<td width="257" class="TableText">
<div align="center">51 in.
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" width="257" class="TableText">
<div align="center">Abrasive Belt Size
</div>
</td>
<td class="TableText">
<div align="center">51 x 60 in.
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Contact Roller Size
</div>
</td>
<td class="TableText">
<div align="center">8 in. Dia.
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Passline Height
</div>
</td>
<td class="TableText">
<div align="center">31-37 in.
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Thickness Capacity
</div>
</td>
<td class="TableText">
<div align="center">20Ga to Max. 5-1/8 in.
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Conveyor Drive Speeds
</div>
</td>
<td class="TableText">
<div align="center">15-56 FPM
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Infeed Conveyor Length
</div>
</td>
<td class="TableText">
<div align="center">20 in.
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Dust Collector Capacity
</div>
</td>
<td class="TableText">
<div align="center">2,800 CFM
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Outlet of dust hood
</div>
</td>
<td class="TableText">
<div align="center">Dia 6 in. x 2 outlets
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Main Motor
</div>
</td>
<td class="TableText">
<div align="center">30 HP, 230/460v, 3-ph
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Conveyor Motor
</div>
</td>
<td class="TableText">
<div align="center">2 HP, 230/460v, 3-Ph
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Table Lifting Motor
</div>
</td>
<td class="TableText">
<div align="center">2 HP, 230/460v, 3-Ph
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Amperage Draw
</div>
</td>
<td class="TableText">
<div align="center"> 120A on 220V, 60A on 440V
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Machine Weight, approx.
</div>
</td>
<td class="TableText">
<div align="center">4,190 lbs
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Machine Dimensions LxWxH
</div>
</td>
<td class="TableText">
<div align="center">82 x 68 x 73 in.
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Machine Shipping Dimensions LWH
</div>
</td>
<td class="TableText">
<div align="center">84 x 70 x 75 in.
</div>
</td>
</tr>
</tbody>
</table>
<p>Specifications are subject to change without notice.
</p>
<p>NOTE: Data is provided by the manufacturer.
</p>
<p><strong>WARRANTY: 1 YEAR</strong> – Parts
</p>
<ul>

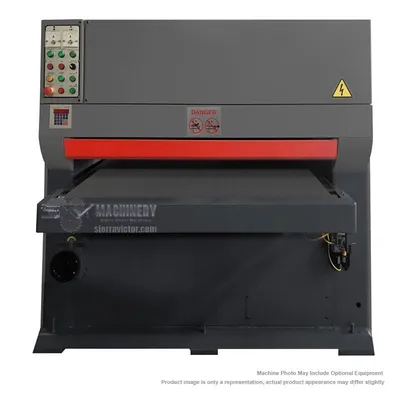

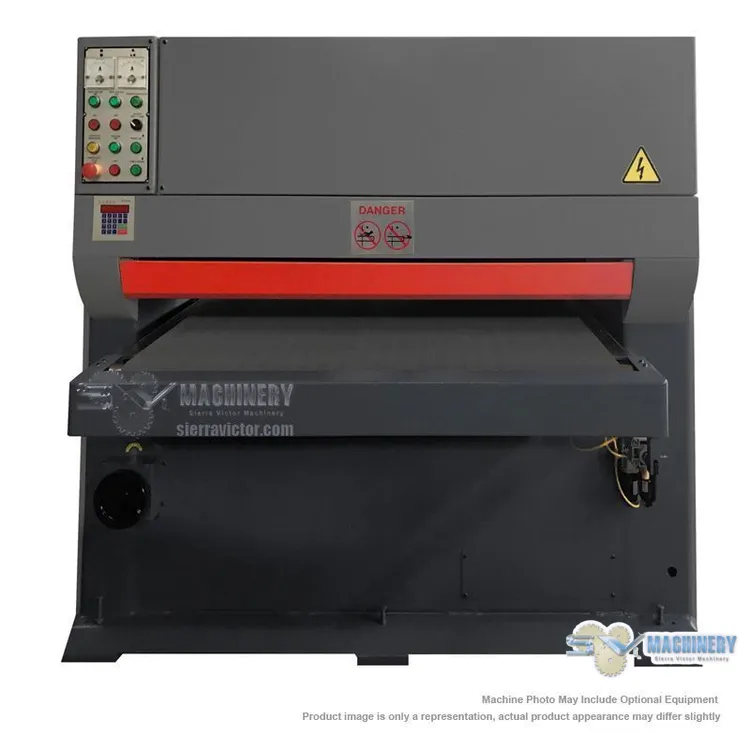

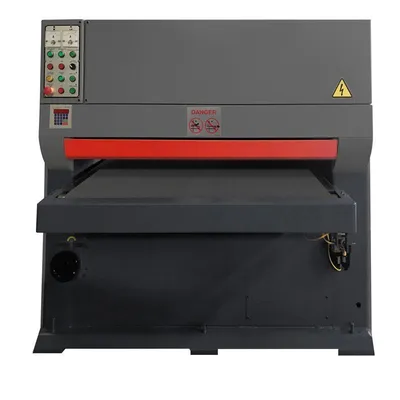

<li> Finish Pro Model FP-5160T Dry Type Line Graining/Deburring/Finishing machine</li>
<li>Made in Taiwan </li>
<li>Computerized programmable thickness control </li>
<li>Abrasive belt size: 51” x 60” </li>
<li><u>10" diameter heavy duty drum for perfect graining </u></li>
<li><u>5</u><u>-1/8" wide opening for max. workpiece thickness </u><u>5"</u></li>
<li>Motorized Table Lift with LED display </li>
<li>Variable Speed Conveyor </li>
<li>Conveyor Forward and Reverse </li>
<li>Belt Safety Overtravel Switches</li>
<li>Electronic Eye Belt Tracking. Belt tracking adjusting lever ( Belt Trimmer ) to Re-adjust the tracking system when running extremely out of parallel belts</li>
<li>4-Jackscrew Table Support</li>
<li>Double Infeed and Outfeed Pinch Rolls with protective guards </li>
<li>Conveyor Belt Tracking System</li>
<li>Safety System with Disc Brake. Air operated disc brakes to stop sanding head in 3-5 seconds in the even of loss of air pressure or activation of any emergency stop device</li>
<li>Table Height Digital Readout</li>
<li>Load Meter indicates percentage of full motor loads</li>
<li>Belt change door electrically interlocked for safety purpose </li>
<li>Air tensioning of belt for accurate tensioning and compensation of belt stretch</li>
<li>Quick release sanding head support for fast belt change</li>
<li>Dust collection hood with 6” outlet is located adjacent to abrasive head in sanding area</li>
<li>Emergency stops from almost any point</li>
<li>Noise level bellows 82 dba</li>
<li>Operation manual, control tags, danger signs, and warning labels in English on machine</li>
<li>208/230V, 3-Phase ( 440/460V is available ) </li>
<li>One year Industrial Warranty for parts. </li>
<li><strong>NOTE:
</strong>
<ul>
<li>Prices are for 208-230 VOLTS</li>
<li>Total amps 120 @ 230/3/60</li>
<li>COMPRESSED AIR REQUIRED: 2 CFM @ 90 PSI</li>
</ul>
</li>
<li><strong>CAUTION</strong>: If fire hazardous materials, such as aluminum, titanium, magnesium, etc., are to be processed, a dust collection system that conforms to National Fire Protection Association (NFPA) should be used.</li>
<li><strong><u>DISCLAIMER: </u></strong>Please note this machine<u> is incompatible with the use of a rotary phase converter</u>. Any attempt to purchase, install, or employ one, whether carried out by you or a professional service company, <u>will automatically void the warranty.</u> It is crucial to understand that any such actions are entirely the responsibility of the buyer.</li>
<li>This disclaimer is intended to clearly convey that the utilization of a rotary phase converter to power or operate this machine is not supported.</li>
</ul>
<p><b>OPTIONAL ITEMS:</b></p>
<ul>
<li>WET DUST COLLECTORS use a water filled tank through which all grinding dust is pulled by a motor driven impeller fan. Particles sink to the base of the tank where they can easily be removed by raking into a provided container. Normal tap water is used, there are not filter bags to be changed. Water level is automatically controlled when unit is connected to a water supply. All units are equipped with explosion relief door and sound silencer.</li>
<li>*This machine requires two sets Wet Dust Collectors #WDC-2100 & 2 sets of ducting packages</li>
</ul>
<table cellspacing="0" cellpadding="0" border="1" width="520" class="TableText">
<tbody style="text-align: center;">
<tr bgcolor="#333333" class="Title_white">
<td width="85" bgcolor="#333333">
<div align="center" class="Title_white_bold">
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>PART #</strong></span>
</div>
</div>
</td>
<td width="354" bgcolor="#333333">
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>ITEM</strong></span>
</div>
</td>
<td width="73" bgcolor="#333333">
<div align="center" class="Title_white_bold">
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>PRICE</strong></span>
</div>
</div>
</td>
</tr>
<tr>
<td bgcolor="#CCCCCC" class="optional_accessories">
<div align="center">WDC-2100
</div>
</td>
<td>
<div align="center">Wet Dust Collector, 5 HP, 2100CFM<br>
(it is demo wet collector, all stainless steel)
</div>
</td>
<td bgcolor="#CCCCCC" class="optional_accessories">
<div align="center">$10,950.00
</div>
</td>
</tr>
<tr>
<td bgcolor="#CCCCCC" class="optional_accessories">
<div align="center">HDDP-2560
</div>
</td>
<td>
<div align="center">Heavy Duty Ducting Package
</div>
</td>
<td bgcolor="#CCCCCC" class="optional_accessories">
<div align="center">$1,290.00
</div>
</td>
</tr>
<tr>
<td bgcolor="#CCCCCC" class="optional_accessories">
<div align="center">ST
</div>
</td>
<td>
<div align="center">Service Engineer for Start-Up and On-site Training.<br>
Plus travel expenses
</div>
</td>
<td bgcolor="#CCCCCC" class="optional_accessories">
<div align="center">$POR
</div>
</td>
</tr>
</tbody>
</table>
