<table cellspacing="0" cellpadding="0" border="1" width="520">
<tbody style="text-align: center;">
<tr>
<td bgcolor="#cccccc" width="257" class="TableText">
<div align="center">Max. Part Width
</div>
</td>
<td width="257" class="TableText">
<div align="center">37 in.
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" width="257" class="TableText">
<div align="center">Abrasive Belt Size
</div>
</td>
<td class="TableText">
<div align="center">37 x 60 in.
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Contact Roller Size
</div>
</td>
<td class="TableText">
<div align="center">8 in. Dia.
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Passline Height
</div>
</td>
<td class="TableText">
<div align="center">31-37 in.
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Max. Thickness Capacity
</div>
</td>
<td class="TableText">
<div align="center">5-1/8 in.
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Min. workpiece length
</div>
</td>
<td class="TableText">
<div align="center">Min 12 in., need a fixture for smaller parts
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Max. workpiece weight
</div>
</td>
<td class="TableText">
<div align="center">275 lbs.
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Conveyor Drive Speeds
</div>
</td>
<td class="TableText">
<div align="center">16-66 FPM
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Infeed Conveyor Length
</div>
</td>
<td class="TableText">
<div align="center">20 in.
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Dust Collector Capacity
</div>
</td>
<td class="TableText">
<div align="center">1,800 CFM
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Outlet of dust hood
</div>
</td>
<td class="TableText">
<div align="center">6 in.
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Main Motor
</div>
</td>
<td class="TableText">
<div align="center">20 HP, 230/460v, 3-ph
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Conveyor Motor
</div>
</td>
<td class="TableText">
<div align="center">2 HP, 230/460v, 3-Ph
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Table Lifting Motor
</div>
</td>
<td class="TableText">
<div align="center">1/4 HP, 230/460v, 3-Ph
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Amperage Draw
</div>
</td>
<td class="TableText">
<div align="center"> 75A on 220V, 40A on 440V
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Net Weight, approx.
</div>
</td>
<td class="TableText">
<div align="center">2,650 lbs
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Shipping Weight
</div>
</td>
<td class="TableText">
<div align="center">2,950 lbs.
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Machine Dimensions LxWxH
</div>
</td>
<td class="TableText">
<div align="center">63 x 63 x 70 in.
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Machine Shipping Dimensions LWH
</div>
</td>
<td class="TableText">
<div align="center">65 x 65 x 72 in.
</div>
</td>
</tr>
</tbody>
</table>
<p>Specifications are subject to change without notice.
</p>
<p>NOTE: Data is provided by the manufacturer.
</p><p><strong>WARRANTY: 1 YEAR</strong> – Parts
</p><br><ul>

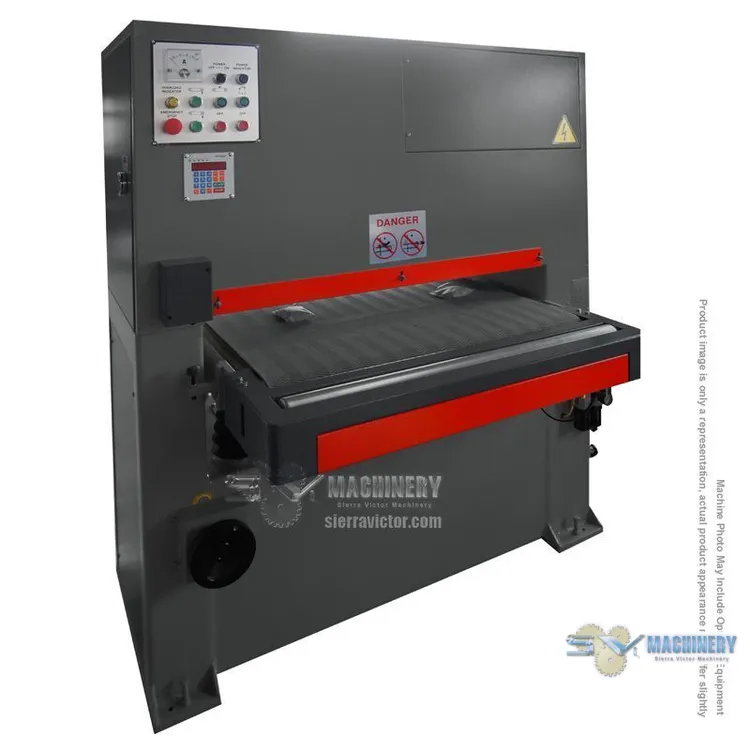

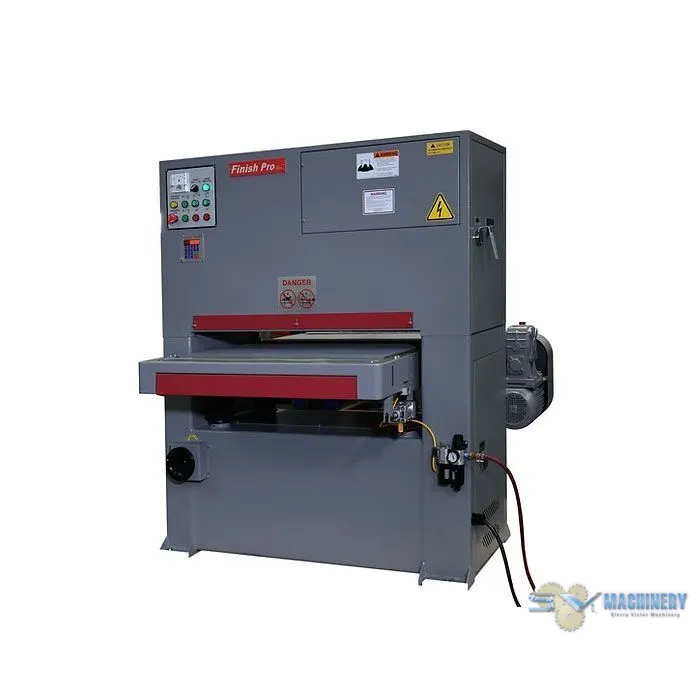

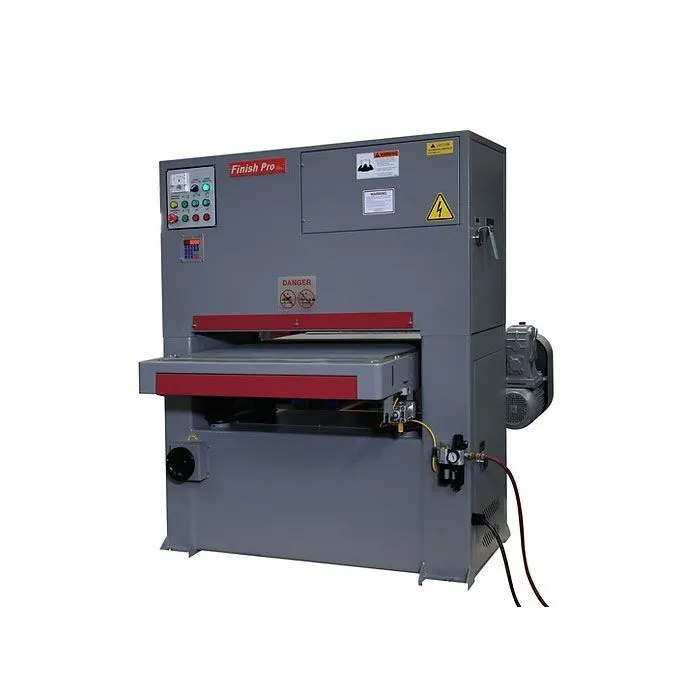

<li> Finish Pro Model FP-3760T Dry Type Line Graining/Deburring/Finishing machine.</li>
<li>Made in Taiwan</li>

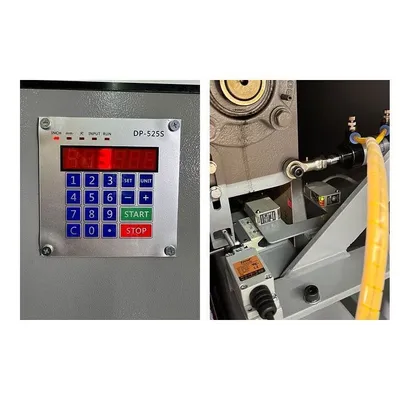

<li>Computerized programmable material thickness control </li>
<li>Abrasive belt size: 37” x 60” </li>
<li>Motorized Table Lift with computer display </li>

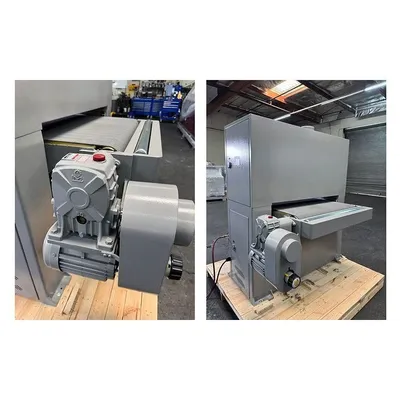

<li>Variable Speed Conveyor</li>
<li>Conveyor Forward & Reverse </li>
<li>Belt Safety Overtravel Switches</li>
<li>Electronic Eye Belt Tracking. Belt tracking adjusting lever ( Belt Trimmer ) to Re-adjust the tracking system when running extremely out of parallel belts</li>
<li>4-Jackscrew Table Support</li>
<li>Double Infeed & Outfeed Pinch Rolls with protective guards </li>
<li>Conveyor Belt Tracking System</li>
<li>Safety System with Disc Brake. Air operated disc brakes to stop sanding head in 3-5 seconds in the even of loss of air pressure or activation of any emergency stop device</li>
<li>Load Meter indicates percentage of full motor loads</li>

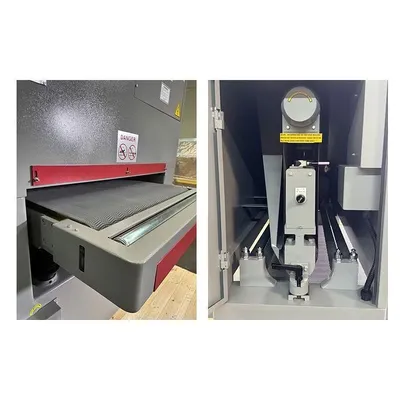

<li>Belt change door electrically interlocked for safety purpose </li>
<li>Air tensioning of belt for accurate tensioning & compensation of belt stretch</li>

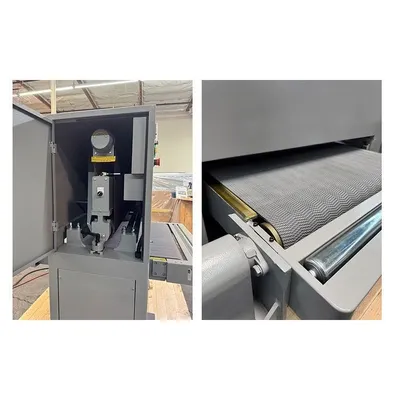

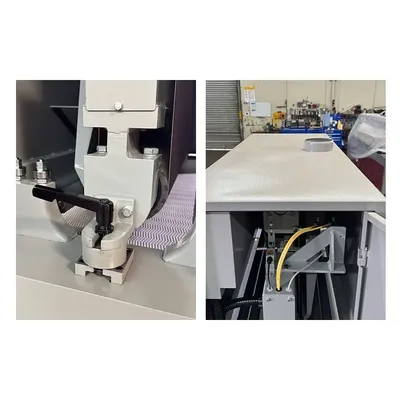

<li>Quick release sanding head support for fast belt change</li>
<li>Dust collection hood with 6” outlet is located adjacent to abrasive head in sanding area</li>
<li>Emergency stops from almost any point</li>
<li>Noise level bellows 82 dba</li>
<li>Operation manual, control tags, danger signs, and warning labels in English on machine</li>
<li>208/230V, 3-Phase , 440V/480V/3phase is optional</li>
<li>One year Industrial Warranty for parts </li>
<li><strong>NOTE:
</strong>
<ul>
<li>Prices are for 208-230 VOLTS</li>
<li>Total amps 75 @ 230/3/60</li>
<li>COMPRESSED AIR REQUIRED: 2 CFM @ 90 PSI</li>
</ul>
</li>
<li><strong>CAUTION</strong>: If fire hazardous materials, such as aluminum, titanium, magnesium, etc., are to be processed, a dust collection system that conforms to National Fire Protection Association (NFPA) should be used.</li>
<li>**This machine is compatible with a phase converter. Please note that the phase converter must be installed by GMC Machine Tools to ensure warranty coverage. Once the machine is received and the phase converter is installed by us, it will be ready for use. For more information or if you have any further questions or need assistance, feel free to contact us. </li>
</ul>
<p><b>OPTIONAL ITEMS:</b></p>
<ul>
<li>WET DUST COLLECTORS use a water filled tank through which all grinding dust is pulled by a motor driven impeller fan. Particles sink to the base of the tank where they can easily be removed by raking into a provided container. Normal tap water is used, there are not filter bags to be changed. Water level is automatically controlled when unit is connected to a water supply. All units are equipped with explosion relief door and sound silencer.</li>
</ul>
<table cellspacing="0" cellpadding="0" border="1" width="520" class="TableText">
<tbody style="text-align: center;">
<tr bgcolor="#333333" class="Title_white">
<td width="85" bgcolor="#333333">
<div align="center" class="Title_white_bold">
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>PART #</strong></span>
</div>
</div>
</td>
<td width="354" bgcolor="#333333">
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>ITEM</strong></span>
</div>
</td>
<td width="73" bgcolor="#333333">
<div align="center" class="Title_white_bold">
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>PRICE</strong></span>
</div>
</div>
</td>
</tr>
<tr>
<td bgcolor="#CCCCCC" class="optional_accessories">
<div align="center">WDC-2100
</div>
</td>
<td>
<div align="center">Wet Dust Collector, 5 HP, 2100CFM<br>
(it is demo wet collector, all stainless steel)
</div>
</td>
<td bgcolor="#CCCCCC" class="optional_accessories">
<div align="center">$10,950.00
</div>
</td>
</tr>
<tr>
<td bgcolor="#CCCCCC" class="optional_accessories">
<div align="center">HDDP-2560
</div>
</td>
<td>
<div align="center">Heavy Duty Ducting Package
</div>
</td>
<td bgcolor="#CCCCCC" class="optional_accessories">
<div align="center">$1,290.00
</div>
</td>
</tr>
</tbody>
</table>
