<table width="520" cellspacing="0" cellpadding="0" border="1">
<tbody style="text-align: center;">
<tr class="Title_white_bold">
<td class="Title_white_bold" width="280" valign="middle" bgcolor="#333333">
<div><span style="color: #ffffff;"><strong>MODEL</strong></span>
</div>
</td>
<td class="Title_white_bold" width="234" valign="middle" bgcolor="#333333">
<div><span style="color: #ffffff;"><strong>MSE616-F</strong></span></div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div>Maximum shearing capacity, Mild Steel
</div>
</td>
<td class="TableText" valign="middle">
<div>16 gauge/1.6mm
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div>Maximum shearing capacity, Stainless Steel
</div>
</td>
<td class="TableText" valign="middle">
<div>20 gauge/1.0mm
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div>Maximum cutting length
</div>
</td>
<td class="TableText" valign="middle">
<div>73" / 1,854mm
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div>Back gauge range
</div>
</td>
<td class="TableText" valign="middle">
<div>30" / 762mm
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div>Strokes per minute, full length
</div>
</td>
<td class="TableText" valign="middle">
<div>40
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div>Motor - 230/460V, 3-Phase, 60Hz
</div>
</td>
<td class="TableText" valign="middle">
<div>3 HP
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div>Number of hold downs
</div>
</td>
<td class="TableText" valign="middle">
<div>Solid BAR
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div>Floor space, gauges in position
</div>
</td>
<td class="TableText" valign="middle">
<div>92" x 69" x 50"
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div>Shipping Weight:
</div>
</td>
<td class="TableText" valign="middle">
<div>2,300 lbs. / 1,046kg
</div>
</td>
</tr>
</tbody>
</table>
<p>Specifications are subject to change without notice.
</p>
<p>NOTE: Data is provided by the manufacturer.
</p>
<p><strong>WARRANTY: 3 YEAR</strong> – Limited
</p>
<p></p>
<ul>
<li><strong>MADE IN USA</strong></li>

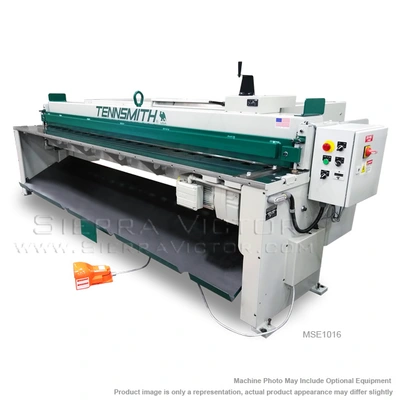

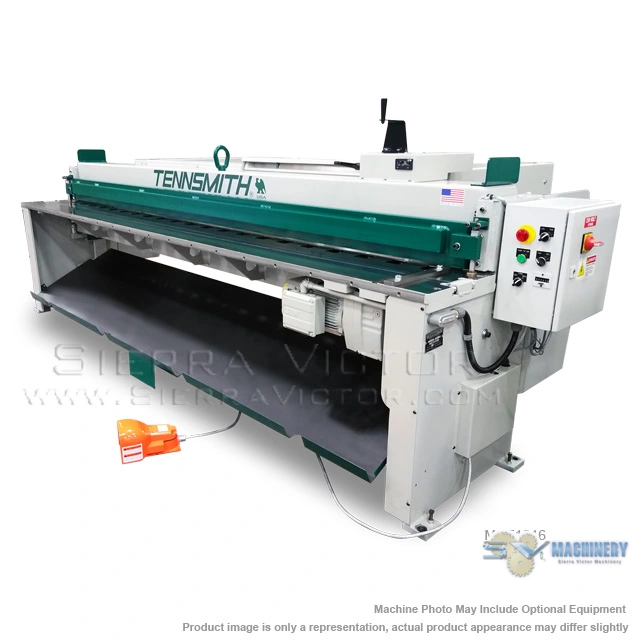

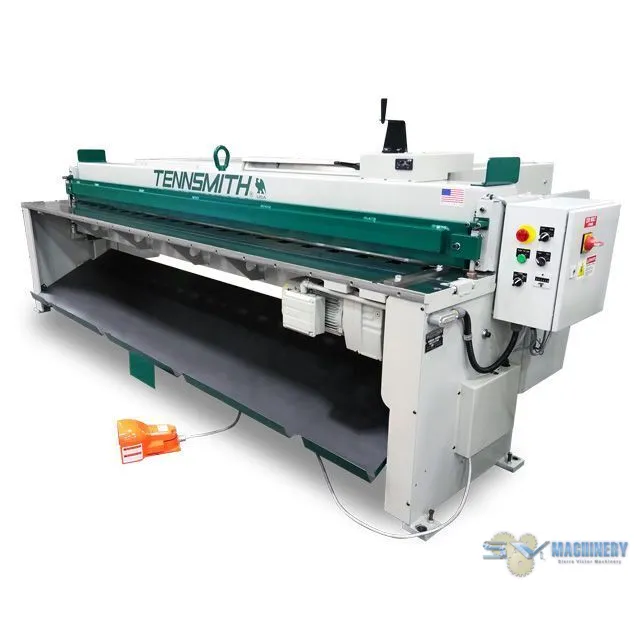

<li>TENNSMITH'S MSE Series mechanical shears utilize a low maintenance design, coupled with an array of standard features for an attractive combination of high value and solid performance.</li>
<li>The MSE Series come standard with four-edge, high carbon, high chrome blades, a self-leveling hold down bar with neoprene insert, single, continuous and jog stroke cycles, motor reverse switch, precision-machined table, dual inch/metric inlaid bed scales and non-metallic gibs. The MSE Series also incorporates the unique front operated 2X-F back gauge system. This system allows the operator to move the backstop from 0 to 30 inches in approximately 2 seconds with only tow rotations of the handle. Capacities of the shears are 16-gauge mild steel, 22-gauge stainless with 73 or 121 cutting lengths and speeds of 40 strokes per minute.</li>
<li>The <strong>MSE616-R / MSE1016-R </strong>shear is standard in a "Performance Package-R" configuration. The Performance Package includes: a five foot squaring arm, a pair of front support arms, rear material return air operated sheet support system, and part counter.</li>
<li>The <strong>MSE616-F / MSE1016-F </strong>shear is standard in a "Performance Package-F" configuration. The Performance Package includes: a four foot squaring arm, a pair of front support arms, front material return air operated sheet support system, and part counter.</li>
<li>
<strong>Note:</strong> Performance Packages
are Preferred Options
</li>
</ul>
<p><b>OPTIONAL ITEMS:</b></p>
<ul>
<li>Single Phase Electrics: ADD $1,995.00</li>
<li>Wired for CSA Canadian Electrical Standard: ADD $415.00</li>
<li>82605: MSE616 High Carbon High Chrome 4 Edge per set: $1,290.00</li>
<li>82515: Additional Flip-up Stops for Squaring Arm (each): $230.00</li>
<li>82520: Front Support Arms Pair: $310.00</li>
<li>82580: Stroke Counter (Electro-Mechanical): $340.00</li>
<li>82525: Protractor Attachment: $685.00</li>
<li>83895: Digital Readout for 2x-F Back-gauge System: $1,150.00</li>
<li>82505: Squaring Arm Five Foot with Dual Inlaid Inch/Metric Scale: $1,180.00</li>
<li>82510: Squaring Arm Ten Foot with dual Inlaid Inch/Metric Scale: $2,655.00</li>
<li><strong>The MSE Performance Package Includes:</strong></li>
<li>
<strong>Note:</strong> Performance Packages
are Preferred Options
</li>
<li>Air-operated sheet support system, F or R:<br>
<strong>"F"</strong> is a Front Return Material System via material tray located under<br>
the shear table.<br>
<strong>"R"</strong> is a Rear Return Material System<br>
<strong>"FC"</strong> Front Return Material System and includes a
front return material cart as standard. The material cart allows for
sheared materials to be moved from the shear to other areas in the shop
without restacking.
</li>
<li>Five-foot squaring arm</li>
<li>Pair of Front support arms</li>
</ul>
