<table border="1" cellspacing="0" cellpadding="0" width="520">
<tbody style="text-align: center;">
<tr>
<td class="Title_white_bold" valign="middle" bgcolor="#333333">
<div><span style="color: #ffffff;"><strong>MODEL</strong></span>
</div>
</td>
<td class="Title_white_bold" width="244" valign="middle" bgcolor="#333333">
<div><span style="color: #ffffff;"><strong>LM1214-R</strong></span></div>
</td>
</tr>
<tr>
<td class="TableText" width="270" valign="middle" bgcolor="#cccccc">
<div>Maximum shearing capacity, Mild Steel
</div>
</td>
<td class="TableText" valign="middle">
<div>14 gauge
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div>Maximum shearing capacity, Stainless Steel
</div>
</td>
<td class="TableText" valign="middle">
<div>18 gauge
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div>Maximum cutting length
</div>
</td>
<td class="TableText" valign="middle">
<div>145"
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div>Back gauge range
</div>
</td>
<td class="TableText" valign="middle">
<div>30" / 762mm
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div>Strokes per minute, full length
</div>
</td>
<td class="TableText" valign="middle">
<div>35
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div>Number of hold down feet
</div>
</td>
<td class="TableText" valign="middle">
<div>16
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div>Motor - 230/460V, 3-Phase, 60Hz
</div>
</td>
<td class="TableText" valign="middle">
<div>7.5 HP
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div>Dimensions, (LxWxH)
</div>
</td>
<td class="TableText" valign="middle">
<div>164" x 72" x 56"
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div>Shipping Weight:
</div>
</td>
<td class="TableText" valign="middle">
<div>7,530 lbs.
</div>
</td>
</tr>
</tbody>
</table>
<p>Specifications are subject to change without notice.
</p>
<p>NOTE: Data is provided by the manufacturer.
</p>
<p><strong>WARRANTY: 3 YEAR</strong> – Limited
</p>
<p></p>
<ul>
<li><strong>MADE IN USA</strong></li>

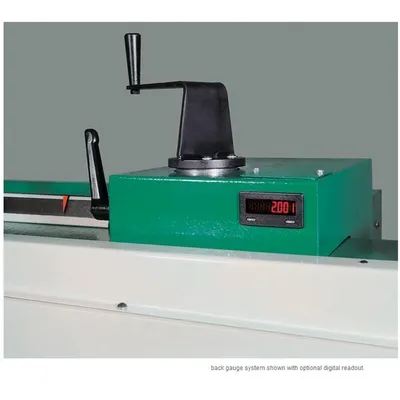

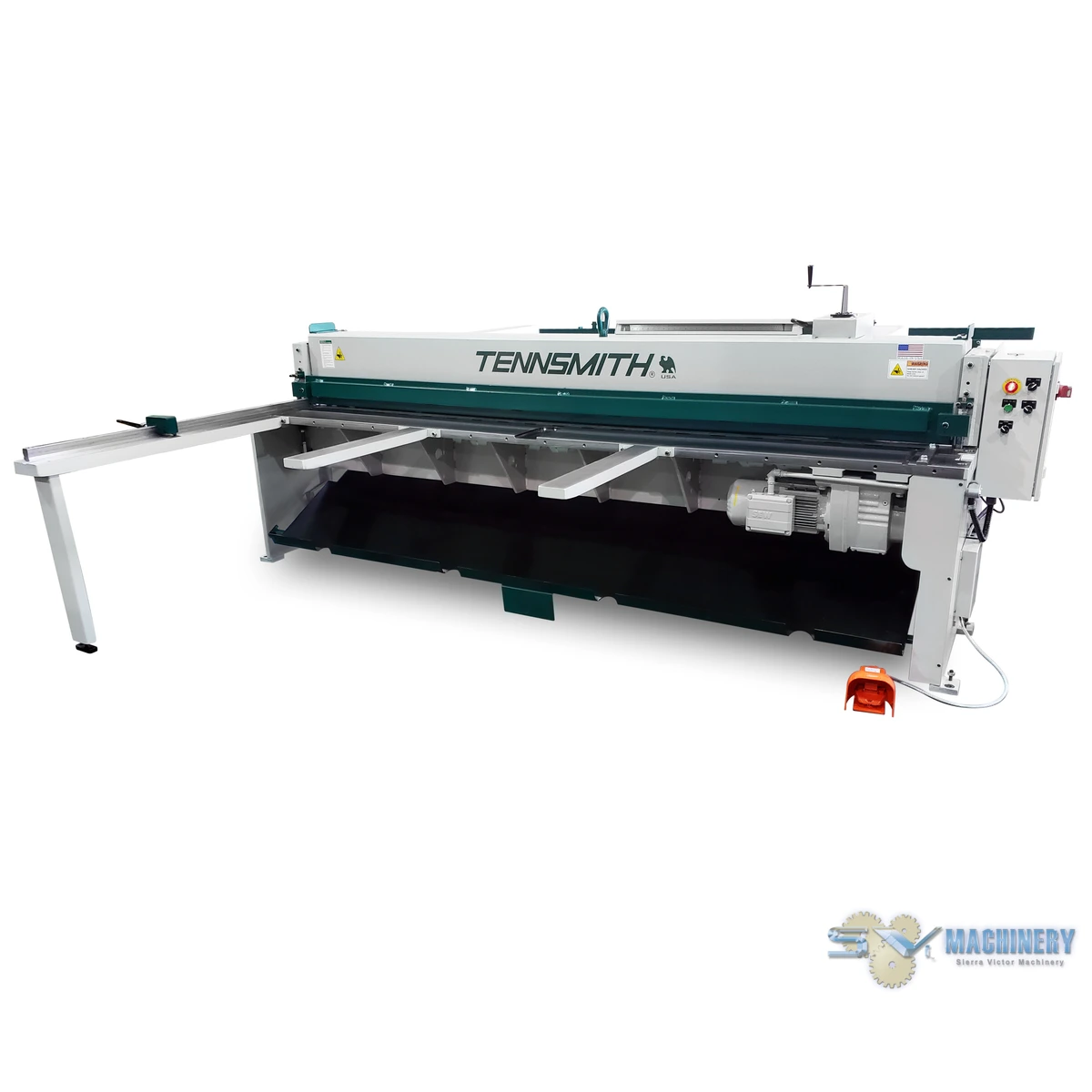

<li>TENNSMITH'S LM Series Mechanical Shears utilize a low maintenance design, coupled with an array of standard features for an attractive combination of high value and solid performance. The LM410 incorporates the unique 2x-F back gauge system. This allows the operator to move the backstop from 0 - 24 inches in approximately 2 seconds with only two rotations of the handle. The LM610 and LM810 incorporate the same 2x-F system, but with the added capacity of 30-inch travel. An optional digital readout is available for this system.</li>

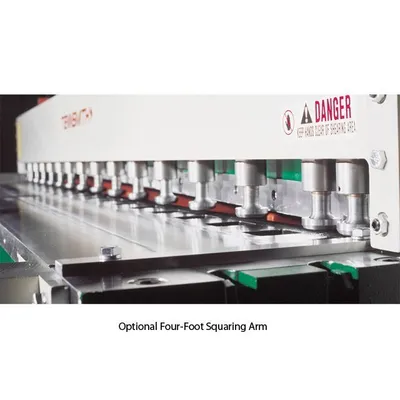

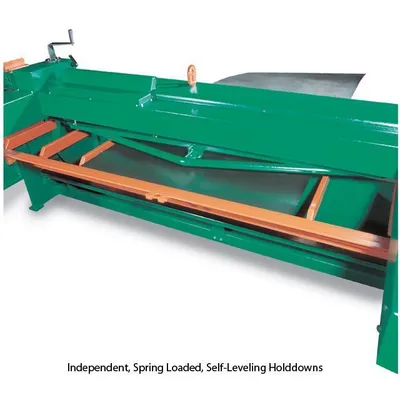

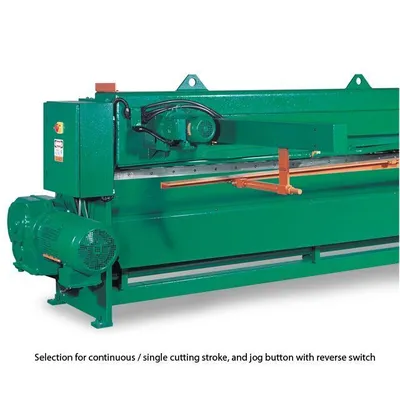

<li>The LM Series shears are standard with four-edge, high carbon, high chrome top and bottom blades, independent, self-leveling hold down feet with neoprene inserts, single, continuous and jog stroke cycles, motor reverse switch, precision-machined table with hand well, dual inch/metric inlaid bed scales and non-metallic gibs.</li>
<li>To enhance productivity, optional equipment available for the machines.</li>

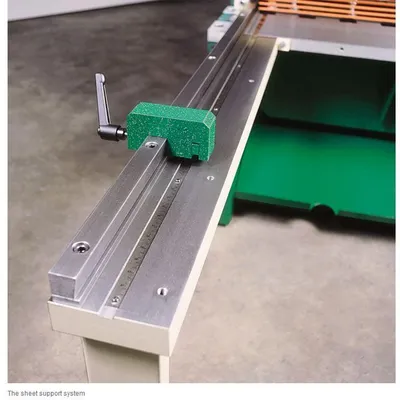

<li>The LM1014, LM1012, and LM1214 can be delivered with an optional air operated sheet support system. This system is available in two styles:
<ul>
<li>System-R drops the supported material to the rear of the machine</li>
<li>System-F returns the supported material to the front of the machine via a front return chute</li>
</ul>
</li>
<li>
<strong>Note:</strong> Performance Packages
are Preferred Options
</li>
<li>Please call <strong>386-304-3720</strong> for details</li>
</ul>
<p><b>OPTIONAL ITEMS:</b></p>
<ul>
<li>Wired for CSA Canadian Electrical Standard: $415.00</li>
<li>83800: Squaring Arm Five Foot with Dual Inlaid Inch/Metric Scale: $1,180.00</li>
<li>83805: Squaring Arm Ten Foot with dual Inlaid Inch/Metric Scale: $2,655.00</li>
<li>83815: Additional Flip-up Stops for Squaring Arm (each): $230.00</li>
<li>83820: Front Support Arms Pair: $310.00</li>
<li>83825: T-Slotted Table with Two Front Support Arms with Inlaid Inch/Metric Scales: $2,125.00</li>
<li>83830: Additional Flip-up Stops for T-Slotted Support Arms and Table (each): $215.00</li>
<li>83835: Power Back-gauge 30-Inch Travel: $6,570.00</li>
<li>83840: Protractor Attachment: $685.00</li>
<li>83885: Work Shadow Light LM Series: $970.00</li>
<li>83895: Digital Readout for 2x Back-gauge System: $1,150.00</li>
<li>83890: Stroke Counter (Electro-Mechanical): $340.00</li>
<li>83920: LM1214 High Carbon High Chrome 4 Edge per set: $2,575.00</li>
</ul>
<ul>
<li><strong>Increased Cutting Speeds (Please consult factory)</strong></li>
<li>
<strong>Note:</strong> Performance Packages
are Preferred Options
</li>
<li>All LM Series Shears are available in a reduced price "Performance Package" configuration. The Performance Package includes:
<ul>
<li>5 foot squaring arm</li>
<li>A pair of front support arms</li>
<li>Air operated sheet support system</li>
</ul>
</li>
<li>Performance "R" system is for rear return</li>
<li>Performance "F" system is for front return</li>
<li>A moveable material cart is available for both front and rear return machines (LM1014, LM1012, and LM1214 only)</li>
<li>Please Contact Sierra Victor Industries at <strong>386-304-3720</strong> for a complete listing of optional equipment</li>
