<table border="1" cellspacing="0" cellpadding="0" width="520">
<tbody style="text-align: center;">
<tr>
<td class="Title_white_bold" valign="middle" bgcolor="#333333">
<div>
<div><span style="color: #ffffff;"><strong>MODEL</strong></span>
</div>
</div>
</td>
<td class="Title_white_bold" width="244" valign="middle" bgcolor="#333333">
<div>
<div><span style="color: #ffffff;"><strong>LM1010-2XR</strong></span></div>
</div>
</td>
</tr>
<tr>
<td class="TableText" width="270" valign="middle" bgcolor="#cccccc">
<div>
<div>Maximum shearing capacity, Mild Steel
</div>
</div>
</td>
<td class="TableText" valign="middle">
<div>
<div>10 gauge
</div>
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div>
<div>Maximum shearing capacity, Stainless Steel
</div>
</div>
</td>
<td class="TableText" valign="middle">
<div>
<div>14 gauge
</div>
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div>
<div>Maximum cutting length
</div>
</div>
</td>
<td class="TableText" valign="middle">
<div>
<div>121"
</div>
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div>
<div>Back gauge range
</div>
</div>
</td>
<td class="TableText" valign="middle">
<div>30" (2X)
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div>
<div>Strokes per minute, full length
</div>
</div>
</td>
<td class="TableText" valign="middle">
<div>
<div>35
</div>
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div>
<div>Number of hold down feet
</div>
</div>
</td>
<td class="TableText" valign="middle">
<div>
<div>16
</div>
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div>
<div>Motor - 230/460V, 3-Phase, 60Hz
</div>
</div>
</td>
<td class="TableText" valign="middle">
<div>
<div>12.5 HP
</div>
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div>Dimensions, less gauges (LxWxH)
</div>
</td>
<td class="TableText" valign="middle">
<div>145" x 39" x 59.5"
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div>
<div>Floor space, gauges in position
</div>
</div>
</td>
<td class="TableText" valign="middle">
<div>
<div>145" x 78" x 60"
</div>
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div>
<div>Shipping Weight:
</div>
</div>
</td>
<td class="TableText" valign="middle">
<div>
<div>9,400 lbs.
</div>
</div>
</td>
</tr>
</tbody>
</table>
<p>Specifications are subject to change without notice.
</p>
<p>NOTE: Data is provided by the manufacturer.
</p>
<p><strong>WARRANTY: 3 YEAR</strong> – Limited
</p>
<p></p>
<ul>
<li><strong>MADE IN USA</strong></li>

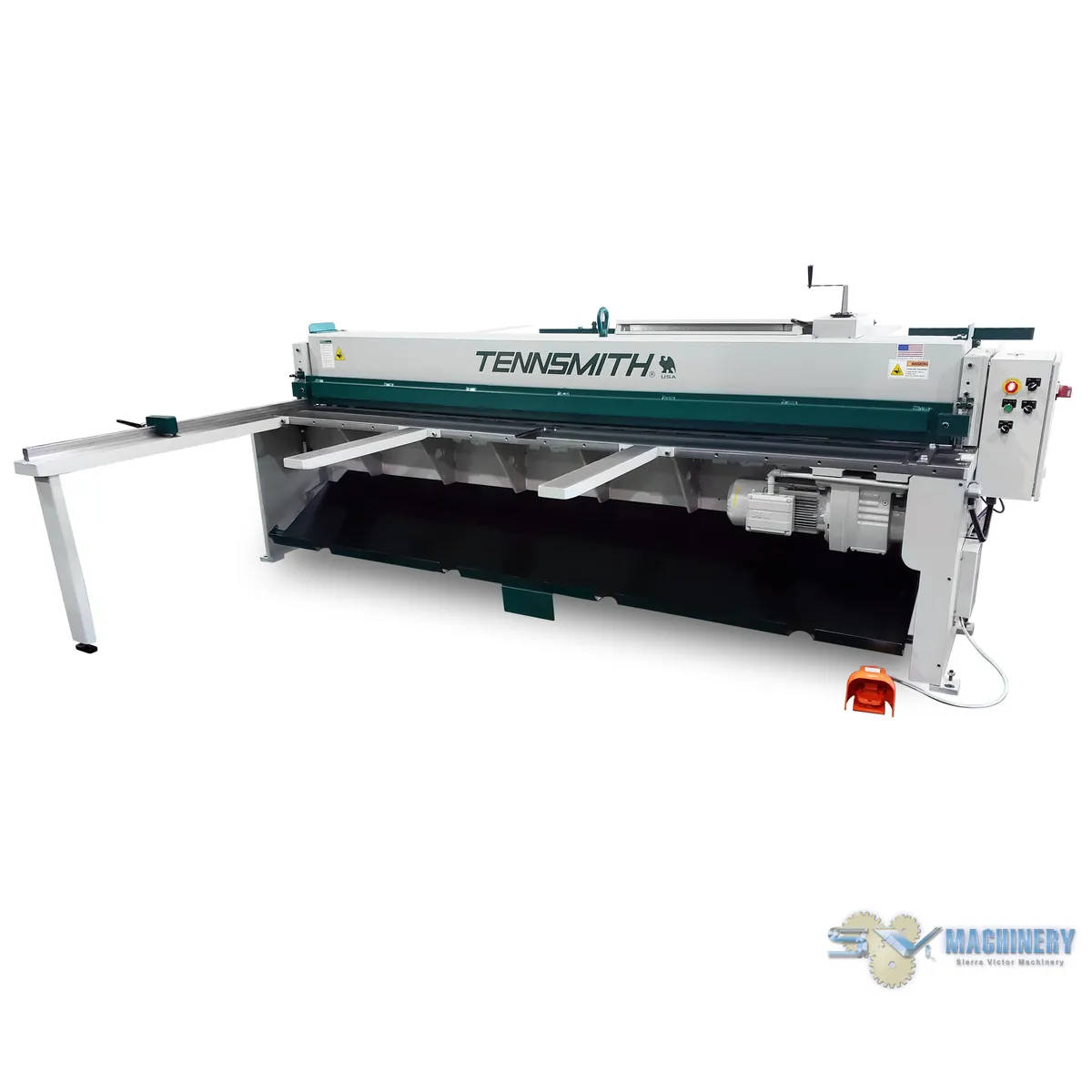

<li>TENNSMITH'S LM1010 / LM1210 is equipped with a standard "Go-To" 30
inch back gauge system. The ball screw driven back gauge provides quick,
accurate cuts. The operator simply inputs a dimension, and then presses
enter, and the gauge automatically positions to that number. Please
call 386-304-3720 for more details. The LM1010 is also available with
the unique 2x back gauge system (LM1010-2x). This allows the operator to
move the backstop from 0 to 30 inches in approximately 2 seconds with
only two rotations of the handle. An optional digital readout is
available for this system.
</li>
<li>The LM Series shears are standard with four-edge, high carbon, high
chrome top and bottom blades, independent, self-leveling hold down feet
with neoprene inserts, single, continuous and jog stroke cycles, motor
reverse switch, precision-machined table with hand well, dual
inch/metric inlaid bed scales and non-metallic gibs.
</li>
<li>To enhance productivity, optional equipment available for the machines.</li>
<li>The LM1010, LM1210 also have available an air operated sheet
support system. This system is available as Rear Return only: System-R
drops the supported material to the rear of the machine
</li>
<li>
<strong>Note:</strong> Performance Packages
are Preferred Options
</li>
<li> Please call <strong>386-304-3720</strong> for details</li>
</ul>
<p><b>OPTIONAL ITEMS:</b></p>
<ul>
<li>Wired for CSA Canadian Electrical Standard: $415.00</li>
<li>83800: Squaring Arm Five Foot with Dual Inlaid Inch/Metric Scale: $1,180.00</li>
<li>83805: Squaring Arm Ten Foot with dual Inlaid Inch/Metric Scale: $2,655.00</li>
<li>83815: Additional Flip-up Stops for Squaring Arm (each): $230.00</li>
<li>83820: Front Support Arms Pair: $310.00</li>
<li>83825: T-Slotted Table with Two Front Support Arms with Inlaid Inch/Metric Scales: $2,125.00</li>
<li>83830: Additional Flip-up Stops for T-Slotted Support Arms and Table (each): $215.00</li>
<li>83835: Power Back-gauge 30-Inch Travel: $6,570.00</li>
<li>83840: Protractor Attachment: $685.00</li>
<li>83885: Work Shadow Light LM Series: $970.00</li>
<li>83895: Digital Readout for 2x Back-gauge System: $1,150.00</li>
<li>83890: Stroke Counter (Electro-Mechanical): $340.00</li>
<li>83900: LM1010 High Carbon High Chrome 4 Edge per set: $2,415.00</li>
</ul>
<ul>
<li><strong>Increased Cutting Speeds (Please consult factory)</strong></li>
<li>
<strong>Note:</strong> Performance Packages
are Preferred Options
</li>
<li>All LM Series Shears are available in a reduced price "Performance Package" configuration. The Performance Package includes:
<ul>
<li>5 foot squaring arm</li>
<li>A pair of front support arms</li>
<li>Air operated sheet support system</li>
</ul>
</li>
<li>Performance "R" system is for rear return</li>
<li>Please Contact Sierra Victor Machinery at <strong>386-304-3720</strong> for a complete listing of optional equipment</li>
</ul>
