<table cellspacing="0" cellpadding="0" border="1" width="520">
<tbody style="text-align: center;">
<tr>
<td bgcolor="#cccccc" width="257" class="TableText"><div align="center">Cutting Length</div></td>
<td width="257" class="TableText"><div align="center">126 in. (10.5 ft)</div></td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText"><div align="center">Mild Steel</div></td>
<td class="TableText"><div align="center">0.157 in.</div></td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText"><div align="center">Stainless</div></td>
<td class="TableText"><div align="center">0.098 in.</div></td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText"><div align="center">Aluminum</div></td>
<td class="TableText"><div align="center">0.236 in.</div></td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText"><div align="center">Cut per minute</div></td>
<td class="TableText"><div align="center">35</div></td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText"><div align="center">Motor Power</div></td>
<td class="TableText"><div align="center">7.5Kw</div></td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText"><div align="center">Dimensions (W x L x H)</div></td>
<td class="TableText"><div align="center">77 x 147 x 63 in.</div></td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText"><div align="center">Weight</div></td>
<td class="TableText"><div align="center">6,724 lbs.</div></td>
</tr>
</tbody>
</table>
<ul>
<p><strong>STANDARD FEATURES:</strong>
</p>
<ul>

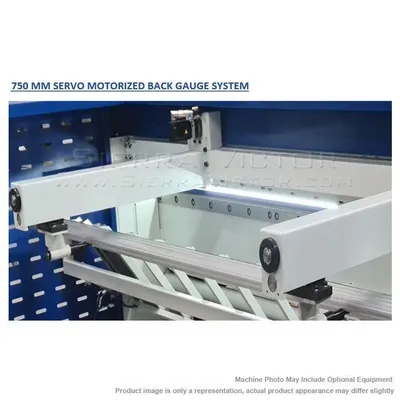

<li><strong><u>29.5 INCH SERVO MOTORIZED BACK GAUGE SYSTEM</u></strong></li>

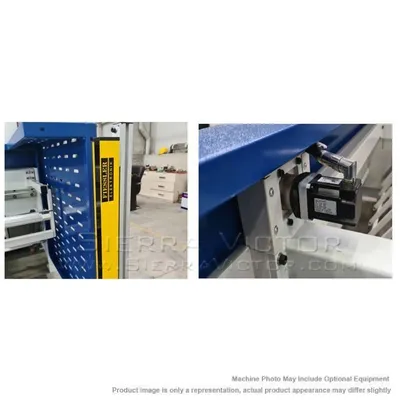

<li>700W servo drive and motor with +/- 0,1 mm accuracy</li>
<li>32/32 thread ballscrew system with +/- 0,05 mm accuracy</li>
<li>Aluminum sigma profile sheet support</li>
<li>One fixed, one movable, full body protective, vertical light barriers</li>
<li>Side fences to avoid unwanted interventions </li>

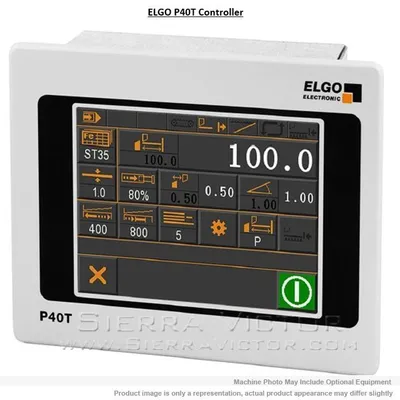

<li><strong><u>ERCUT NC CONTROL SYSTEM</u></strong></li>

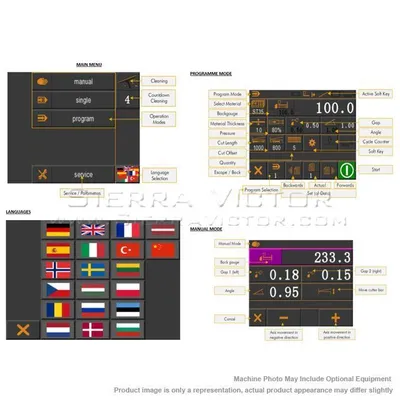

<li>HMI - 7 inch TFT display touchscreen with 800x480 resolution</li>
<li>Ethercat + USB inputs and IP65 protection class</li>
<li>128 MB memory for 10.000 programmes with 10 steps</li>
<li>Manual,semi-automatic and automatic functions</li>
<li>Parametrical settings for retraction, pneumatic support and backgauge </li>
<li>Language selection (specific languages can be imported)</li>

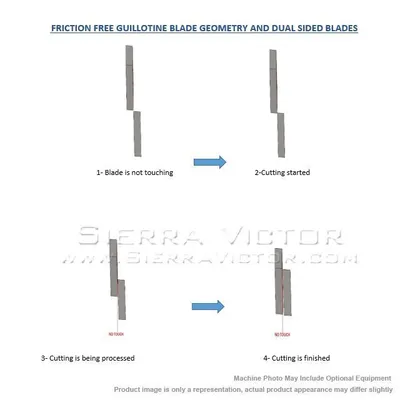

<li><strong><u>FRICTION FREE GUILLOTINE BLADE GEOMETRY AND DUAL SIDED BLADES</u></strong></li>
<li>Thanks to the curvy machined blade geometry, blades never touch eachother which sustains a much more longer blade life without sacrificing cutting presicion.</li>
<li>Both sides of the blades can be used by switching easily </li>
<li>2525 – 3220 - 4015 series do not have/need blade gap adjustment, all thicknesses can be done with the same fixed adjustment</li>
<li>2540 and 3240 series have manual mechanical blade gap adjustment function</li>

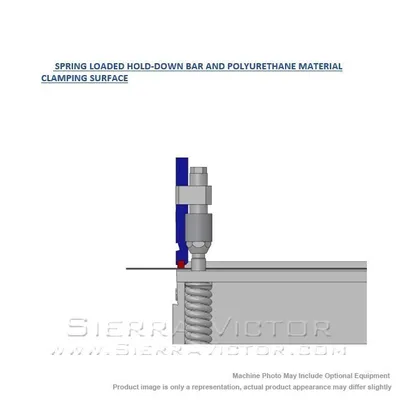

<li><strong><u>SPRING LOADED HOLD-DOWN BAR AND POLYURETHANE MATERIAL CLAMPING SURFACE</u></strong></li>
<li>Thanks to the spring load, the sheet is clamped and fixed with an ideal pressure for cutting</li>
<li>With the polyurethane touching surface (shown in red below), your material is never scratched </li>

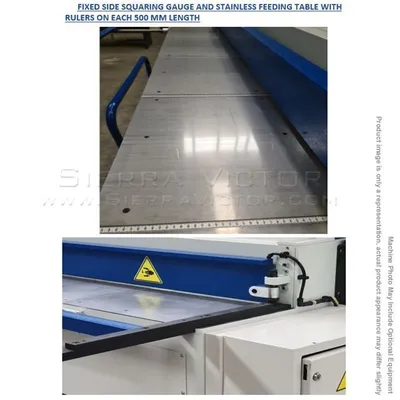

<li><strong><u>FIXED SIDE SQUARING GAUGE AND STAINLESS FEEDING TABLE WITH RULERS ON EACH 19.68 INCH LENGTH</u></strong></li>
<li><strong><u>RETRACTABLE FRONT SHEET SUPPORT BAR </u></strong></li>
<li>From the cutting line to the edge, it is able to support max 36.6 inch long sheets</li>
<li>Smooth and light movement only by pulling from the middle</li>

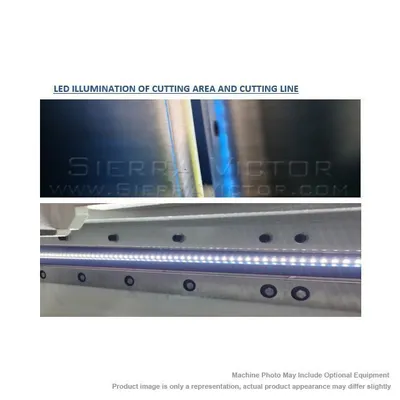

<li><strong><u>LED ILLUMINATION OF CUTTING AREA AND CUTTING LINE</u></strong></li>
</ul></ul>
<div><b><br></b></div>
<div><b>Optional Items - Call for price:</b></div>
<ul><ul>
<li>39 inch NC motorized back gauge system</li>
<li>0-180° angular cutting device</li>
<li>Pneumatic sheet support system</li>
<li>Blade set as spares</li>
</ul>
<ul>

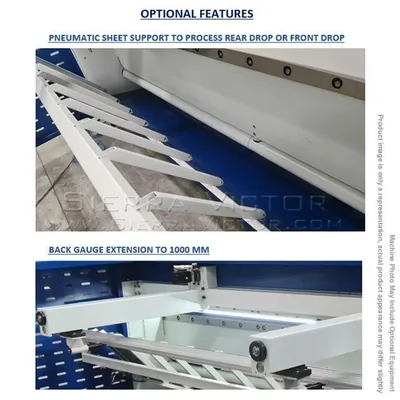

<li> PNEUMATIC SHEET SUPPORT TO PROCESS REAR DROP <u><strong>OR</strong></u> FRONT DROP </li>
<li> PNEUMATIC SHEET SUPPORT AS FRONT <u><strong>AND</strong></u> REAR DROP IN THE SAME CYCLE (NC CONTROLLED) </li>
<li>BACK GAUGE EXTENSION TO 39 INCH</li>

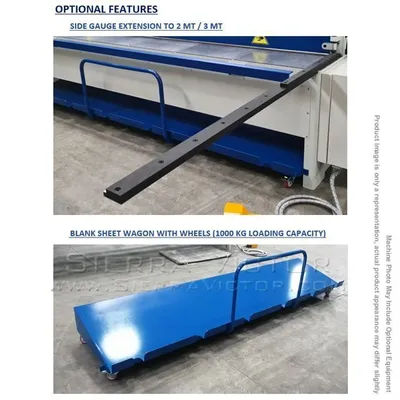

<li>SIDE GAUGE EXTENSION TO 2 MT</li>
<li>BLANK SHEET WAGON WITH WHEELS (2204.6 LBS LOADING CAPACITY)</li>

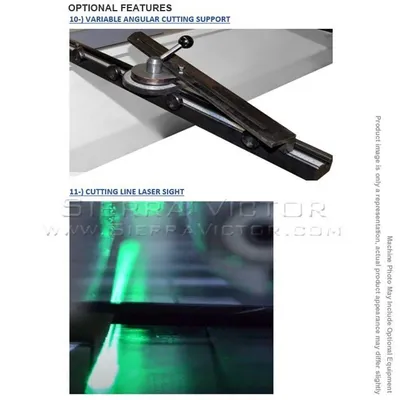

<li>VARIABLE ANGULAR CUTTING SUPPORT</li>
<li>CUTTING LINE LASER INDICATOR</li>
</ul></ul>
