<p><b>SPECIFICATIONS:</b></p>
<table cellspacing="0" cellpadding="0" border="1" width="520">
<tbody style="text-align: center;">
<tr bgcolor="#333333" class="Title_white_bold">
<td class="TableText">
<div align="center" class="Title_white_bold">
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>MODEL</strong></span>
</div>
</div>
</td>
<td width="85" class="TableText">
<div align="center" class="Title_white_bold">
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>GML-2680T</strong></span>
</div>
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" width="165" class="TableText">
<div align="center">Max. swing over bed
</div>
</td>
<td class="TableText">
<div align="center">26 in.
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" width="165" class="TableText">
<div align="center">Max. length of workpiece
</div>
</td>
<td class="TableText">
<div align="center">80 in.
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Max. swing over cross slide
</div>
</td>
<td class="TableText">
<div align="center">17-1/4 in.
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Max. Swing in gap
</div>
</td>
<td class="TableText">
<div align="center">35 in.
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Width of Bed
</div>
</td>
<td class="TableText">
<div align="center">15-3/4 in.
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Effective length in gap to spindle
</div>
</td>
<td class="TableText">
<div align="center">9 in.
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Effective length in gap to chuck jaws
</div>
</td>
<td class="TableText">
<div align="center">4-1/2 in.
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Spindle bore
</div>
</td>
<td class="TableText">
<div align="center">4-3/4 in. (120mm), D1-11
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Taper of spindle center
</div>
</td>
<td class="TableText">
<div align="center">MT# 7/MT5 with reducing sleeve
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Spindle speeds
</div>
</td>
<td class="TableText">
<div align="center">10-1,000 rpm / 12 steps
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Longitudinal feeds
</div>
</td>
<td class="TableText">
<div align="center">0.002 - 0.032 IPR, 35 kinds
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Cross feeds
</div>
</td>
<td class="TableText">
<div align="center">0.001 - 0.0094IPR, 35kinds
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Inch threads
</div>
</td>
<td class="TableText">
<div align="center">2-56 TPI, 44kinds
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Metric threads
</div>
</td>
<td class="TableText">
<div align="center">0.5-14mm , 24 kinds
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Max. travel of top slide
</div>
</td>
<td class="TableText">
<div align="center">8 in.
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Max. travel of cross slide
</div>
</td>
<td class="TableText">
<div align="center">13-1/2 in.
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Leadscrew length X TPI
</div>
</td>
<td class="TableText">
<div align="center">1-1/2 in. x 4 TPI
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" width="165" class="TableText">
<div align="center">Diameter of tailstock quill
</div>
</td>
<td class="TableText">
<div align="center">3-1/2 in.
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Max. travel of tailstock quill
</div>
</td>
<td class="TableText">
<div align="center">7-1/2 in.
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Taper of tailstock quill center
</div>
</td>
<td class="TableText">
<div align="center">M.T. # 5
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Main Motor
</div>
</td>
<td class="TableText">
<div align="center">15HP, 220V or 440V, 3 phase (specify)
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Amperage Draw
</div>
</td>
<td class="TableText">
<div align="center">55Amp on 220V / 30Amp on 440V
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Rapid traverse motor
</div>
</td>
<td class="TableText">
<div align="center">1HP, 220V or 440V, 3 phase
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Coolant pump motor
</div>
</td>
<td class="TableText">
<div align="center">1/8 HP, 220V, or 440V, 3 phase, 3 Gal coolant fluid
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Machine Oil
</div>
</td>
<td class="TableText">
<div align="center">#30 weight machine oil, 8 Gallons
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Machine Weight, approx.
</div>
</td>
<td class="TableText">
<div align="center">6,720 lbs.
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Overall Dimensions LWH
</div>
</td>
<td class="TableText">
<div align="center">137 x 50 x 73 in.
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Shipping Dimensions LWH
</div>
</td>
<td class="TableText">
<div align="center">142 x 44 x 77 in.
</div>
</td>
</tr>
</tbody>
</table>
<p>Specifications are subject to change without notice.
</p>
<p>NOTE: Data is provided by the manufacturer.
</p>
<p><strong>WARRANTY: 5 YEAR</strong> – Parts
</p>
<ul>
<li>Made in Taiwan-100% made in Taiwan, by top manufacturer with very high level of quality</li>
<li>5 years industrial warranty for parts for all Taiwan lathes </li>
<li><strong>One piece solid casting base, Meehanite high performance cast iron </strong></li>
<li><strong>Machine bed is made of Meehanite casting – high performance cast iron</strong><strong> </strong></li>
<li>ISO 9001 certified</li>
<li>Large spindle bore 4-3/4” (120mm) </li>
<li>Heavy Duty spindle D1-11 </li>
<li>Heavy Duty main motor 15HP</li>
<li>16 spindle speeds from 10-1,000 rpm, 12 speeds</li>
<li>2-speed tailstock </li>
<li>54 kinds of inch threads, and 54 kinds of metric threads</li>
<li>Threading and feeding rate change without changing gears </li>
<li>Spindle is balanced, hardened and precision ground</li>
<li>Spindle is supported at 3-point by high precision bearings </li>
<li>All gears and shafts are hardened and precision ground </li>
<li>Guideways induction hardened and precision ground</li>
<li>Automatic lubrication system in headstock and feed box </li>
<li><strong>DISCLAIMER:</strong> *Please note this machine<u> is incompatible with the use of a rotary phase converter</u>. Any attempt to purchase, install, or employ one, whether carried out by you or a professional service company, <u>will automatically void the warranty.</u> It is crucial to understand that any such actions are entirely the responsibility of the buyer. </li>
<li>**This disclaimer is intended to clearly convey that the utilization of a rotary phase converter to power or operate this machine is not supported.</li>
</ul>
<p><strong> STANDARD EQUIPMENT: </strong>
</p>
<ul>
<li><u>Free CARMAR DRO, installed </u><u> </u></li>
<li>Rapid traverse on carriage on Longitudinal way<u> </u></li>
<li>Automatic kick-out longitudinal carriage stop system<u></u></li>
<li>2-speed tailstock<u></u></li>
<li>12” 3-jaw chuck with top reversible jaws, direct mount </li>
<li>20” Face plate </li>

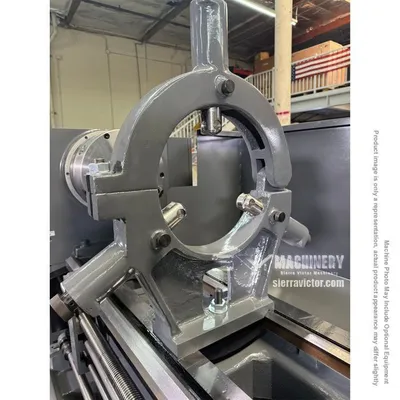

<li>12” steady rest with roller jaws </li>

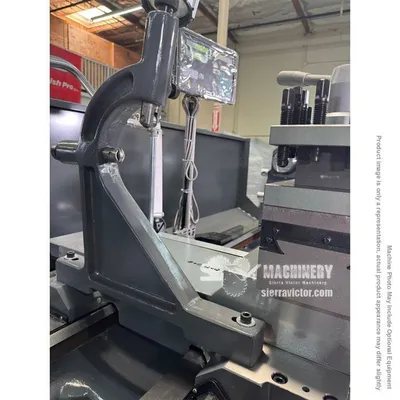

<li> 5” follow rest with roller jaws </li>
<li>Removeable gap</li>

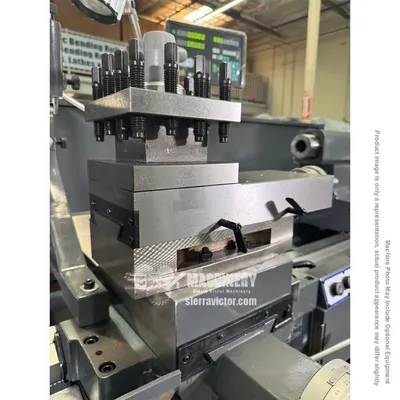

<li>4-way tools post </li>
<li>Foot brake </li>
<li>Halogen Work light and coolant system</li>
<li>Splash guard on carriage </li>
<li>Dead center </li>
<li>Thread chasing dial </li>
<li>Reducing sleeve MT7/MT5 for spindle</li>
<li>Tool box and leveling pads</li>
</ul>
<p><b>Optional Items:</b></p>
<table cellspacing="0" cellpadding="0" border="1" width="520" class="TableText1">
<tbody style="text-align: center;">
<tr bgcolor="#333333" class="Title_white1">
<td width="92" class="optional_accessories"><div align="center" class="Title_white_bold">
<div align="center"><span style="color: rgb(255, 255, 255);"><b>PART # </b></span></div>
</div></td>
<td width="339" bgcolor="#333333"><div align="center" class="Title_white_bold">
<div align="center"><span style="color: rgb(255, 255, 255);"><b>ITEM </b></span></div>
</div></td>
<td width="81" bgcolor="#333333" class="Title_white_bold"><div align="center"><span style="color: rgb(255, 255, 255);"><b>PRICE</b></span></div></td>
</tr>
<tr>
<td bgcolor="#CCCCCC" class="optional_accessories"><div align="center">3900-5160</div></td>
<td><div align="center">6pc ALORIS type QC tool post set </div></td>
<td bgcolor="#CCCCCC" class="optional_accessories"><div align="center">$2,850.00</div></td>
</tr>
<tr>
<td bgcolor="#CCCCCC" class="optional_accessories"><div align="center">3900-5005</div></td>
<td><div align="center">Live Center</div></td>
<td bgcolor="#CCCCCC" class="optional_accessories"><div align="center">$195.00</div></td>
</tr>
<tr>
<td bgcolor="#CCCCCC" class="optional_accessories"><div align="center">—</div></td>
<td><div align="center">Taper Attachment, Installed</div></td>
<td bgcolor="#CCCCCC" class="optional_accessories"><div align="center">$3,150.00</div></td>
</tr>
<tr>
<td bgcolor="#CCCCCC" class="optional_accessories"><div align="center">—</div></td>
<td><div align="center">Chuck</div></td>
<td bgcolor="#CCCCCC" class="optional_accessories"><div align="center">$875.00</div></td>
</tr>
<tr>
<td bgcolor="#CCCCCC" class="optional_accessories"><div align="center">—</div></td>
<td><div align="center">20" steady rest with roller jaws</div></td>
<td bgcolor="#CCCCCC" class="optional_accessories"><div align="center">$4,950.00</div></td>
</tr>
</tbody>
</table>
