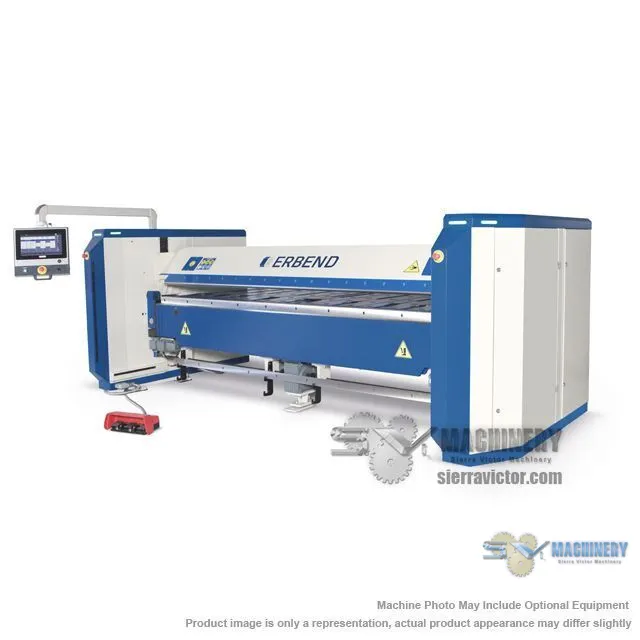

ERBEND MFB 3220 10ft x 14ga. CNC Motorized Sheet Metal Folding Machine
Have one to sell?
ConditionNew
New

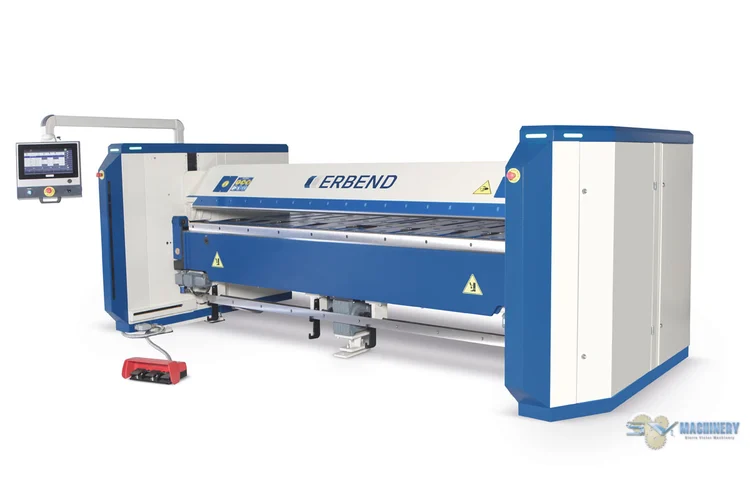

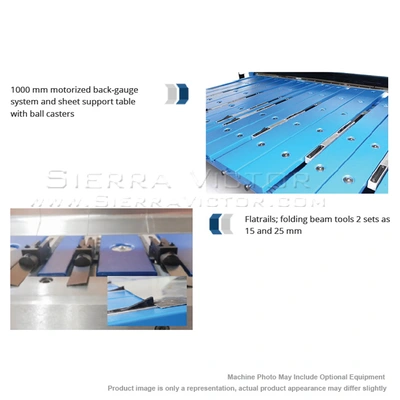

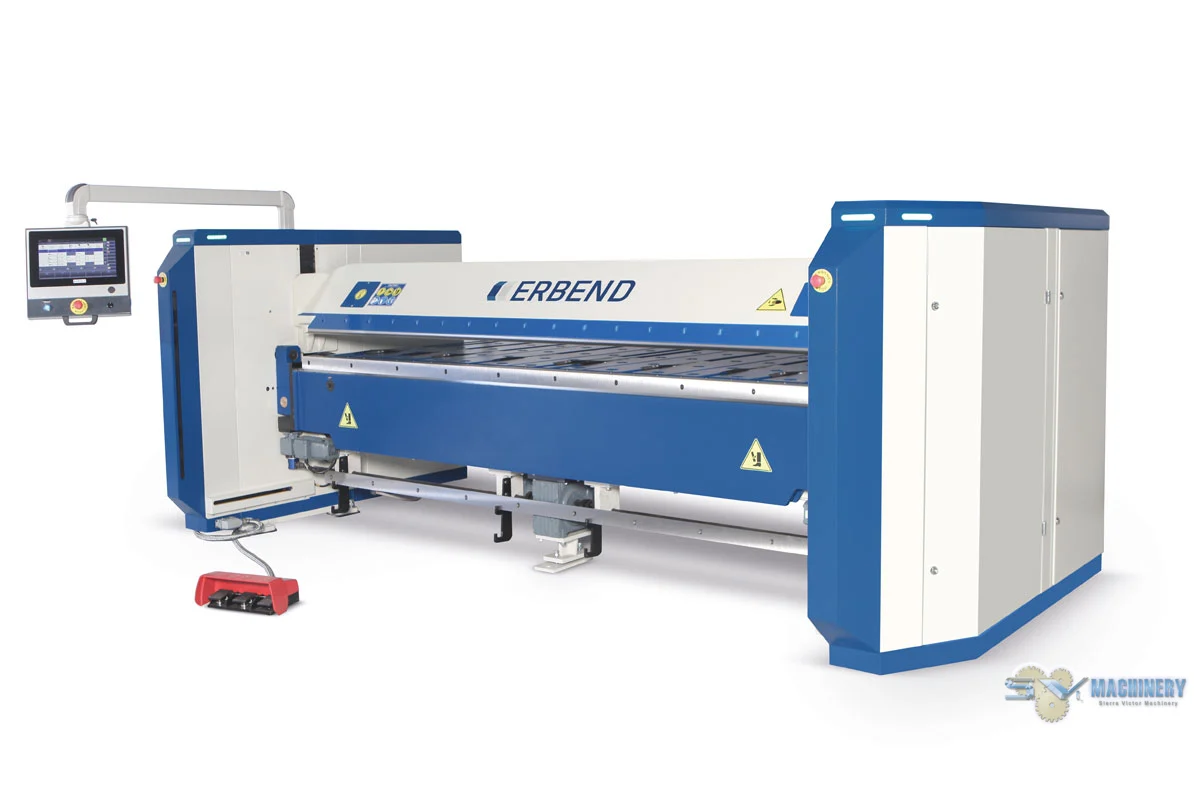

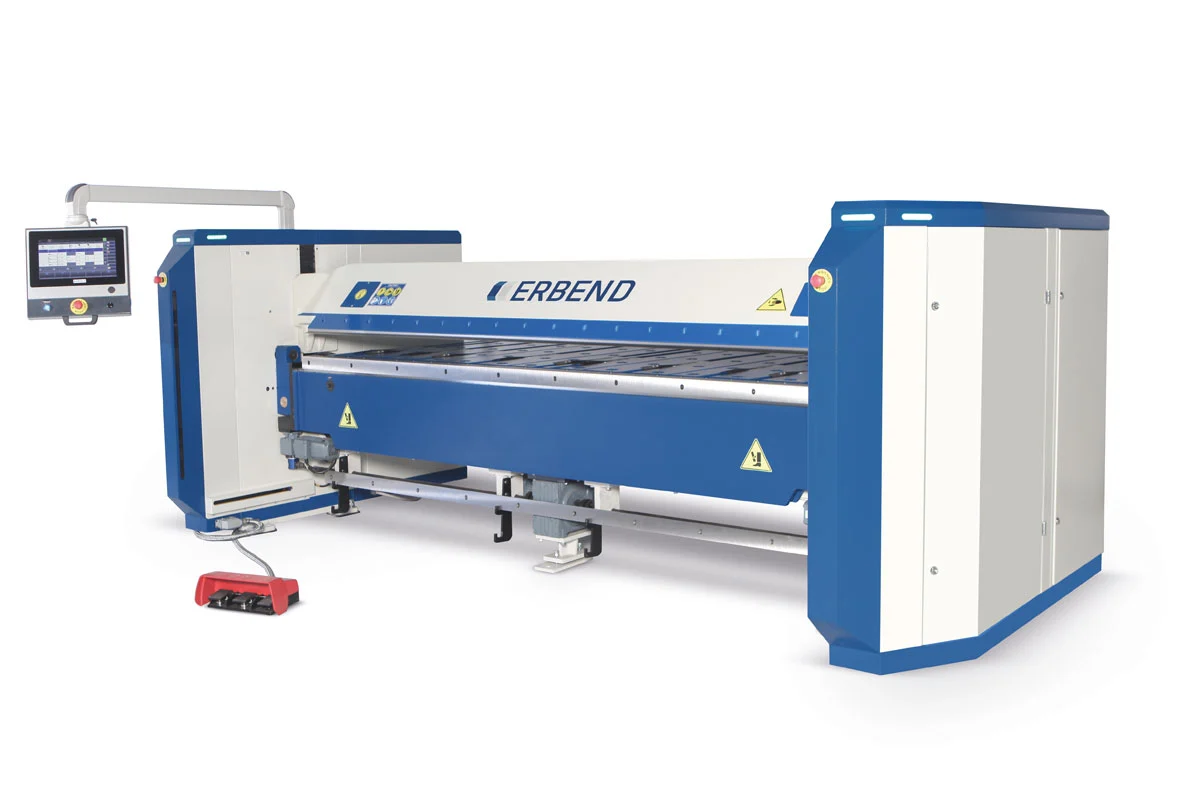

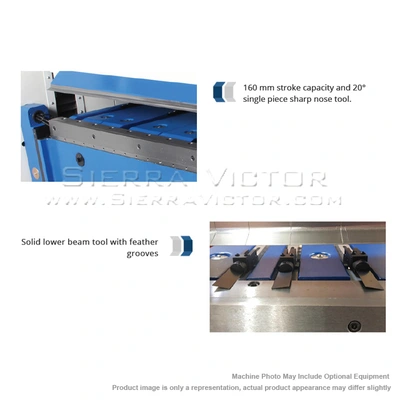

ERBEND MFB 3220 CNC Folder has a max sheet length of 10 feet and mild steel capacity of 14 gauge.AC motorized drive X,Y, Z (clamping, folding, back gauge)15.6” Touchscreen controller on swivel arm with ERFOLD BASIC CNC line by line and 2D software control1000mm motorized back gauge + sheet support table with ball casters
Optional items - Call for price:
59 inch servo backgauge system with rectangular sheet support table.
98.4 / 126 / 165.3 inch servo backgauge system upgrade with L / T / U shape sheet support table options.
ERFOLD ADVANCED 2D/3D CNC Graphic Control Software.
Servo folding beam adjustment.
Manual crowning system.
3.54 or 4.33 inch high segmented goat foot tool set.
Omega geometry upgrade on lower and folding beam.
Manual conical backgauge finger.
Motorized conical backgauge system.
Pneumatic goat foot tool quick clamping system.

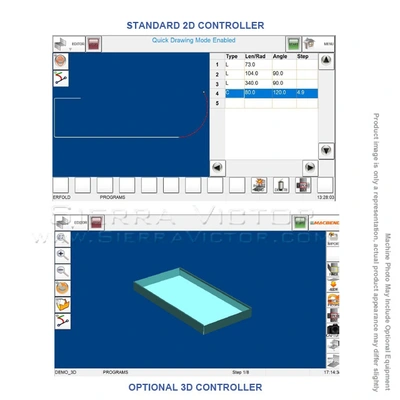

ERFOLD ADVANCED 2D/ 3D CNC GRAPHICAL CONTROL SOFTWARE

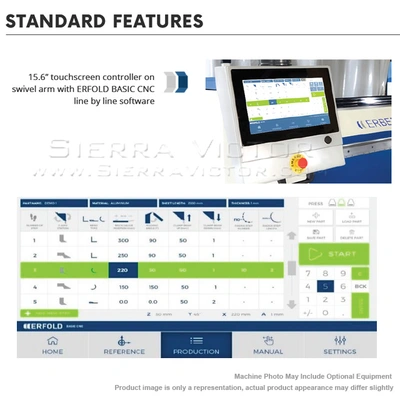

15.6" touchscreen all-in one industrial pc controller on swivel arm
2D part editor: you can create a new bending programme by drawing or line by line and and visualize in 2D
3D editor: You can draw the parts in 3D or you can import 3D step/igs files over your offline software
You can determine and change the bending sequence on the created part

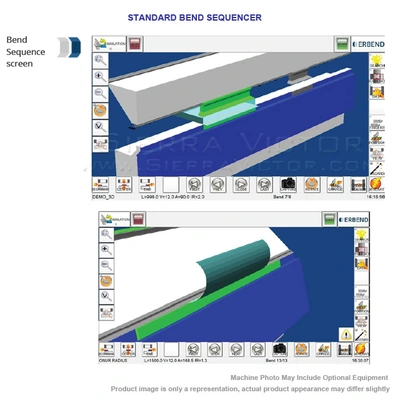

3D simulation of bending to check for collisions and intervene if needed
Capability of choosing material type,thickness,springback,shortening,bending correction and creating data base for every type of material or lot
Tool library and edit: You can import, create by drawing and define new tools, save, recall or delete in the library
Authorization with password
Real time simulated production page in which you can monitor all axes movements on 3D graphic view of the machine and also numerical values of the axes
16 GB hard disk space which allows you to save unlimited bending receipt or tool data
Detailed alarm and parameters page

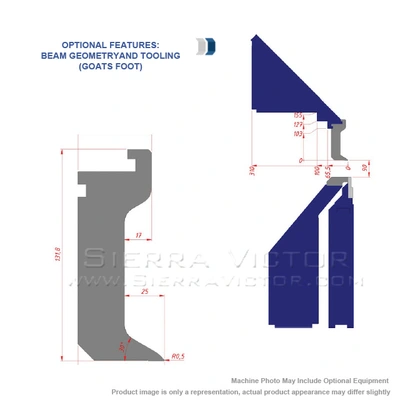

LOWER AND FOLDING BEAM WITH OMEGA GEOMETRY
Thanks to the special design and more clearence with omega beam geometry of lower beam and folding beam, the parts with downwards flanges, like omega profiles, trapezoidal profiles can be executed more easily.
3.54 INCH HIGH SEGMENTED GOAT FOOT TOOL SET

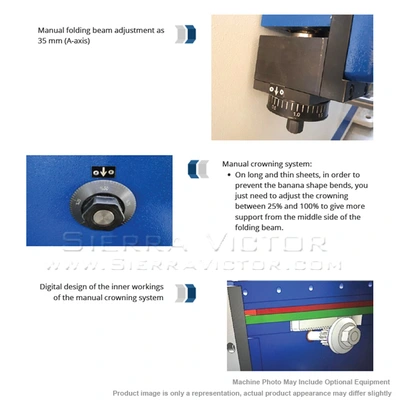

MANUAL CROWNING SYSTEM
On long and thin sheets, in order to prevent the banana shape bends, you just need to adjust the crowning between %25 and %100 to give more support from the middle side of the folding beam
MOTORIZED FOLDING BEAM ADJUSTMENT ( A1-A2 AXIS)
Motorized and cnc controlled of the folding beam height. Your bending height is calculated automatically according to the parameters and set just before the bend.
LONGER SHEET SUPPORT TABLE (TO WORK FROM THE FRONT SIDE)
Longer rectangular sheet support table and back gauges
Front side gauging arms + middle and back side triangle fingers up to 6 sectors
Movable sliders for down flanges
T or U SHAPE SHEET SUPPORT TABLE (TO WORK FROM THE BACK SIDE)
T or U shape sheet support table with ball casters.
Front side gauging arms + middle and back side triangle fingers up to 6 sectors.
MOTORIZED CONICAL BACKGAUGE SYSTEM
Dual axis cnc servo motorized control of the backgauge as X1 and X2 axis
X1 remains fixed, X2 moves forward to create max 5° conical angle
Laser beam indicator for the reference line of the sheet edge on the lower beam
PNEUMATIC GOAT FOOT QUICK CLAMPING SYSTEM (GOAT FOOT TOOLS NEEDED)
Eliminates the time for tool-setup. No time spent for screwing or unscrewing, just by turning one key, all tools are clamped or unclamped so that you can slide,remove or mount all goat foot tools just in seconds.
VACUUM TABLE WITH SUCTION CUPS
Thanks to the suction cups placed on the front gauging group;
Misalignment of the sheet is avoided.
Dropping down of the sheet because of downwards flanges is avoided.
No need to support the sheet anymore from the front side during multi radius bends.
If the gauging side of the sheet is oval or can not be gauged well to the standard fingers/gauges,you do not need to adjust it again in each bending step.
