FLAGLER 20 ga. High Speed 6-Station Pittsburgh Machine w/1-1/8 in. Drive Cleat Rolls (20-26 Ga.)

FLAGLER 20 ga. High Speed 6-Station Pittsburgh Machine w/1-1/8 in. Drive Cleat Rolls (20-26 Ga.)

Have one to sell?
386-304-3720
dan@sierravictor.com
$13,330.00 USD

Or as low as $1,999.50 USD/month over 36 months

ConditionNew
1 available
Fulfillment
FOB  |  Freight Quoted Separately
Located in: Florida, United States
Have one to sell?

Overview

Type:
Pittsburgh/Roll Former Machines
Manufacturer:
FLAGLER
Model:
FLAGLER 20 HS BUTTON
Condition:
New - In-Stock
Stock #:
16-000
Status:
For Sale
Country:
United States

Description

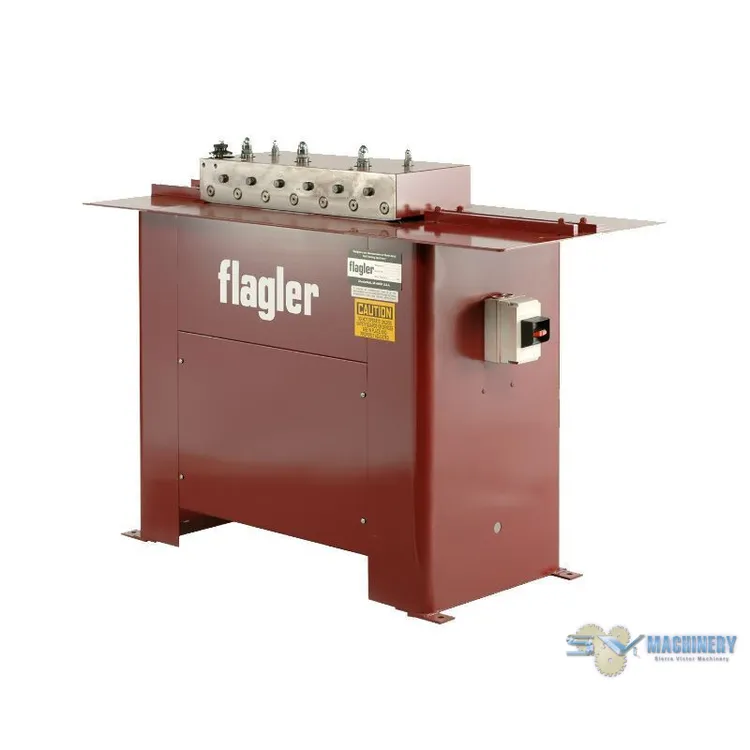

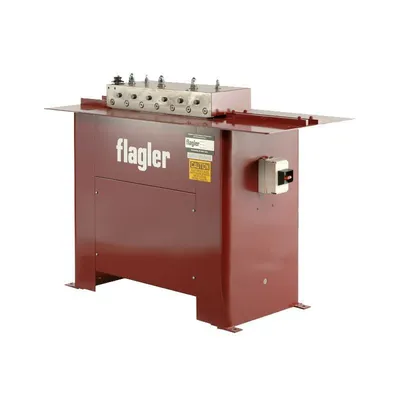

The Flagler 20 gauge High Speed 6-Station Pittsburgh Machine has a 3 HP, 230/3/60/1800 RPM motor. Equipped with Built-in 5/16" Pittsburgh Lock Roll and Equipped with optional w/1-1/8 in. Drive Cleat Rolls (20-26 Ga - part# 16-200). Manufactured in Michigan, USA.

Capacity20 ga20 ga
Capacity - Drive Cleats1-1/8 in. 20-26 Ga1-1/8 in. 20-26 Ga
Number of Stations33

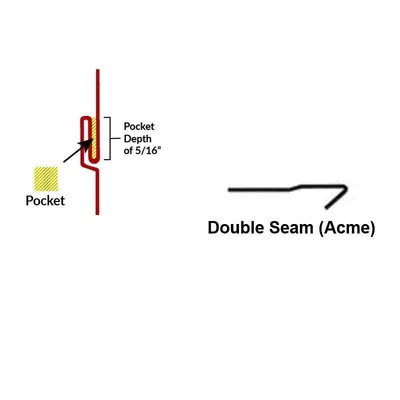

Depth of Pocket5/16 in.5/16 in.
Power3 hp2.2 kW
Electical230v, 3-Phase/60, 1800 RPM230v, 3-Phase/60, 1800 RPM
Feeding Speed100 fpm100 fpm
DriveDouble Matched V-BeltDouble Matched V-Belt
Allowance for Lock1 in. to 1-5/16 in.1 in. to 1-5/16 in.
Sheet Edge used to form profile1 in.1 in.
Feed table height32-5/8 in.32-5/8 in.
BaseArc Welded Steel Heavy Top PlateArc Welded Steel Heavy Top Plate
Dimensions36 L x 16-1/2 W x 37 H in.36 L x 16-1/2 W x 37 H in.
Weight450 lbs.450 lbs.

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly

16-200: 1-1/8 in. Drive Cleat Rolls (20-26 Ga)

Optional Items - Call for price:
1/4 - 3/8 in. Right Angle Flange Rolls (20-26 Ga.)
Short Parts Feeder for Auxiliary Rolls
