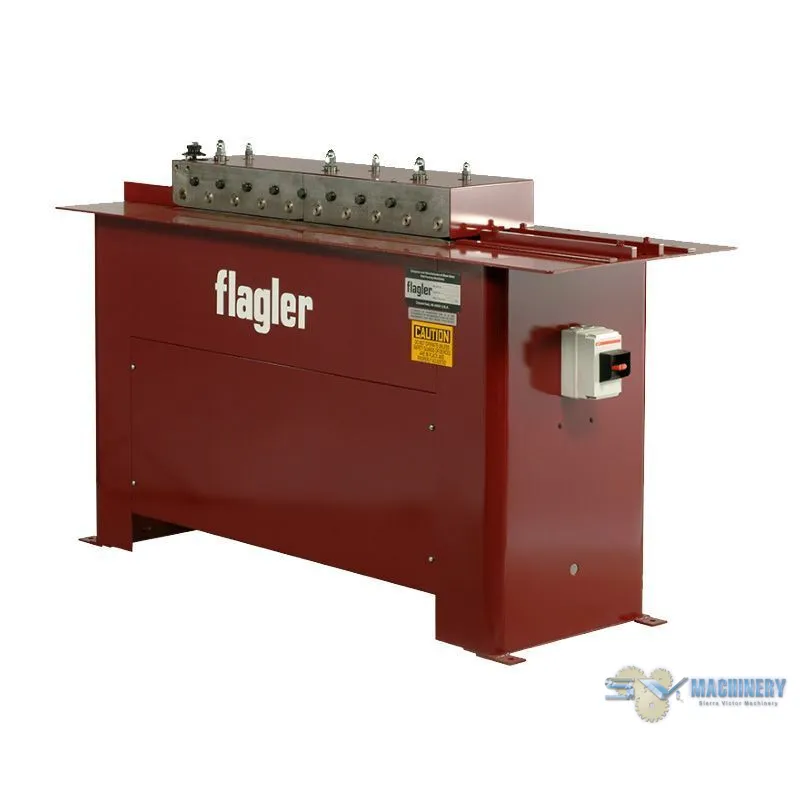

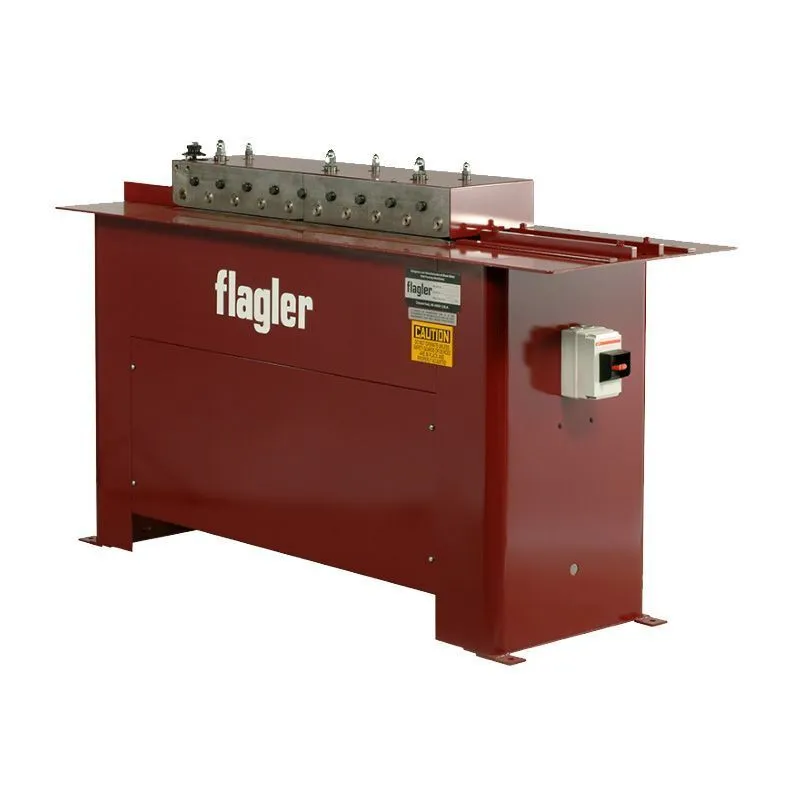

FLAGLER 20 ga. High Speed Button Lock

FLAGLER 20 ga. High Speed Button Lock

Have one to sell?
386-304-3720
dan@sierravictor.com
$17,100.00 USD

Or as low as $2,565.00 USD/month over 36 months

ConditionNew
1 available
Fulfillment
FOB  |  Freight Quoted Separately
Have one to sell?

Overview

Type:
Pittsburgh/Roll Former Machines
Manufacturer:
FLAGLER
Model:
FLAGLER 20
Condition:
New - In-Stock
Stock #:
30-000
Status:
For Sale

Description

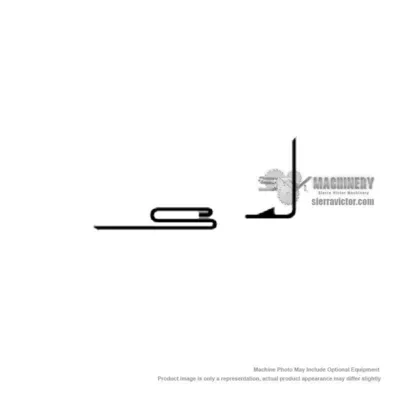

The Flagler 20 gauge high speed button lock has a 5 HP, 230/3/60/1800 RPM motor. Equipped with built-in Male and Female Button Lock Rolls. Manufactured in Michigan, USA.

Capacity20 ga20 ga
Number of Stations1010
Depth of Pocket9/16 in.9/16 in.
Gear Ratio1 to 11 to 1
Power5 hp3.7 kW
Electical230v, 3-Phase/60, 1800 RPM230v, 3-Phase/60, 1800 RPM
Feeding Speed100 fpm100 fpm
DriveDouble Matched V-BeltDouble Matched V-Belt
Feed table height35-1/8 in.35-1/8 in.
Shaft Diameter1.75"44.45 mm
BaseArc Welded Steel Heavy Top PlateArc Welded Steel Heavy Top Plate
Dimensions69 L x 24 W x 42 H in.69 L x 24 W x 42 H in.
Weight1,000 lbs.1,000 lbs.

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
