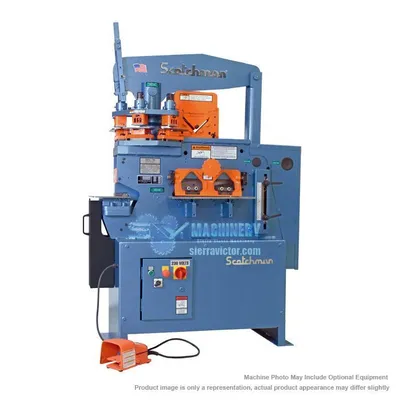

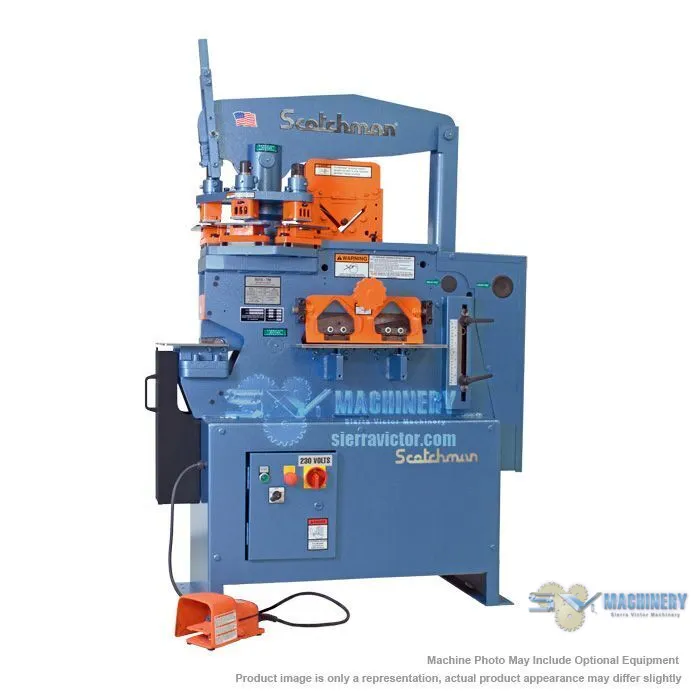

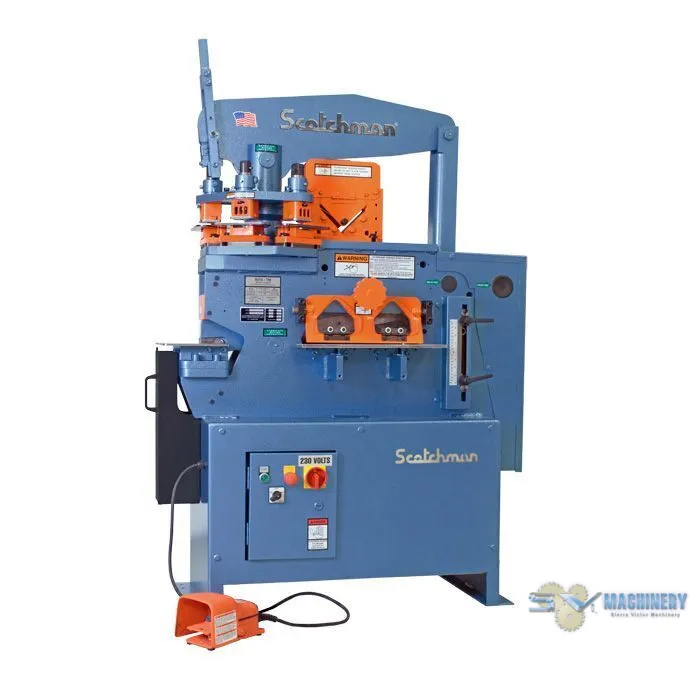

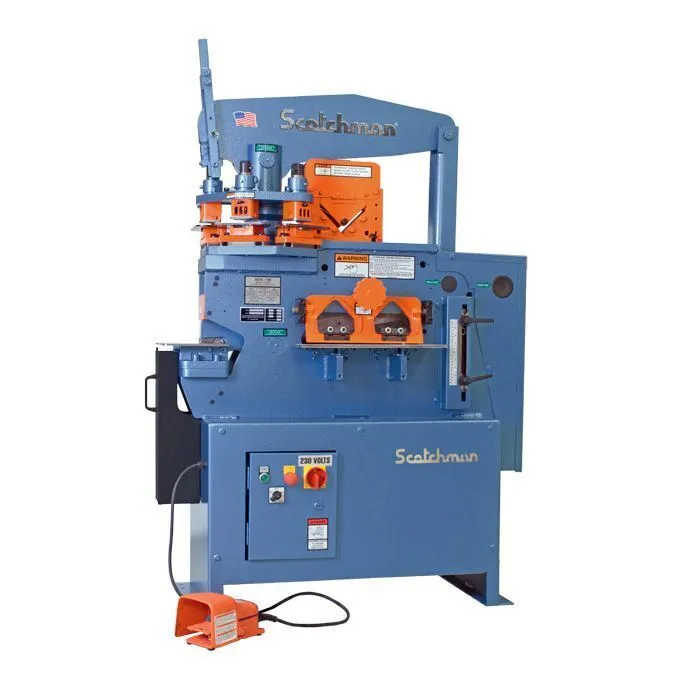

SCOTCHMAN 5014-ET 50 Ton Hydraulic Ironworker w/3-Station Turret | 460v, 3-Phase
Or as low as $2,923.50 USD/month over 36 months
Or as low as $2,923.50 USD/month over 36 months
The 5014-ET from Scotchman Industries is the world’s first and only 50-ton hydraulic ironworker with a 3-station turret. This hydraulic ironworker features 50 tons of pressure and has the ability to punch a 13/16″ hole in a 3/4″ plate and comes standard with an angle shear, 14” flat bar shear, and rectangle notcher. The 5014-ET ironworker is proudly made in the USA and is backed by Scotchman’s Best in the Business 3-year warranty.
Optional Voltages:
348022: 5014-ET - 3 hp 3 ph, 208V
348024: 5014-ET - 3 hp 3 ph, 230V
348027: 5014-ET - 3 hp 3 ph, 460V
348025: 5014-ET - 5 hp 1ph , 220V
5014-ET - 3ph, 60hz Less Angle Shear
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 3 YEAR – Parts
Optional Items - Call for price:
6" Brake
8" Brake
12" Brake
Open End Brake
Pipe Notcher
90 degree V-Notcher
Rod Shear
Tube Shear
Picket Tool
Punch Gauging Table with Fence & Scale
48" Back Gauge
Shear Table with Miter Fence
4" Angle Miter Guide
Laser Light
Brake Table with Scale and Squaring Arm, 12" Brake Only
Brake Length Gauge with Scale (sold separately) - 8" & 12" Brakes
Unistrut Shear
14" x 5' Conveyor with Angle Iron Support attached to 5014-TM
Mandrel Tube Punch (custom tooling)
Other styles available in accessories/custom punch and dies
Round Tube Punch (custom tooling)
Other styles available in accessories/custom punch and dies
Tool Table Extension includes Punch & Die Drawer (50-ton)
*Punches & Dies sold separately.
Weld Coupon Bender
LED Light
Snap Ring Removal Tool
Jog Control
