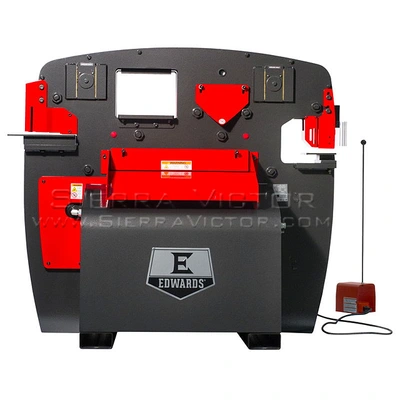

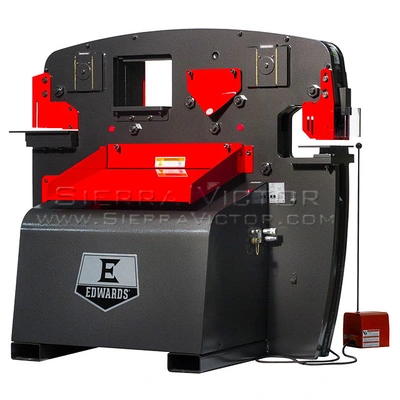

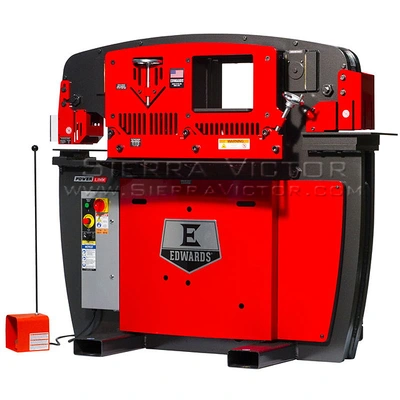

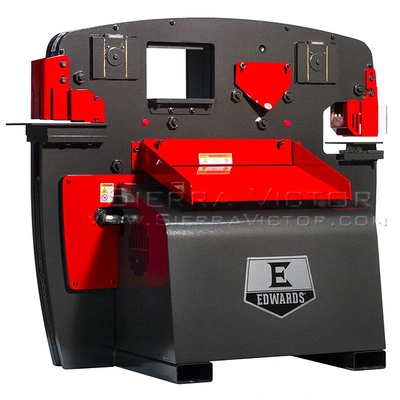

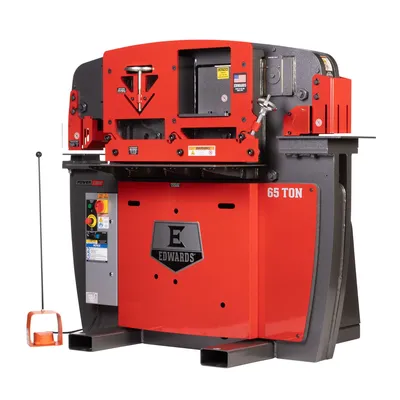

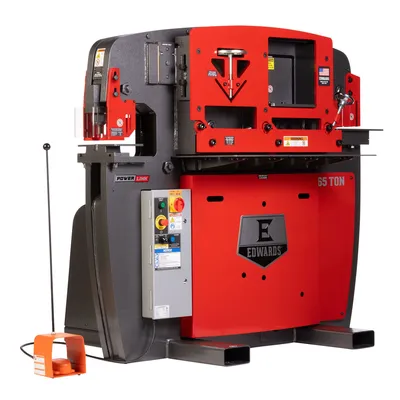

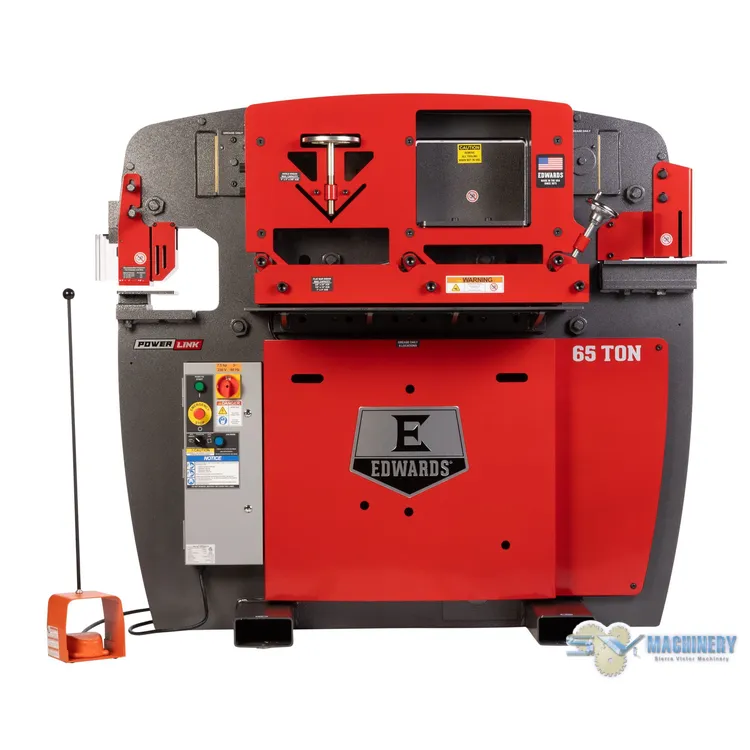

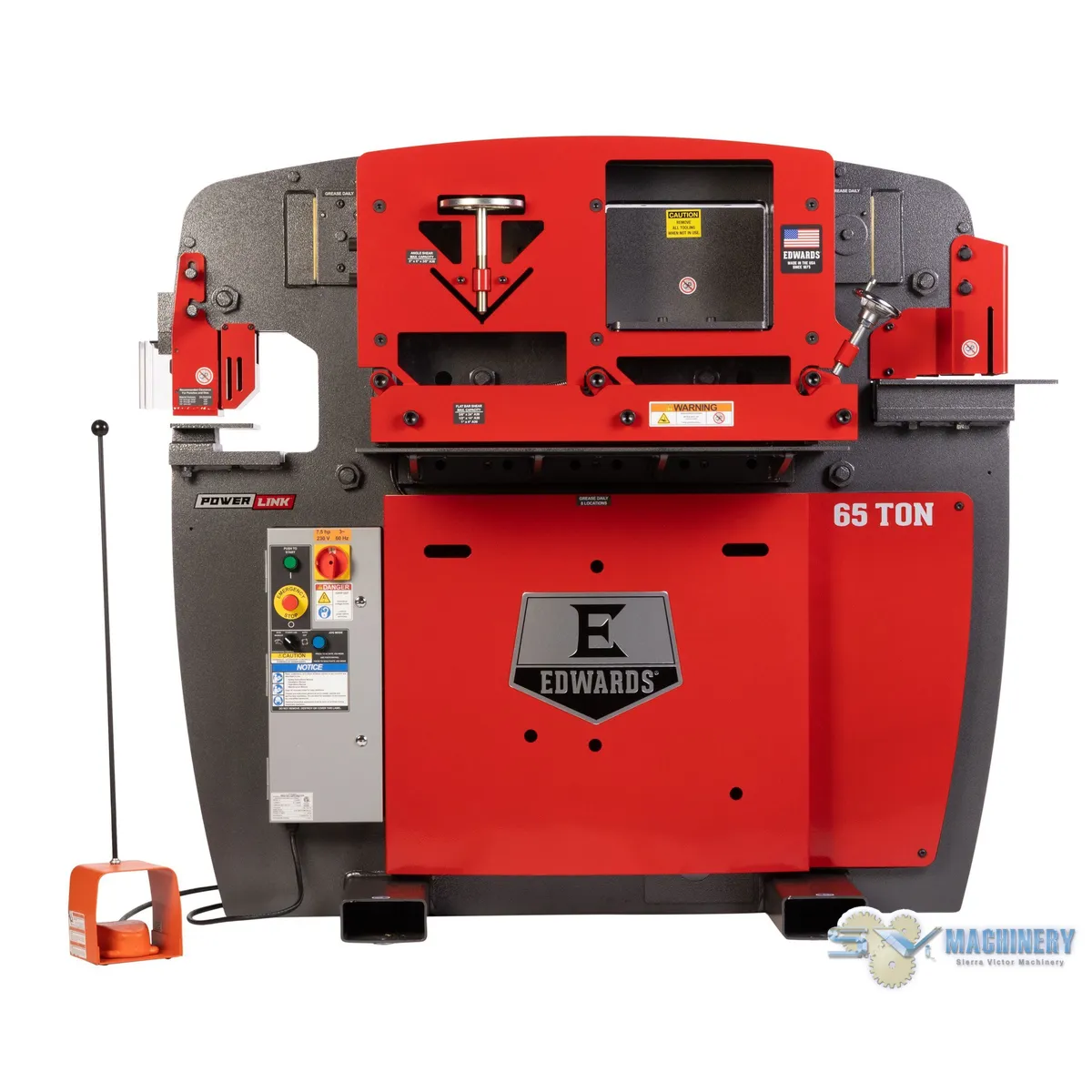

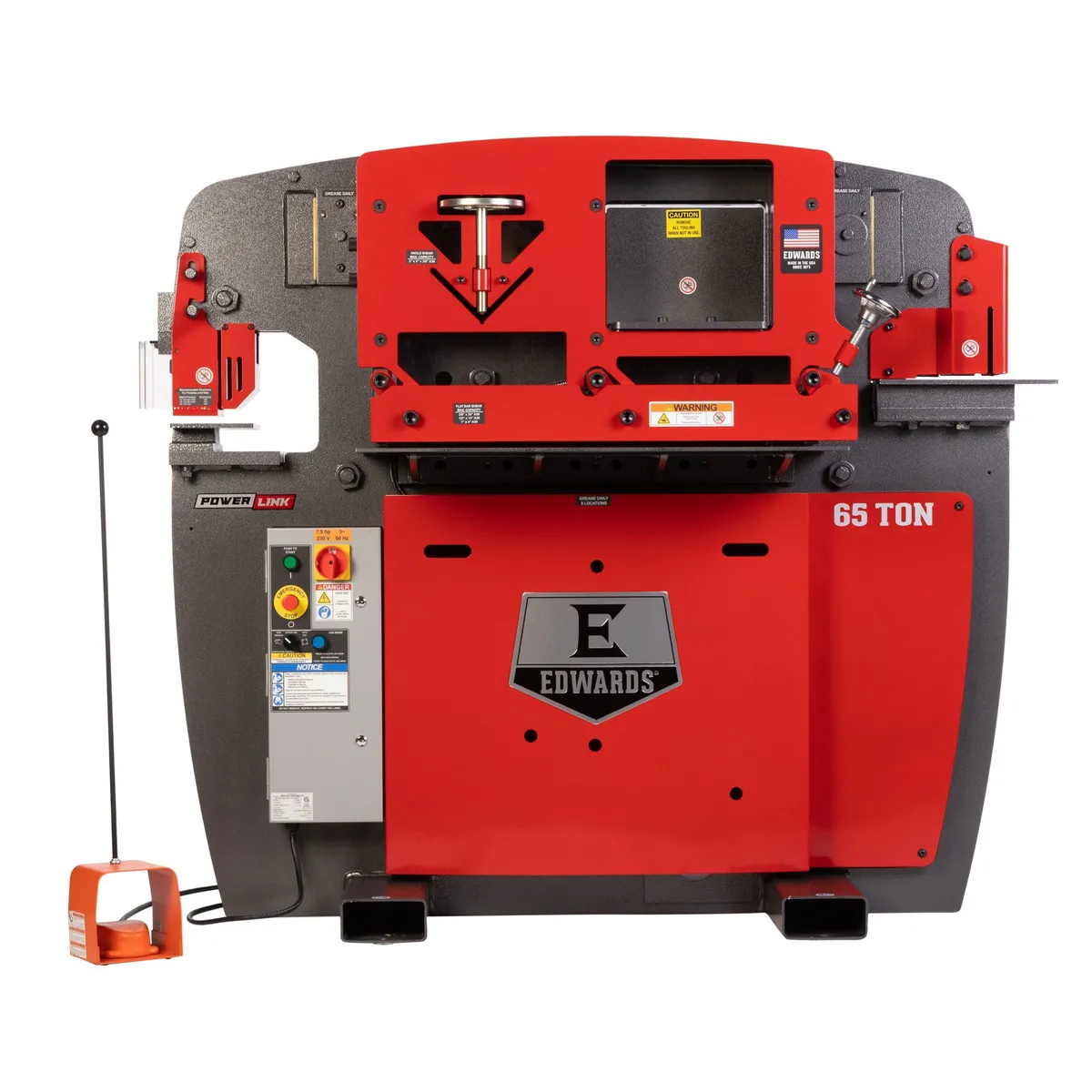

EDWARDS IW65 65 Ton Hydraulic Ironworker w/PowerLink | 460v, 3-Phase

EDWARDS IW65 65 Ton Hydraulic Ironworker w/PowerLink | 460v, 3-Phase

Have one to sell?
386-304-3720
dan@sierravictor.com
$32,169.00 USD
$27,343.65 USD

Or as low as $4,101.55 USD/month over 36 months

ConditionNew
Fulfillment
Freight  |  Free Shipping
Have one to sell?

Overview

Type:
Ironworkers
Manufacturer:
EDWARDS
Model:
IW65
Condition:
Build To Order
Stock #:
ED9-IW65-3P460-A
Status:
For Sale

Description

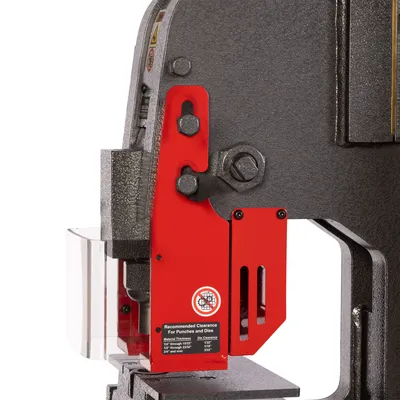

The five workstations of the Edwards 65 Ton JAWS Ironworker give you the power to handle any size job and the flexibility to tailor it to your specific needs. Standard features include a Punch Assembly with Pedestal Die Table, 24" wide Flat Bar Shear, Angle Shear, Coper Notcher and a universal open tooling station designed for optional Tooling Accessories.

Punch Tonnage65 T58,967.1 kg
Punch Max. Capacity1-1/16 in. Dia. in 3/4 in. A361-1/16 in. Dia. in 3/4 in. A36
Punch - Work Height36.563"928.69 mm
Punch - Throat Depth9.75"247.65 mm
Punch - Open Height8.758.75
Punch - Shut Height6-15/16 in.6-15/16 in.
Punch - Stroke1-13/16 in.1-13/16 in.
Flat Bar ShearMax. Width: 3/8 x 24, 1/2 x 14, 1 x 4 in.Max. Width: 3/8 x 24, 1/2 x 14, 1 x 4 in.
Flat Bar Shear - Max. Round Capacity1 in.1 in.
Flat Bar Shear - Max. Square Capacity1 in.1 in.
Flat Bar Shear - Work Height34-1/2 in.34-1/2 in.
Open Cavity - Height8.75"222.25 mm
Open Cavity - Width12"304.8 mm
Open Cavity - Work Height43"1,092.2 mm
Angle Shear - Maximum CapacityMax. Size: 5 x 5 x 3/8 in.Max. Size: 5 x 5 x 3/8 in.
Angle Shear - Work Height43-1/2 in.43-1/2 in.
Coper Notcher - Max. Capacity2-1/2 x 5 x 3/8 in.2-1/2 x 5 x 3/8 in.
Coper Notcher - Work Height39-1/2 in.39-1/2 in.
Motor7.5 HP7.5 HP
Electrics460v, 3-Phase460v, 3-Phase
Hydraulic Pump Size (GPM)10-1/2 - 2 stage10-1/2 - 2 stage
Oil Capacity/Reservoir17 gal64.4 L
Cylinder3-1/2 ram3-1/2 ram
Valve Pressure3500 psi
Rated on65,000 PSI Tensile65,000 PSI Tensile
Shipping Weight4,750 lb2,154.6 kg
DimensionsH 57 x W 62-1/8 x D 45 in.H 57 x W 62-1/8 x D 45 in.

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts

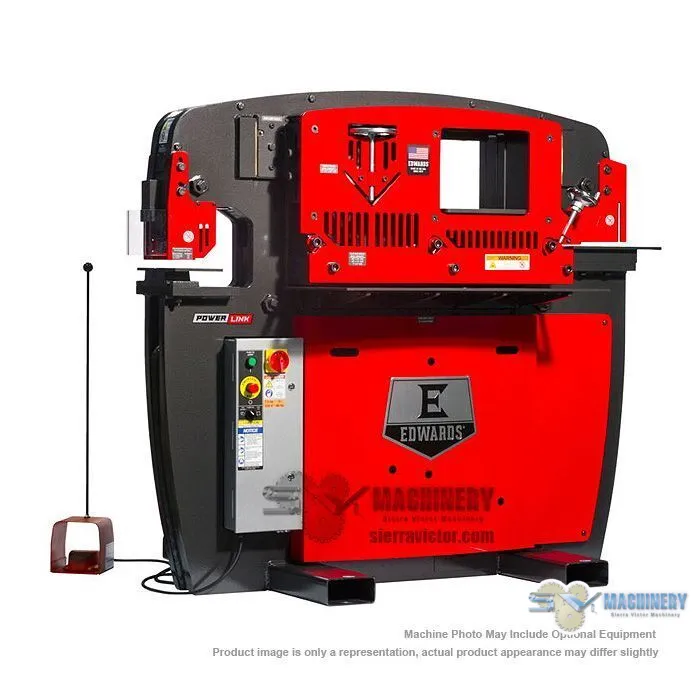

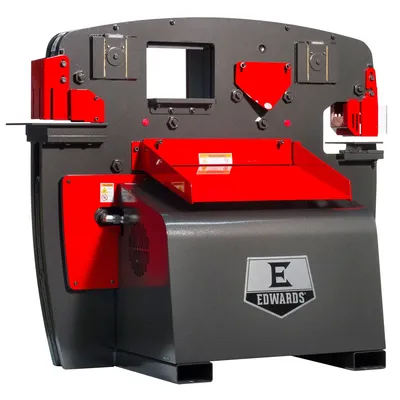

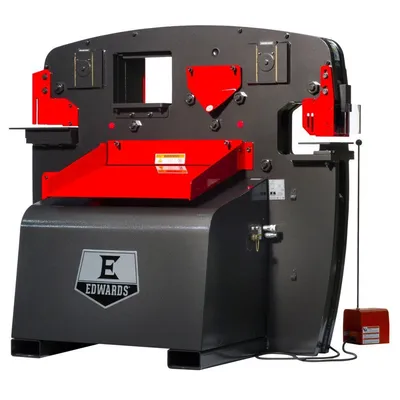

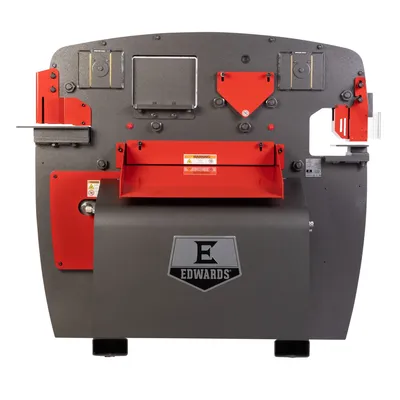

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly

Optional Models:
ED9-IW65-3P230-A: 65 Ton Ironworker 3 Phase, 230 Volt with PowerLink
ED9-IW65-3P208-A: 65 Ton Ironworker 3 Phase, 208 Volt with PowerLink
ED9-IW65-1P230-A: 65 Ton Ironworker 1 Phase, 230 Volt with PowerLink
ED9-IW65-3P460-A: 65 Ton Ironworker 3 Phase, 460 Volt with PowerLink
ED9-IW65-3P575-A: 65 Ton Ironworker 3 Phase, 575 Volt with PowerLink

Optional Items - Call for price:
Optional Attachments:
ED9-PRB12: Press Brake Tooling 12" Press Brake
ED9-HAT1000: 10 Ton Tube/Pipe Bender
ED9-HAT5000: Radius Roller
