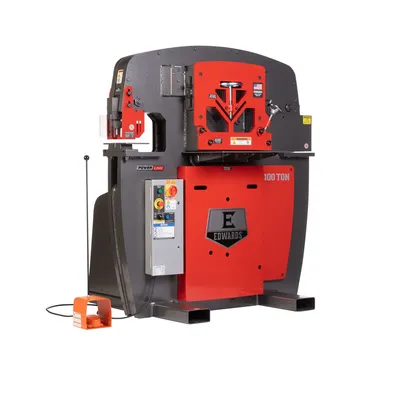

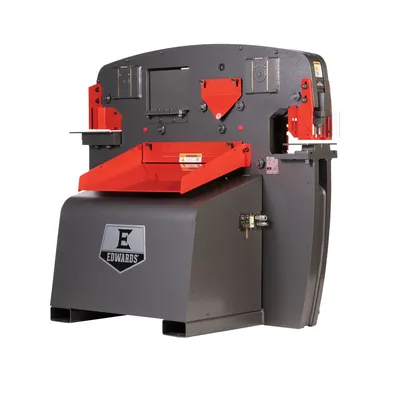

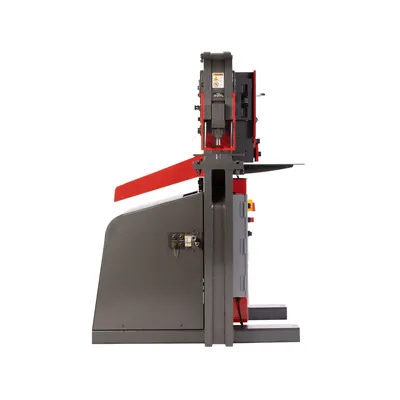

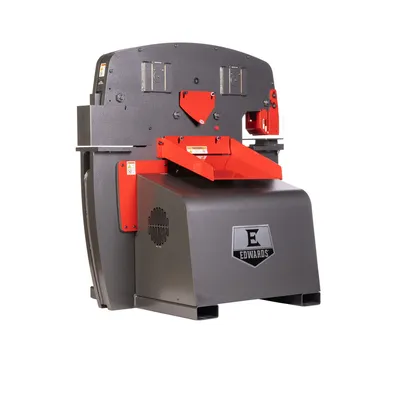

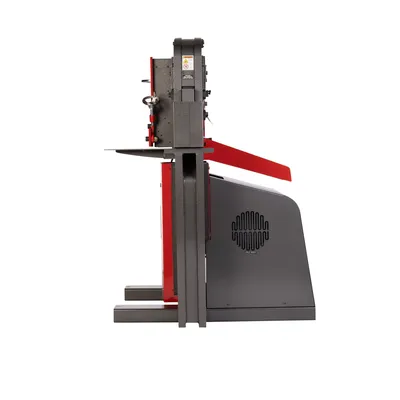

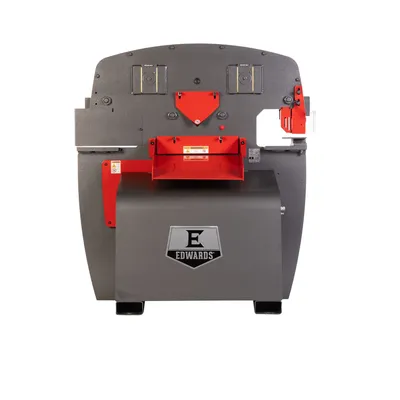

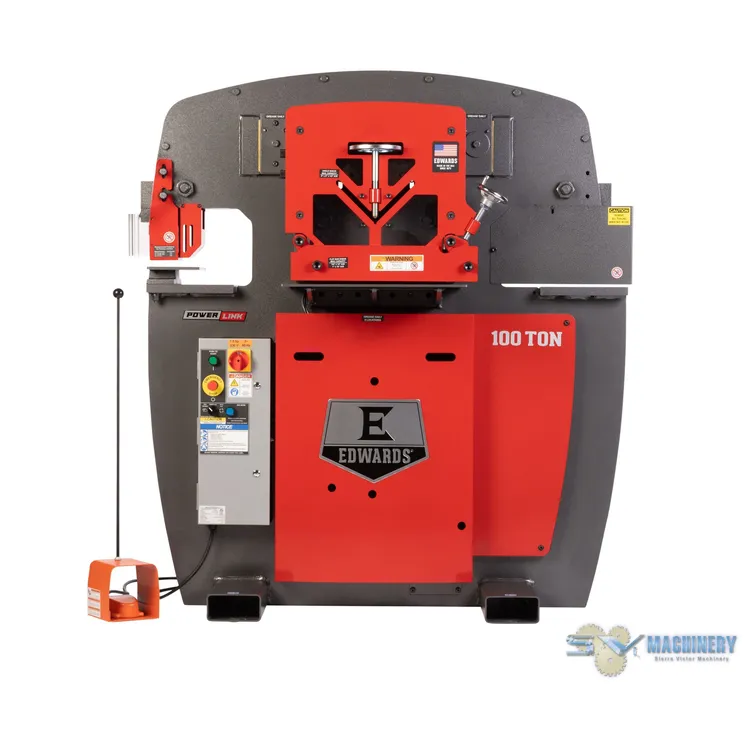

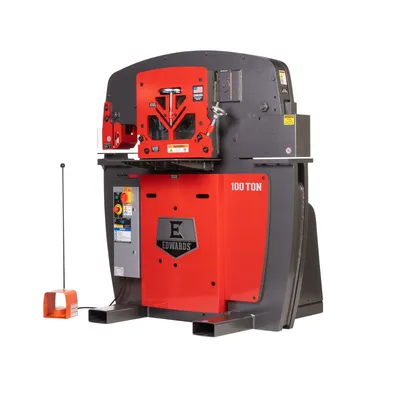

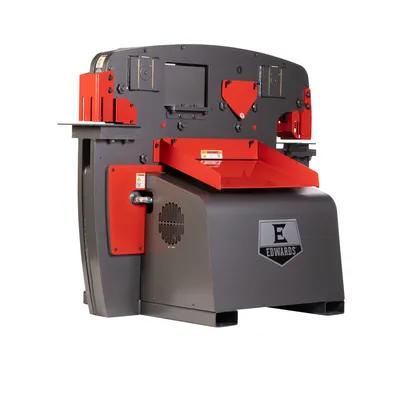

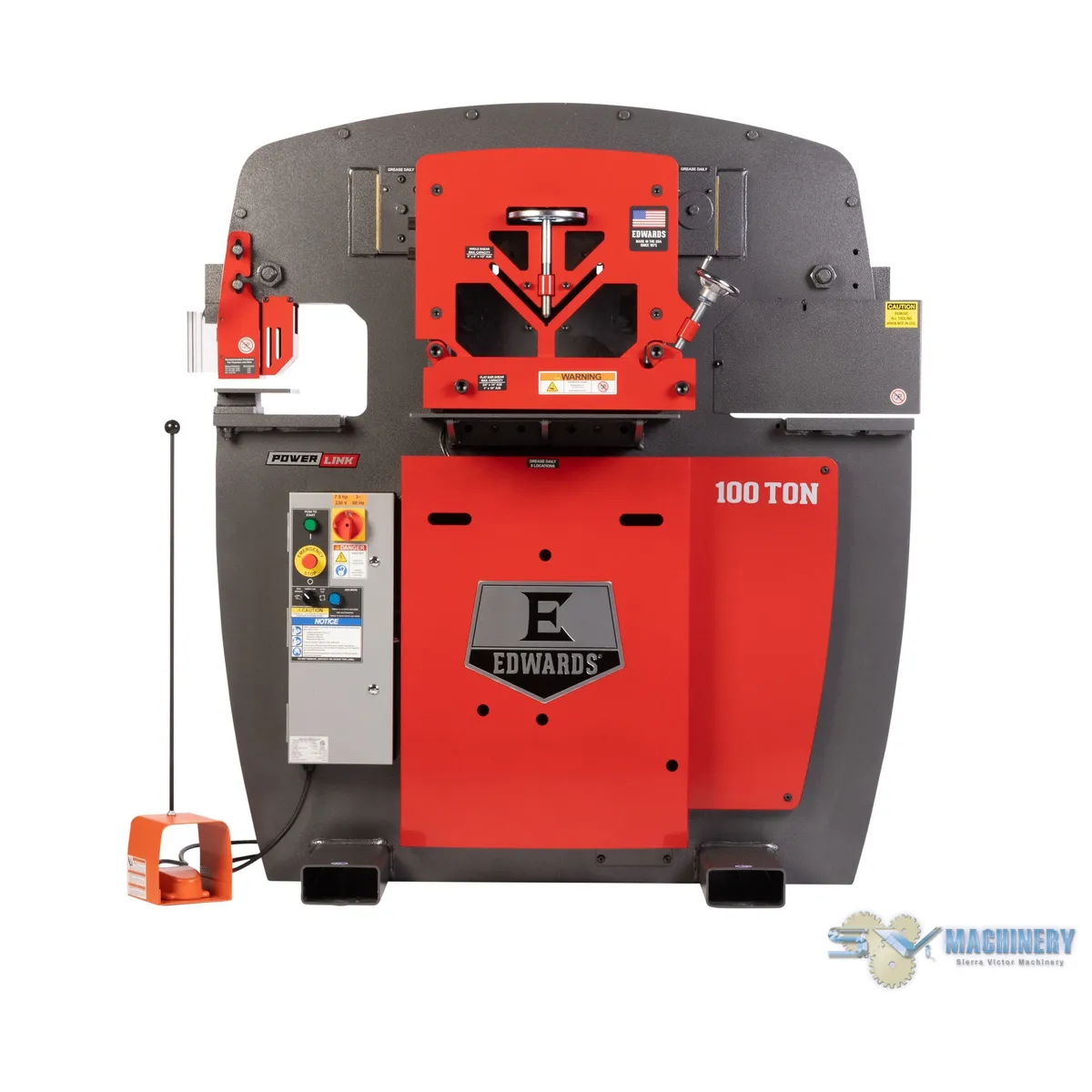

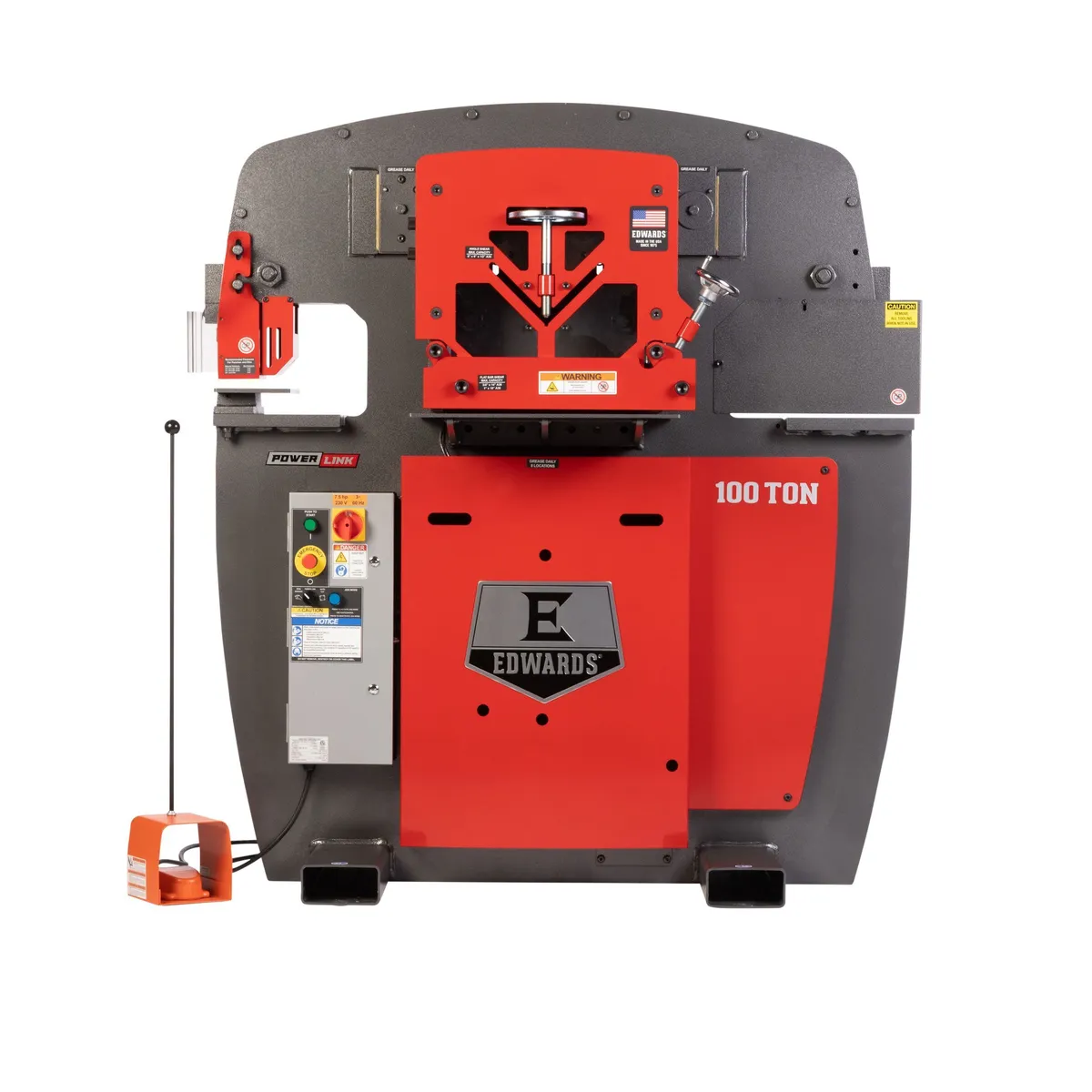

EDWARDS IW100​ 100 Ton Hydraulic Ironworker with PowerLink | 3-Phase, 460v

EDWARDS IW100​ 100 Ton Hydraulic Ironworker with PowerLink | 3-Phase, 460v

Have one to sell?
386-304-3720
dan@sierravictor.com
$36,499.00 USD
$31,024.15 USD

Or as low as $4,653.62 USD/month over 36 months

ConditionNew
Fulfillment
Freight  |  Free Shipping
Have one to sell?

Overview

Type:
Ironworkers
Manufacturer:
EDWARDS
Model:
IW100
Condition:
Build To Order
Stock #:
ED9-IW100-3P460-A
Status:
For Sale

Description

EDWARDS 100 Ton Hydraulic Ironworker ED9-IW100 has versatility and power.The standard features include a Punch Assembly, a 14" wide Flat Bar Shear, a high capacity Angle Shear and a universal open tooling station designed for optional Tooling Accessories allowing you to select the perfect tool for your needs.The optional Hydraulic Accessory Pack allows your Ironworker to act as a power source to our expanding line of innovative Hydraulic Accessory Tools, such as the 10 Ton Tube/Pipe Bender, 20 Ton Shop Press and 40 Ton Shop Press.

Punch Tonnage100 T90,718.6 kg
Punch Max. Capacity1-1/16 in. Dia. in 1 in. A361-1/16 in. Dia. in 1 in. A36
Punch - Work Height39.063"992.19 mm
Punch - Throat Depth11"279.4 mm
Punch - Open Height8.758.75
Punch - Shut Height6.93756.9375
Punch - Stroke1.81251.8125

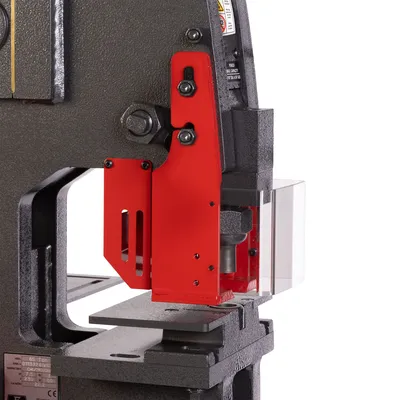

Flat Bar Shear - Max. Capacity3/4 x 14 in., 1 x 10 in.3/4 x 14 in., 1 x 10 in.
Flat Bar Shear - Max. Round Capacity1-1/4 in.1-1/4 in.
Flat Bar Shear - Max. Square Capacity1-1/4 in.1-1/4 in.
Flat Bar Shear - Work Height37 in.37 in.
Open Station - Work Height37 in.37 in.
Open Station - Throat Depth14-3/4 in.14-3/4 in.
Open Station - Open Height8.75"222.25 mm
Open Station - Shut Height6.9375"176.21 mm
Open Station - Stroke1.8125"46.038 mm

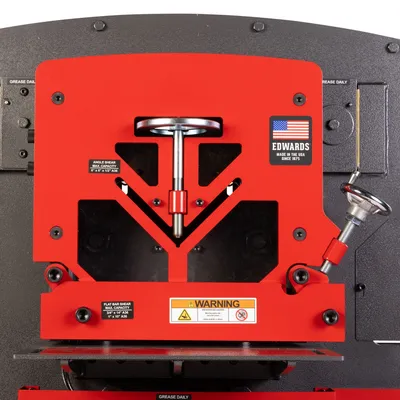

Angle Shear - Maximum Capacity6 x 6 x 1/2 in. (Max. Size)6 x 6 x 1/2 in. (Max. Size)
Angle Shear - Work Height43.937543.9375
Coper Notcher - Max. Capacity2-1/2 x 6 x 1/2 in.**2-1/2 x 6 x 1/2 in.**
Coper Notcher - Work Height42 in. **42 in. **
Motor7.5 HP7.5 HP
Electrics460v, 3-Phase460v, 3-Phase
Hydraulic Pump Size (GPM)10-1/2, 2 stage10-1/2, 2 stage
Oil Capacity/Reservoir17 gal64.4 L
Cylinder3-1/2 ram3-1/2 ram
Valve Pressure3500 psi
Rated on65,000 PSI Tensile65,000 PSI Tensile
DimensionsH 61-11/16 x W 56-1/8 x D 45 in.H 61-11/16 x W 56-1/8 x D 45 in.
Weight4,650 lbs.4,650 lbs.

** Optional Coper Notcher

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts

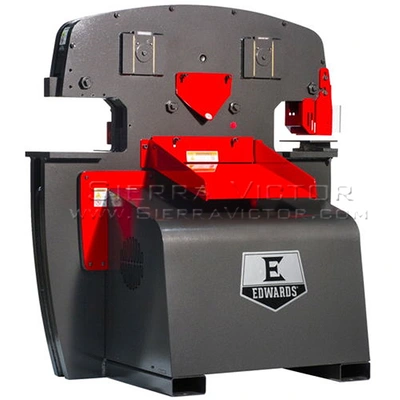

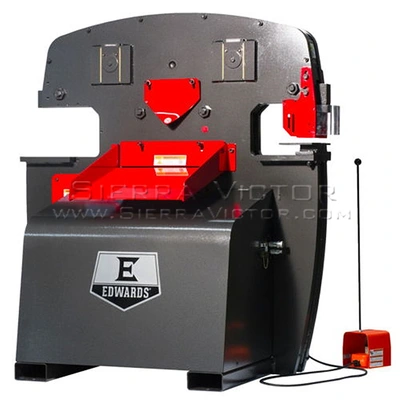

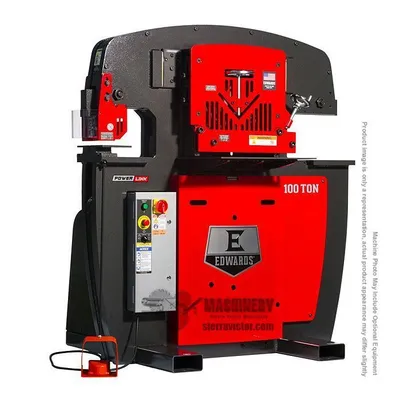

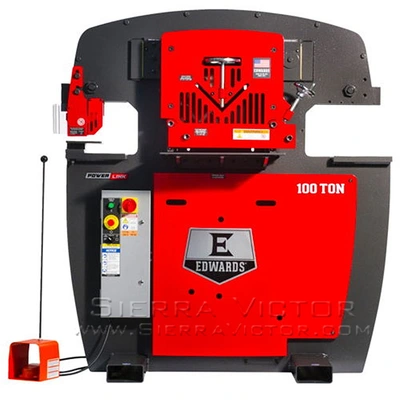

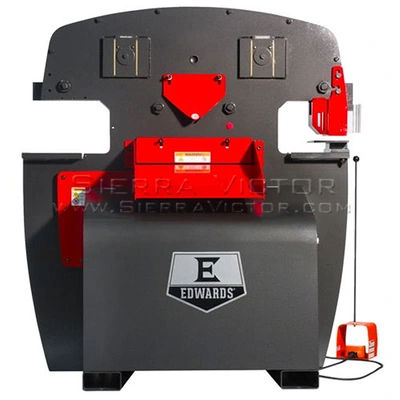

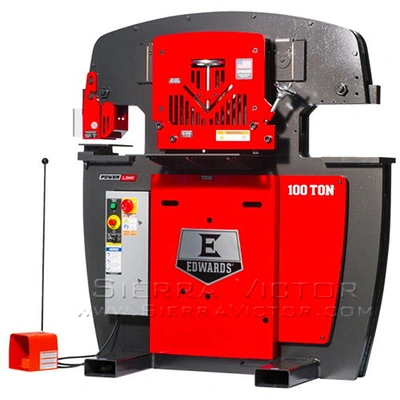

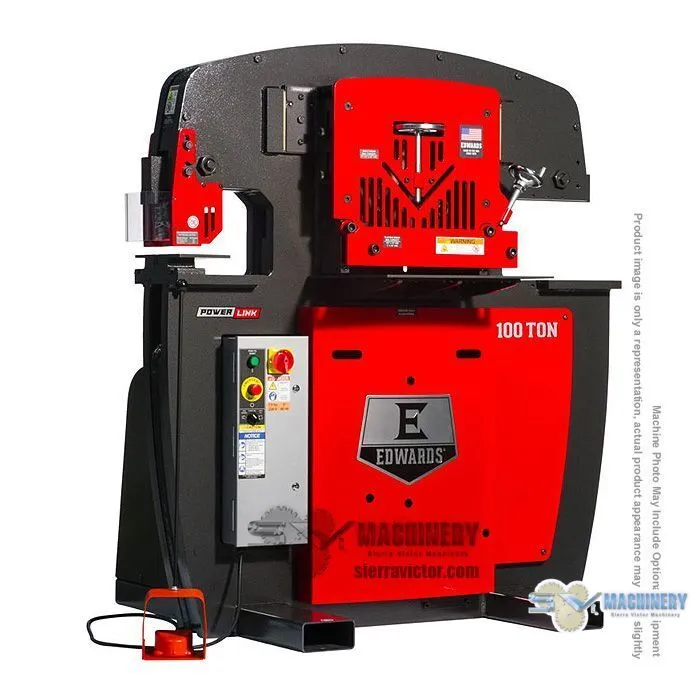

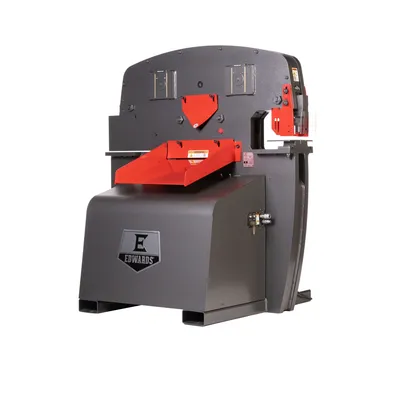

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly

Optional Models:
ED9-IW100-3P230-A: 100 Ton Ironworker 3 Phase, 230 Volt with PowerLink
ED9-IW100-3P208-A: 100 Ton Ironworker 3 Phase, 208 Volt with PowerLink
ED9-IW100-1P230-A: 100 Ton Ironworker 1 Phase, 230 Volt with PowerLink
ED9-IW100-3P460-A: 100 Ton Ironworker 3 Phase, 460 Volt with PowerLink
ED9-IW100-3P575-A: 100 Ton Ironworker 3 Phase, 575 Volt with PowerLink
ED9-10231512: 100 Ton Ironworker 1 Phase, 230 Volt, PowerLink, Coper Notcher
ED9-10203512: 100 Ton Ironworker 3 Phase, 208 Volt, PowerLink, Coper Notcher
ED9-10231522: 100 Ton Ironworker 1 Phase, 230 Volt, PowerLink, 10" Brake
ED9-10203522: 100 Ton Ironworker 3 Phase, 208 Volt, PowerLink, 10" Brake
ED9-10203022: 100 Ton Ironworker 3 Phase, 208 Volt, 10" Brake
ED9-10233522: 100 Ton Ironworker 3 Phase, 230 Volt, PowerLink, 10" Brake
ED9-10233522: 100 Ton Ironworker 3 Phase, 230 Volt, 10" Brake

Optional Items - Call for price:
Optional Attachments:
ED9-PRB12: Press Brake Tooling 12" Press Brake
ED9-HAT1000: 10 Ton Tube/Pipe Bender
ED9-HAT5000: Radius Roller
