<table width="520" cellspacing="0" cellpadding="0" border="1">
<tbody style="text-align: center;">
<tr>
<td class="TableText" width="257" valign="middle" bgcolor="#cccccc">
<div>
<div>Capacity - Mild Steel
</div>
</div>
</td>
<td class="TableText" width="257" valign="middle">
<div>16 ga
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div>Maximum Forming Length
</div>
</td>
<td class="TableText" valign="middle">
<div>49"
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div>Diameter of Rolls
</div>
</td>
<td class="TableText" valign="middle">
<div>3"
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div>Minimum Forming Radius
</div>
</td>
<td class="TableText" valign="middle">
<div>1-1/2"
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div>Wire Grooves
</div>
</td>
<td class="TableText" valign="middle">
<div>3/16", 1/2", 5/8"
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div>Gearing Ratio
</div>
</td>
<td class="TableText" valign="middle">
<div>4:1
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div>Roll Speed
</div>
</td>
<td class="TableText" valign="middle">
<div>22 RPM
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div>Motor
</div>
</td>
<td class="TableText" valign="middle">
<div>220V or 440V, 3-phase, 60Hz, 3/4 HP
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div>
<div>Dimensions (LxWxH)
</div>
</div>
</td>
<td class="TableText" valign="middle">
<div>77" x 29" x 50"
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div>
<div>Shipping Weight:
</div>
</div>
</td>
<td class="TableText" valign="middle">
<div>1,400 lbs.
</div>
</td>
</tr>
</tbody>
</table>
<p>Specifications are subject to change without notice.
</p>
<p>NOTE: Data is provided by the manufacturer.
</p>
<p><strong>WARRANTY: 3 YEAR</strong> – Limited
<a class="eMAIL" href="mailto:dan@sierravictor.com?subject=Freight Quote and Availability Request from Website&body=Please Enter Your: %0A%0ANAME................:%0ACOMPANY........:%0AADDRESS..........:%0AZIP CODE..........:%0ATELEPHONE #..:%0A%0A%0ATHE INFORMATION BELOW WILL BE COMPLETED by SIERRA VICTOR%0A%0A %0A%0AItem/Model: TENNSMITH SR48P: ENTER PART# %0A%0AFreight Price is:%0A%0AAvailability is:%0A"><span class="eMAIL"><br><br></span></a></p>
<ul>
<li><strong>MADE IN USA</strong></li>

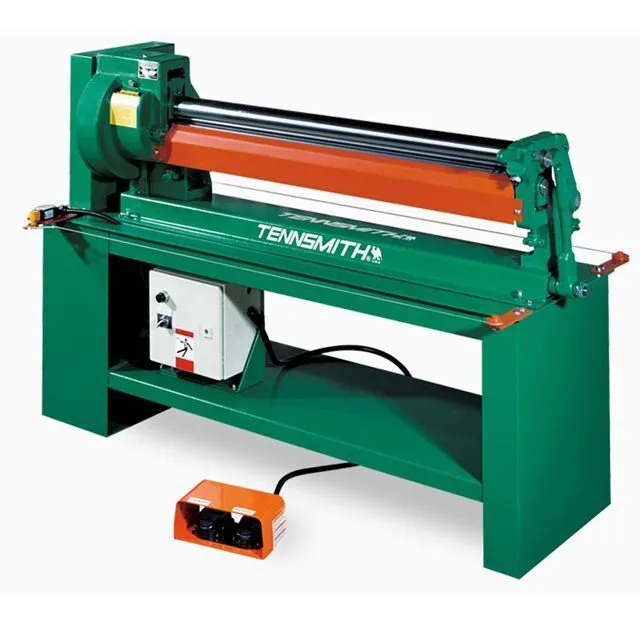

<li>TENNSMITH'S SR48P powered slip roll combines all of the features of our SR48 initial pinch roll with the productive advantage of electric-powered drive for production forming of curved parts and tubes made of 16 gauge and lighter sheet metal.</li>
<li>Drive power for the SR48P is supplied by a heavy-duty, industrial quality gear reduction motor and roller chain directly to the gear train. The roll drive is controlled by a toggle action, shrouded foot pedal for instant forward and reverse action. The drive motor is equipped with an electromagnetic brake to prevent roll creep and over-forming.</li>
<li>Electrical and operator safety features include a full-length, front and back wire cable safety mechanism which instantly stops the rolls when tripped; two magnetic motor starters; fully enclosed electrical box with pilot light; insulated reinforced conduit for all wiring; and fully enclosed drive train. The rolls and gears are mounted in hardened bronze bushings for long life and precision operation.</li>
