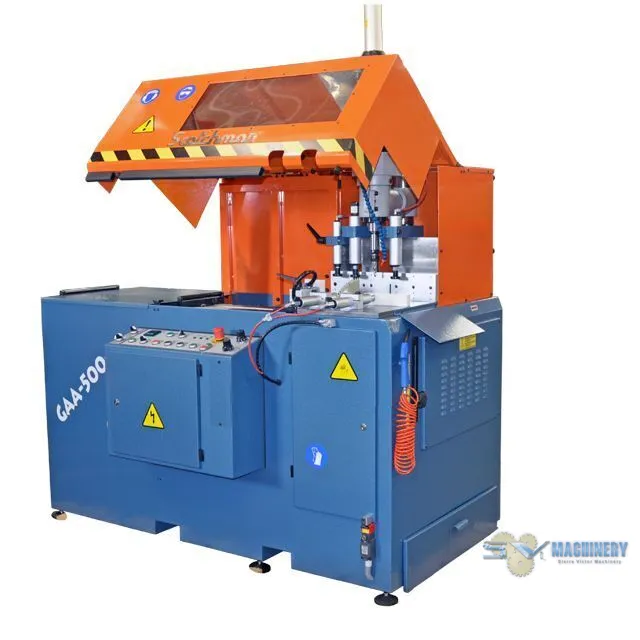

SCOTCHMAN GAA 500-90 CNC DT20 NF 20 in. Non-Ferrous Automatic Upcut Circular Cold Saw w/Drill and Tap | 230v, 3-phase

<!--StartFragment--> <ul><li>Scotchman Industries is excited to feature the Drill Tap option for their GAA-500 90, Automatic Upcut Circular Cold Saw. This saw is the newest addition to their non-ferrous saw line and has more features and possibilities than ever before! The GAA-500-90 is a large capacity upcut automatic saw for cutting non-ferrous materials at 90° up to 6” square and round. The saw uses a shuttle feed design with an adjustable vertical and horizontal clamp system to fit almost any profile. Standard features include a 7.5 hp motor that delivers a cutting speed of 3,000 rpm, pneumatic mist coolant system, and a base designed with 2 chip extraction ports. The rotary dial allows for fast and easy length adjustments and part lengths are easily held to the length tolerance of +/- .006” per index.</li><li>By adding the DT20 (Drill/Tap 20mm) option to the GAA saw, you now have a true production saw! The DT option gives the saw the ability to drill and tap holes up to 20mm, with a single spindle drill, or by adding a multi-spindle drill, add multiple holes at one time. Make thousands of clips fast with Scotchman's GAA-500-90 DT20. Add a CNC option, along with the DT option, and you can position a hole or set of holes on a single axis on your piece, then cut to length. This CNC saw has a 30-part storage capacity with 10 different programs available for each stored part. Furthermore, each program has space for 30 different jobs! Complete a whole day’s work with this one saw! The Scotchman GAA-500-90 saw is available in 230 volt and 460 volt configurations and is backed by Scotchman Industries’ Best-in-the-Business, 2-year warranty.</li><li>Non Ferrous Automatic Upcut Saw designed for Aluminum, PVC, Copper, etc.</li><li>Automatic Cycle</li><li>Semi-automatic or Automatic Operation</li><li>Automatic Feeder, 20 inches x 2 Strokes (20" + 20" Max.) Double Advance</li><li>Vertical Drill (20mm Maximum Capacity) with Ability to Drill or Drill and Tap</li><li>Powered Hood Lift</li><li>Emergency Stop</li><li>Adjustable Cutting & Feeding Speeds</li><li>Adjustable Length Selector from .200 to 20"</li><li>Three Horizontal Pneumatic Clamps</li><li>Three Vertical Pneumatic Clamps</li><li>Miter Capability 90°</li><li>Pneumatic Lubrication System with Spray</li><li>One Gallon Coolant</li><li>Coolant Tank with Mist Lubrication</li><li>Mist Coolant Pump</li><li>One 20" (500 mm) Diameter Carbide Blade</li><li>One Blade Wrench</li><li>Air Hose</li><li>Base Designed as a Chip Collection with Two Chip Extraction Ports</li><li>Adjustable Leveling Pads</li><li>230 or 460 volt/3-ph Electrics (must specify voltage)</li><li>Warranty: Two Year of Parts</li><li>Made in Spain</li></ul> <!--EndFragment-->
