SCOTCHMAN CPO 350 VS 14 in. Manual Ferrous Cold Saw | 208v 3-phase
Or as low as $1,738.50 USD/month over 36 months
Or as low as $1,738.50 USD/month over 36 months

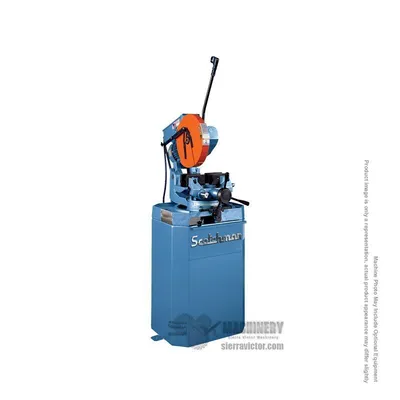

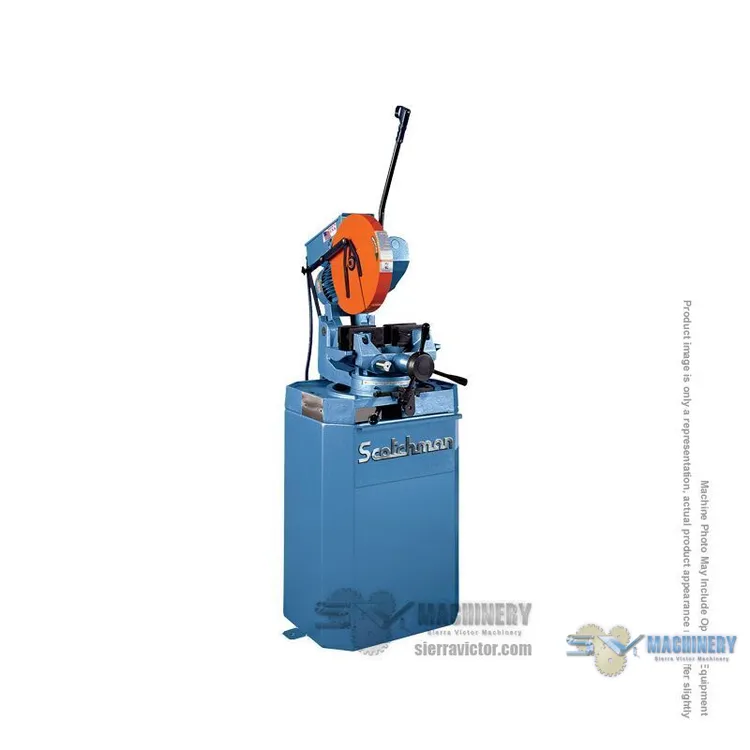

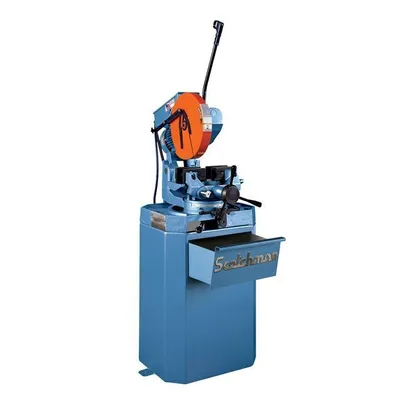

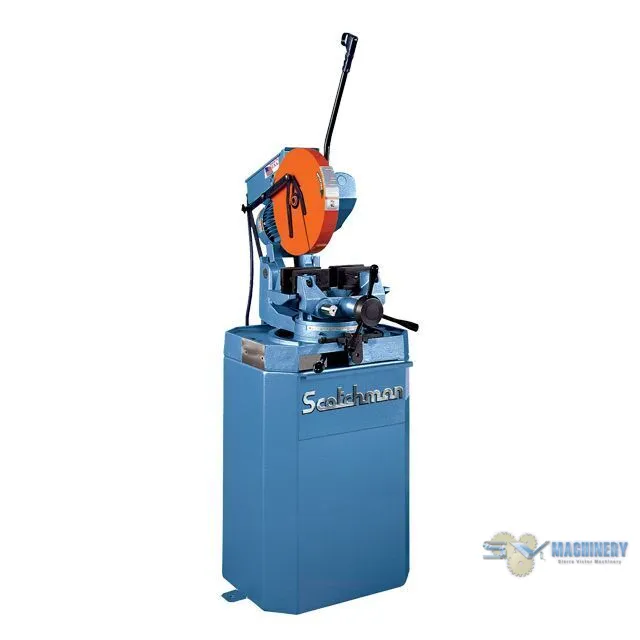

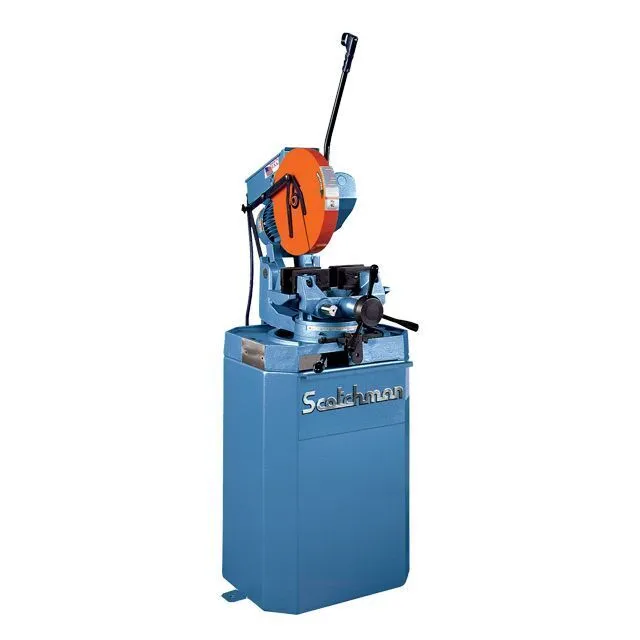

Scotchman Industries powerful dependable American-made CPO 350 Circular Cold Saw features a double clamping and self-centering vise for maximum hold and provides burr-free, high quality, volume parts.The CPO 350 cold saw has a 180-degree mitering ability and a miter-locking device which automatically stops at 45 degrees left, 90 degrees straight, and 45 degrees right, giving it the ability to slot and notch. Additional machine features include a chip drawer, a double reduction gearbox, a two-speed motor which utilizes up to a 350mm diameter blade giving it a 4-7/8" OD round capacity.
*Cutting Speeds: Must Specify when Ordering
LT(Low Turn): designed for solid mild steel, solid stainless steel & thick wall pipe
LT (Low Turn) 22 rpm / 44 rpm, Motor rate: 3 hp
HT(High Turn): designed for thin wall tube .060 wall thickness or thinner and non-ferrous material
HT (High Turn) 44 rpm / 88 rpm, Motor rate: 2.5 hp
VS (Variable Speed) ~ wired 230/460, 3-ph: VS (Variable Speed) 11 / 177 rpm, Motor Rate: 5 hp
VS (Variable Speed) ~ wired 220, 1-ph: VS (Variable Speed) ~ 11 / 177 rpm, Motor Rate: 5 hp
SS (Single Speed): designed for 220v 1 ph applications, SS (Single Speed) 44 rpm, Motor Rate: 3 hp
**Available Voltages:
076020: CPO 350 LT - 208V 3 PH (22/44 RPM)
076745: CPO 350 LT - 230V 3 PH (22/44 RPM)
076746: CPO 350 LT - 460V 3 PH (22/44 RPM)
076030: CPO 350 HT - 208V 3 PH (44/88 RPM)
076832: CPO 350 HT - 230V 3 PH (44/88 RPM)
076833: CPO 350 HT - 460V 3 PH (44/88 RPM)
076590: CPO 350 SS - 220V 1 PH (44 RPM)
076025: CPO 350 VS - 208V 3 PH (VARIABLE SPEED 11-177 RPM)
076450: CPO 350 VS - 230V 3 PH (VARIABLE SPEED 11-177 RPM)
076451: CPO 350 VS - 460V 3 PH (VARIABLE SPEED 11-177 RPM)
076452: CPO 350 VS - 220V 1 PH (VARIABLE SPEED 11-177 RPM)
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 3 YEAR – Parts
Optional Items - Call for price:
* RG Digital Quick Stop: Available in 8' and 12' lengths. This Digital Quick Stop is an entry level programmable sop. It is priced right, yet very durable. Setup is as easy as entering the desired cut length and pressing go!
* Laser Saw Guide: This industrial grade laser light for circular cold saws minimizes set-up time and ensures the material is being sawed to the correct length and squareness by helping the operator see the line marked for cutting.
* Special Clamping Fixture
* Miter Locking Device: STANDARD FEATURE (not available for 275 PK or 275 PKPD models)
* Variable Speed Control: Recommended for cutting multiple shapes, sizes and thicknesses. RPM can be fine tuned to achieve optimum blade speed for each application, and increase blade life.
* Square Tube Jaws
* 60" or 120" Material Stop Roller Conveyor Mounted with an Advanced Measuring Quick-Loc System: Designed for quick, easy and accurate length setting. Available left to right or right to left material feed.
* 10' & 20' Material Supply Track
* BLADES & SHARPENING:
Cold Saw Blades
Scotchman offers a complete selection of saw blades in stock for immediate delivery.
Cold Saw Blade Sharpening
Scotchman offers a fast, high-quality blade sharpening service and will grind blades with special tooth number.
