COLE-TUVE PK-30F 1-1/2 x 1-1/2 x 3/16 in. Pyramid Angle, Pipe and Shape Bending Roll | Variable Speed, 1-Ph

COLE-TUVE PK-30F 1-1/2 x 1-1/2 x 3/16 in. Pyramid Angle, Pipe and Shape Bending Roll | Variable Speed, 1-Ph

Have one to sell?
386-304-3720
dan@sierravictor.com
Have one to sell?

Overview

Type:
Roll Benders
Manufacturer:
COLE TUVE
Model:
PK-30F
Stock #:
PK-30F-Sph
Status:
For Sale

Description

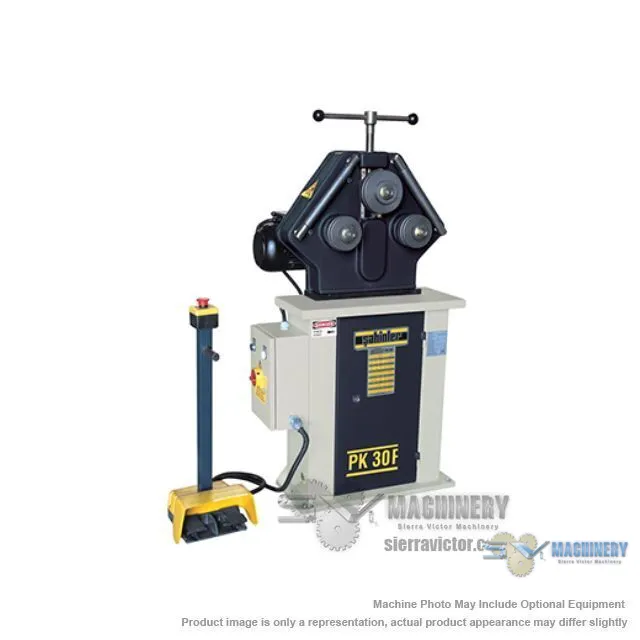

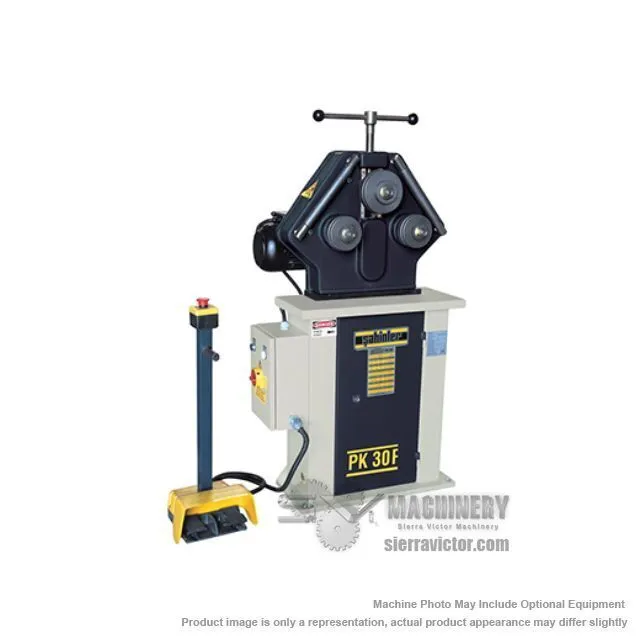

The COLE-TUVE PK-30F-Sph Variable Speed, 1-Ph Pyramid Angle, Pipe and Shape Bending Roll has two powered rolls and a 1-1/2 capacity. Standard Rolls Handle Many Shapes. Horizontal and Vertical Working Positions.

Capacities1-1/2 x 1-1/2 x 3/16 in.1-1/2 x 1-1/2 x 3/16 in.
Angle Roll TypeManualManual
Shaft Ø1.18"29.972 mm
Motor Power1 & 1-1/4 (Please Specify)1 & 1-1/4 (Please Specify)
PowerVariable Speed, Single PhaseVariable Speed, Single Phase
Driven Rolls22
Rolling Speed, FPM6-1/2 and 136-1/2 and 13
Roll AdjustmentManualManual
Pipe Capacity1.5" Sch. 40", ø24"1.5" Sch. 40", ø24"
Upper Roll Dia.5.83"148.08 mm
Lower Roll Dia.4.65"118.11 mm
StylePyramidPyramid

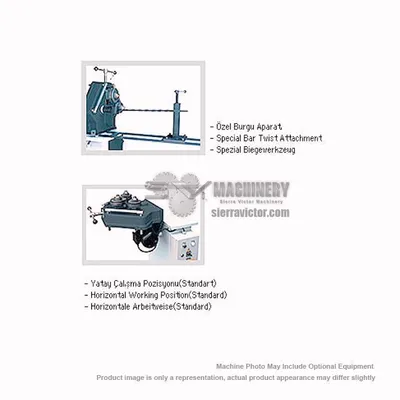

Working PlaneHorizontal / VerticalHorizontal / Vertical
Dimensions24 x 32 x 57 in.24 x 32 x 57 in.
Weight570 lbs570 lbs

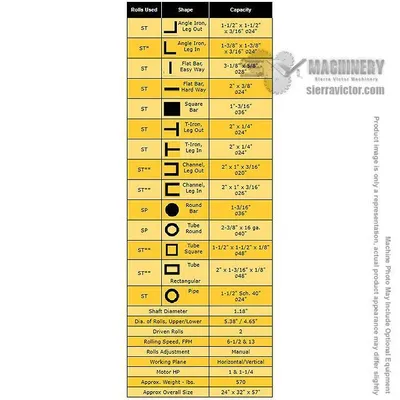

*The shapes marked (SP) require optional special rolls. The other shapes can normally be rolled with the stardard rolls supplied with the machine. For production runs of some of those shapes, optional special rolls may be desirable. Rolling angle leg-in requires optional leg-in guide rolls and may require special rolls.

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts

Optional Items - Call for price:
*Pipe/Tube/Shape Bending Rolls
*Electronic Digital Readout (LED)
*Leg-In Guide Rolls
