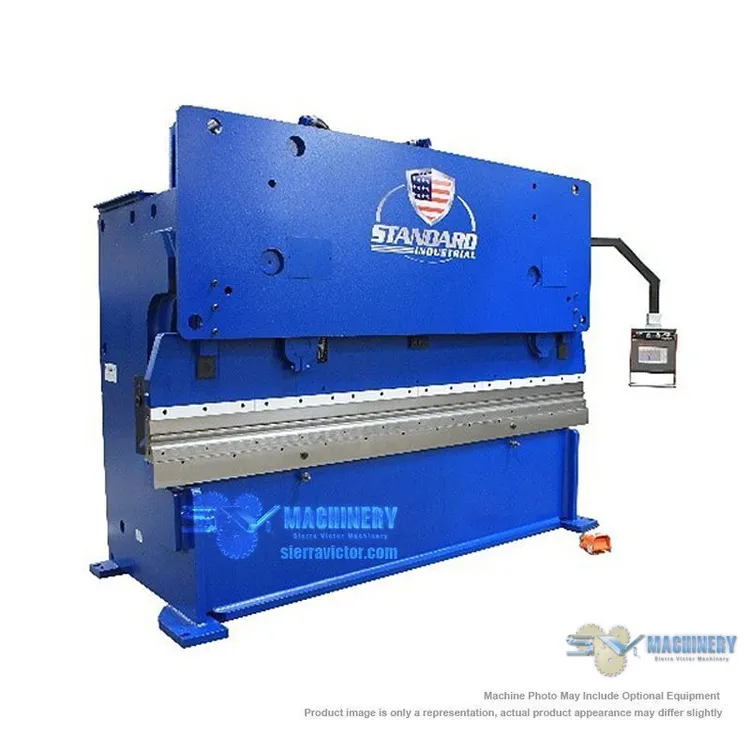

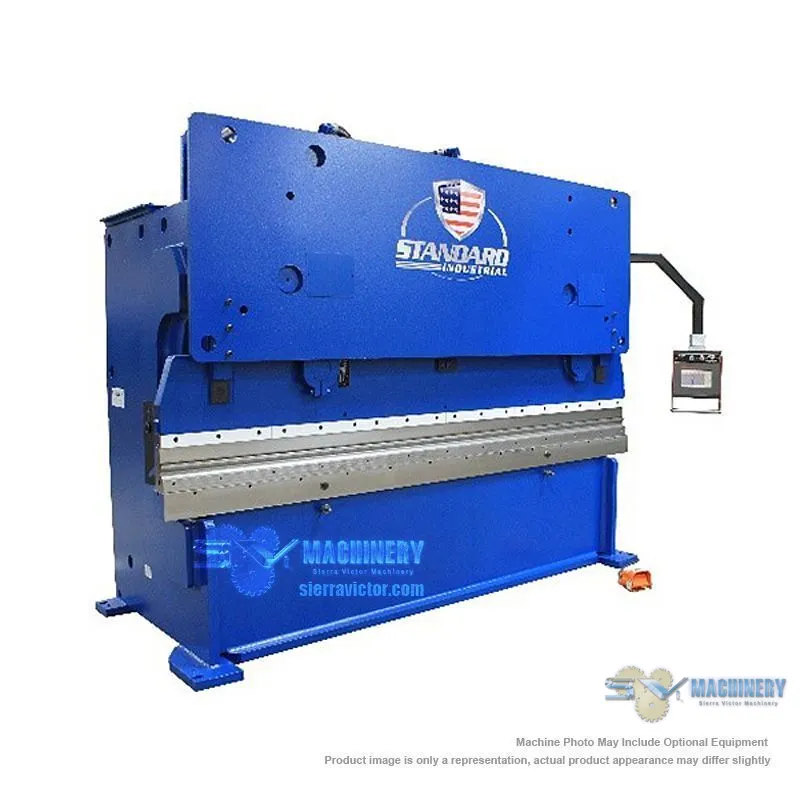

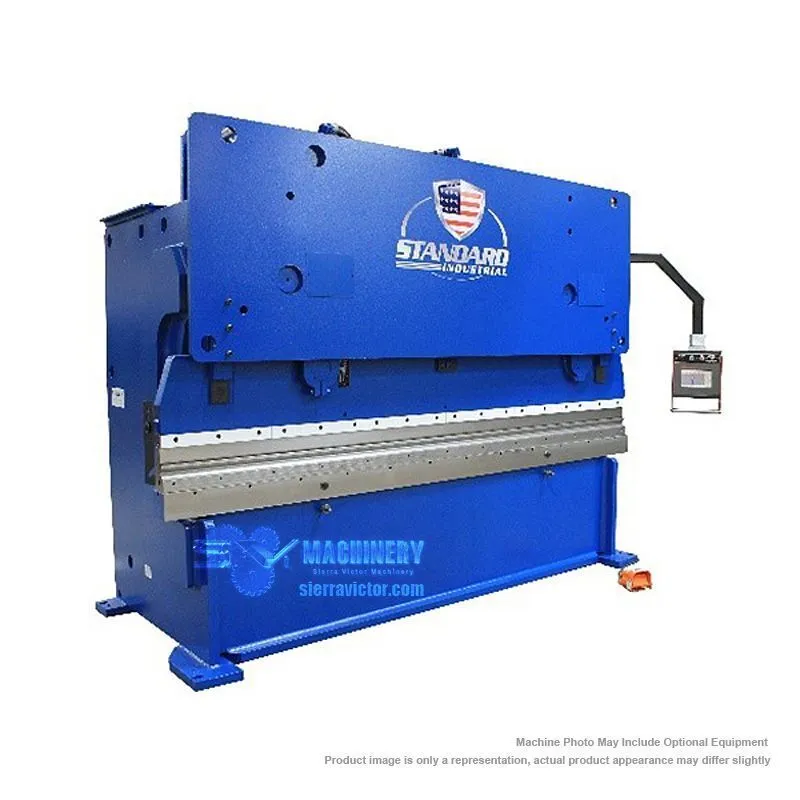

STANDARD INDUSTRIAL AB200-20 200 Ton x 20ft Hydra-Mechanical Press Brake

Optional Items - Call for price:
LIGHT CURTAIN WITH FOOTSWITCH
Floating blank key-switch included, some programmability. Side barriers included to completely protect throat area of machine. 1 year warranty.

LASER GUARDING SYSTEM
Wraps lasers around punch to allow operator closer to pinch-point and still be O.S.H.A. approved. 1 year warranty.

COMPLIANCE OPTIONS INCLUDING UL LISTING, CSA, ZED

ADDITIONAL FOOTSWITCH AND PEDESTAL CONTROL FOR 2nd OPERATOR

LOW SPEED RETRACT
Ram returns in slow press speed for handling of large work pieces.

SAFETY GUARDING FOR REAR OF PRESS BRAKE
Comes with swinging gates and interlocking system for shut down while open. Custom guarding systems available.

T-SLOT SUPPORT ARMS
All brakes come standard with (2) 24" basic work supports. Optional T-slot support arms have precision t-slot bars added to set optional gravity stops. Available in 24”, 36” or 48” and with imbedded scales.

QUICK RELEASE LINEAR WORK SUPPORTS
Quick-change, quick-disconnect style support arms with heavy duty, smooth transition roller guides for easy arm movement. Multiple adjustment points on arms for super precision placement.

CNC SHEET ASSISTS
When operator safety and precision part handling are a priority, our CNC sheet assists are the solution. CNC controlled for precision part following and available for any level of production.

TOOLING
Available on all 3 models of press brakes are single V, Four Way Conventional tooling plus Wilson/Wila Precision Ground, Segmented tooling. All tooling requirements available.

MANUAL CROWNING
For the most precision requirements, manual crowning allows the operator to set the desired deflection.

RAM AND BED CLAMPING SYSTEMS
Quick-change, powered clamping systems for upper and lower tooling providing you the quickest set up times possible. Perfect for American or New Standard style of tooling. Lower clamping available with or without crowning.

AMERICAN AND NEW STANDARD PRECISION TOOLING
Precision ground to +,- .0004” and hardened at wear points, segmented tooling is the answer for quality and fastest set up times.

CNC CROWNING
For the most precision requirements, CNC crowning allows the operator to program the desired deflection for each job reducing set up time.

RAM AND BED CLAMPING SYSTEMS
Quick-change, powered clamping systems for upper and lower tooling providing you the quickest set up times possible. Perfect for American or New Standard style of tooling. Lower clamping available with or without crowning.

AMERICAN AND NEW STANDARD PRECISION TOOLING
Precision ground to +,- .0004” and hardened at wear points, Wila segmented tooling is the answer for quality and fastest set up times.

TRADITIONAL PRESS BRAKE AND STRAIGHT SIDE PRESS CAPABILITY
With our hydra-mechanical drive system providing full tonnage the length of the bed, the model AB press brakes have the ability to be used with traditional press brake tooling and optionally can have either permanent or removable flanges for press die applications. Removable flanges on the bed and/or ram will allow you to utilize both conventional press brake tooling as well as press die applications as needed. Permanent bed and ram flanges will allow a wide array of press die applications for substantially less cost of a traditional straight side press.

OPERATIONAL PREFERENCE CONTROLS - AUTO RETURN OF RAM
Normal operation of ram requires operator to release footswitch to allow ram to return to upper limit. This option makes the ram return automatically even if footswitch is still depressed.

DECOMPRESSION SYSTEM
REQUIRED FOR BOTTOMING APPLICATIONS—allows oil pressure to bleed off to reduce shock to hydraulic system.

EXTRA STROKE/EXTRA OPEN HEIGHT/DEEPER THROATS/HORN EXTENSIONS
All our machines can be tailor made to your exact needs

AUTOMATIC LUBRICATION SYSTEM (air power required)
Automatically pumps EP-1 grease through lubrication system via a timed system. Also includes flow adjustable injectors. Includes auto-shutoff with warning light when reservoir is empty.

MODEL AB PRESS BRAKE GAUGING OPTIONS
The AB Conventional press brake is perfect for companies who want the choice of either simplified, basic controls or state of the art 2D/3D CNC sophistication. The model AB is essential for any level of production from single shift facilities up to the largest multi-shift corporations in the world.
Regardless of your needs, if you want a dependable machine that lasts for decades but also want to choose your level of control complexity, then the model AB Conventional is your machine.

CNC CONTROL UPGRADES:
840 2D Touchscreen Control for servo gauges:
*Multi-touch touchscreen allowing operator to draw parts/tooling with finger/stylus
*Remote support/service and diagnostics via ethernet
*Windows 10 operating system
*Fully 2D Graphical control
*15” color screen on pendant
*Crowning correction in degrees
*2D identification of best bending sequences
*2D graphical Offline software
*2D collision detection
*Unlimited job storage via USB & Ethernet
*6 + Axis pf gauging programmability
*30,000 hard drive programs
*Programmable delay & retract at pinch point
*Direct connection of optional protractor devices to allow process angle measurement
*Inch/mm conversion
*Auto return of ram included
*Low speed retract included
*Dwell/decompression included
*2 Days Onsite training at customer's facility

630 W/2D Tooling Graphics for servo gauges:
*Simpler control w/out 2D part forming graphics
*2D tooling graphics only
*10” Touchscreen
*2D graphical Offline
*software for desktop
*Available with X/ Y/ R and CNC Crowning
*Thousands of hard drive job storage & USB
*Extensive tooling library
*Programmable delay and retract at pinch point
*Inch/mm conversion
*Auto return/Low Speed Retract/Decompression included
*Onsite training

CNC PRECISION SERVO GAUGING SYSTEMS For 840/ 850W/630 Controls
The AB press brakes are available optionally with X, R, Z1-Z2 and X-Prime servo gauging systems as well as our full 6 axis gauging system that includes Z1-Z2 + X1-X2 + R1-R2. These extremely heavy duty, precision gauges are available in 29” to 39” travel (special lengths available). All covered by our 5 year parts warranty.

2-4 Axis X+ R (2 axis) or X + R + Z1-Z2 (4 axis):
*X = Fingers in/out
*R = Finger up/down
*Z1-Z2 = Fingers Independently Left/right

5 Axis X + R + Z1-Z2 + X-Prime:
*X-Prime = Allows 1 finger +,- 3” of center for tapered bends

6 Axis Z1-Z2 + X1-X2 + R1-R2:
*6 axis of full articulation
*Z1-Z2 = Fingers independently left to right
*X1-X2 = Fingers independently front to back
*R1-R2 = Fingers independently up and down

RADAN Radbend (For more information contact Sierra Victor Machinery)
Offline programming and simulation for press brakes
Radbend from RADAN is the comprehensive offline programming solution for press brakes. Completely integrated with RADAN3D it also provides a full 3D simulation of the bending process.
*Automatic bend sequencing
*Automated tool selection
*Tool setup optimization
*Automatic finger stop positioning
*Customizable reports
*Support for lifting aids and angle measurement systems
*Can be integrated with RADAN3D

SIMPLE CNC RAM AND BACKGAUGE CONTROL
AUTOMEC CNC300 2-3 AXIS CNC Control:
*NOTE: The standard mechanical ram control limit switches will be included as back-up for this CNC control.
*Basic, Simple, retro-fit style CNC that can be added any time during the machines life
*Available with Y + X or Y + X + R axis
*2 - Ram Depth Modes: Ram display can show true ram position in Depth or Angle.
*Ram Offset - All ram dimensions can be offset ± .393” with one data entry.
*Gauge Offset - All backgauge dimensions can be offset ± .393” with one data entry.
*300 Jobs (00 to 299) / 10 Bends per Job (w/linking) / 11 digit job number
*Top of Stroke Reference
*Depth or Angle Mode
*Programmable Delay/Retract between Bends (0 - 19 sec.)
*Programming delay/retract between bends (0 – 9 seconds)
*Bend allowance ± .393” Calculator to change dimensions incrementally
*Angle Adjust for Angle Correction
*Backgauge Reversal on Pinch Point (time and distance)
*Parts counter
*Automatic Ram Calibration to Tool Heights
*.001” resolution / Red L.E.D. display
*IN/MM conversion
*24” or 48” Backgauge
*Available from AB100 up to AB1000

NON-CNC GAUGING
FOUR POSITION IN-LINE DEPTH STOP WITH (4) PRE-SET LOWER LIMIT:
Manual ram control that allows operator to pre-set up to 4 different ram depths/angles by pre-setting the limits on the side of the brake. The operator can then choose from any of the 4 positions from a selector switch located on the standard 2 hand control pedestal out in front of machine.

GO-TO, POWER BACKGAUGE:
*Works perfectly in conjunction w/Four position in-line depth stop giving ram & backgauge pre-set controls for faster set-up time
*Basic, Non-CNC control
*9 Bends per Job
*9 Cycles per bend
*1/2" LCD Display
*Bend allowance ± .999”
*Gauge Offset
*.001” resolution
*IN/MM conversion
*Tactile feel pushbuttons
*5 Year flash memory backup
*24” Travel Backgauge
*Available from AB100-6 up to AB325-14

ADDITIONAL OPTIONS
*Robotic interfaces
*Longer T-slot support arms
*Conventional tooling
*Custom (single) paint color (sample required)

EXTENDED WARRANTY
This optional warranty extends the standard 5 year parts warranty by 2 years. Includes:
*7 year parts in lieu of standard 5 year parts warranty
*2 year PLC and CNC warranty
*5 year onsite limited labor warranty
