<table cellspacing="0" cellpadding="0" border="1" width="520">
<tbody style="text-align: center;">
<tr>
<td bgcolor="#cccccc" class="TableText1">
<div align="center">Drive
</div>
</td>
<td class="TableText1">
<div align="center">Servo Motor
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText1">
<div align="center">Input Power
</div>
</td>
<td class="TableText1">
<div align="center">220V / 1-phase
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" width="257" class="TableText1">
<div align="center">Table Dimensions (In.)
</div>
</td>
<td width="257" class="TableText1">
<div align="center">60 x 140 in.
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText1">
<div align="center">Software
</div>
</td>
<td class="TableText1">
<div align="center">BobCAD-CAM
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText1">
<div align="center">Gross Weight
</div>
</td>
<td class="TableText1">
<div align="center">4,705 lbs.
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText1">
<div align="center">Machine Weight (lbs.)
</div>
</td>
<td class="TableText1">
<div align="center">4,000 lbs.
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText1">
<div align="center">Shipping Dimensions (L x W x H) (In.)
</div>
</td>
<td class="TableText1">
<div align="center">180 x 97 x 75 and 69 x 44 x 29
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" width="257" class="TableText1">
<div align="center">Prop 65
</div>
</td>
<td width="257" class="TableText1">
<div align="center">Cancer and Reproductive Harm
</div>
</td>
</tr>
</tbody>
</table>
<p>Specifications are subject to change without notice.
</p>
<p>NOTE: Data is provided by the manufacturer.
</p>
<p><strong>WARRANTY: 1 YEAR</strong> – Parts
</p>
<ul>

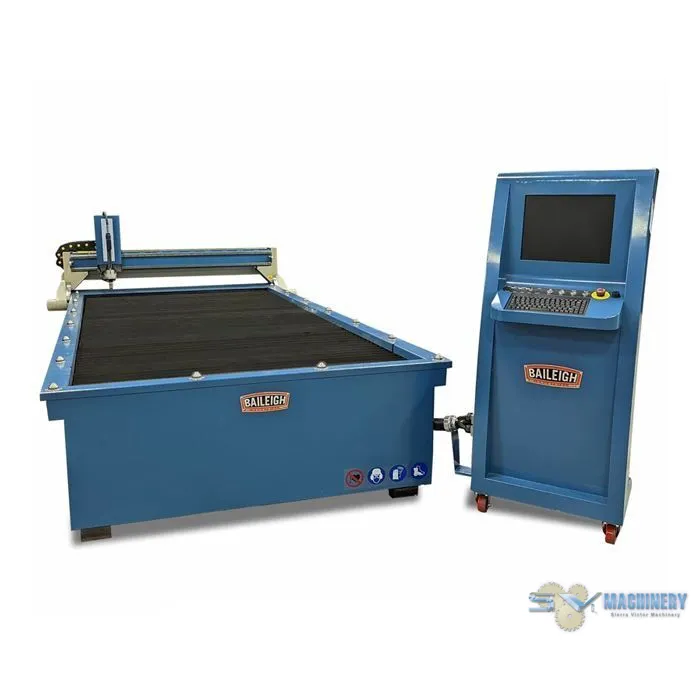

<li>Our PT-105HD-W includes a water bath and has the structural strength to handle 5' x 10' sheets. Automatic height detection is ideal for production runs. It arrives nearly fully assembled and comes with software.</li>

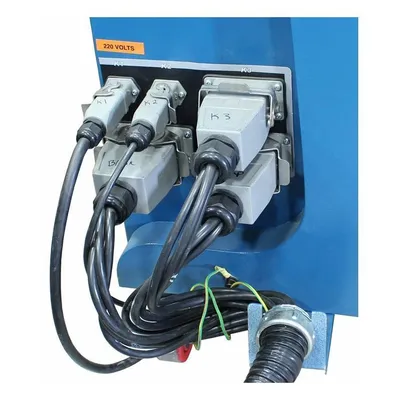

<li>Runs on 220-volt single-phase power.</li>
<li>Includes integrated water bath for cooler cutting and less airborne mess.</li>

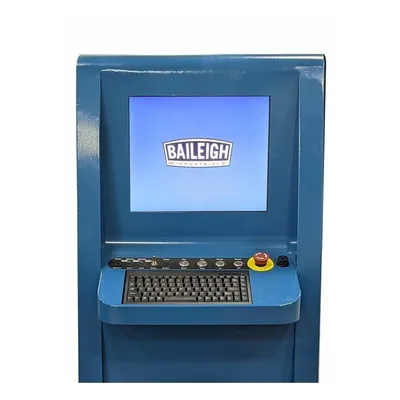

<li>Control the X, Y, and Z axis movement from the sturdy podium with large console screen and keypad.</li>
<li>Includes easy-to-learn design software that you can load into any basic PC (more details below).</li>
<li>Console offers a pre-loaded library of shapes that you can resize and alter at the table—without a computer.</li>
<li>Automatic height detection on the Z-axis makes perfect cuts in corrugated or uneven materials.</li>
<li>Panasonic brushless servo motors, controlled by Panasonic servo motion controllers, drive the gantry.</li>

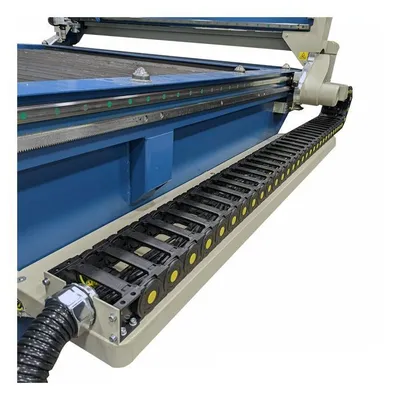

<li>Industrial-grade gantry travel system for the X, Y & Z axis made from extremely rigid structural steel.</li>
<li>Gantry can move out of the way for a full 10-foot sheet during loading, minimizing the chance of machine damage.</li>
<li>High gantry (one of the highest in the industry) lets you clearly see its movement for better adjustment and control.</li>
</ul>
