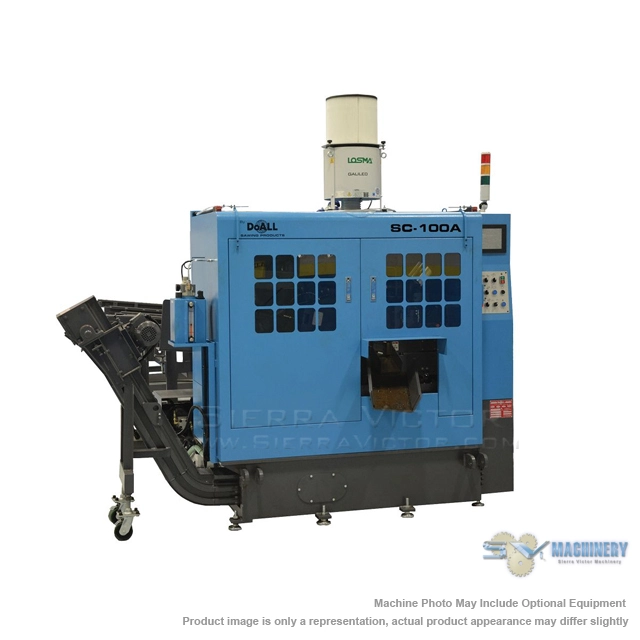

DoALL SC-100A 4" Circular Saw

<table width="520" cellspacing="0" cellpadding="0" border="1"> <tbody style="text-align: center;"> <tr> <td colspan="2" class="TableText" valign="middle" bgcolor="#333333"> <div class="Title_white_bold" align="center"> <span style="color: rgb(255, 255, 255);"><strong></strong></span> <div align="center"><span style="color: rgb(255, 255, 255);"><strong>MODEL </strong></span> </div> </div> </td> <td class="Title_white_bold" width="284" valign="middle" bgcolor="#333333"> <div align="center"><span style="color: rgb(255, 255, 255);"><strong>SC-100A</strong></span> </div> </td> </tr> <tr> <td colspan="2" class="TableText" valign="middle" bgcolor="#cccccc"> <div align="center">Square Material Machine Capacity </div> </td> <td class="TableText" valign="middle"> <div align="center">0.39" x 0.39'' - 3.15" x 3.15" <br> (10mm x 10mm – 80mm x 80mm) </div> </td> </tr> <tr> <td colspan="2" class="TableText" valign="middle" bgcolor="#cccccc"> <div align="center">Round Material Machine Capacity </div> </td> <td class="TableText" valign="middle"> <div align="center">0.39" to 4.0" (10mm to 102mm) </div> </td> </tr> <tr> <td colspan="2" class="TableText" valign="middle" bgcolor="#cccccc"> <div align="center">Production Level </div> </td> <td class="TableText" valign="middle"> <div align="center">High </div> </td> </tr> <tr> <td colspan="2" class="TableText" valign="middle" bgcolor="#cccccc"> <div align="center">Saw Blade </div> </td> <td class="TableText" valign="middle"> <div align="center">360 x 2.6 x 2.25mm </div> </td> </tr> <tr> <td rowspan="3" class="TableText" width="82" valign="middle" bgcolor="#cccccc"> <div align="center">Band Drive </div> </td> <td class="TableText" width="146" valign="middle" bgcolor="#cccccc"> <div align="center">Motor HP </div> </td> <td class="TableText" valign="middle"> <div align="center">15 Hp </div> </td> </tr> <tr> <td class="TableText" valign="middle" bgcolor="#cccccc"> <div align="center">Band Speed </div> </td> <td class="TableText" valign="middle"> <div align="center">30-150 rpm </div> </td> </tr> <tr> <td class="TableText" valign="middle" bgcolor="#cccccc"> <div align="center">Band Tension </div> </td> <td class="TableText" valign="middle"> <div align="center">N/A </div> </td> </tr> <tr> <td rowspan="2" class="TableText" valign="middle" bgcolor="#cccccc"> <div align="center">Hydraulic System </div> </td> <td class="TableText" valign="middle" bgcolor="#cccccc"> <div align="center">Motor HP </div> </td> <td class="TableText" valign="middle"> <div align="center">3 Hp </div> </td> </tr> <tr> <td class="TableText" valign="middle" bgcolor="#cccccc"> <div align="center">Reservoir Size </div> </td> <td class="TableText" valign="middle"> <div align="center">16 Gallon </div> </td> </tr> <tr> <td rowspan="3" class="TableText" valign="middle" bgcolor="#cccccc"> <div align="center">Coolant System </div> </td> <td class="TableText" valign="middle" bgcolor="#cccccc"> <div align="center">Flood No / Mist Lubricator </div> </td> <td class="TableText" valign="middle"> <div align="center">Yes </div> </td> </tr> <tr> <td class="TableText" valign="middle" bgcolor="#cccccc"> <div align="center">Motor Hp </div> </td> <td class="TableText" valign="middle"> <div align="center">N/A </div> </td> </tr> <tr> <td class="TableText" valign="middle" bgcolor="#cccccc"> <div align="center">Reservoir Size </div> </td> <td class="TableText" valign="middle"> <div align="center">1 Gallon </div> </td> </tr> <tr> <td rowspan="3" class="TableText" valign="middle" bgcolor="#cccccc"> <div align="center">Indexer </div> </td> <td class="TableText" valign="middle" bgcolor="#cccccc"> <div align="center">Length per Stroke </div> </td> <td class="TableText" valign="middle"> <div align="center">24" </div> </td> </tr> <tr> <td class="TableText" valign="middle" bgcolor="#cccccc"> <div align="center">Maximum Index <br> Strokes Length </div> </td> <td class="TableText" valign="middle"> <div align="center">236" </div> </td> </tr> <tr> <td class="TableText" valign="middle" bgcolor="#cccccc"> <div align="center">Remnant Length </div> </td> <td class="TableText" valign="middle"> <div align="center">2.4" </div> </td> </tr> <tr> <td rowspan="3" class="TableText" valign="middle" bgcolor="#cccccc"> <div align="center">Floor Space Dimensions </div> </td> <td class="TableText" valign="middle" bgcolor="#cccccc"> <div align="center">W x L X H </div> </td> <td class="TableText" valign="middle"> <div align="center">112" x 271" x 96" </div> </td> </tr> <tr> <td class="TableText" valign="middle" bgcolor="#cccccc"> <div align="center">Material Pass Height </div> </td> <td class="TableText" valign="middle"> <div align="center">34.5" </div> </td> </tr> <tr> <td class="TableText" valign="middle" bgcolor="#cccccc"> <div align="center">Machine Weight </div> </td> <td class="TableText" valign="middle"> <div align="center">7,937 lbs. </div> </td> </tr> <tr> <td rowspan="2" class="TableText" valign="middle" bgcolor="#cccccc"> <div align="center">Electrical </div> </td> <td class="TableText" valign="middle" bgcolor="#cccccc"> <div align="center">Voltage Requirement </div> </td> <td class="TableText" valign="middle"> <div align="center">230V-60Hz-3ph, Wye configuration </div> </td> </tr> <tr> <td class="TableText" valign="middle" bgcolor="#cccccc"> <div align="center">Total Amp Draw (FLA) </div> </td> <td class="TableText" valign="middle"> <div align="center">68 Amps </div> </td> </tr> </tbody> </table> <p>Specifications are subject to change without notice. </p> <p>NOTE: Data is provided by the manufacturer. </p> <p><strong>WARRANTY: 1 YEAR</strong> – Parts </p> <ul> <li> Square Material Machine Capacity: 0.39" x 0.39'' - 3.15" x 3.15" (10mm x 10mm – 80mm x 80mm) </li> <li> Round Material Machine Capacity: 0.39" to 4.0" (10mm to 102mm) </li> <li> Production Level: High </li> <li><strong>Standard features: Fully-Automated CNC Controls, High-Production Capacity, and 15 HP Motor</strong></li> <li> The DoALL SC-100A circular saw is capable of producing the highest-quality parts with minimal effort for the operator. Automatic bar loading reduces the amount of physical labor and increases the safety for the user. Your operators will enjoy the fact that they can produce for several hours at a time with minimal effort and allow them to take on additional tasks. It is truly a production powerhouse. </li> <li><strong>Touch Screen Control</strong> <br> Easy operator input. 15 Job storage with batching capabilities. Control is multi-lingual for today's workforce. Will display error message when incorrect entry is made. Easy switching between imperial or metric units.</li> <li><strong>Servo Driven Ballscrew Head Feed</strong><br> The heavy-duty saw head is driven by a servo-driven ballscrew creating optimum tooth load for high production cutting and longer blade life. The precision saw blade spindle and heavy-duty reduction gear box with power brake removes all backlash delivering outstanding life of the saw blade.<br> </li> <li><strong>High-Efficiency Transmission</strong><br> High efficiency gear box built to decrease wear and transmit full torque to the saw blade. Six wide banded “V” belt avoids slippage, transmitting full motor power to the transmission.</li> <li><strong>Carbide Faced Saw Guide</strong><br> Adjustable carbide-faced blade guides provide maximum support to the blade increasing blade life and eliminating the possibility of an irregular cut.</li> <li><strong>Hardened Tool Steel Wear Plates</strong><br> Interchangeable hardened tool steel vice wear plates create a near to “burr-free” finish on cut parts allowing them to go directly to the next operation increasing production.</li> <li><strong>Efficiently Designed Hydraulic System</strong><br> Engineered low-pressure system allows for a smoother and quieter operation which aids in longer component life and easy accessibility for maintenance.</li> <li><strong>High-Efficiency Mist Lubricator</strong><br> Optimally placed multiple ports provide pressurized spray mist coolant eliminating the need for flood coolant which provides mess-free operation and near to clean parts.</li> <li><strong>Four Point Material Clamping With Variable Vise Pressure</strong><br> Maximum part clamping is achieved by the use of a split front vise, forward vertical hold down, and index vise eliminating the possibility of material slippage insuring square cuts. Variable Vise Pressure will prevent distortion in thin wall tubing.</li> <li><strong>Hydraulic Discharge Chute</strong><br> Swinging output chute ensures trim cuts and remnant pieces are sorted automatically from good parts.</li> <li><strong>Electric Chip Conveyor</strong><br> Electric motor-driven steel belt style chip conveyor provides maximum chip removal for high production applications.</li> <li><strong>Servo Driven Ballscrew Floating Indexer</strong> <br> A servo-driven ballscrew is paired with a dual chrome rail floating index vice to create optimum indexing accuracy with straight or crooked stock. The indexer in cycle will automatically back up the uncut material after the cut allowing for the sawblade to return to the home position without interference allowing for longer blade life and increased production.</li> <li><strong>Automated 16’ Bar Loader</strong><br> The hydraulic transfer bar loader efficiently moves different sizes of round bar from the staging area to the indexing area of the machine creating hands-free loading on long part runs. This feature only works with round stock.</li> <li><strong>Warranty</strong><br> One-year parts and service subject to the terms and conditions. An optional ten-year warranty is available. See Details Below. </li> </ul> <p><strong> STANDARD EQUIPMENT:</strong> </p> <ul> <li>Programmable Logic Controller for all machine functions</li> <li>Metered feed head controlled by servo driven ball screw</li> <li>Infinite blade speed controlled variable frequency drive</li> <li>Floating shuttle vise controlled by servo driven ball screw on chrome rails </li> <li>Hydraulic sorting discharge chute</li> <li>Split front vice clamping fore and aft of the sawblade</li> <li>16' automatic loading table for round bar</li> <li>Variable vice pressure control</li> <li>Vertical hydraulic clamp behind front vise</li> <li>Adjustable carbide faced blade guides</li> <li>Adjustable power driven blade cleaning brush</li> <li>High pressure air mist lubricator system</li> <li>High pressure chip blower for tube cutting</li> <li>Auxiliary air hose for machine maintenance</li> <li>Electric hinge steel belt design chip conveyor</li> <li>Electro-magnetic power brake</li> <li>Halogen work light</li> <li>Band door interlocks</li> <li>Operation and parts manuals on USB stick</li> <li>Maintenance tool kit</li> <li>Complimentary DoALL Cutting Fluids package</li> <li>One (1) complimentary DoALL blade</li> </ul> <p><b>OPTIONAL ITEMS - CALL FOR PRICE:</b></p> <ul> <li>Oil mist filter</li> <li>Magnetic wand chip remover</li> <li>Additional USB stick of manuals</li> <li>A Nationally Recognized Testing Laboratory (NRTL) is an independent third-part laboratory recognized by the United States Occupational Safety and Health Administration (OSHA) to test and certify products to applicable product safety standards.</li> <li>DoALL Cut Above 10 Year Warranty Annual Investment</li> </ul>
