<table width="520" cellspacing="0" cellpadding="0" border="1">
<tbody style="text-align: center;">
<tr>
<td class="TableText" valign="middle" bgcolor="#333333">
<div class="Title_white_bold" align="center">
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>MODEL</strong></span>
</div>
</div>
</td>
<td class="Title_white_bold" width="246" valign="middle" bgcolor="#333333">
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>DC-1000CNC</strong></span>
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div align="center">Machine Capacity
</div>
</td>
<td class="TableText" valign="middle">
<div align="center">33.5" x 40" (850 x 1000mm)
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div align="center">Round (Tube or Solid)
</div>
</td>
<td class="TableText" valign="middle">
<div align="center">33.5" (850mm)
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div align="center">Production Level
</div>
</td>
<td class="TableText" valign="middle">
<div align="center">Extreme
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div align="center">Cutting Capacity Round (Tube or Solid)
</div>
</td>
<td class="TableText" valign="middle">
<div align="center">33.45" (850mm)
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div align="center">Cutting Capacity Rectangle
</div>
</td>
<td class="TableText" valign="middle">
<div align="center">33.45" x 39.37" (1000x850mm)
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div align="center">Maximum Bundle Capacity
</div>
</td>
<td class="TableText" valign="middle">
<div align="center">39.37" x 24"(1000x610mm)
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div align="center">Band Saw Blade Width
</div>
</td>
<td class="TableText" valign="middle">
<div align="center">2.64" x 0.063" (67x1.6mm)
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div align="center">Maximum Blade Length
</div>
</td>
<td class="TableText" valign="middle">
<div align="center">373.6" (9490mm)
</div>
</td>
</tr>
<tr>
<td class="TableText" width="268" valign="middle" bgcolor="#cccccc">
<div align="center">Band Speed
</div>
</td>
<td class="TableText" valign="middle">
<div align="center">50-262 fpm (15-80mpm)
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div align="center">Band Drive
</div>
</td>
<td class="TableText" valign="middle">
<div align="center">15 hp (11.1kW)
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div align="center">Hydraulic Pump
</div>
</td>
<td class="TableText" valign="middle">
<div align="center">5.4 hp (4kW)
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div align="center">Coolant Pump
</div>
</td>
<td class="TableText" valign="middle">
<div align="center">0.2 hp (0.155kW)
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div align="center">Material Pass Line Height
</div>
</td>
<td class="TableText" valign="middle">
<div align="center">24.4" (620mm)
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div align="center">Machine Weight
</div>
</td>
<td class="TableText" valign="middle">
<div align="center">30,204 lbs (13700kg)
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div align="center">Dimensions W x L x H
</div>
</td>
<td class="TableText" valign="middle">
<div align="center">237" x 152" x 111" <br>
(6000x3850x2820mm)
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div align="center">Index Single Stroke Min-Max
</div>
</td>
<td class="TableText" valign="middle">
<div align="center">0.12-39.4" (3-1000mm)
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div align="center">Auto Index Multiple Stroke Max
</div>
</td>
<td class="TableText" valign="middle">
<div align="center">394" (9999mm)
</div>
</td>
</tr>
</tbody>
</table>
<p>Specifications are subject to change without notice.
</p>
<p>NOTE: Data is provided by the manufacturer.
</p>
<p><strong>WARRANTY: 1 YEAR</strong> – Parts
</p>
<ul>
<li> Machine Capacity: 33.5" x 40" (850 x 1000mm) </li>
<li> Round (Tube or Solid): 33.5" (850mm)</li>
<li>Production Level: Extreme </li>

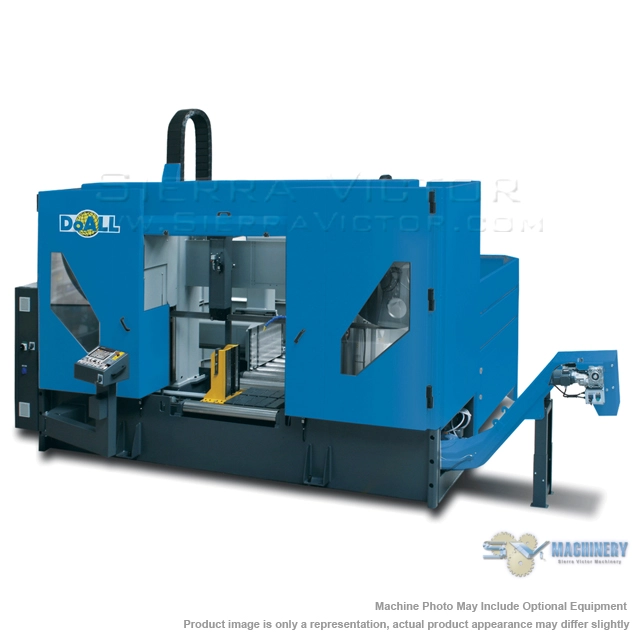

<li> The DC-1000CNC Hercules high production, horizontal CNC band saws from DoALL are highly efficient, automatic, hydraulically controlled machines with multiple material feeds. Designed for vertical cuts, the DC-1000CNC is ideal for serial production in industrial settings. Thanks to the robust construction of the DC-1000CNC, it is possible to cut a wide range of full and profile materials including stainless and tool steel. In addition, the "box" or enclosed design provides very safe operation. A large variety of optional accessories are available to customize the machine for specific sawing requirements. </li>
</ul>
<p><strong> STANDARD EQUIPMENT:</strong>
</p>
<ul>
<li>Siemens saw control with touch screen display</li>
<li>Work light</li>
<li>Hydraulic band tension</li>
<li>Work height sensor</li>
<li>Automatic guide arm setting</li>
<li>Automatic feed control with programmable feed rates</li>
<li>Variable vise pressure control - Set of 2</li>
<li>Power-driven band brush</li>
<li>Chain chip conveyor with large pan</li>
<li>Automatic retraction of material in cycle for protection of carbide blades</li>
<li>Dual acting index vice jaws for crooked stock</li>
<li>Retractable stationary machine vice jaw</li>
<li>Tool kit</li>
<li>Complimentary DoALL cutting fluids package</li>
<li>One DoALL bi-metal saw blade</li>
<li>Instruction and parts manuals on CD or USB data stick</li>
</ul>
<p><b>OPTIONAL ITEMS - CALL FOR PRICE:</b></p>
<ul>
<li>Front and rear vise nesting - Set of 2</li>
<li>Laser edge finder - eliminates trim cut</li>
<li>Dynamic adjustment of feed rate to ensure cut squareness</li>
<li>Mist-style saw band lubrication</li>
<li>Large chip pan with drain</li>
<li>Laser line generator</li>
<li>Input or output roller conveyor with drip pan - 11023lbs/3.28' (5000kg/m), 39.3x39.3" or 39.3x78.7" (1000x1000 or 1000x2000mm)</li>
<li>Single fixed or movable side vertical guide roller - 31.5″ (800mm)</li>
<li>Hydraulic shift of vertical guide roller</li>
<li>Additional conveyor rollers</li>
<li>Filler plates - 78.7" (2000mm)</li>
<li>Heavy-duty input or output roller table - 15432lbs/3.28' (7000kg/m), 39.3x78.7" (1000x2000mm)</li>
<li>Wear parts service kit</li>
<li>Please note that some accessories require extra lead time due to factory installation.</li>
</ul>
