<table width="520" cellspacing="0" cellpadding="0" border="1">
<tbody style="text-align: center;">
<tr>
<td class="TableText" valign="middle" bgcolor="#333333">
<div class="Title_white_bold" align="center">
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>MODEL</strong></span>
</div>
</div>
</td>
<td class="Title_white_bold" width="257" valign="middle" bgcolor="#333333">
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>DC-510CNC</strong></span>
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div align="center">Machine Capacity
</div>
</td>
<td class="TableText" valign="middle">
<div align="center">w 20" x h 20" <br>
(510mm x 510mm)
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div align="center">Machine Capacity Round
</div>
</td>
<td class="TableText" valign="middle">
<div align="center">20" (510mm)
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div align="center">Production Level
</div>
</td>
<td class="TableText" valign="middle">
<div align="center">High
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div align="center">Cutting capacity for tube - Round
</div>
</td>
<td class="TableText" valign="middle">
<div align="center">20" (510mm)
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div align="center">Cutting capacity for tube - Rectangle
</div>
</td>
<td class="TableText" valign="middle">
<div align="center">20” x 20" <br>
(510mm x 510mm)
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div align="center">Cutting capacity for solid - Round
</div>
</td>
<td class="TableText" valign="middle">
<div align="center">20" (510mm)
</div>
</td>
</tr>
<tr>
<td class="TableText" width="257" valign="middle" bgcolor="#cccccc">
<div align="center">Maximum nesting capacity
</div>
</td>
<td class="TableText" valign="middle">
<div align="center">w 19.6” x h 17.7" <br>
(500mm x 450mm)
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div align="center">Minimum nesting capacity
</div>
</td>
<td class="TableText" valign="middle">
<div align="center">3" (75mm)
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div align="center">Band saw blade dimensions
</div>
</td>
<td class="TableText" valign="middle">
<div align="center">Width: 2” x 0.063" <br>
(54mm x 1.6mm), <br>
Length: 239" (6060mm)
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div align="center">Band speed
</div>
</td>
<td class="TableText" valign="middle">
<div align="center">50-262 fpm (15-80mpm)
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div align="center">Band drive motor
</div>
</td>
<td class="TableText" valign="middle">
<div align="center">10 HP (7.5kw) 25 degree sloped
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div align="center">Hydraulic pump
</div>
</td>
<td class="TableText" valign="middle">
<div align="center">2HP (1.5kw)
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div align="center">Coolant pump and capacity
</div>
</td>
<td class="TableText" valign="middle">
<div align="center">1/4 hp (0.12kW), <br>
13-1/4 gal (50 lit)
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div align="center">Auto index single stroke min-max
</div>
</td>
<td class="TableText" valign="middle">
<div align="center">0.12-26.4" (3-670mm)
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div align="center">Auto index multiple stroke max
</div>
</td>
<td class="TableText" valign="middle">
<div align="center">394" (9999mm)
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div align="center">Minimum butt end
</div>
</td>
<td class="TableText" valign="middle">
<div align="center">4.7" (120mm)
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div align="center">Multiple feed
</div>
</td>
<td class="TableText" valign="middle">
<div align="center">393.7" (9999mm)
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div align="center">Material pass line height
</div>
</td>
<td class="TableText" valign="middle">
<div align="center">32" (810mm)
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div align="center">Machine weight
</div>
</td>
<td class="TableText" valign="middle">
<div align="center">13,713 lbs (6220kg)
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div align="center">Dimensions W x L X H
</div>
</td>
<td class="TableText" valign="middle">
<div align="center">150” x 95” x 87" <br>
(3800mm x 2400mm x 2200mm)
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div align="center">Machine Voltage
</div>
</td>
<td class="TableText" valign="middle">
<div align="center">460vac, 3-Phase, 60hz, <br>
Wye configuration required
</div>
</td>
</tr>
</tbody>
</table>
<p>Specifications are subject to change without notice.
</p>
<p>NOTE: Data is provided by the manufacturer.
</p>
<p><strong>WARRANTY: 1 YEAR</strong> – Parts
</p>
<ul>
<li> Machine Capacity: w 20” x h 20" (510mm x 510mm) </li>
<li> Machine Capacity Round: 20" (510mm) </li>
<li> Production Level: High </li>
<li><strong>Standard Features: Fully-Automated Siemens Controller, Dual Index Vise Jaws for Work Handling and Independent Drive Motors for Band, Hydraulics and Coolant Pump.</strong></li>

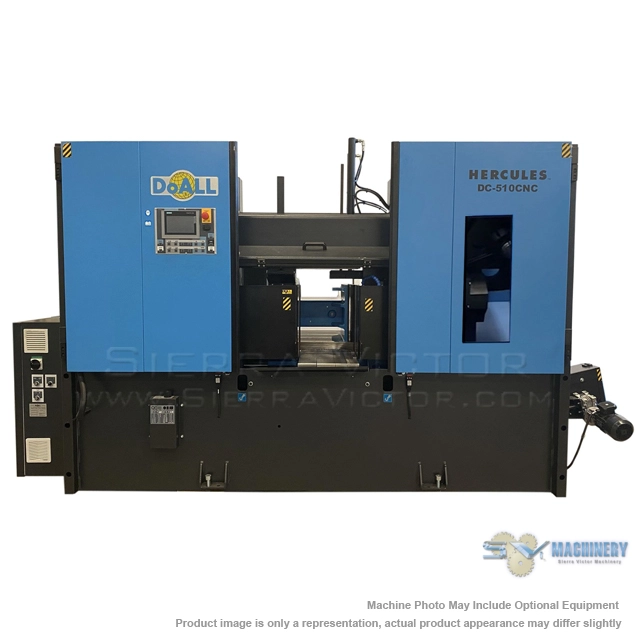

<li> The DC-510CNC Hercules high production metal cutting band saw from DoALL is designed to work well in industrial settings, where a fully automated solution is required. This saw is ideal for large metal parts production across any industry vertical. </li>
<li> Thanks to the robust construction of the DC-510CNC it is possible to cut a wide range of full and profile materials including stainless and tool steel. </li>
<li> The "box" or enclosed design provides a safer environment for both the operator, and other employees on the production floor. The DoALL DC-510CNC can be customized through the world class control system and various available optional accessories to meet your specific needs. Make sure to request a quote and one of our sawing specialists will help spec out the perfect machine. </li>
</ul>
<p><strong> STANDARD EQUIPMENT:</strong>
</p>
<ul>
<li>Siemens control with touch screen display</li>
<li>Automatic feed control with programmable feed rates</li>
<li>Work light</li>
<li>Worm chip conveyor for long chips including chip pan</li>
<li>Variable vise pressure control - Set of 2</li>
<li>Dual acting index vise jaws for crooked stock</li>
<li>Hydraulic band tension</li>
<li>Automatic retraction of material in cycle for protection of carbide blade</li>
<li>Power-driven band brush</li>
<li>Flood coolant</li>
<li>Work height sensor</li>
<li>Automatic guide arm setting</li>
<li>One (1) complimentary DoALL bi-metal saw blade</li>
<li>Programmable work height</li>
<li>Tool kit</li>
<li>Complimentary DoALL cutting fluids package</li>
<li>Smart programming to automatically select cutting parameters based on material size and type</li>
<li>Operation and parts manuals on CD or USB data stick</li>
</ul>
<p><b>OPTIONAL ITEMS - CALL FOR PRICE:</b></p>
<ul>
<li>Mist-style saw band lubrication</li>
<li>Laser line generator</li>
<li>Retractable stationary machine vice jaw</li>
<li>Dynamic adjustment of feed rate to ensure cut square-ness</li>
<li>Laser edge finder, eliminates trim cut</li>
<li>3 ft. (1000mm) Input or output conveyor with drip pan/gutter - 20" (510mm) cylinder width - 1142 lbs/ft (1700kg/m) capacity</li>
<li>3 ft. (1000mm) Output conveyor for with drip pan/gutter - 20" (510mm) cylinder width - 1142 lbs/ft (1700kg/m) capacity</li>
<li>Powered hydraulic lift conveyor cylinder with a 24.4" (620mm) cylinder width</li>
<li>3 ft. (1000mm) Extreme heavy-duty conveyor with one (1) vertical roller - 22.5" (570mm) cylinder width - 1344 lbs/ft (2000kg/m) capacity</li>
<li>6 ft. (2000mm) Extreme heavy-duty conveyor with one (1) vertical roller - 22.5" (570mm) cylinder width - 1344 lbs/ft (2000kg/m) capacity</li>
<li>Single fixed heavy-duty vertical guide roller - 25.6" (650mm) height</li>
<li>Hydraulic front and rear vise nesting - Set of 2 - note that the Work Height Sensor will not work with HP-A</li>
<li>Single adjustable heavy-duty vertical guide roller - 25.6" (650mm) height</li>
<li>6 ft. (2000mm) Input or output conveyor with drip pan/gutter - 20" (510mm) cylinder width - 1142 lbs/ft (1700kg/m) capacity</li>
<li>Single fixed vertical guide roller - 11" (280mm) cylinder height</li>
<li>Single adjustable vertical guide roller - Adjusts up to 24.4" (620mm) cylinder width - 11" (280mm) height</li>
<li>Single adjustable horizontal conveyor roller - 672 lbs/ft (1000kg/m) capacity</li>
<li>Additional conveyor rollers</li>
<li>Additional roller table for gap</li>
<li>Chip pan with drain</li>
<li>Handle for chip box</li>
<li>Cut piece collection box with drain</li>
<li>Wear parts service kit - Lead-in bearings, carbide guide inserts, insert screws, band brushes</li>
<li>Magnetic wand chip remover</li>
<li>DoALL Cut Above 10 Year Warranty</li>
</ul>
