<table width="520" cellspacing="0" cellpadding="0" border="1">
<tbody style="text-align: center;">
<tr>
<td class="TableText" valign="middle" bgcolor="#333333">
<div class="Title_white_bold" align="center">
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>MODEL
</strong></span>
</div>
</div>
</td>
<td class="Title_white_bold" width="257" valign="middle" bgcolor="#333333">
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>DC-620CNC</strong></span>
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div align="center">Machine Capacity
</div>
</td>
<td class="TableText" valign="middle">
<div align="center">w 24.5" x h 21.5" <br>
(620mm x 550mm)
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div align="center">Machine Capacity Round
</div>
</td>
<td class="TableText" valign="middle">
<div align="center">21.5" (550mm)
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div align="center">Production Level
</div>
</td>
<td class="TableText" valign="middle">
<div align="center">Extreme
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div align="center">Cutting capacity for tube - Round
</div>
</td>
<td class="TableText" valign="middle">
<div align="center">21.5" (550mm)
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div align="center">Cutting capacity for tube - Rectangle
</div>
</td>
<td class="TableText" valign="middle">
<div align="center">w 24.5” x h 21.5" <br>
(620mm x 550mm)
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div align="center">Cutting capacity for solid - Round
</div>
</td>
<td class="TableText" valign="middle">
<div align="center">Round: 21.5" (550mm)
</div>
</td>
</tr>
<tr>
<td class="TableText" width="257" valign="middle" bgcolor="#cccccc">
<div align="center">Maximum nesting capacity
</div>
</td>
<td class="TableText" valign="middle">
<div align="center">w 21.5” x h 13.75"<br>
(550mm x 350mm)
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div align="center">Minimum nesting capacity
</div>
</td>
<td class="TableText" valign="middle">
<div align="center">3" (75mm)
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div align="center">Band saw blade dimensions
</div>
</td>
<td class="TableText" valign="middle">
<div align="center">Width: 2” x 0.063" <br>
(54mm x 1.6mm),<br>
Length: 302" (7680mm)
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div align="center">Band speed
</div>
</td>
<td class="TableText" valign="middle">
<div align="center">50-500 fpm (15-150mpm)
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div align="center">Band drive motor
</div>
</td>
<td class="TableText" valign="middle">
<div align="center">20hp (15kW)
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div align="center">Auto index single stroke min-max
</div>
</td>
<td class="TableText" valign="middle">
<div align="center">0.12” - 29.5" (3mm -750mm)
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div align="center">Auto index multiple stroke max
</div>
</td>
<td class="TableText" valign="middle">
<div align="center">394" (9999mm)
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div align="center">Minimum butt end
</div>
</td>
<td class="TableText" valign="middle">
<div align="center">1.4" (35mm)
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div align="center">Material pass line height
</div>
</td>
<td class="TableText" valign="middle">
<div align="center">31.5" (800mm)
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div align="center">Machine weight
</div>
</td>
<td class="TableText" valign="middle">
<div align="center">17,052 lbs (7735kg)
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div align="center">Dimensions W x L X H
</div>
</td>
<td class="TableText" valign="middle">
<div align="center">157” x 91” x 115" <br>
(3980mm x 2300mm x 2900mm)
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div align="center">Machine Voltage
</div>
</td>
<td class="TableText" valign="middle">
<div align="center">460vac, 3-Phase, 60hz, <br>
Wye configuration required
</div>
</td>
</tr>
</tbody>
</table>
<p>Specifications are subject to change without notice.
</p>
<p>NOTE: Data is provided by the manufacturer.
</p>
<p><strong>WARRANTY: 1 YEAR</strong> – Parts
</p>
<div><a class="eMAIL" href="mailto:dan@sierravictor.com?subject=Freight Quote and Availability Request from Website&body=Please Enter Your: %0A%0ANAME................:%0ACOMPANY........:%0AADDRESS..........:%0AZIP CODE..........:%0ATELEPHONE #..:%0A%0A%0ATHE INFORMATION BELOW WILL BE COMPLETED by SIERRA VICTOR%0A%0A %0A%0AItem/Model: DoALL DC-620CNC%0A%0AFreight Price is:%0A%0AAvailability is:%0A"><span class="eMAIL"><br> CLICK HERE FOR FREIGHT QUOTE AND TO CONFIRM AVAILABILITY</span></a>
</div>
<ul>
<li> Machine Capacity: w 24.5" x h 21.5" (620mm x 550mm) </li>
<li> Machine Capacity Round: 21.5" (550mm) </li>
<li> Production Level: Extreme </li>
<li><strong>Standard Features: 20 HP, Ball Screw Drive, Siemens Digital Controls for All Functions, Enclosed Saw Head and Heavy Duty Construction</strong></li>

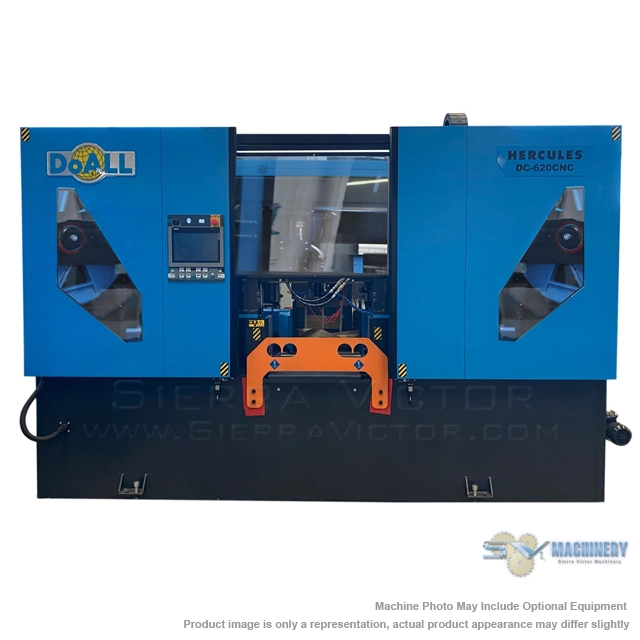

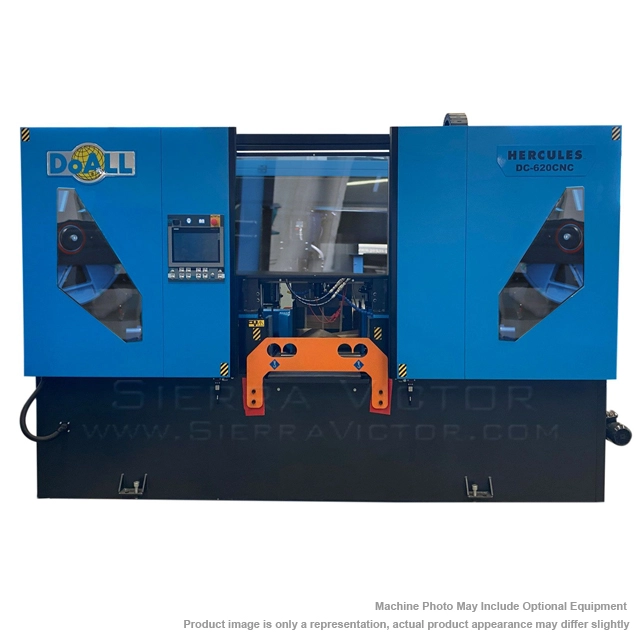

<li> The DC-620CNC Hercules II horizontal production band saw from DoALL is highly efficient, automatic production saw. The DC-620CNC operates with a 20 HP motor with servo controlled ball screw feed system for indexing and head fall using "SMART" Siemens touch screen controls.<br>
</li>
<li> A heavy-duty enclosed design provides exceptional safety in high-traffic facilities. The DC-620CNC can be configured to work in industrial production environments – ranging from automotive to aerospace. </li>
</ul>
<p><strong> STANDARD EQUIPMENT:</strong>
</p>
<ul>
<li>Siemens control with touch screen display</li>
<li>Smart programming to automatically select cutting parameters based on material size and type</li>
<li>Automatic material feed situated close to saw blade</li>
<li>Automatic feed control with programmable feed rates</li>
<li>Work light</li>
<li>Worm chip conveyor for long chips including chip pan</li>
<li>Variable vise pressure control - Set of 2</li>
<li>Dual acting index vise jaws for crooked stock</li>
<li>Hydraulic band tension</li>
<li>Automatic feed of material into cutting zone</li>
<li>Retractable stationary machine vice jaw</li>
<li>Automatic retraction of material in cycle for protection of carbide blade</li>
<li>Hydraulic blade clamping in saw guides</li>
<li>Indexer and saw head movements using linear-leading ball screw and servo motor</li>
<li>Dynamic adjustment of feed rate to ensure square-ness</li>
<li>Power-driven band brush</li>
<li>Automatic guide arm setting</li>
<li>Programmable work heights</li>
<li>Tool kit</li>
<li>Operation and parts manuals on CD or USB data stick</li>
<li>One (1) complimentary DoALL bi-metal saw blade</li>
<li>Complimentary DoALL cutting fluids package</li>
<li>Flood coolant</li>
</ul>
<p><b>OPTIONAL ITEMS - CALL FOR PRICE:</b></p>
<ul>
<li>Mist-style saw band lubrication</li>
<li>Central lubrication</li>
<li>Laser line generator</li>
<li>Chain chip conveyor for long chips including chip pan</li>
<li>3 ft. (1000mm) Input or output conveyor with drip pan/gutter - 24.4" (620mm) cylinder width - 1142 lbs/ft (1700kg/m) capacity</li>
<li>6 ft. (2000mm) Extreme heavy-duty conveyor with one (1) vertical roller - 22.5" (570mm) cylinder width - 1344 lbs/ft (2000kg/m) capacity</li>
<li>3 ft. (1000mm) Extreme heavy-duty conveyor with one (1) vertical roller - 22.5" (570mm) cylinder width - 1344 lbs/ft (2000kg/m) capacity</li>
<li>Powered hydraulic lift conveyor cylinder - 24.4" (620mm) cylinder width</li>
<li>Single fixed heavy-duty vertical guide roller - 25.6" (650mm) height</li>
<li>Single adjustable heavy-duty vertical guide roller - 25.6" (650mm) height</li>
<li>6 ft. (2000mm) Input or output conveyor with drip pan/gutter - 24.4" (620mm) cylinder width - 1142 lbs/ft (1700kg/m) capacity</li>
<li>Single fixed vertical guide roller - 11" (280mm) cylinder height - Attaches to RDT for operation</li>
<li>Single adjustable vertical guide roller - Adjusts up to 24.4" (620mm) cylinder width - 11" (280mm) height</li>
<li>Single adjustable horizontal conveyor roller - 672 lbs/ft (1000kg/m) capacity</li>
<li>Chip pan with drain</li>
<li>Handle for chip box</li>
<li>Cut piece collection box with drain</li>
<li>Wear parts service kit - Lead-in bearings, carbide guide inserts, insert screws, band brushes, safety rings, guide rollers, insert holders</li>
<li>Additional digital copy of manuals on CD or USB data stick</li>
<li>Magnetic wand chip remover</li>
<li>Start-up kit - includes 6 genuine DoALL blades, Vernier caliper, heavy-duty work gloves, refractometer, work apron, safety glasses, squeegee, magnetic wand chip remover and ball cap</li>
<li>10 year manufacturer’s warranty available (Cut Above Lifetime Warranty)</li>
</ul>
