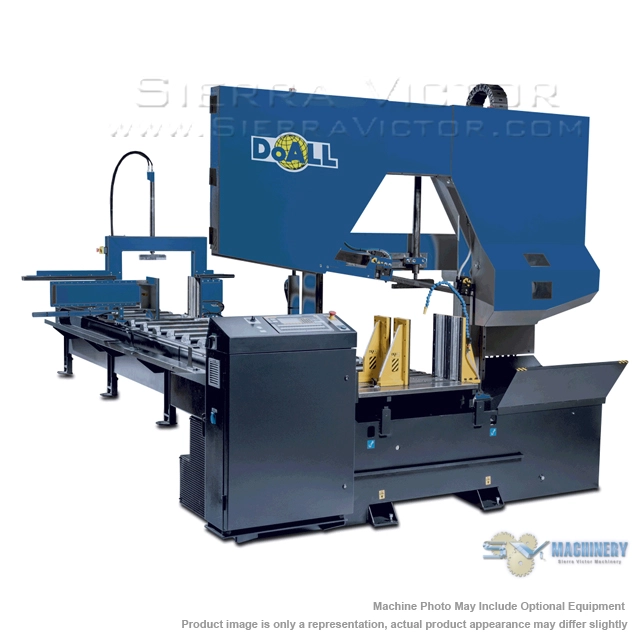

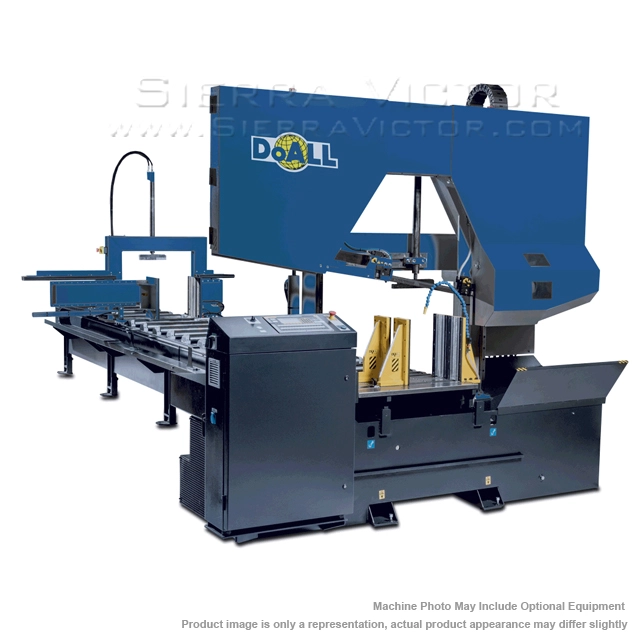

DoALL TDC-600CNC 24" Dual Column CNC Tube Band Saw

<table width="520" cellspacing="0" cellpadding="0" border="1"> <tbody style="text-align: center;"> <tr> <td colspan="2" class="TableText" valign="middle" bgcolor="#333333"> <div class="Title_white_bold" align="center"> <div align="center"><span style="color: rgb(255, 255, 255);"><strong>MODEL</strong></span> </div> </div> </td> <td class="Title_white_bold" width="257" valign="middle" bgcolor="#333333"> <div align="center"><span style="color: rgb(255, 255, 255);"><strong>TDC-600CNC</strong></span> </div> </td> </tr> <tr> <td colspan="2" class="TableText" valign="middle" bgcolor="#cccccc"> <div align="center">Machine Capacity </div> </td> <td class="TableText" valign="middle"> <div align="center"> w 24” x h 20" (610mm x 510mm) </div> </td> </tr> <tr> <td colspan="2" class="TableText" valign="middle" bgcolor="#cccccc"> <div align="center">Machine Capacity Round Tube </div> </td> <td class="TableText" valign="middle"> <div align="center"> 24" (610mm) </div> </td> </tr> <tr> <td colspan="2" class="TableText" valign="middle" bgcolor="#cccccc"> <div align="center">Production Level </div> </td> <td class="TableText" valign="middle"> <div align="center">Extreme </div> </td> </tr> <tr> <td colspan="2" class="TableText" valign="middle" bgcolor="#cccccc"> <div align="center">Saw Blade - Width x Length </div> </td> <td class="TableText" valign="middle"> <div align="center">1/4" x 245" </div> </td> </tr> <tr> <td rowspan="3" class="TableText" width="127" valign="middle" bgcolor="#cccccc"> <div align="center">Band Drive </div> </td> <td class="TableText" valign="middle" bgcolor="#cccccc"> <div align="center">Motor HP </div> </td> <td class="TableText" valign="middle"> <div align="center">5 Hp </div> </td> </tr> <tr> <td class="TableText" valign="middle" bgcolor="#cccccc"> <div align="center">Band Speed </div> </td> <td class="TableText" valign="middle"> <div align="center">65-328 fpm </div> </td> </tr> <tr> <td class="TableText" width="128" valign="middle" bgcolor="#cccccc"> <div align="center">Band Tension </div> </td> <td class="TableText" valign="middle"> <div align="center">Hydraulic </div> </td> </tr> <tr> <td rowspan="2" class="TableText" valign="middle" bgcolor="#cccccc"> <div align="center">Hydraulic System </div> </td> <td class="TableText" valign="middle" bgcolor="#cccccc"> <div align="center">Motor HP </div> </td> <td class="TableText" valign="middle"> <div align="center">1 Hp </div> </td> </tr> <tr> <td class="TableText" valign="middle" bgcolor="#cccccc"> <div align="center">Reservoir Size </div> </td> <td class="TableText" valign="middle"> <div align="center">12 Gallon </div> </td> </tr> <tr> <td rowspan="4" class="TableText" valign="middle" bgcolor="#cccccc"> <div align="center">Coolant System </div> </td> <td class="TableText" valign="middle" bgcolor="#cccccc"> <div align="center">Flood </div> </td> <td class="TableText" valign="middle"> <div align="center">Yes </div> </td> </tr> <tr> <td class="TableText" valign="middle" bgcolor="#cccccc"> <div align="center">Mist Lubricator </div> </td> <td class="TableText" valign="middle"> <div align="center">Yes </div> </td> </tr> <tr> <td class="TableText" valign="middle" bgcolor="#cccccc"> <div align="center">Motor HP </div> </td> <td class="TableText" valign="middle"> <div align="center">1.6 Hp </div> </td> </tr> <tr> <td class="TableText" valign="middle" bgcolor="#cccccc"> <div align="center">Reservoir Size </div> </td> <td class="TableText" valign="middle"> <div align="center">10 Gallon </div> </td> </tr> <tr> <td rowspan="3" class="TableText" valign="middle" bgcolor="#cccccc"> <div align="center">Indexer </div> </td> <td class="TableText" valign="middle" bgcolor="#cccccc"> <div align="center">Length per Stroke </div> </td> <td class="TableText" valign="middle"> <div align="center">78.5" </div> </td> </tr> <tr> <td class="TableText" valign="middle" bgcolor="#cccccc"> <div align="center">Maximum Index Strokes Length </div> </td> <td class="TableText" valign="middle"> <div align="center">999" </div> </td> </tr> <tr> <td class="TableText" valign="middle" bgcolor="#cccccc"> <div align="center">Remnant Length </div> </td> <td class="TableText" valign="middle"> <div align="center">9.5" </div> </td> </tr> <tr> <td rowspan="3" class="TableText" valign="middle" bgcolor="#cccccc"> <div align="center">Floor Space Dimensions </div> </td> <td class="TableText" valign="middle" bgcolor="#cccccc"> <div align="center">W x L X H </div> </td> <td class="TableText" valign="middle"> <div align="center">119" x 158" x 91" </div> </td> </tr> <tr> <td class="TableText" valign="middle" bgcolor="#cccccc"> <div align="center">Material Pass Height </div> </td> <td class="TableText" valign="middle"> <div align="center">31.5" </div> </td> </tr> <tr> <td class="TableText" valign="middle" bgcolor="#cccccc"> <div align="center">Machine Weight </div> </td> <td class="TableText" valign="middle"> <div align="center">8,003 lbs. </div> </td> </tr> <tr> <td rowspan="2" class="TableText" valign="middle" bgcolor="#cccccc"> <div align="center">Electrical </div> </td> <td class="TableText" valign="middle" bgcolor="#cccccc"> <div align="center">Voltage Requirement </div> </td> <td class="TableText" valign="middle"> <div align="center">460V-60Hz-3ph, Wye configuration </div> </td> </tr> <tr> <td class="TableText" valign="middle" bgcolor="#cccccc"> <div align="center">Total Amp Draw (FLA) </div> </td> <td class="TableText" valign="middle"> <div align="center">14.2 Amps </div> </td> </tr> </tbody> </table> <p>Specifications are subject to change without notice. </p> <p>NOTE: Data is provided by the manufacturer. </p> <p><strong>WARRANTY: 1 YEAR</strong> – Parts </p> <ul> <li> Machine Capacity: w 24” x h 20" (610mm x 510mm) </li> <li> Machine Capacity Round Tube: 24" (610mm) </li> <li> Production Level: Extreme </li> <li><strong>Standard Features: Chain Chip Conveyor, Automatic Feed Control and Siemens Control with Touch Display Screen</strong></li> <li> The DoALL Olympia TDC-600CNC is an automatic, dual column, CNC metal-cutting band saw specially designed to cut large tube and pipe. The TDC-600CNC offers bundling to save time and money in high production environments like metal service centers, oil and gas contractors and public works facilities. </li> <li> This horizontal, automatic power saw is specifically designed to increase the rate of production in cutting tube and round materials. The saw blade is 10° cantilever, for high-efficiency cutting on a wide range of of tubing and pipe. Materials can be nested for cutting multiples in one cycle.<br> </li> <li> When you make an investment in a new DoALL TDC-600CNC band saw, the saw ships with many accessories as standard, including a work light, work height sensor and discharge chute. The TDC-600CNC now includes a chain chip conveyor as standard equipment </li> <li><strong>Operator Control Console</strong><br> The operator control console is mounted at the front of the machine. Its placement insures the operator’s safety by keeping their hands clear of the sawband at band start.</li> <li><strong>Siemens Touch Screen Panel</strong><br> The touchscreen workstation provides the operator with easy to access job programming along with constant monitoring of jobs while the machine is running in automatic. The work station also monitors and displays blade speed, head feed rate, and head and indexer position at all times. It automatically displays and stores any error messages for ease of troubleshooting eliminating long periods of downtime.</li> <li><strong>Saw Head Design</strong><br> The saw head is mounted on linear rails which are mounted to two robust columns at a 10 degree cant. The 4 point head mounting system to the columns increases stability of the saw head allowing for increased blade life.</li> <li><strong>Direct Driven Band Drive</strong><br> Drive is comprised of an electric VFD controlled motor transferring power thru a gear reduction unit directly to the drive wheel eliminating belt slippage giving positive torque to the sawblade.</li> <li><strong>Servo Driven Indexer</strong><br> The indexer is positioned and driven by a servo motor driven rack and pinion system including a rotary encoder which is known for its accuracy. Its 78.5” single stroke, which can be multiplied, decreases cycle time of the machine allowing for increased production.</li> <li><strong>Retractable Shuttle Type Index Vice</strong><br> Both index vice jaws retract when the vice is opened to accommodate the movement of crooked stock increasing accuracy and repeatability.</li> <li><strong>Multiple Machine Cycles</strong><br> The machine can be operated in either semi-automatic or automatic mode:<br> In semi-automatic mode the material is placed manually by the operator or by use of the GTO function and clamped in place. The saw band is started and the cut is completed.<br> In the automatic mode the operator programs the pieces to be cut in one of the 99 jobs, sets the material, and starts the cycle. The machine automatically cycles thru the parts as programmed making it a “hands free” operation.</li> <li><strong>Hydraulic Band Tension</strong><br> Eliminates the possibility of over/under tightening of the band for maximum cutting rates and band life.</li> <li><strong>Flood Coolant System</strong><br> Supplies coolant to the blade evenly before and after the cut creating straighter cuts and allowing longer blade life due to coolant being supplied at the tooth tip.</li> <li><strong>Modified Metered Feed System</strong><br> The metered cutting feed rates are regulated by the use of a hydraulic throttle valve which is controlled by a servo motor which allows us to achieve a very precise feed rate. This rate is also monitored by the system using 2 programmable operator inputs ARP and RZP.<br> ARP is an operator setting which allows the machine to regulate the feed rate depending on the resistance of the material or dulling of the saw blade decreasing the chance of out of square cuts.<br> RZP is an operator setting allowing for the setting of optimal feed rates depending on the saw band position in the material. Rates can be automatically sped up or slowed down to decrease blade wear and increase productivity </li> </ul> <p><strong> STANDARD EQUIPMENT:</strong> </p> <ul> <li>Colored Siemens touch screen.</li> <li>Automatic & semi-automatic cycle.</li> <li>Chain driven chip conveyor.</li> <li>Rapid head down approach.</li> <li>Carbide faced saw guide inserts with lead in bearings.</li> <li>Programmable material height sensor.</li> <li>Full stroke hydraulic vises.</li> <li>Electric driven band cleaning brush.</li> <li>Infinite band speed by variable frequency drive.</li> <li>Outboard clamping discharge vise.</li> <li>Cast steel band wheels.</li> <li>Programable modified metered feed system.</li> <li>Vertical hold downs.</li> <li>Hydraulic band tension.</li> <li>Recirculating coolant system.</li> <li>Mist band lubricator system.</li> <li>Digitally displayed angle position with hydraulic lock.</li> <li>Variable Vise Pressure.</li> <li>LED work light.</li> <li>10 degree cant design.</li> <li>Saw blade guards.</li> <li>Band door interlocks.</li> <li>Operation and parts manuals on USB stick.</li> <li>Laser line generator.</li> <li>One (1) complimentary DoALL Bi-Metal saw blade.</li> <li>Complimentary DoALL Cutting Fluids package </li> </ul> <p><b>OPTIONAL ITEMS - CALL FOR PRICE:</b></p> <ul> <li>6.6 ft (2000mm) Input or output conveyor with drip pan/gutter - 24.4" cylinder width - 1142 lbs/ft capacity</li> <li>5 ft Medium-duty idler conveyor 24" between frames roller capacity 850 Ibs</li> <li>10 ft Medium-duty idler conveyor 24" between frames roller capacity 850 Ibs</li> <li>Single fixed vertical guide roller - 11" cylinder heights - Requires RDT for operation</li> <li>Single adjustable vertical guide roller - Adjusts up to 24.4" cylinder width -Requires RBR for operation</li> <li>Single adjustable horizontal conveyor roller - 672 lbs/ft capacity</li> <li>Wear parts service kit - contains wear plates, guides, band brushes</li> <li>Chip pan with drain</li> <li>Handle for chip box</li> <li>Magnetic wand chip remover</li> <li>Additional USB stick of manuals</li> <li>A Nationally Recognized Testing Laboratory (NRTL) is an independent third-part laboratory recognized by the United States Occupational Safety and Health Administration (OSHA) to test and certify products to applicable product safety standards</li> <li>DoALL Cut Above 10 Year Warranty Annual Investment</li> </ul>
