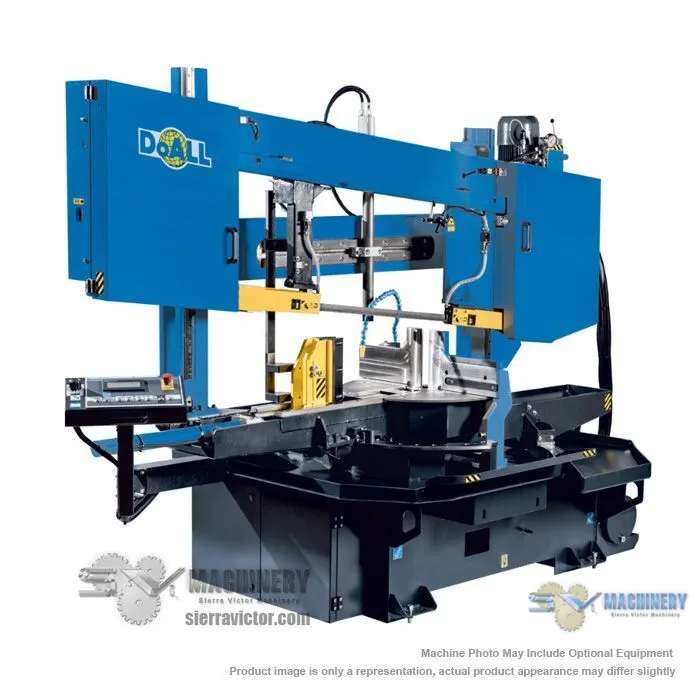

<ul><li><strong>Standard Features: Front and Rear Vise Nesting, Mist-Style Band Lubrication, Mitsubishi Digital Controls</strong></li><li>The DoALL DCDS-600SA high production semi-automatic, dual column, dual mitering metal cutting band saw offers up to 24” wide by 17” tall (600mm x 440mm) rectangular cutting capacity and 18.5″ round tube capacity.<br></li><li>A wide variety of materials can be easily turned into parts, including, but not limited to, structural materials, stainless and tool steel. The DoALL DCDS-600SA band saw has a Mitsubishi touch screen display controller for easy operation. The operator is isolated from the sawing operations, which reduces the likelihood of injury on the job.<br></li><li>This hydraulically controlled dual column, semi-automatic metal cutting band saw has a double-swivel head that is able to miter/angle cut at 60° both left and right. The saw blade is set at 7° cantilever, allowing for more efficient cutting. The DCDS-600SA is the ideal machine for a fabricator cutting multiple angles in the same work piece. The DCDS-600SA offers high loading capacity and a variety of optional accessories to configure the machine to meet nearly any application.</li><li><strong>Operator Control Console</strong><br>Control console can be positioned for operator comfort and safety insuring hands are away from blade at band start.<br></li><li><strong>Mitsubishi Touch Screen Panel</strong><br>The touch screen control panel displays cutting cycle indicator, blade tension indicator, BRP (overfeed protection) function, band speed, head angle, band drive amp load, and a list of error messages allowing operator to monitor machine functions.<br></li><li><strong>Saw Head Design</strong><br>The robust head is mounted on two columns at a 7 degree slope which decreases tooth load through the cut zone increasing band life.<br></li><li><strong>Direct Driven Band Drive</strong><br>Drive is comprised of an electric VFD controlled motor transferring power through a gear reduction unit directly to the drive wheel eliminating belt slippage and gives positive torque to the blade.<br></li><li><strong>Semi-Automatic Cycle</strong><br>Programmable cycle allows the operator the ability to control hydraulic on-off, saw head movement after the cut, head raise limit through programmable set point, band drive on-off, and vise clamp-unclamp after the cut maximizing productivity.<br></li><li><strong>Automatic Overload Feed Protection</strong><br>BRP function monitors band drive motor amperage stopping head fall when operator set parameter is reached signaling overfeed or a dull saw band.<br></li><li><strong>Band Wheels</strong><br>Cast steel wheels insure band tracking and long life.<br></li><li><strong>Hydraulic Clamping Vise<br></strong>Full stroke, uniquely designed hydraulic vise clamps on either side of the band allowing maximum clamping close to the cut line eliminating material movement and tooth strippage.<br></li><li><strong>Hydraulic Blade Tension</strong><br>Illuminating indictor prevents possible error of over/under tightening the band for maximum cutting rates and band life.<br></li><li><strong>Band Brush</strong><br>Driven band brush removes the chips from the blade gullets which would prevent the blade from attaining maximum cutting rates and blade life.<br></li><li><strong>Head Turn Table</strong><br>The hydraulic angle setting may be accomplished by either using the manual buttons to the desired angle or the RTO function which will automatically takes the head to programmed position. The entered angles will be displayed on the touch screen and are measured using a digital readout for accuracy. The saw head is hydraulically locked once in position.<br></li><li><strong>Automatic Movable Saw Guide Arm</strong><br>Movable saw guide arm is connected to the movable vise jaw which allows proper positioning of the arm preventing blade deflection which improves blade life.</li><li><strong>Band Wheels</strong><br>Cast steel wheels insure band tracking and long life.</li><li><strong>Hydraulic Clamping Vise<br></strong>Full stroke, uniquely designed hydraulic vise clamps on either side of the band allowing maximum clamping close to the cut line eliminating material movement and tooth strippage.</li><li><strong>Hydraulic Blade Tension<br></strong>Illuminating indictor prevents the possible error of over/under-tightening the band for maximum cutting rates and band life.</li><li><strong>Band Brush<br></strong>Driven band brush removes the chips from the blade gullets which would prevent the blade from attaining maximum cutting rates and blade life.</li><li><strong>Head Turn Table<br></strong>The hydraulic angle setting may be accomplished by either using the manual buttons to the desired angle or the RTO function which will automatically takes the head to programmed position. The entered angles will be displayed on the touch screen and are measured using a digital readout for accuracy. The saw head is hydraulically locked once in position.</li><li><strong>Automatic Movable Saw Guide Arm<br></strong>Movable saw guide arm is connected to the movable vise jaw which allows proper positioning of the arm preventing blade deflection which improves blade life.</li><li><strong>Warranty</strong><br>One-year parts and service subject to the terms and conditions. Optional 10-year warranty available (Doall Cut Above 10 Year Warranty Annual Investment).</li></ul>
<p><strong>STANDARD EQUIPMENT:</strong></p>
<ul><li>Standard equipment included in your DCDS-600SA productivity package:</li><li>Hydraulic dual swivel head to 60 left to 60 degrees right</li><li>Semi-automatic cycle</li><li>Movable console with Mitsubishi controls</li><li>Rapid head down approach</li><li>Carbide faced saw guide inserts</li><li>Programmable material height sensor</li><li>Full stroke hydraulic vise</li><li>Driven band cleaning brushes</li><li>Infinite band speed controlled by variable frequency drive</li><li>Automatic movable guide arm setting</li><li>Cast Steel band wheels</li><li>Feed Rate/Feed Force</li><li>Vertical hold down</li><li>Laser line generator</li><li>Hydraulic band tension</li><li>Recirculating coolant system</li><li>Mist band lubricator system</li><li>Digitally displayed angle position with hydraulic lock</li><li>Variable Vise Pressure</li><li>LED work light</li><li>7 degree cant design</li><li>Saw blade guards</li><li>Band door interlocks</li><li>Operation and parts manuals on USB stick</li><li>Recommended band speed chart</li><li>One (1) complimentary DoALL Bi-Metal saw blade</li><li>Complimentary DoALL Cutting Fluids package</li></ul>
