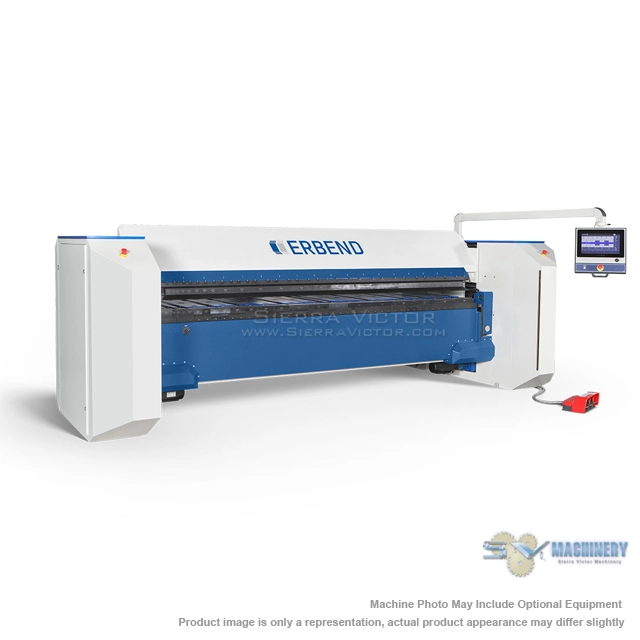

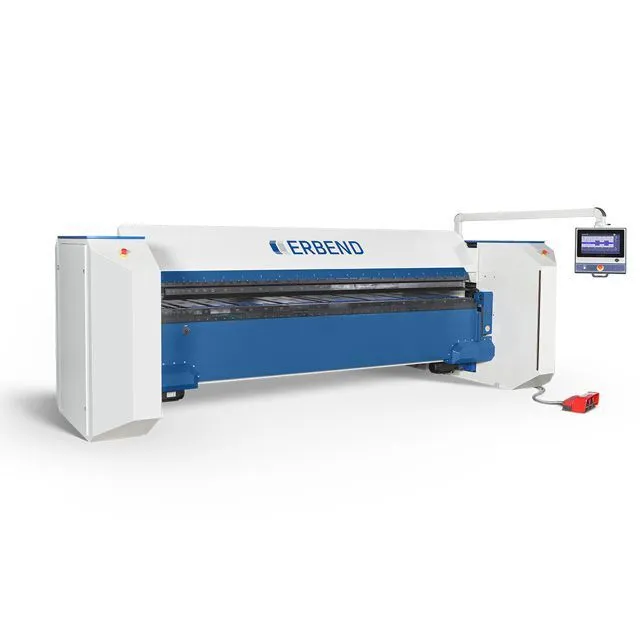

ERBEND MFE 2050 6ft x 3/16 in. CNC Servo Sheet Metal Folding Machine
Have one to sell?
New
The ERBEND MFE 2050 CNC Servo Sheet Metal Folding Machine has a 6 ft x 3/16 inch capacity.ERFOLD BASIC CNC control software on 15.6 ” touchscreen controller with swivel arm.1000 mm servo backgauge system with rectangular sheet support table and solid fingers.
Optional items - Call for price:
98.42 / 126 / 165.35 inch servo backgauge system upgrade with L / T / U shape sheet support table options
ERFOLD ADVANCED 2D/3D CNC Graphic Control Software.
Servo folding beam adjustment.
Manual crowning system.
Pneumatic quick goatfoot tool clamping.
Segmented bottom or folding tools.
3.93 inch high segmented goat foot tool set.
ERFOLD ADVANCED 2D/ 3D CNC GRAPHICAL CONTROL SOFTWARE
15.6" touchscreen all-in one industrial pc controller on swivel arm
2D part editor: you can create a new bending programme by drawing or line by line and and visualize in 2D
3D editor: You can draw the parts in 3D or you can import 3D step/igs files over your offline software
You can determine and change the bending sequence on the created part
3D simulation of bending to check for collisions and intervene if needed
Capability of choosing material type, thickness, springback, shortening, bending correction and creating data base for every type of material or lot
Tool library and edit: You can import, create by drawing and define new tools, save, recall or delete in the library
Authorization with password
Real time simulated production page in which you can monitor all axes movements on 3D graphic view of the machine and also numerical values of the axes
16 GB hard disk space which allows you to save unlimited bending receipt or tool data
Detailed alarm and parameters page

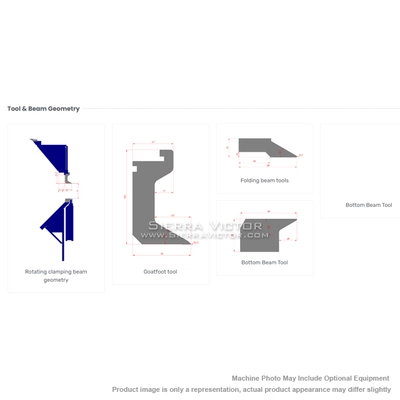

3.93 INCH HIGH SEGMENTED GOAT FOOT TOOL SET
MANUAL CROWNING SYSTEM
On long and thin sheets, in order to prevent the banana shape bends, you just need to adjust the crowning between %25 and %100 to give more support from the middle side of the folding beam
MOTORIZED FOLDING BEAM ADJUSTMENT (A1-A2 AXIS)
Motorized and cnc controlled of the folding beam height. Your bending height is calculated automatically according to the parameters and set just before the bend.
LONGER SHEET SUPPORT TABLE (TO WORK FROM THE FRONT SIDE)
59 / 98.42 / 118.11 / 157.48 inch rectangular sheet support table and back gauges
Front side gauging arms + middle and back side triangle fingers up to 6 sectors
Movable sliders for down flanges + steady side gauge
L / T or U SHAPE SHEET SUPPORT TABLE (TO WORK FROM THE BACK SIDE)
L / T or U shape sheet support table with ball casters.
Front side gauging arms + middle and back side triangle fingers up to 6 sectors
PNEUMATIC GOAT FOOT QUICK CLAMPING SYSTEM
Eliminates the time for tool-setup. No time spent for screwing or unscrewing, just by turning one key, all tools are clamped or unclamped so that you can slide,remove or mount all goat foot tools just in seconds
VACCUM TABLE WITH SUCTION CUPS
Thanks to the suction cups placed on the front gauging group;
Misalignment of the sheet is avoided.
Dropping down of the sheet because of downwards flanges is avoided.
No need to support the sheet anymore from the front side during multi radius bends.
If the gauging side of the sheet is oval or can not be gauged well to the standard fingers/gauges,you do not need to adjust it again in each bending step.
