<table width="520" cellspacing="0" cellpadding="0" border="1">
<tbody style="text-align: center;">
<tr>
<td class="Title_white_bold" width="78" bgcolor="#333333">
<div align="center"><strong><span style="color: rgb(255, 255, 255);">MODEL</span></strong>
</div>
</td>
<td class="TableText1" bgcolor="#333333">
<div align="center">
</div>
</td>
<td class="TableText1" width="232" bgcolor="#333333">
<div align="center"><span style="color: rgb(255, 255, 255);"><strong><span class="Title_white_bold">LMV-49-DVS</span></strong></span>
</div>
</td>
</tr>
<tr>
<td rowspan="9" class="Title_white_bold" width="78" bgcolor="#333333"><span style="color: rgb(255, 255, 255);"></span>
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>CAPACITY</strong></span>
</div>
</td>
<td class="TableText1" bgcolor="#CCCCCC">
<div align="center">Table Size
</div>
</td>
<td class="TableText1">
<div align="center">9 x 49 in.
</div>
</td>
</tr>
<tr>
<td class="TableText1" bgcolor="#CCCCCC">
<div align="center">T-slots (No., Size, Pitch)
</div>
</td>
<td class="TableText1">
<div align="center">3, 5/8, 2.5 in.
</div>
</td>
</tr>
<tr>
<td class="TableText1" bgcolor="#CCCCCC">
<div align="center">Table Travel : X Longitudinal
</div>
</td>
<td class="TableText1">
<div align="center">36.6 in.
</div>
</td>
</tr>
<tr>
<td class="TableText1" bgcolor="#CCCCCC">
<div align="center">Table travel : Y Cross
</div>
</td>
<td class="TableText1">
<div align="center">12 in.
</div>
</td>
</tr>
<tr>
<td class="TableText1" bgcolor="#CCCCCC">
<div align="center">Quill travel: Z Vertical
</div>
</td>
<td class="TableText1">
<div align="center">5 in.
</div>
</td>
</tr>
<tr>
<td class="TableText1" bgcolor="#CCCCCC">
<div align="center">Ram Travel
</div>
</td>
<td class="TableText1">
<div align="center">12 in.
</div>
</td>
</tr>
<tr>
<td class="TableText1" bgcolor="#CCCCCC">
<div align="center">Knee travel : Vertical
</div>
</td>
<td class="TableText1">
<div align="center">16 in.
</div>
</td>
</tr>
<tr>
<td class="TableText1" bgcolor="#CCCCCC">
<div align="center">Spindle Center to Column
</div>
</td>
<td class="TableText1">
<div align="center">6.75 - 18.5 in. (171-470 mm)
</div>
</td>
</tr>
<tr>
<td class="TableText1" bgcolor="#CCCCCC">
<div align="center">Spindle Nose to Table Top
</div>
</td>
<td class="TableText1">
<div align="center">2.125 - 18 in. (3.1 - 457 mm)
</div>
</td>
</tr>
<tr>
<td rowspan="8" class="Title_white_bold" bgcolor="#333333">
<div align="center"><strong> </strong><strong><span style="color: rgb(255, 255, 255);">HEAD, SPINDLE</span></strong>
</div>
</td>
<td class="TableText1" bgcolor="#CCCCCC">
<div align="center">Spindle Nose Taper
</div>
</td>
<td class="TableText1">
<div align="center">R-8
</div>
</td>
</tr>
<tr>
<td class="TableText1" width="202" bgcolor="#CCCCCC">
<div align="center">Spindle Variable Speed Range
</div>
</td>
<td class="TableText1" valign="top">
<div align="center">60 - 4500 rpm
</div>
</td>
</tr>
<tr>
<td class="TableText1" bgcolor="#CCCCCC">
<div align="center">Spindle Motor (220V/440V)
</div>
</td>
<td class="TableText1">
<div align="center">3 HP (2.25 KW)
</div>
</td>
</tr>
<tr>
<td class="TableText1" bgcolor="#CCCCCC">
<div align="center">Quill Feed (Inch/Min)(3 speeds)
</div>
</td>
<td class="TableText1">
<div align="center">.0015,.003, .006 in.<br>
(.038, .076, .152 mm)
</div>
</td>
</tr>
<tr>
<td class="TableText1" bgcolor="#CCCCCC">
<div align="center">Quill Diameter
</div>
</td>
<td class="TableText1">
<div align="center">3.375 in. (85.7 mm)
</div>
</td>
</tr>
<tr>
<td class="TableText1" bgcolor="#CCCCCC">
<div align="center">Head Swivel Angle
</div>
</td>
<td class="TableText1">
<div align="center">360°
</div>
</td>
</tr>
<tr>
<td class="TableText1" bgcolor="#CCCCCC">
<div align="center">Head Tilt Angle (L/R)
</div>
</td>
<td class="TableText1">
<div align="center">45°
</div>
</td>
</tr>
<tr>
<td class="TableText1" bgcolor="#CCCCCC">
<div align="center">Head Tilt Angle (Up/Down)
</div>
</td>
<td class="TableText1">
<div align="center">45°
</div>
</td>
</tr>
<tr>
<td rowspan="4" class="Title_white_bold" bgcolor="#333333">
<div align="center"><strong><span style="color: rgb(255, 255, 255);">GENERAL</span></strong>
</div>
</td>
<td class="TableText1" bgcolor="#CCCCCC">
<div align="center">Floor Area (W x D x H)
</div>
</td>
<td class="TableText1">
<div align="center"> 7 x 6.5 x 6.75 ft.
</div>
</td>
</tr>
<tr>
<td class="TableText1" bgcolor="#CCCCCC">
<div align="center">Approximate Weight
</div>
</td>
<td class="TableText1">
<div align="center">2,100 lbs.
</div>
</td>
</tr>
<tr>
<td class="TableText1" bgcolor="#CCCCCC">
<div align="center">Power Consumption (220V)
</div>
</td>
<td class="TableText1">
<div align="center">3 KVA/8 amp
</div>
</td>
</tr>
<tr>
<td class="TableText1" bgcolor="#CCCCCC">
<div align="center">Power Consumption (440V)
</div>
</td>
<td class="TableText1">
<div align="center">3 KVA/4 amp
</div>
</td>
</tr>
</tbody>
</table>
<p>Specifications are subject to change without notice.
</p>
<p>NOTE: Data is provided by the manufacturer.
</p>
<p><strong>WARRANTY: 1 YEAR</strong> – Parts
</p>
<ul>

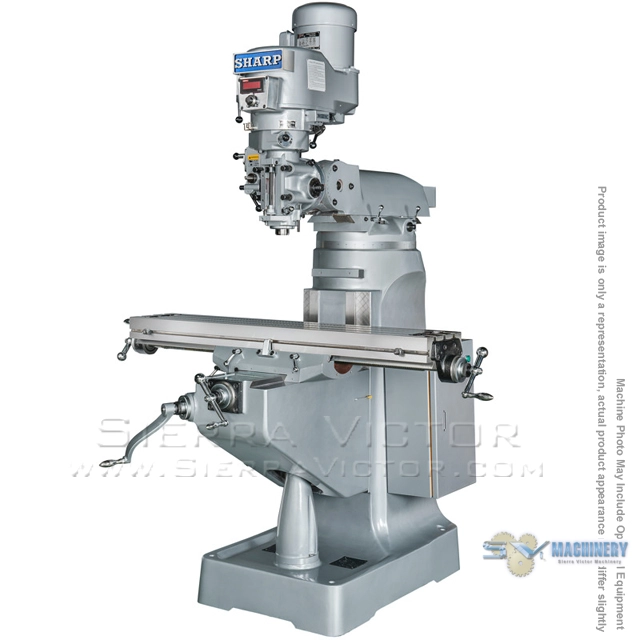

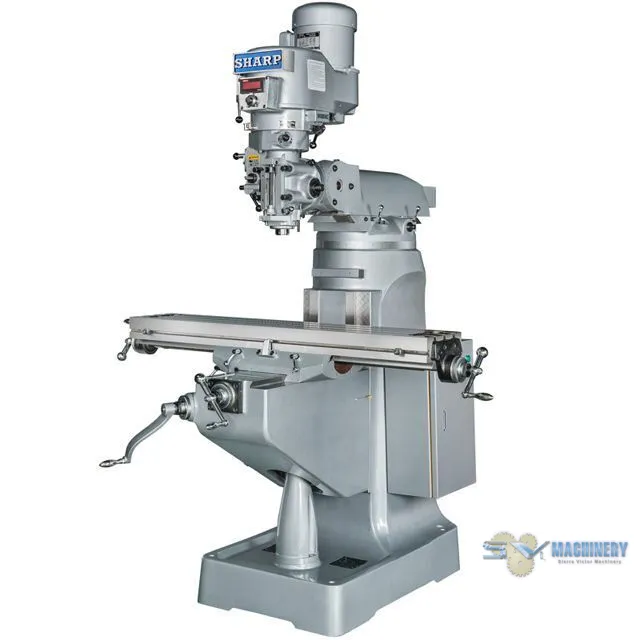

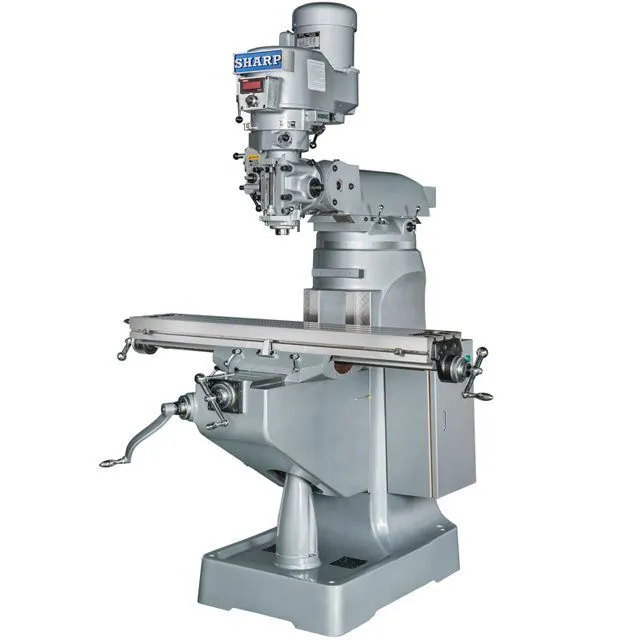

<li> This model is equipped with Digital Variable Speed for easy change of spindle speeds. </li>
<li> The model has many unique features compared with most of the similar machines on the market. The quill is CNC ground to a mirror finish and chromed to fit the housing resulting in close to jig bore accuracy for quill downfeed. Tapered gibs installed on the ways allows easy adjustment for long term usage. The feed handles are designed to spin free which eliminates the friction between the operator’s hand and the feed handle. The bottom of the saddle, instead of the top of the knee ways, which rides on the knee is hand scraped for better oil retention and prevent dirt and chips from embedded in the knee ways. </li>
<li>9 x 49 ins table, 12 x 36.6 in. travel</li>
<li>Digital Vari speed (DVS), speed change by turning a knob, with digital display of spindle speed</li>
<li>R-8 spindle, 3 hp , speed (60-4,500 rpm)</li>
<li>Spindle runout of no more than 0.0002 ins TIR</li>
<li>Hard chromed ways provide long wear resistance</li>
<li>Head tilt side to side, up and down</li>
<li>One shot lubrication with back flow valve</li>
<li>Tapered gibs for adjustment</li>
<li>Dual clamps on knee and saddle that locks the knee and table evenly to the column and saddle to avoid skewing. Handles on the clamp are adjustable to 12 different positions.</li>

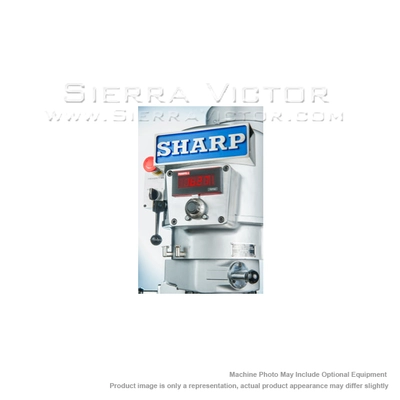

<li><strong>Digital Variable Speed Head: </strong>
<ul>
<li>Easy speed change. Just turn the knob</li>
<li>Machine works on Single Phase or 3 phase motor</li>
<li>Low voltage control</li>
<li>Safety feature includes preventing self-start after power failure of E stop</li>
</ul>
</li>

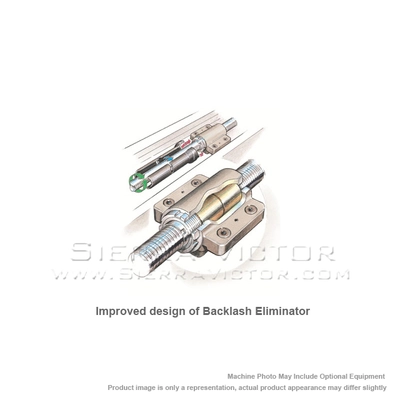

<li><strong>Improved design of Backlash Eliminator: </strong>Backlash Eliminator By Double Nut Design replaces the older design that squeezes a split nut to get rid of backlash. Sharp is the first one to use a double nut design that keeps the feed screw in contact with a pair of bronze nuts. Using a custom tool supplied with the mill, the feed nuts are adjusted to control backlash and held tight with a retaining nut and locking ring.</li>

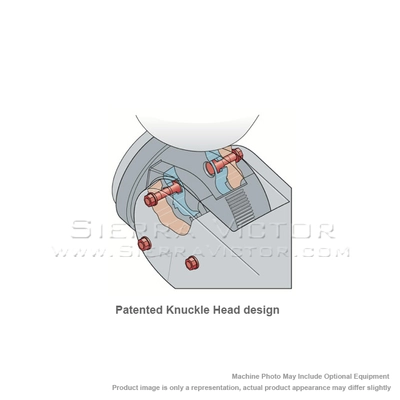

<li><strong>Patented Knuckle Head design</strong>: The New Patented Knuckled-Head Design prevents the head from slipping. The Sharp mills have a knuckle which uses 6 bolts, 3 each side, fitted into circular T-slots with matching nuts securing them from the outside. It locks the head in place for better accuracy and performance than the old design using only 3 bolts to squeeze the casting to hold the head without the T-slots. (Patent No. 5044054)</li>

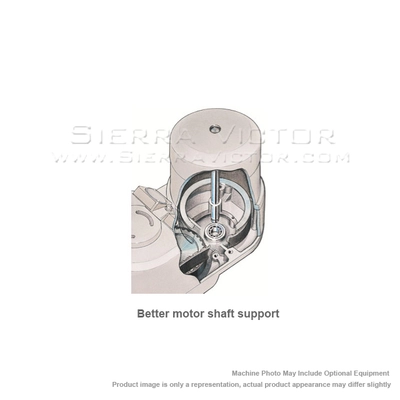

<li><strong>Better motor shaft support:</strong> Roller Bearing Support at the bottom of the motor shaft ensures proper loading, support and alignment of the spindle. It also prevents the distortion of the belts due to tension from long years of milling operation.</li>

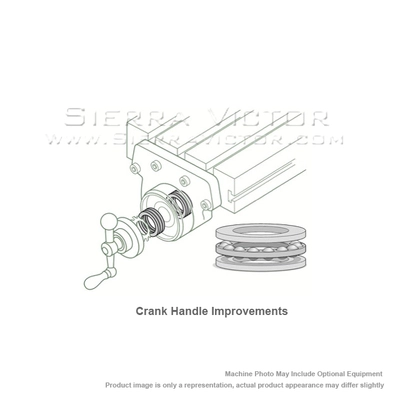

<li><strong>Crank Handle Improvements</strong>: Thrust Bearings mounted at the end of the table and saddle pre-load the feed screw, eliminating end play for precisely controlled lateral movements.</li>
</ul>
<p><strong>STANDARD EQUIPMENT:</strong>
</p>
<ul>
<li>One Shot Lube System</li>
<li>Hard-Chromed Ways</li>
<li>Front and Rear Rubber Way Covers</li>
<li>Tool box with tools</li>
<li>Wired 220V or 440V (Specify)</li>
</ul>
<p><b>OPTIONAL ITEMS - CALL FOR PRICE:</b></p>
<ul>
<li>Auto Lube Pump with 2 Adjustments</li>
<li>“Sharp” Power Table Feed with Safety Handle</li>
<li>“Sharp” Power Cross Feed with Safety Handle</li>
<li>“Sharp” Power Knee Feed with Safety Handle</li>
<li>6 in. “Kurt” Vise with Swivel Base</li>
<li>Right Angle Milling Attachment with Arbor</li>
<li>Drill Chuck & Drill Arbor </li>
<li>6 in. Riser Block</li>
<li>Coolant System with Chip Pan (pump included)</li>
<li>“Maxi Torque Rite” Power Draw Bar Clamping Kit (52 pcs/Steel Rack)</li>
<li>Halogen Work light</li>
<li>CE mark</li>
<li>380V and 575V transformer </li>
<li>UL components upgrade with electrical box</li>
<li>UL compliance certificate under State of California</li>
<li>Digital Readout System</li>
</ul>
