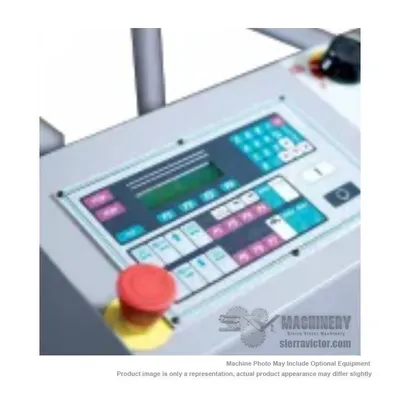

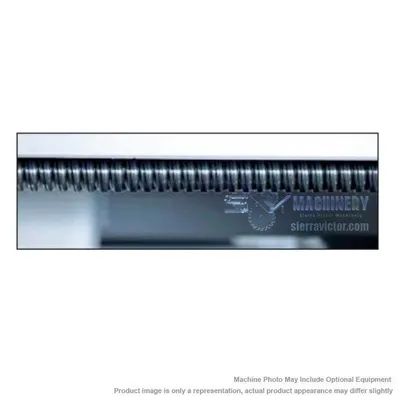

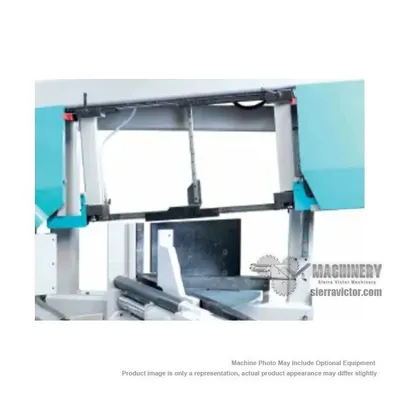

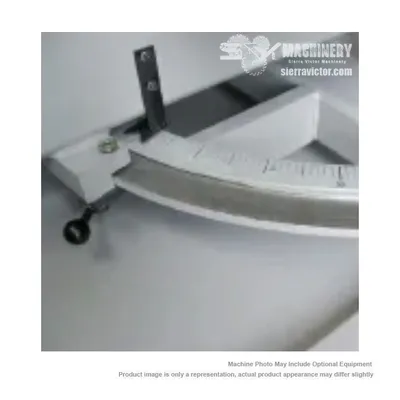

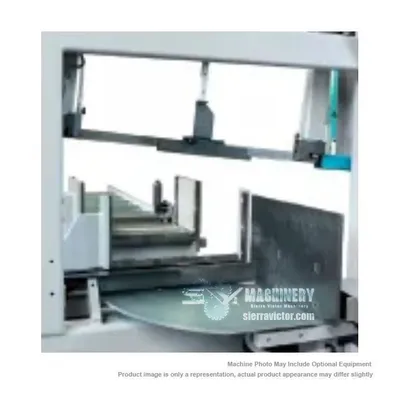

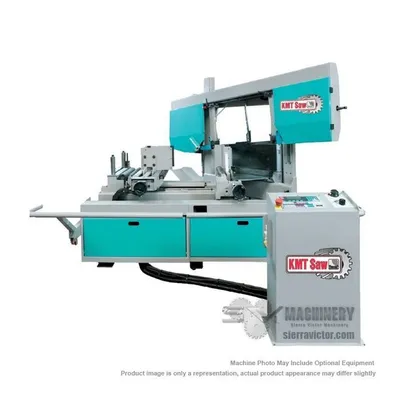

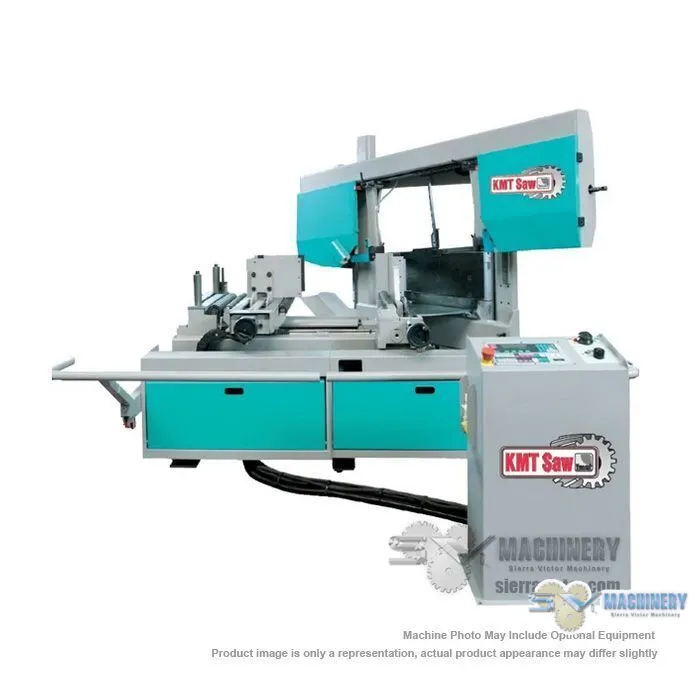

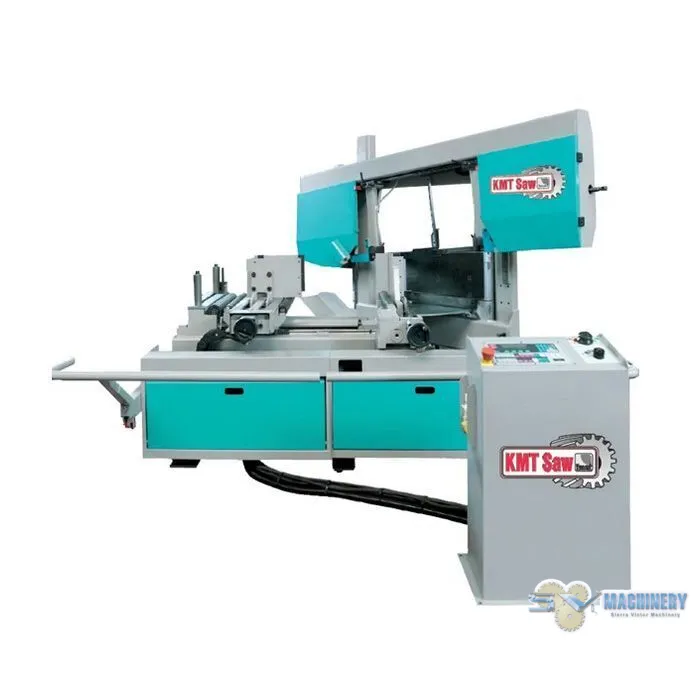

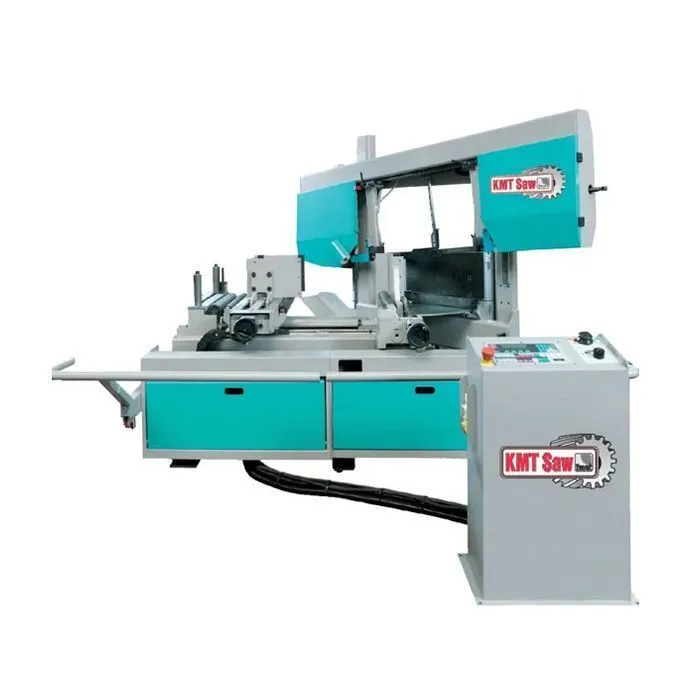

<ul><li>The H6A-NC barfeed is a true shuttle-vise machine. The machine is fully programmable to automatically program and store jobs for later recall. Two saw vises on the infeed side ensure the material is clamped and never released during all feeding and sawing operations. Barfeeder travels on linear guides, and driven by heavy duty ball screw for maximum accuracy. Both feeder vise jaws clamp and unclamp, to facilitate crooked material. Operation is straightforward and logical. The machine may be used as a single cut (semi-automatic) or fully automatic machine to repetitively cut your material to length. You program the length, size of material, blade speed and quantity at the keyboard.</li><li>Canted 5 degrees</li><li>Manual mitering up to 60 degrees</li><li>Feeder stroke 20" w/ unlimited indexes</li><li>Scrap end 4"</li><li>Carbide guides w/ rollers</li><li>Time saving material sensor</li><li>Easy setup</li><li>Ball screw feeder accuracy +/- 0.005" per index</li><li>Job memory</li><li>Capacities shown are max envelope. Each individual cutting job must be considered with regards to type and shape of material, and quantity of pieces per day.</li></ul>
<p><strong>STANDARD EQUIPMENT:</strong></p>
<ul><li>One Bi-metal saw blade</li><li>Low voltage control</li><li>TEFC 3 phase drive motor</li><li>Totally enclosed worm gear transmission</li><li>Full Coolant System</li><li>Full Blade Guarding</li><li>Operators Manual Parts List/Schematics</li><li>Tool kit</li></ul>
