<table cellspacing="0" cellpadding="0" border="1" width="520">
<tbody style="text-align: center;">
<tr>
<td width="106" rowspan="4" bgcolor="#cccccc" class="TableText1">
<div align="center">Cutting Capacity
</div>
</td>
<td bgcolor="#cccccc" class="TableText1">
<div align="center">Mild Steel - HRS <br>
(tensile 60,000 PSI)
</div>
</td>
<td class="TableText1">
<div align="center">8 ft x 10 Ga.
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText1">
<div align="center">Stainless Steel <br>
(tensile 85,000 PSI)
</div>
</td>
<td class="TableText1">
<div align="center">8 ft x 14 Ga.
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText1">
<div align="center">Soft Aluminum <br>
(tensile 28,000 PSI)
</div>
</td>
<td class="TableText1">
<div align="center">8 ft x 1/4 in.
</div>
</td>
</tr>
<tr>
<td width="149" bgcolor="#cccccc" class="TableText1">
<div align="center">Min. Thickness
</div>
</td>
<td width="257" class="TableText1">
<div align="center">22 Ga.
</div>
</td>
</tr>
<tr>
<td colspan="2" bgcolor="#cccccc" class="TableText1">
<div align="center">Blade Length
</div>
</td>
<td class="TableText1">
<div align="center">98 in.
</div>
</td>
</tr>
<tr>
<td colspan="2" bgcolor="#cccccc" class="TableText1">
<div align="center">Strokes per minute
</div>
</td>
<td class="TableText1">
<div align="center">26
</div>
</td>
</tr>
<tr>
<td colspan="2" bgcolor="#cccccc" class="TableText1">
<div align="center">Worktable height
</div>
</td>
<td class="TableText1">
<div align="center">32 in.
</div>
</td>
</tr>
<tr>
<td colspan="2" bgcolor="#cccccc" class="TableText1">
<div align="center">Front support arm
</div>
</td>
<td class="TableText1">
<div align="center">36 in.
</div>
</td>
</tr>
<tr>
<td colspan="2" bgcolor="#cccccc" class="TableText1">
<div align="center">Back gauge
</div>
</td>
<td class="TableText1">
<div align="center">26 in. Manual back gauge
</div>
</td>
</tr>
<tr>
<td colspan="2" bgcolor="#cccccc" class="TableText1">
<div align="center">Blade rake angle
</div>
</td>
<td class="TableText1">
<div align="center">2.5 degree
</div>
</td>
</tr>
<tr>
<td colspan="2" bgcolor="#cccccc" class="TableText1">
<div align="center">Main Motor
</div>
</td>
<td class="TableText1">
<div align="center"> 7-1/2 HP, 3 Phase, 25A <br>
Prewired: 220VAC<br>
<em>(15A/440VAC optional)</em>
</div>
</td>
</tr>
<tr>
<td colspan="2" bgcolor="#cccccc" class="TableText1">
<div align="center">Machine Weight
</div>
</td>
<td class="TableText1">
<div align="center">6,650 lbs.
</div>
</td>
</tr>
<tr>
<td colspan="2" bgcolor="#cccccc" class="TableText1">
<div align="center">Shipping Weight
</div>
</td>
<td class="TableText1">
<div align="center">6,750 lbs.
</div>
</td>
</tr>
<tr>
<td colspan="2" bgcolor="#cccccc" class="TableText1">
<div align="center">Machine Dimensions
</div>
</td>
<td class="TableText1">
<div align="center">124 x 43 x 68 in.
</div>
</td>
</tr>
<tr>
<td colspan="2" bgcolor="#cccccc" class="TableText1">
<div align="center">Shipping Dimensions
</div>
</td>
<td class="TableText1">
<div align="center">126 x 43 x 67 in.
</div>
</td>
</tr>
</tbody>
</table>
<p>Specifications are subject to change without notice.
</p>
<p>NOTE: Data is provided by the manufacturer.
</p><p><strong>WARRANTY: 1 YEAR</strong> – Parts
</p><br><ul>

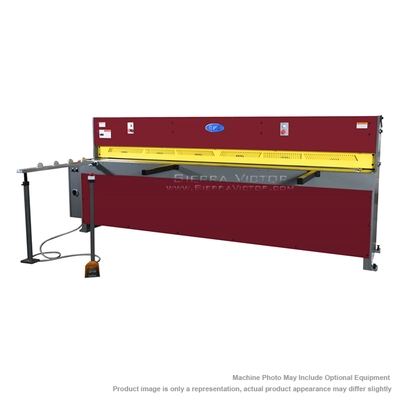

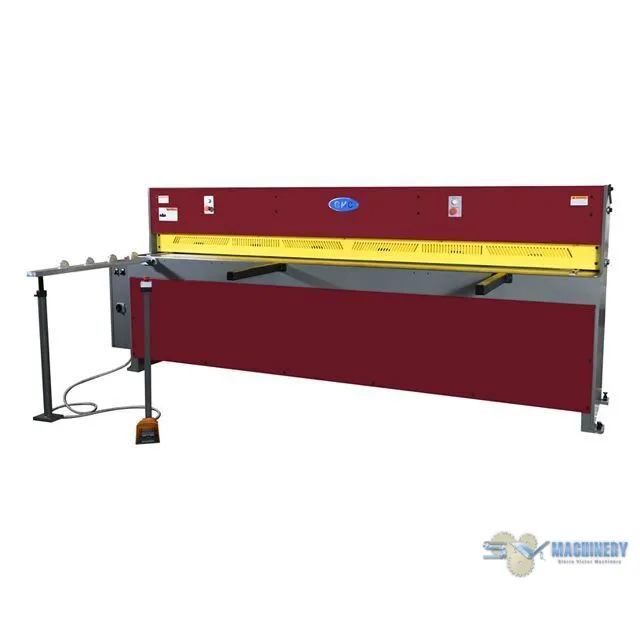

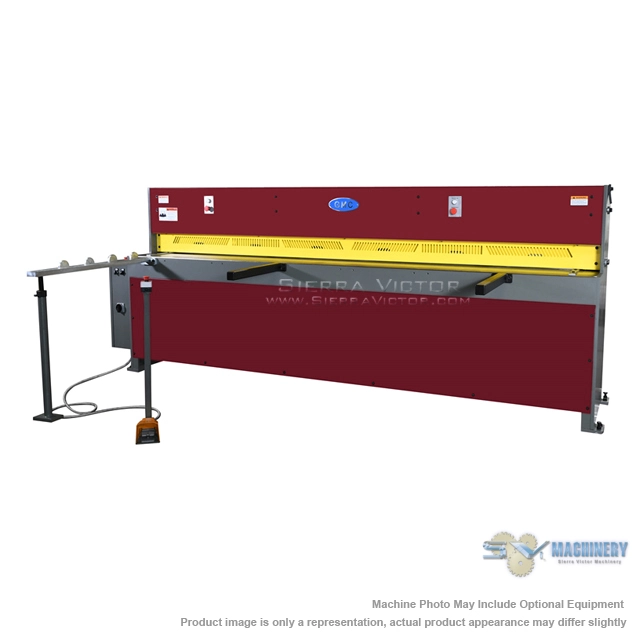

<li>Shop our 8 foot mechanical shears that are capable of cutting up to 10 gauge mild steel and 14 gauge stainless. Our sheering machines are designed as a low maintenance design with an array of features that will add value to any machine shop.</li>
<li>ISO 9001 certified</li>
<li>American design and Taiwan quality machine</li>
<li>HD all steel construction for maximum rigidity</li>
<li>Precision driven gearbox</li>
<li>Full length 30 strokes per minute</li>
<li>60” long squaring arm with inch / mm scale</li>
<li>spring hold-downs </li>
<li>high grade carbon/chrome alloy steel blades and hardened to 62 hrc,</li>
<li>2-edge indexable upper blade and 4-edge indexable bottom blade </li>
<li>Full length with full view finger guard</li>
<li>Front supports and (2) side gauges</li>
<li>Safety type foot pedal control </li>
<li>Jog, single continuous auto operation modes</li>
<li>One year warranty for parts</li>
<li><strong><u>DISCLAIMER: </u></strong>Please note this machine<u> is incompatible with the use of a rotary phase converter</u>. Any attempt to purchase, install, or employ one, whether carried out by you or a professional service company, <u>will automatically void the warranty.</u> It is crucial to understand that any such actions are entirely the responsibility of the buyer.</li>
<li>This disclaimer is intended to clearly convey that the utilization of a rotary phase converter to power or operate this machine is not supported. </li>
</ul>
<p><strong>STANDARD EQUIPMENT:</strong>
</p>
<ul>

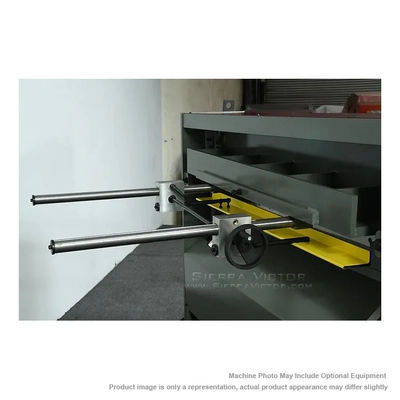

<li>26" manual back gauge with one side handwheel</li>

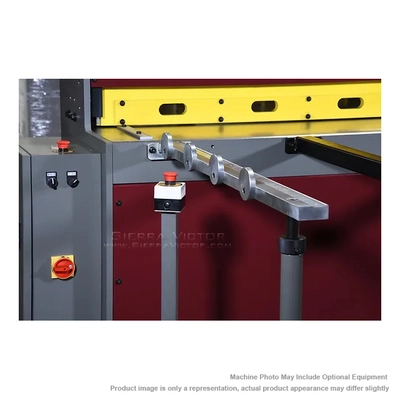

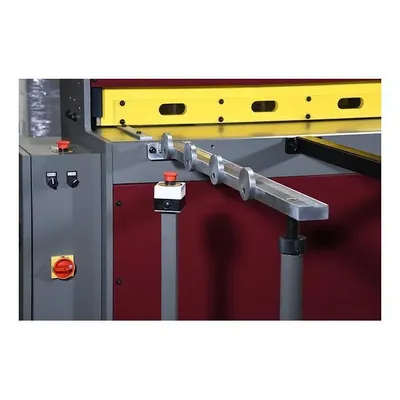

<li>60" long squaring arm with inch / mm scale, mounted on right side of the table</li>
<li>2 each 24" front support arms</li>
<li>full length finger guard</li>
<li>Removable safety foot pedal control</li>
<li>One set of upper & lower blades</li>
</ul>
<p><b>OPTIONAL ITEMS:</b></p>
<ul>
<li>Safety fence for enclosure of the back side of the machine - $CALL</li>
</ul>
