<table cellspacing="0" cellpadding="0" border="1" width="520">
<tbody>
<tr>
<td bgcolor="#cccccc" width="257" valign="middle" class="TableText">
<div align="center" class="TableText">Cutting capacity: mild steel
</div>
</td>
<td width="257" valign="middle" class="TableText">
<div align="center">8 ft x 8 Ga
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" valign="middle" class="TableText">
<div align="center">Cutting capacity: stainless steel
</div>
</td>
<td valign="middle" class="TableText">
<div align="center">8 ft x 11 Ga
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" width="257" valign="middle" class="TableText">
<div align="center">Blade length
</div>
</td>
<td valign="middle" class="TableText">
<div align="center" class="TableText">8 ft 2 in.
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" valign="middle" class="TableText">
<div align="center">Strokes per minute (SPM)
</div>
</td>
<td valign="middle" class="TableText">
<div align="center">10-15
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" valign="middle" class="TableText">
<div align="center">Work Table Height
</div>
</td>
<td valign="middle" class="TableText">
<div align="center">34-1/2 in.
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" valign="middle" class="TableText">
<div align="center">Front support arm length
</div>
</td>
<td valign="middle" class="TableText">
<div align="center" class="TableText">24 in.
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" valign="middle" class="TableText">
<div align="center"> Back Gauge
</div>
</td>
<td valign="middle" class="TableText">
<div align="center">24 in. Manual Back Gauge
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" valign="middle" class="TableText">
<div align="center">Blade Rake Angle
</div>
</td>
<td valign="middle" class="TableText">
<div align="center">2 degree
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" valign="middle" class="TableText">
<div align="center"> Oil Tank Capacity
</div>
</td>
<td valign="middle" class="TableText">
<div align="center">22 Gal.
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" valign="middle" class="TableText">
<div align="center"> Main motor
</div>
</td>
<td valign="middle" class="TableText">
<div align="center">10 HP, 220V/35A - 440V/18A, 3 PH<br>
(specify)
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" valign="middle" class="TableText">
<div align="center">Power B.G. motor
</div>
</td>
<td valign="middle" class="TableText">
<div align="center">1 HP, 220v/440v, 3 PH
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" valign="middle" class="TableText">
<div align="center">Machine Dimensions
</div>
</td>
<td valign="middle" class="TableText">
<div align="center">157 x 76 x 65 in.
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" valign="middle" class="TableText">
<div align="center">Net Weight
</div>
</td>
<td valign="middle" class="TableText">
<div align="center">11,350 lbs
</div>
</td>
</tr>
</tbody>
</table>
<p>Specifications are subject to change without notice.
</p>
<p>NOTE: Data is provided by the manufacturer.
</p>
<p><strong>WARRANTY: 1 YEAR</strong> – Parts
</p>
<ul>
<li>ISO 9001 certified</li>
<li>Taiwan machines</li>

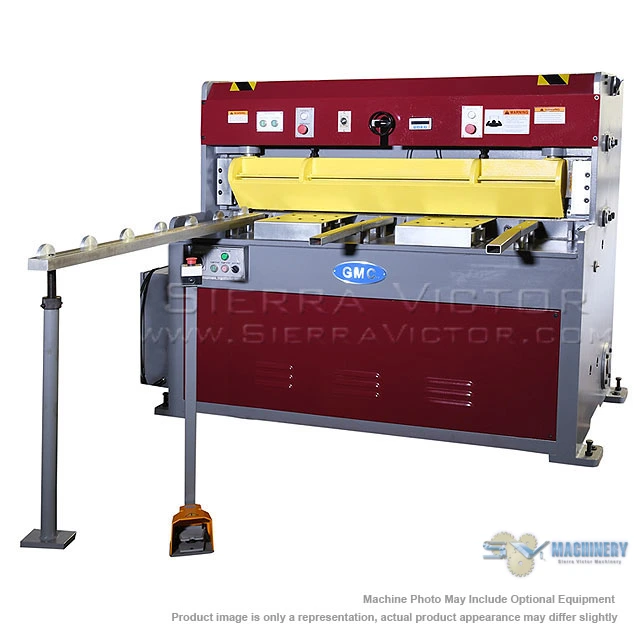

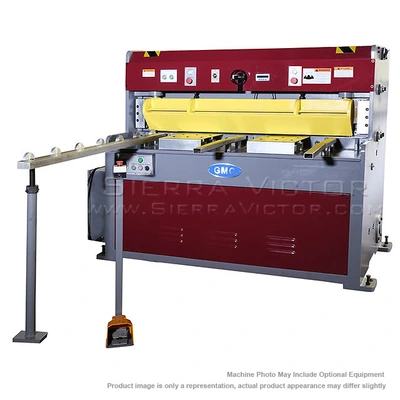

<li>HS-0808M with 24" manual back gauge</li>
<li>Quick Change Blade Gap Adjustment (BGA), with gap dial</li>
<li>CE standard “OMERO” electric control system</li>
<li>Meet OSHA safety standard code</li>
<li>Shadow line for accurate straight cutting</li>
<li>Adjustable cutting length and stroke</li>
<li>Ball transfer plates on worktable for easy loading workpiece</li>
<li>Well balanced and sturdy all steel machine frame</li>
<li>German made Hydraulic logic system centrally located and quiet</li>
<li>Hydraulic hold-downs with anti-mar neoprene</li>
<li>Shear blades are high grade carbon/chrome alloy steel and hardened to 60 HRC, 2-edge indexable upper blade and 2-edge indexable bottom blade</li>
<li>Full length viewable safety finger guard to protect operator from cutting hazard</li>
<li>Removable safety foot pedal, automatic blade raise up on removal of foot from pedal</li>
<li>Hydraulic, electrical overload protection</li>
<li>Compact operator control panel</li>
<li>All motors are overload protected & low voltage control system</li>
<li>Jog or continuous auto cycle cutting operation modes</li>
<li>One year industrial warranty for parts</li>
</ul>
<p><strong>STANDARD EQUIPMENT</strong>
</p>
<ul>
<li>HS-0808M comes with 24" manual back gauge</li>
<li>1 each 60" squaring arm with inlaid inch/metric dual scale</li>
<li>Quick change blade gap adjustment (BGA) with gap dial</li>
<li>Shadow line for accurate straight cutting</li>
<li>Material support and drop back chuter</li>
<li>Upper and bottom blade set with 2-edge on bottom & 2-edge on upper</li>
<li>2 each 24” front support arms</li>
<li>Hydraulic hold-downs with anti-mar neoprene</li>
<li>Full length viewable finger guard</li>
<li>Removable safety foot pedal</li>
<li>Tool box</li>
</ul>
<p><b>OPTIONAL ITEMS:</b></p>
<ul>
<li>Safety fence for enclosure of the back side of the machine - call for pricing</li>
</ul>
