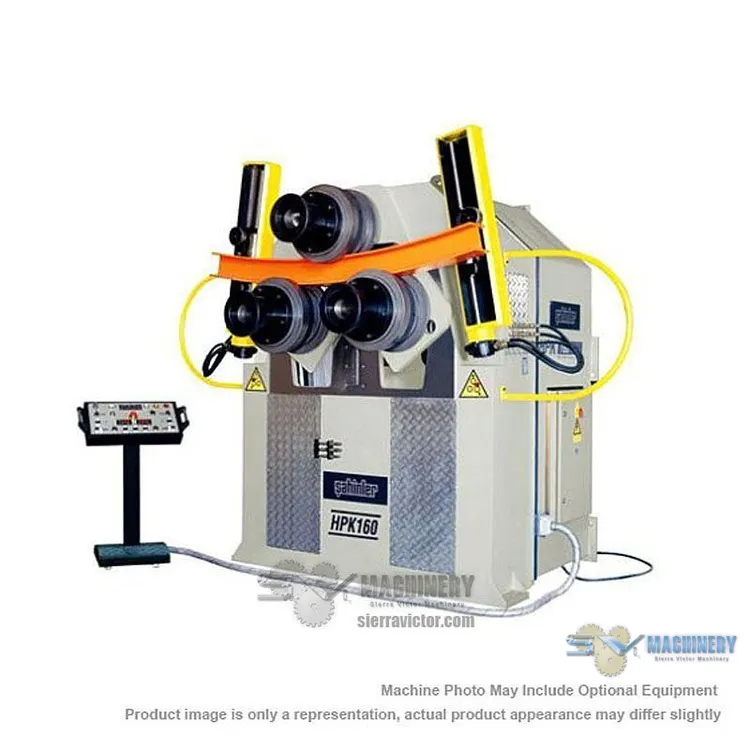

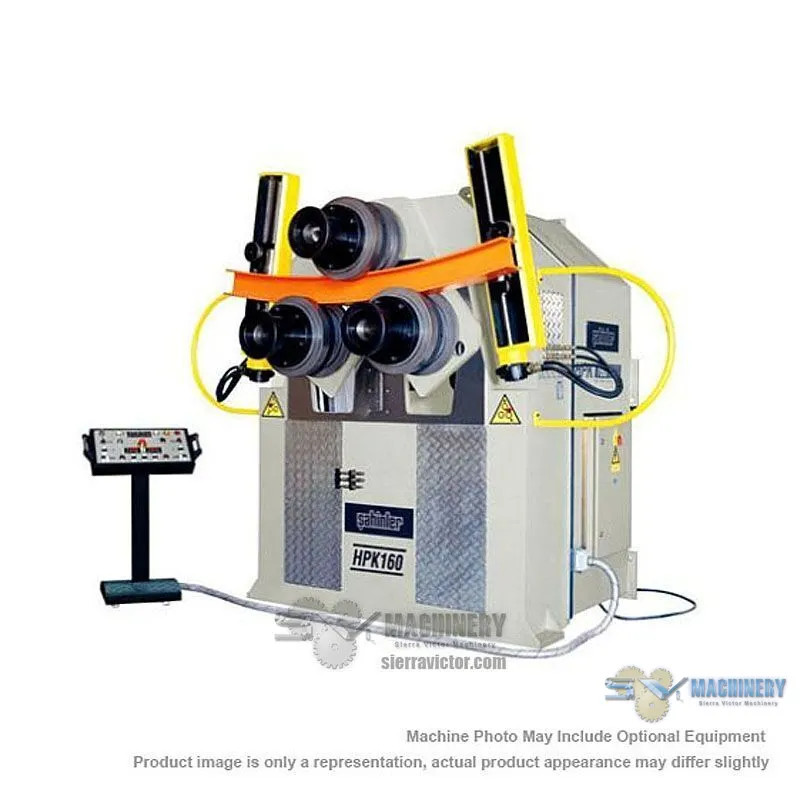

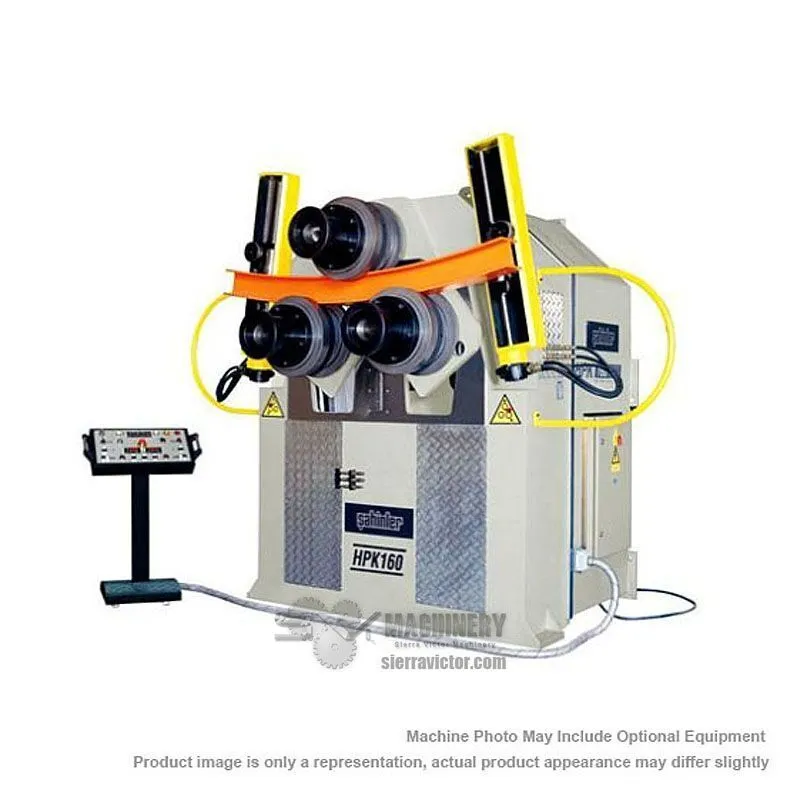

COLE-TUVE HPK-160 6 x 6 x 3/4 in. Hydraulic Pyramid Angle, Pipe and Shape Bending Roll

COLE-TUVE HPK-160 6 x 6 x 3/4 in. Hydraulic Pyramid Angle, Pipe and Shape Bending Roll

Have one to sell?
386-304-3720
dan@sierravictor.com
ConditionNew
Have one to sell?

Overview

Type:
Roll Benders
Manufacturer:
COLE TUVE
Model:
HPK-160
Condition:
Build To Order
Stock #:
HPK-160
Status:
For Sale

Description

All Three Rolls Powered by Hydro-Motors and Planetary Gearboxes. Rolls are Hardened. 3-Axis Hydraulic. Two Rolling Speeds. Two-Electronic Digital Readouts (LED). Horizontal and Vertical Working Positions.

Angle Roll TypeHydraulicHydraulic
Roll Diameter Ø19.69"0.5 m
Shaft Ø63"1,600.2 mm
Motor Power29 HP29 HP
Driven Rolls33
Rolling Speed, FPM10 & 19-1/210 & 19-1/2
Roll AdjustmentHydraulicHydraulic

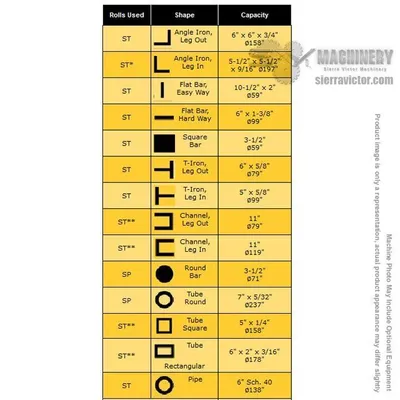

Pipe Capacity6" Sch. 40, ø138"6" Sch. 40, ø138"
Round Tube Capacity(SP) 7" x 5/32", ø237"(SP) 7" x 5/32", ø237"
Square Tube Capacity5" x 1/4", ø158"5" x 1/4", ø158"
Rectangular Tube Capacity6" x 2" x 3/16", ø178"6" x 2" x 3/16", ø178"
Square Bar3-1/2", ø59"3-1/2", ø59"
Round Bar(SP) 3-1/2", ø71"(SP) 3-1/2", ø71"
Flat Bar Easy Way10-1/2" x 2", ø59"10-1/2" x 2", ø59"
Flat Bar Hard Way6" x 1-3/8", ø99"6" x 1-3/8", ø99"
Angle Iron Leg-In5-1/2" x 5-1/2" x 9/16", ø197"5-1/2" x 5-1/2" x 9/16", ø197"
Angle Iron Let-Out6" x 6" x 3/4", ø158"6" x 6" x 3/4", ø158"
T-Iron Leg-In5" x 5/8", ø99"5" x 5/8", ø99"
T-Iron Leg-Out6" x 5/8", ø79"6" x 5/8", ø79"
Channel Leg-In11", ø119"11", ø119"
Channel Leg-Out11", ø79"11", ø79"
Upper Roll Dia.19.69"500.13 mm
Lower Roll Dia.19.69"500.13 mm
StylePyramidPyramid
Working PlaneHorizontal/VerticalHorizontal/Vertical
Digital ReadoutYesYes
Dimensions99 x 93 x 103 in.99 x 93 x 103 in.
Weight23,540 lbs.23,540 lbs.

*The shapes marked (SP) require optional special rolls. The other shapes can normally be rolled with the stardard rolls supplied with the machine. For production runs of some of those shapes, optional special rolls may be desirable. Rolling angle leg-in requires optional leg-in guide rolls and may require special rolls.

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts

Optional Items - Call for price:
*Pipe/Tube/Shape Bending Rolls

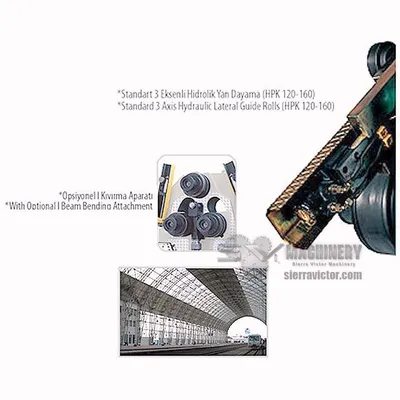

*Beam-On-Edge Bending Device
*NC Control
