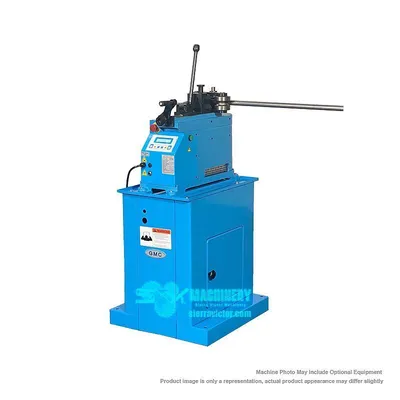

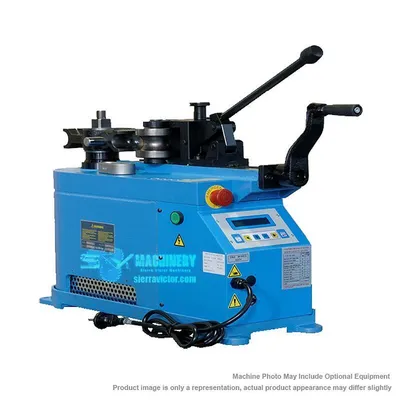

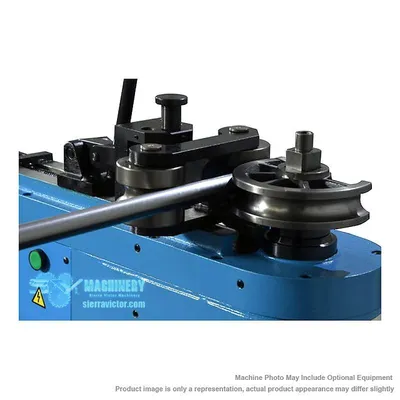

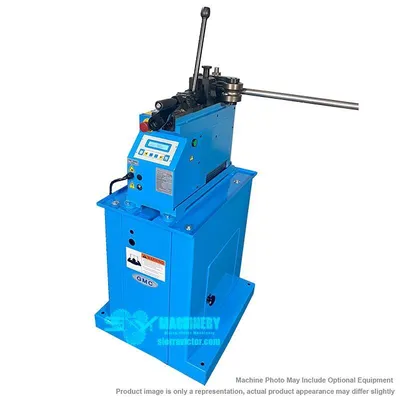

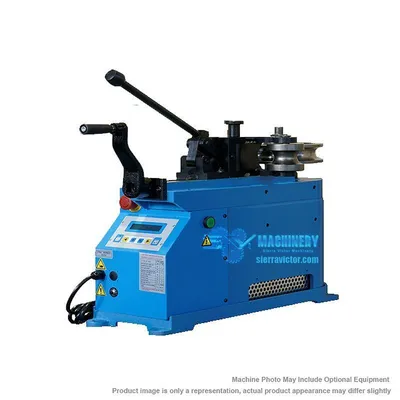

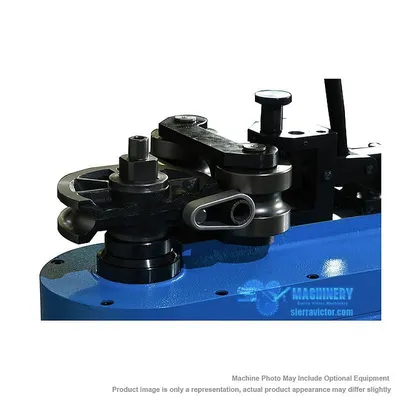

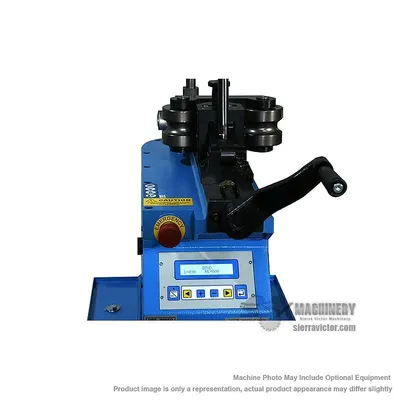

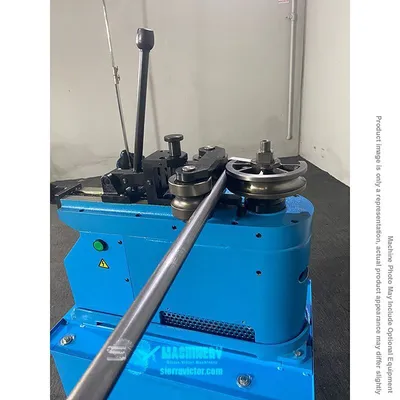

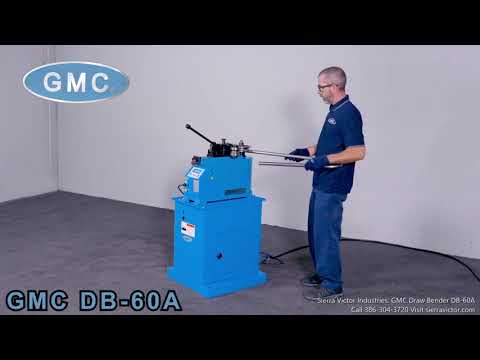

GMC DB-60A 2 in. Hydraulic Rotary Draw Bender

GMC DB-60A 2 in. Hydraulic Rotary Draw Bender

Have one to sell?
386-304-3720
dan@sierravictor.com
$6,350.00 USD
ConditionNew
Fulfillment
Freight  |  Free Shipping
Have one to sell?

Overview

Type:
Rotary Draw Benders
Manufacturer:
GMC MACHINE TOOLS
Model:
DB-60A
Condition:
Build To Order
Stock #:
DB-60A
Status:
For Sale

Description

The GMC DB-60A hydraulic rotary Draw Bender is easy to use and has an incredible capacity of 2” tube with .12” wall thickness and 1-1/2” schedule# 40 pipe.1-1/2 HP motor, 220VAC, Single Phase.This machine is made in Taiwan.Comes with deluxe stand.

Roll AdjustmentHydraulicHydraulic
Motor1.5 HP1.5 HP
Power220v, Single phase220v, Single phase
Minimum CLR.5 in..5 in.
Minimum OD0.25 in.0.25 in.
Max. Clr6.5 in.6.5 in.
Pipe Capacity1.5 in. (Sch. 40)1.5 in. (Sch. 40)
Round Tube Capacity2 in. (.125)2 in. (.125)
Aluminum Round Tube2 in. (3/16)2 in. (3/16)
Mild Steel Solid Rod1 in.1 in.
Stainless Steel Pipe Schedule 401.25 in.1.25 in.
Stainless Steel Round Tube Wall1.5 in. (.125)1.5 in. (.125)
Dimensions27 x 9 x 51 in.27 x 9 x 51 in.
Weight327 lbs.327 lbs.

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts

Optional Items - Call for price:
Each Die Set includes: 2 rolls, 1 former, and 1 ring

DB-60A-1T: 1” Tube die set
DB-60A-114T: 1-1/4” Tube die set
DB-60A-112T: 1-1/2” Tube die set
DB-60A-2T: 2” Tube die set
DB-60A-1P: 1” Pipe die set
DB-60A-114P: 1-1/4” Pipe die set
DB-60A-112P: 1-1/2” Pipe die set
