<table cellspacing="0" cellpadding="0" border="1" width="520">
<tbody style="text-align: center;">
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Mild Steel Capacity
</div>
</td>
<td class="TableText">
<div align="center">16 ga.
</div>
</td>
</tr>
<tr>
<td width="257" bgcolor="#cccccc" class="TableText">
<div align="center">Tooling Height Adjustment
</div>
</td>
<td width="257" class="TableText">
<div align="center">11"
</div>
</td>
</tr>
<tr>
<td width="257" bgcolor="#cccccc" class="TableText">
<div align="center">Speed (Variable)
</div>
</td>
<td width="257" class="TableText">
<div align="center">3200 beats / minute
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Included Tooling
</div>
</td>
<td class="TableText">
<div align="center">Flat, 2", 3", 6", 12", 24", 36" Radii
</div>
</td>
</tr>
<tr>
<td width="257" bgcolor="#cccccc" class="TableText">
<div align="center">Throat Depth
</div>
</td>
<td width="257" class="TableText">
<div align="center">24" Adjustable
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Aluminum Capacity
</div>
</td>
<td class="TableText">
<div align="center">14 ga.
</div>
</td>
</tr>
<tr>
<td width="257" bgcolor="#cccccc" class="TableText">
<div align="center">Power
</div>
</td>
<td width="257" class="TableText">
<div align="center">80 - 120 Psi.
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Shipping Weight
</div>
</td>
<td class="TableText">
<div align="center">35 lbs.
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Shipping Dimensions
</div>
</td>
<td class="TableText">
<div align="center">60" x 44" x 68"
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Special Notes
</div>
</td>
<td class="TableText">
<div align="center">Optional stand available
</div>
</td>
</tr>
</tbody>
</table>
<p>Specifications are subject to change without notice.
</p>
<p>NOTE: Data is provided by the manufacturer.
</p>
<p><strong>WARRANTY: 1 YEAR</strong> – Parts
</p>
<ul>

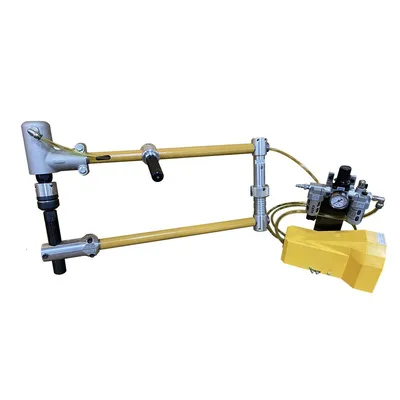

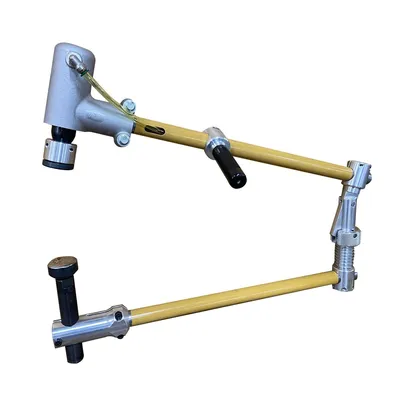

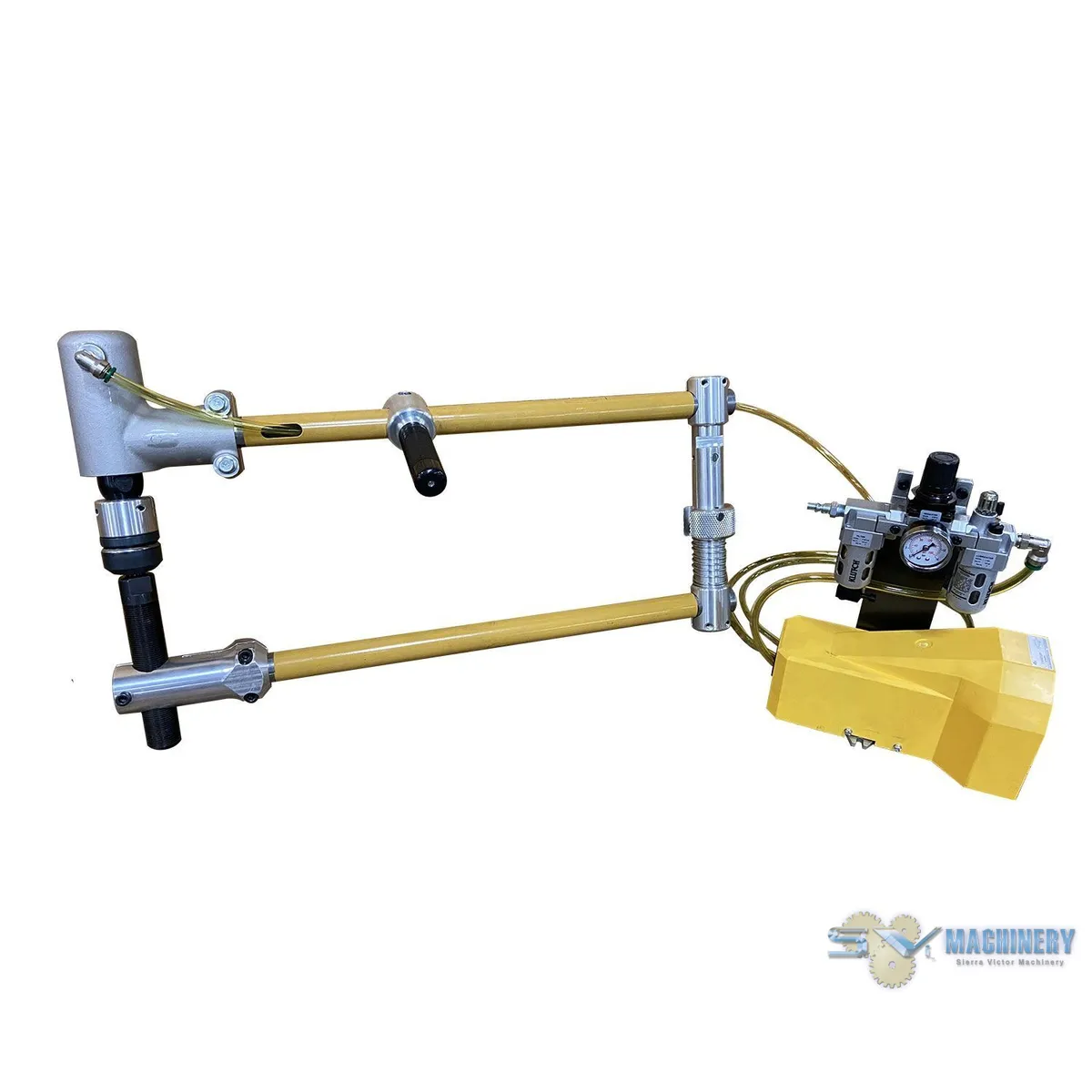

<li>Hand Held Pneumatic Planishing Hammer, 24" Throat Depth, Hinged Spine</li>
<li>The most versatile hand held planishing hammer for sale on the market, this air-powered model lands <strong>3,200 beats per minute</strong> to give you a smooth finish. The PH-24H has a unique hinged spine that allows you to get into spaces normally not available. It arrives <strong>fully assembled with 7 dies</strong>. </li>

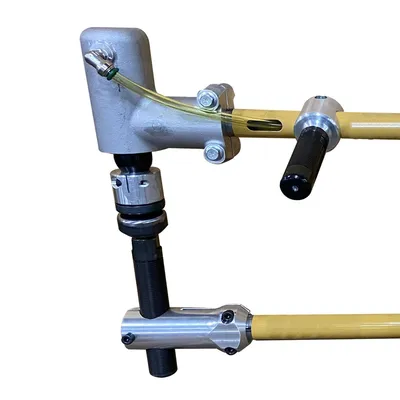

<li><strong>Hinged spine</strong> -Allows for quick opening of the throat area for hard-to-reach work areas on.</li>
<li><strong>16 gauge</strong> mild steel capacity.</li>
<li><strong>Adjustable throat depth</strong>; comes standard with 24".</li>
<li>Air motor runs on just <strong>90-120 psi</strong>.</li>
<li>Completely <strong>rebuildable</strong> air motor lets you change the characteristics of the hit for your application.</li>

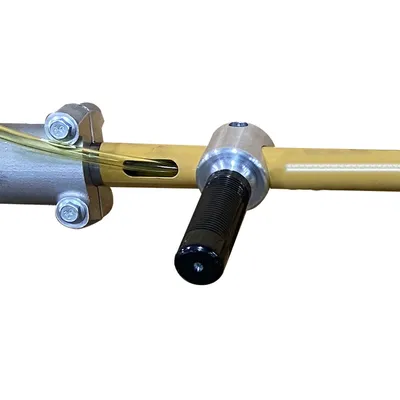

<li>Top and bottom supports have <strong>adjustable length</strong> for offset planishing.</li>

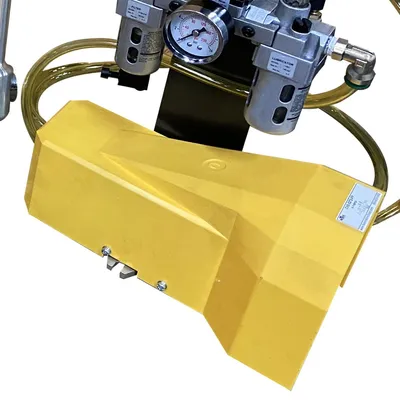

<li><strong>Foot pedal operation</strong> leaves your hands free to move the material.</li>
<li>Includes <strong>7 radius dies</strong>: flat, 2”, 3”, 6”, 8”, 12”, 24" and 36”.</li>

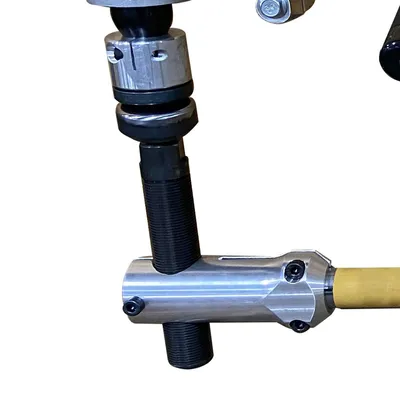

<li><strong>Captured 2.5" dia. top die</strong>; rubber O-ring detent keeping the top die from falling out when material is removed when hinge is opened or when material is removed</li>

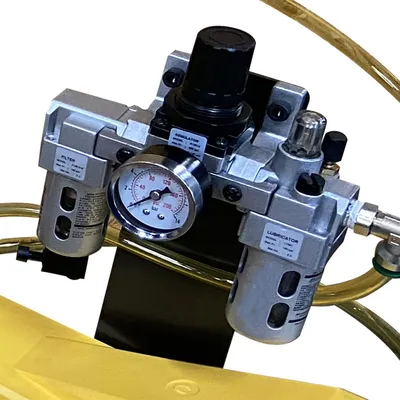

<li><strong>Automatic oiler</strong> keeps your machine running smoothly and saves you time on maintenance.</li>
<li>We offer an optional stand for more conventional applications.</li>
<li>Covered by a <strong>1-year parts warranty</strong>.</li>
<li>You can count on <strong>lifetime technical support</strong> by phone from our team of experienced metalworkers.</li>
</ul>
