<table width="520" cellspacing="0" cellpadding="0" border="1">
<tbody style="text-align: center;">
<tr>
<td width="128" rowspan="4" bgcolor="#cccccc" class="TableText1">
<div align="center">Cutting Capacity
</div>
</td>
<td bgcolor="#cccccc" class="TableText1">
<div align="center">Mild Steel
</div>
</td>
<td class="TableText1">
<div align="center">10 ft x 14 Ga.
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText1">
<div align="center">Stainless Steel
</div>
</td>
<td class="TableText1">
<div align="center">10 ft x 18 Ga.
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText1">
<div align="center">Soft Aluminum
</div>
</td>
<td class="TableText1">
<div align="center">10 ft x 10 Ga.
</div>
</td>
</tr>
<tr>
<td width="129" bgcolor="#cccccc" class="TableText1">
<div align="center">Min. Thickness
</div>
</td>
<td width="257" class="TableText1">
<div align="center">26 ga.
</div>
</td>
</tr>
<tr>
<td colspan="2" bgcolor="#cccccc" class="TableText1">
<div align="center">Blade Length
</div>
</td>
<td class="TableText1">
<div align="center">10 ft 1 in.
</div>
</td>
</tr>
<tr>
<td colspan="2" bgcolor="#cccccc" class="TableText1">
<div align="center">Strokes per minute
</div>
</td>
<td class="TableText1">
<div align="center">26
</div>
</td>
</tr>
<tr>
<td colspan="2" bgcolor="#cccccc" class="TableText1">
<div align="center">Worktable height
</div>
</td>
<td class="TableText1">
<div align="center">30-1/2 in.
</div>
</td>
</tr>
<tr>
<td colspan="2" bgcolor="#cccccc" class="TableText1">
<div align="center">Front support arm
</div>
</td>
<td class="TableText1">
<div align="center">24 in.
</div>
</td>
</tr>
<tr>
<td colspan="2" bgcolor="#cccccc" class="TableText1">
<div align="center">Back gauge
</div>
</td>
<td class="TableText1">
<div align="center">26 in. Manual back gauge
</div>
</td>
</tr>
<tr>
<td colspan="2" bgcolor="#cccccc" class="TableText1">
<div align="center">Blade rake angle
</div>
</td>
<td class="TableText1">
<div align="center">2.0 degree
</div>
</td>
</tr>
<tr>
<td colspan="2" bgcolor="#cccccc" class="TableText1">
<div align="center">Main Motor
</div>
</td>
<td class="TableText1">
<div align="center">7-1/2 HP, <br>
220V/25A - 440V/15A, 3 Phase
</div>
</td>
</tr>
<tr>
<td colspan="2" bgcolor="#cccccc" class="TableText1">
<div align="center">Machine Weight
</div>
</td>
<td class="TableText1">
<div align="center">7,280 lbs.
</div>
</td>
</tr>
<tr>
<td colspan="2" bgcolor="#cccccc" class="TableText1">
<div align="center">Machine dimensions
</div>
</td>
<td class="TableText1">
<div align="center">147 x 57 x 53 in.
</div>
</td>
</tr>
</tbody>
</table>
<p>Specifications are subject to change without notice.
</p>
<p>NOTE: Data is provided by the manufacturer.
</p>
<p><strong>WARRANTY: 1 YEAR</strong> – Parts
</p>
<p></p>
<ul>

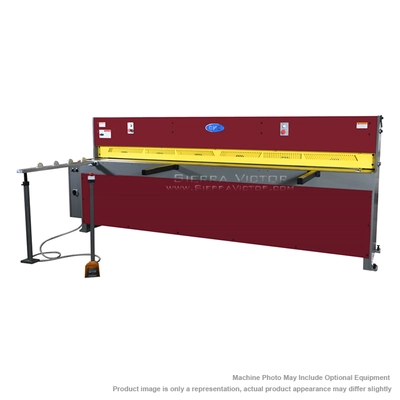

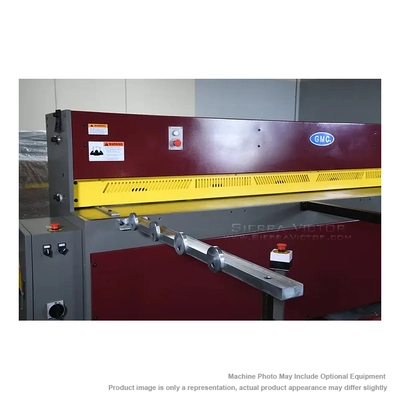

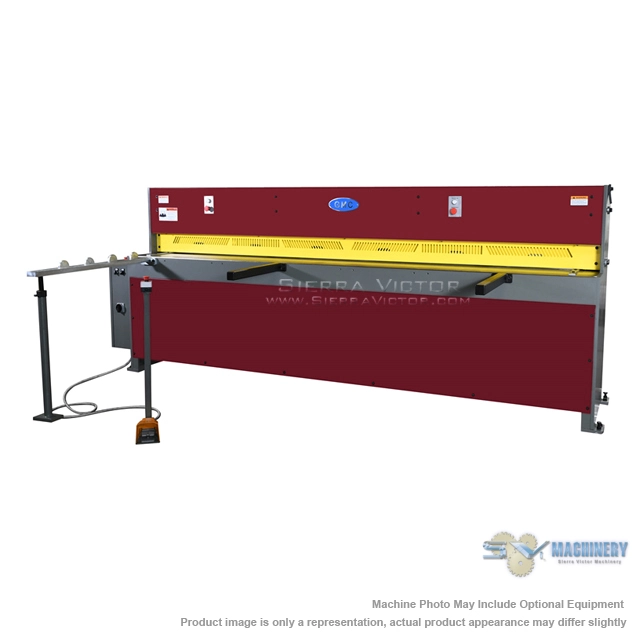

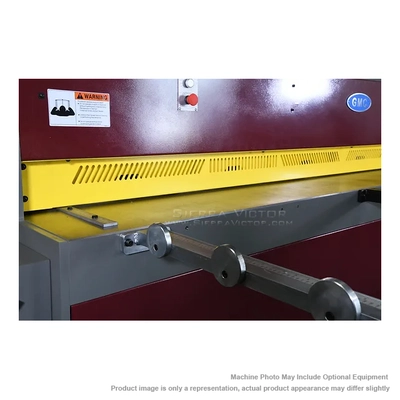

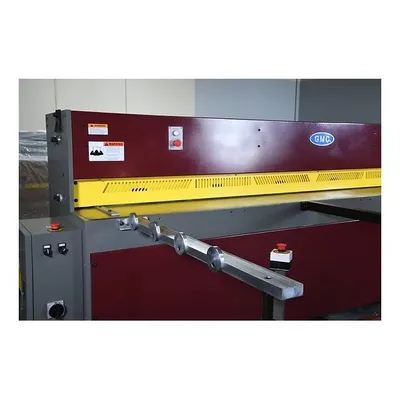

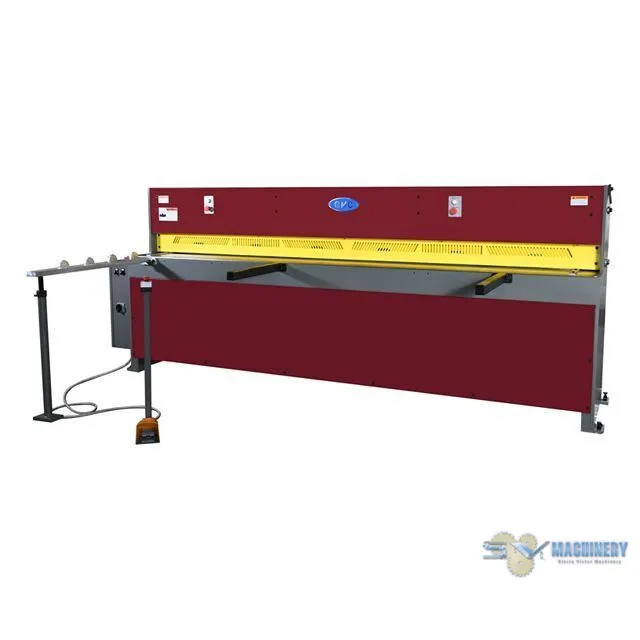

<li>Shop our 10 foot mechanical shears that are capable of cutting up to 14 gauge mild steel and 18 gauge stainless. Our sheering machines are designed as a low maintenance design with an array of features that will add value to any machine shop.</li>
<li>ISO 9001 certified</li>
<li>American design and Taiwan quality machine</li>
<li>HD all steel construction for maximum rigidity</li>
<li>Precision driven gearbox</li>
<li>Full length 26 strokes per minute</li>
<li>60” long squaring arm with inch / mm scale</li>
<li>spring hold-downs </li>
<li>high grade carbon/chrome alloy steel blades and hardened to 62 hrc,</li>
<li>2-edge indexable upper blade and 4-edge indexable bottom blade </li>
<li>Full length with full view finger guard</li>
<li>Front supports and (2) side gauges</li>
<li>Safety type foot pedal control </li>
<li>Jog, single continuous auto operation modes</li>
<li>One year warranty for parts</li>
<li><strong><u>DISCLAIMER: </u></strong>Please note this machine<u> is incompatible with the use of a rotary phase converter</u>. Any attempt to purchase, install, or employ one, whether carried out by you or a professional service company, <u>will automatically void the warranty.</u> It is crucial to understand that any such actions are entirely the responsibility of the buyer.</li>
<li>This disclaimer is intended to clearly convey that the utilization of a rotary phase converter to power or operate this machine is not supported </li>
</ul>
<p><strong>STANDARD EQUIPMENT:</strong>
</p>
<ul>

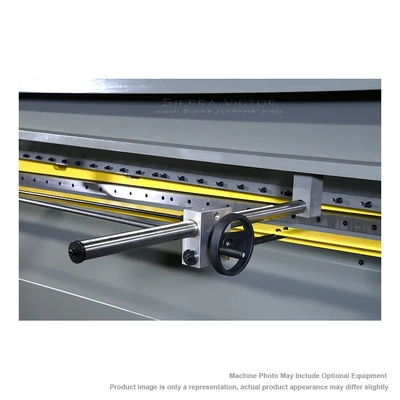

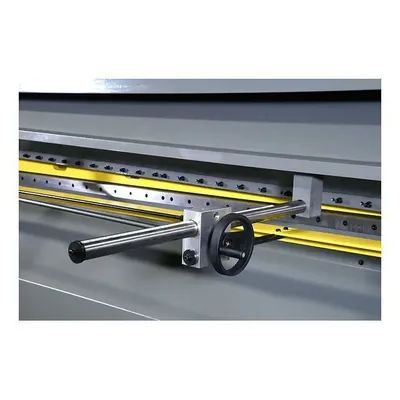

<li>26" manual back gauge with one side operated handwheel.</li>
<li>60" long squaring arm with inch / mm scale, mounted on right side of the table</li>
<li>2 each 24" front support arms</li>
<li>full length finger guard</li>
<li>Removable safety foot pedal control</li>
<li>One set of upper & lower blades</li>
</ul>
<p><b>OPTIONAL ITEMS:</b></p>
<ul>
<li>Safety fence for enclosure of the back side of the machine - Call for Price</li>
</ul>
