<table cellspacing="0" cellpadding="0" border="1" width="520">
<tbody style="text-align: center;">
<tr>
<td width="106" rowspan="4" bgcolor="#cccccc" class="TableText1">
<div align="center">Cutting Capacity
</div>
</td>
<td bgcolor="#cccccc" class="TableText1">
<div align="center">Mild Steel (hot roll)<br>
Tensile 60,000PSI
</div>
</td>
<td class="TableText1">
<div align="center">6 ft x 10 Ga.
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText1">
<div align="center">Stainless Steel<br>
Tensile 85,000PSI
</div>
</td>
<td class="TableText1">
<div align="center">6 ft x 14 Ga.
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText1">
<div align="center">Soft aluminum<br>
Tensile 28,000PSI
</div>
</td>
<td class="TableText1">
<div align="center">6 ft x 1/4 in.
</div>
</td>
</tr>
<tr>
<td width="149" bgcolor="#cccccc" class="TableText1">
<div align="center">Min Thickness
</div>
</td>
<td width="257" class="TableText1">
<div align="center">22 Ga.
</div>
</td>
</tr>
<tr>
<td colspan="2" bgcolor="#cccccc" class="TableText1">
<div align="center">Blade Length
</div>
</td>
<td class="TableText1">
<div align="center">80 in.
</div>
</td>
</tr>
<tr>
<td colspan="2" bgcolor="#cccccc" class="TableText1">
<div align="center">Strokes per minute
</div>
</td>
<td class="TableText1">
<div align="center">28
</div>
</td>
</tr>
<tr>
<td colspan="2" bgcolor="#cccccc" class="TableText1">
<div align="center">Worktable height
</div>
</td>
<td class="TableText1">
<div align="center">32 in.
</div>
</td>
</tr>
<tr>
<td colspan="2" bgcolor="#cccccc" class="TableText1">
<div align="center">Front support arm
</div>
</td>
<td class="TableText1">
<div align="center">36 in.
</div>
</td>
</tr>
<tr>
<td colspan="2" bgcolor="#cccccc" class="TableText1">
<div align="center">Back gauge
</div>
</td>
<td class="TableText1">
<div align="center">26 in. Manual back gauge
</div>
</td>
</tr>
<tr>
<td colspan="2" bgcolor="#cccccc" class="TableText1">
<div align="center">Blade rake angle
</div>
</td>
<td class="TableText1">
<div align="center">2.5 degree
</div>
</td>
</tr>
<tr>
<td colspan="2" bgcolor="#cccccc" class="TableText1">
<div align="center">Main Motor
</div>
</td>
<td class="TableText1">
<div align="center"> 7-1/2HP, 3 Phase 25A <br>
Prewired: 220VAC <br>
(15A/440VAC optional)
</div>
</td>
</tr>
<tr>
<td colspan="2" bgcolor="#cccccc" class="TableText1">
<div align="center">Machine Weight
</div>
</td>
<td class="TableText1">
<div align="center">5,550 lbs.
</div>
</td>
</tr>
<tr>
<td colspan="2" bgcolor="#cccccc" class="TableText1">
<div align="center">Shipping Weight
</div>
</td>
<td class="TableText1">
<div align="center">5,650 lbs.
</div>
</td>
</tr>
<tr>
<td colspan="2" bgcolor="#cccccc" class="TableText1">
<div align="center">Machine Dimensions
</div>
</td>
<td class="TableText1">
<div align="center">100 x 43 x 68 in.
</div>
</td>
</tr>
<tr>
<td colspan="2" bgcolor="#cccccc" class="TableText1">
<div align="center">Shipping Dimensions
</div>
</td>
<td class="TableText1">
<div align="center">100 x 43 x 68 in.
</div>
</td>
</tr>
</tbody>
</table>
<p>Specifications are subject to change without notice.
</p>
<p>NOTE: Data is provided by the manufacturer.
</p><p><strong>WARRANTY: 1 YEAR</strong> – Parts
</p><br><ul>

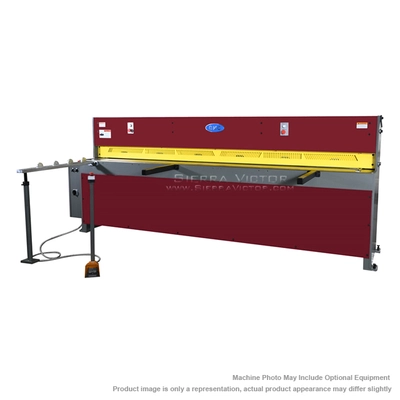

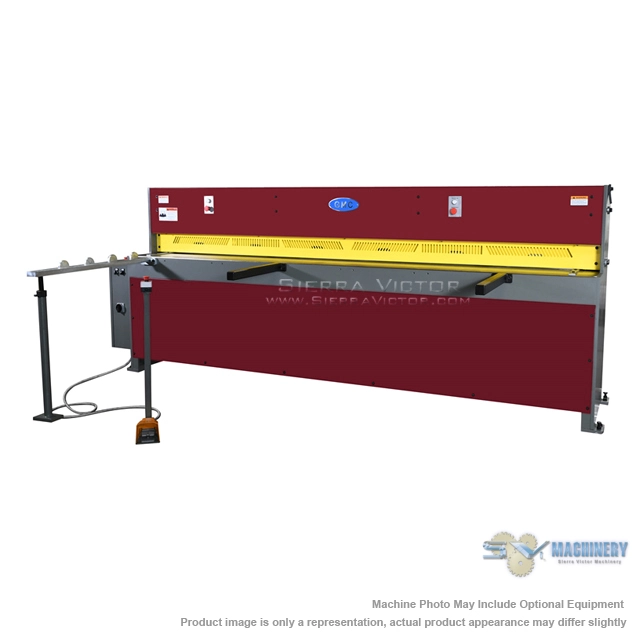

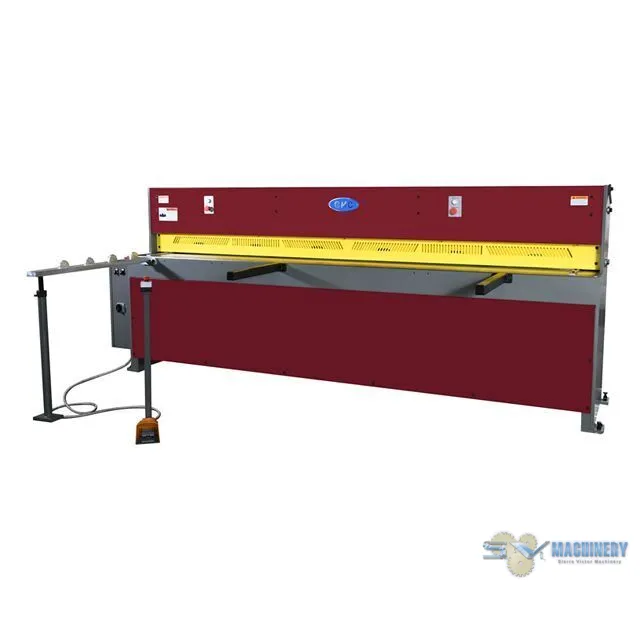

<li>Our 6 Ft Mechanical Shearing Machine - EPS-0610M mechanical metal shearing machine is rated to shear up to 72" metal steel sheets at up to 30 strokes per minute. With an array of features, quickly adjust your backgauge, precision driven gear box, all electric low maintenance design, will add value to any fabrication machinery shop.</li>
<li>ISO 9001 certified</li>
<li>American design and Taiwan quality machine</li>
<li>HD all steel construction for maximum rigidity</li>
<li>Precision driven gearbox</li>
<li>Full length 30 strokes per minute</li>
<li>60” long squaring arm with inch / mm scale</li>
<li>spring hold-downs </li>
<li>high grade carbon/chrome alloy steel blades and hardened to 62 hrc,</li>
<li>2-edge indexable upper blade and 4-edge indexable bottom blade </li>
<li>Full length with full view finger guard</li>
<li>Front supports and (2) side gauges</li>
<li>Safety type foot pedal control </li>
<li>Jog, single continuous auto operation modes</li>
<li>One year warranty for parts</li>
<li><strong><u>DISCLAIMER: </u></strong>Please note this machine<u> is incompatible with the use of a rotary phase converter</u>. Any attempt to purchase, install, or employ one, whether carried out by you or a professional service company, <u>will automatically void the warranty.</u> It is crucial to understand that any such actions are entirely the responsibility of the buyer.</li>
<li>This disclaimer is intended to clearly convey that the utilization of a rotary phase converter to power or operate this machine is not supported. </li>
</ul>
<p><strong>STANDARD EQUIPMENT:</strong>
</p>
<ul>

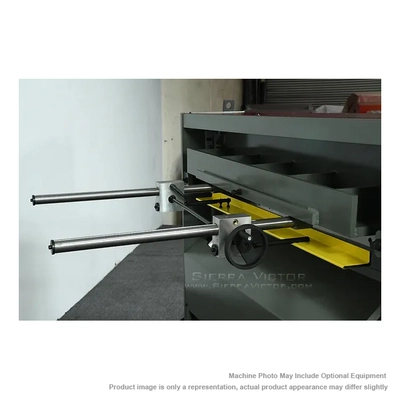

<li>26" manual back gauge with one side handwheel</li>

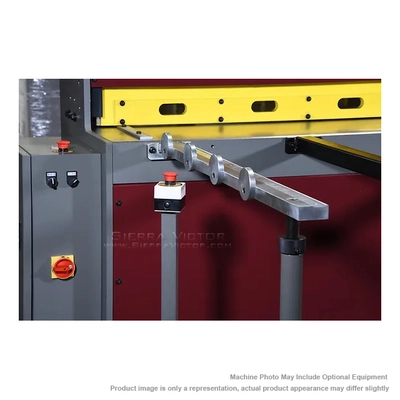

<li>60" long squaring arm with inch / mm scale, mounted on right side of the table</li>
<li>2 each 24” front support arms</li>
<li>full length finger guard</li>
<li>Removable safety foot pedal control</li>
<li>One set of upper & lower blades</li>
</ul>
<p><b>OPTIONAL ITEMS:</b></p>
<ul>
<li>Safety fence for enclosure of the back side of the machine:<strong> $CALL</strong></li>
</ul>
