<p><b>SPECIFICATIONS:</b></p>
<table width="520" border="1" cellpadding="0" cellspacing="0">
<tbody style="text-align: center;">
<tr class="TableText">
<td width="208" bgcolor="#cccccc" class="TableText"><div align="center">Capacity</div></td>
<td width="306" class="TableText"><div align="center">176 Tons</div></td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc" class="TableText"><div align="center">Motor</div></td>
<td class="TableText"><div align="center">4 HP, 230v, 3ph <em>(460v, 3ph</em> <!--StartFragment--><em>available</em><!--EndFragment-->)</div></td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc" class="TableText"><div align="center">RPM</div></td>
<td class="TableText"><div align="center">3,000</div></td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc" class="TableText"><div align="center">Ram Speed-Approach</div></td>
<td class="TableText"><div align="center">18 ipm</div></td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc" class="TableText"><div align="center">Ram Speed-Press</div></td>
<td class="TableText"><div align="center">5 ipm</div></td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc" class="TableText"><div align="center">Ram Speed-Return</div></td>
<td class="TableText"><div align="center">22 ipm</div></td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc" class="TableText"><div align="center">Open Height - Min.</div></td>
<td class="TableText"><div align="center">7"</div></td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc" class="TableText"><div align="center">Open Height - Max.</div></td>
<td class="TableText"><div align="center">36-1/2"</div></td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc" class="TableText"><div align="center">Stroke</div></td>
<td class="TableText"><div align="center">15-3/4" <br>
(w-12" cylinder extension to reach table)</div></td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc" class="TableText"><div align="center">Lateral Ram Slide</div></td>
<td class="TableText"><div align="center">Yes</div></td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc" class="TableText"><div align="center">Width Between Uprights</div></td>
<td class="TableText"><div align="center">43-1/4"</div></td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc" class="TableText"><div align="center">Width Between Table Channels</div></td>
<td class="TableText"><div align="center">15"</div></td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc" class="TableText"><div align="center">Table Height</div></td>
<td class="TableText"><div align="center">FIXED @ 30"</div></td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc" class="TableText"><div align="center">Table Size (LxW)</div></td>
<td class="TableText"><div align="center">68-1/2" x 39-1/4"</div></td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc" class="TableText"><div align="center">Table Movement <br>
(forward & back)</div></td>
<td class="TableText"><div align="center">39-1/4"</div></td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc" class="TableText"><div align="center">Max Load</div></td>
<td class="TableText"><div align="center">1,653 lbs.</div></td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc" class="TableText"><div align="center">Footprint (LxW)</div></td>
<td class="TableText"><div align="center">83-3/4" x 37"</div></td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc" class="TableText"><div align="center">Height Overall</div></td>
<td class="TableText"><div align="center">83"</div></td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText"><div align="center"><span class="TableText">Weight </span>(including V-blocks) </div></td>
<td class="TableText"> <div align="center">4,994 lbs.</div></td>
</tr>
</tbody>
</table>
<p><b><br></b><b>FEATURES:</b></p>

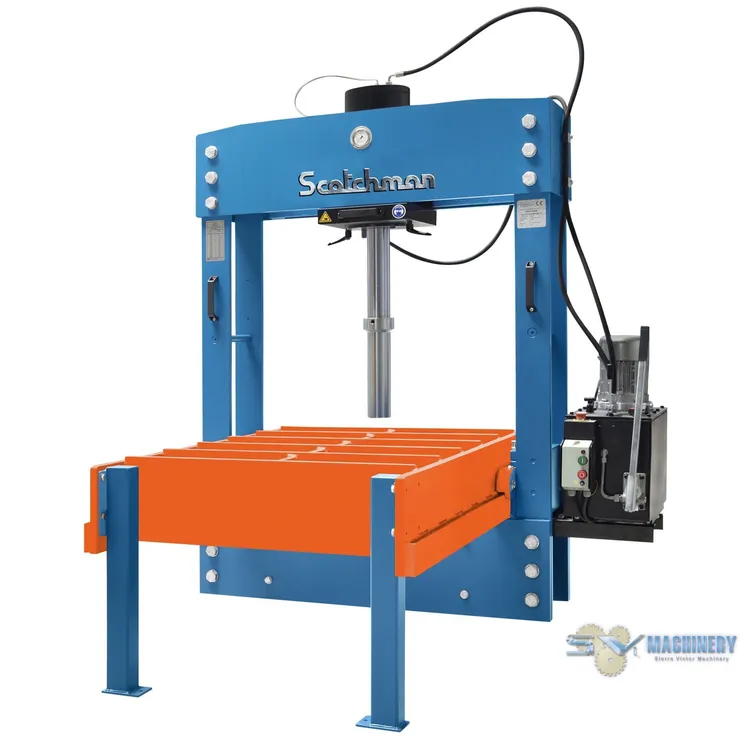

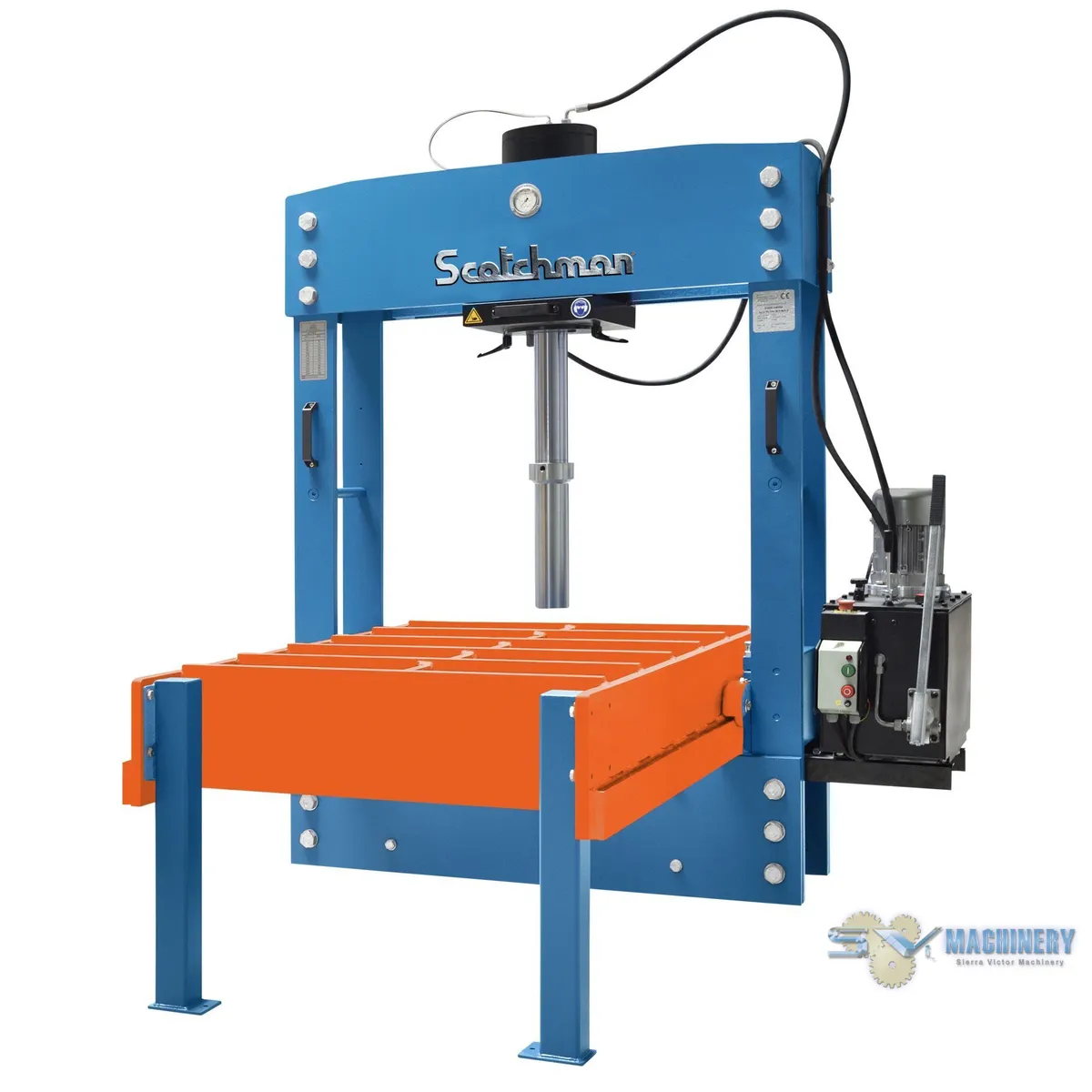

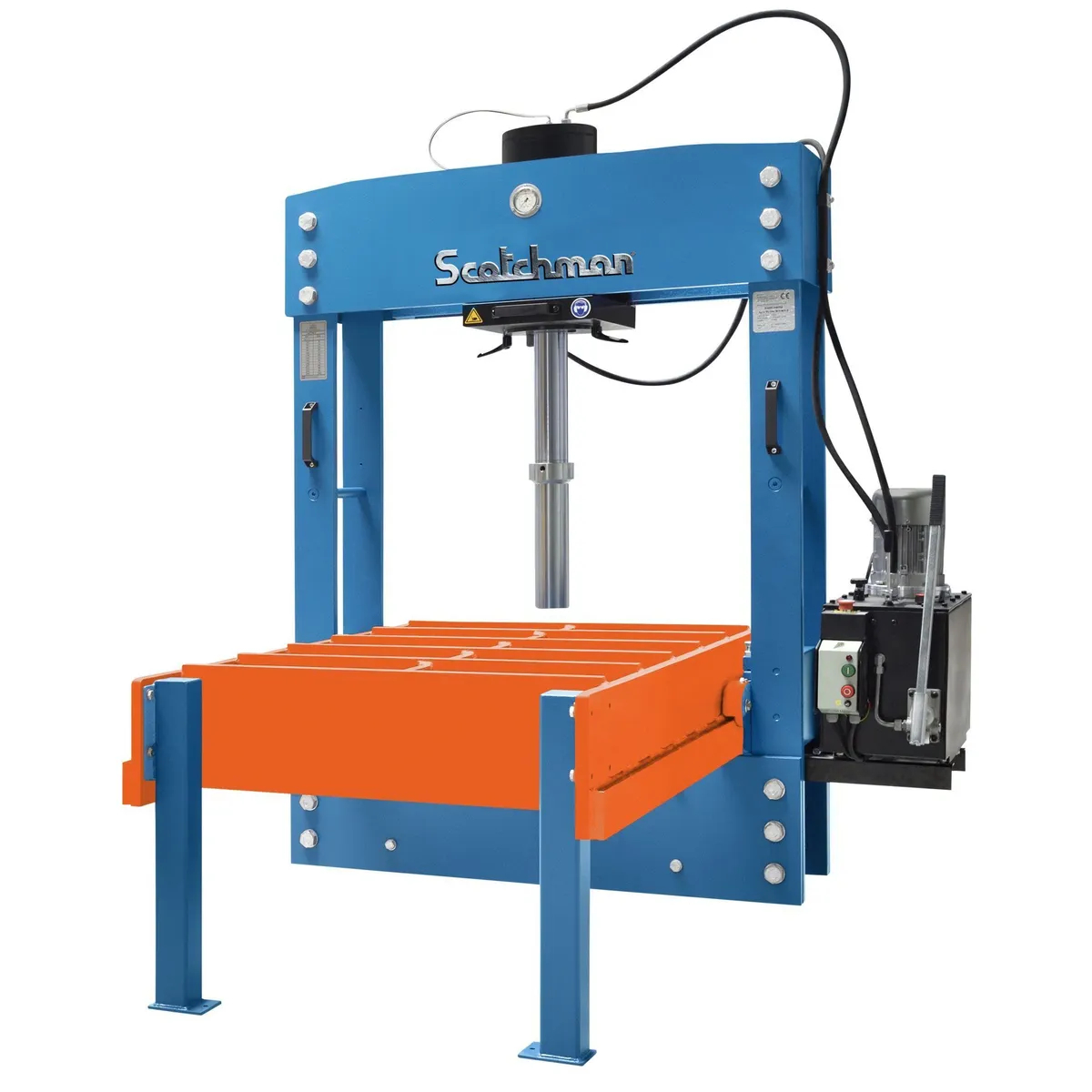

<ul><li>This 176 ton press has a movable table which allows for overhead loading of heavy workpieces and is ideal for the straightening of large sheets and structures. Easily slide the ram head from side to side and move the table forward and back to access all different points of the work surface. Thanks to the movable table/bed and movable cylinder design you can easily reach every point of the ‘to be pressed’ surface. Movement of the ram cylinder and table frame are done manually.</li><li>The quality of these hydraulic straightening presses is very high and the hydraulic unit is equipped with a pressure regulator, 2 speeds, joystick and a hand pump for precision pressing.</li><li>Meets CE Standards, manufactured in the Netherlands, and comes with our 3-year warranty.</li><li>Heavy Duty All-Steel Construction</li><li>Industrial Grade Hydraulic System</li><li>Movable table/bed feature allows for overhead loading of heavy workpieces </li><li>Ram head easily slides from side to side; table moves forward and back</li><li>3 Ram Speeds</li><li>15-3/4" of vertical ram travel, with cylinder extension of 12" to reach table</li><li>Joystick Operation with Hand Pump Option</li><li>Removable Ram Cap to Accept a Wide Variety of Tooling</li><li>Pressure gauge to monitor force</li><li>Meets CE Standards</li><li>Three-year warranty</li><li>Made in the Netherlands</li><li>Note: No V-blocks on the 176MT press</li><li>Note: No mandrel set available for the 176 ton press</li></ul>
<p><strong>STANDARD ACCESSORIES:</strong></p>
<ul><li>Set of V-Blocks</li></ul>
