<table cellspacing="0" cellpadding="0" border="1" width="520">
<tbody style="text-align: center;">
<tr>
<td bgcolor="#333333" valign="middle" class="Title_white_bold">
<div align="center"><strong><span style="color: rgb(255, 255, 255);">MODEL</span></strong>
</div>
</td>
<td bgcolor="#333333" valign="middle" class="Title_white_bold">
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>HS-1025CNC</strong></span>
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" width="257" valign="middle" class="TableText">
<div align="center" class="TableText">
<div align="center">Cutting capacity: Mild Steel
</div>
</div>
</td>
<td width="257" valign="middle" class="TableText">
<div align="center">10 ft x 1/4 in.
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" valign="middle" class="TableText">
<div align="center">Cutting capacity:
Stainless Steel
</div>
</td>
<td valign="middle" class="TableText">
<div align="center">10 ft x 3/16 in.
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" width="257" valign="middle" class="TableText">
<div align="center">Blade length
</div>
</td>
<td width="257" valign="middle" class="TableText">
<div align="center" class="TableText">10 ft 6 in.
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" valign="middle" class="TableText">
<div align="center">Strokes per minute
</div>
</td>
<td valign="middle" class="TableText">
<div align="center" class="TableText">10-12
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" valign="middle" class="TableText">
<div align="center">Throat depth
</div>
</td>
<td valign="middle" class="TableText">
<div align="center" class="TableText">20 in.
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" valign="middle" class="TableText">
<div align="center">Worktable height
</div>
</td>
<td valign="middle" class="TableText">
<div align="center" class="TableText">39 in.
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" valign="middle" class="TableText">
<div align="center">Front support arm
</div>
</td>
<td valign="middle" class="TableText">
<div align="center" class="TableText">24 in.
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" valign="middle" class="TableText">
<div align="center">NC Back gauge
</div>
</td>
<td valign="middle" class="TableText">
<div align="center">36 in. ESA CNC Back gauge
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" valign="middle" class="TableText">
<div align="center">Blade rake angle
</div>
</td>
<td valign="middle" class="TableText">
<div align="center">0.5°- 2.5°
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" valign="middle" class="TableText">
<div align="center">Oil tank cap.
</div>
</td>
<td valign="middle" class="TableText">
<div align="center">50 Gal.
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" valign="middle" class="TableText">
<div align="center"> Main motor
</div>
</td>
<td valign="middle" class="TableText">
<div align="center">15 HP, 220V, 3 phase
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" valign="middle" class="TableText">
<div align="center">Power B.G. motor
</div>
</td>
<td valign="middle" class="TableText">
<div align="center">2 HP, 220V, 3 phase
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" valign="middle" class="TableText">
<div align="center">Machine weight
</div>
</td>
<td valign="middle" class="TableText">
<div align="center">19,850 lbs
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" valign="middle" class="TableText">
<div align="center" class="TableText">Machine dimensions
</div>
</td>
<td valign="middle" class="TableText">
<div align="center">157 x 106 x 75 in.
</div>
</td>
</tr>
</tbody>
</table>
<p>Specifications are subject to change without notice.
</p>
<p>NOTE: Data is provided by the manufacturer.
</p>
<p>WARRANTY: 1 YEAR – Parts
</p>
<ul>

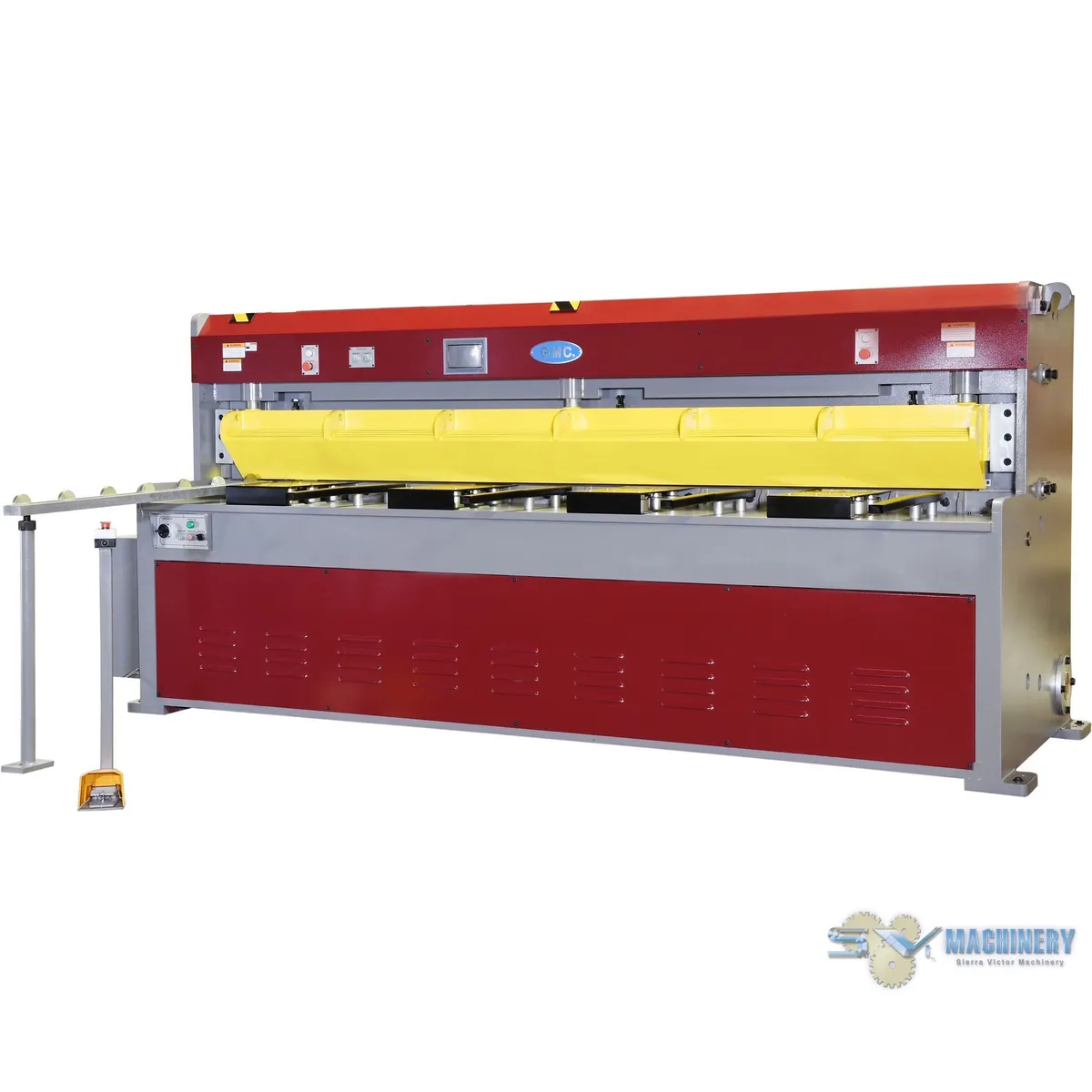

<li>This 120" wide hydraulic shear can handle up to a 1/4" mild steel. This heavy duty machine will trim 10 foot sheets with ease!</li>
<li>ISO 9001 certified </li>
<li>comes with ESA CNC control for Back gauge, programmable</li>
<li>CNC programmable Blade Gap Adjustment</li>
<li>CNC programmable Rake change</li>
<li>CE standard & Siemens electric control system</li>
<li>Meet OSHA safety standard code</li>
<li>Shadow line for accurate straight cutting</li>
<li>Adjustable cutting length and stroke</li>
<li>Well balanced and sturdy all steel machine frame</li>
<li>German made Hydraulic logic system centrally located and quiet</li>
<li>Hydraulic hold-downs with anti-mar neoprene</li>
<li>Shear blades are high grade carbon/chrome alloy steel and hardened to 60 HRC, 2-edge indexable upper blade and 2-edge indexable bottom blade</li>
<li>Full length viewable safety finger guard to protect operator from cutting hazard</li>
<li>Removable safety foot pedal, automatic blade raise up on removal of foot from pedal</li>
<li>Hydraulic, electrical overload protection</li>
<li>Compact operator control panel</li>
<li>All motors are overload protected & low voltage control system</li>
<li>Jog or continuous auto cycle cutting operation modes</li>
<li>One year industrial warranty for parts</li>
<li><strong><u>DISCLAIMER: </u></strong>Please note this machine<u> is incompatible with the use of a rotary phase converter</u>. Any attempt to purchase, install, or employ one, whether carried out by you or a professional service company, <u>will automatically void the warranty.</u> It is crucial to understand that any such actions are entirely the responsibility of the buyer.</li>
<li>This disclaimer is intended to clearly convey that the utilization of a rotary phase converter to power or operate this machine is not supported. </li>
</ul>
<p><strong>STANDARD EQUIPMENT:</strong>
</p>
<ul>
<li>ESA CNC control for Back gauge, programmable touch screen</li>
<li>1 each 40” squaring arm with inlaid inch/metric dual scale</li>
<li>Quick change blade gap adjustment (BGA)</li>
<li>Shadow line for accurate straight cutting</li>
<li>Material support and drop back chuter</li>
<li>Upper and bottom blade set with 2-edge on bottom & 2-edge on upper</li>
<li>3 each 24” front support arms</li>
<li>Hydraulic hold-downs with anti-mar neoprene</li>
<li>Full length viewable finger guard</li>
<li>Removable safety foot pedal</li>
<li>Tool box</li>
</ul>
<p><b>OPTIONAL ITEMS:</b></p>
<ul>
<li>Safety fence for enclosure of the back side of the machine - $CALL</li>
</ul>
