<table width="520" cellspacing="0" cellpadding="0" border="1">
<tbody style="text-align: center;">
<tr>
<td class="TableText" width="257" bgcolor="#cccccc">
<div align="center">Air Pressure
</div>
</td>
<td class="TableText" width="257">
<div align="center">85 PSI
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Air Consumption
</div>
</td>
<td class="TableText">
<div align="center">5.3 CFM
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">No Load Speed
</div>
</td>
<td class="TableText">
<div align="center">28,000 RPM
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Chamfering Capacity (Mild Steel)
</div>
</td>
<td class="TableText">
<div align="center">Up to .039" (1mm) Chamfer
</div>
</td>
</tr>
<tr>
<td class="TableText" height="23" bgcolor="#cccccc">
<div align="center">Chamfering Capacity (Stainless Steel)
</div>
</td>
<td class="TableText">
<div align="center">Up to .020" (0.5mm) Chamfer
</div>
</td>
</tr>
<tr>
<td class="TableText" height="23" bgcolor="#cccccc">
<div align="center">Chamfer Angle
</div>
</td>
<td class="TableText">
<div align="center">45 Degrees
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">

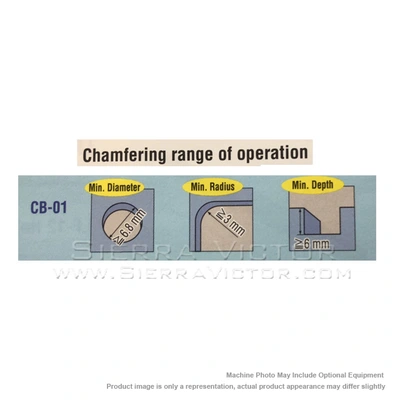

<div align="center">Minimum Plate Thickness
</div>
</td>
<td class="TableText">
<div align="center">.059" (1.5mm)<br>
Maximum chamfer capacity is reduced <br>
to 0.5mm when plate thickness is 1.5mm
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Minimum Radius
</div>
</td>
<td class="TableText">
<div align="center">.118" (3mm Radius)
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Minimum Hole Diameter
</div>
</td>
<td class="TableText">
<div align="center">.268" (6.8mm) Diameter Hole
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Weight
</div>
</td>
<td class="TableText">
<div align="center">1.1 lbs.
</div>
</td>
</tr>
</tbody>
</table>
<p><br>
</p>
<table width="520" cellspacing="0" cellpadding="0" border="0">
<!--DWLayoutTable-->
<tbody>
<tr>
<td class="spacer_text" width="400" valign="middle" nowrap="nowrap" height="20" bgcolor="#4c9ae5">BEVEL ANGLE, WIDTH AND RADIUS
</td>
</tr>
</tbody>
</table>
<table width="520" cellspacing="0" cellpadding="0" border="1">
<tbody style="text-align: center;">
<tr>
<td rowspan="2" class="TableText_bold" bgcolor="#cccccc">
<div align="center"><strong>Angle</strong>
</div>
</td>
<td colspan="2" class="Title_white_bold" bgcolor="#333333">
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>Stainless Steel (mm)</strong></span>
</div>
</td>
<td colspan="2" class="Title_white_bold" bgcolor="#333333">
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>Mild Steel (mm)</strong></span>
</div>
</td>
</tr>
<tr class="Title_white_bold">
<td class="TableText" width="65" bgcolor="#333333"><span style="color: rgb(255, 255, 255);"><strong></strong></span>
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>X</strong></span>
</div>
</td>
<td class="TableText" width="65" bgcolor="#333333">
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>Y</strong></span>
</div>
</td>
<td class="TableText" width="60" bgcolor="#333333"><span style="color: rgb(255, 255, 255);"><strong></strong></span>
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>X</strong></span>
</div>
</td>
<td class="TableText" width="61" bgcolor="#333333"><span style="color: rgb(255, 255, 255);"><strong></strong></span>
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>Y</strong></span>
</div>
</td>
</tr>
<tr>
<td class="TableText_bold" width="257" bgcolor="#cccccc">
<div align="center"><strong>45°</strong>
</div>
</td>
<td class="TableText">
<div align="center">0.5
</div>
</td>
<td class="TableText">
<div align="center">0.5
</div>
</td>
<td class="TableText">
<div align="center">1
</div>
</td>
<td class="TableText">
<div align="center">1
</div>
</td>
</tr>
</tbody>
</table>
<p>Specifications are subject to change without notice.
</p>
<p>NOTE: Data is provided by the manufacturer.
</p>
<p><strong>WARRANTY: 1 YEAR</strong> – Limited
</p>
<ul>

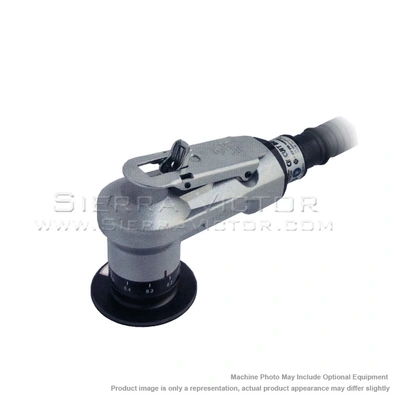

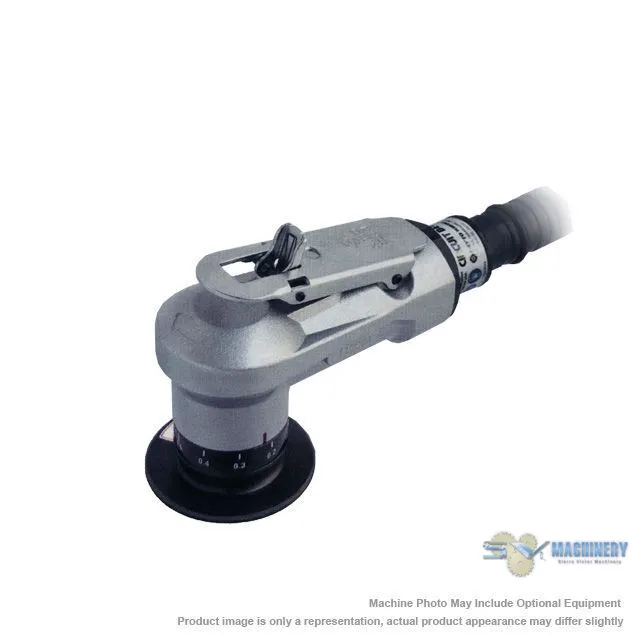

<li><strong>Pneumatic Radial Chamfering Tool</strong></li>
<li>Lightweight and compact for most beveling and chamfering applications</li>
<li>Uniquely designed to chamfer circular, elliptical and straight line profiles</li>
<li>Chamfers exterior and/or Interior edges</li>
<li>Chamfer widths up to .04" (1mm) for CB-01 at 45°</li>
<li>Uses indexable carbide insert</li>
</ul>
<p><strong>ACCESSORIES INCLUDED:</strong>
</p>
<ul>
<li>Indexable Insert: 2 pcs. (Installed)</li>
<li>Indexable Insert Set Screw: 2 pcs. (Installed)</li>
<li>Indexable Insert Set Screw: 2 pcs. (Extra Supply)</li>
<li>2mm Allen Wrench</li>
<li>Torx 6 (T-6F) Wrench for Insert Set Screw</li>
<li>Threaded Adapter PT 1/4" x NPT 1/4"</li>
</ul>
