<table width="520" cellspacing="0" cellpadding="0" border="1">
<tbody style="text-align: center;">
<tr>
<td class="TableText" width="199" bgcolor="#cccccc">
<div align="center">Air Pressure
</div>
</td>
<td class="TableText" width="214">
<div align="center">85 PSI
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Air Consumption
</div>
</td>
<td class="TableText">
<div align="center">5.3 CFM
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Chamfering Capacity (Mild Steel)
</div>
</td>
<td class="TableText">
<div align="center">Up to 5/64” (2 mm) Chamfer<br>
or 1/16” (2 mm) Radius
</div>
</td>
</tr>
<tr>
<td class="TableText" height="23" bgcolor="#cccccc">
<div align="center">Chamfer Angle
</div>
</td>
<td class="TableText">
<div align="center">45 Degrees
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Weight
</div>
</td>
<td class="TableText">
<div align="center">4.0 lbs.
</div>
</td>
</tr>
</tbody>
</table>
<p><br>
</p>
<table width="520" cellspacing="0" cellpadding="0" border="0">
<!--DWLayoutTable-->
<tbody>
<tr>

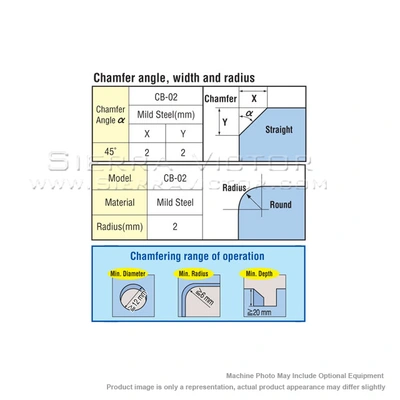

<td class="spacer_text" width="400" valign="middle" nowrap="nowrap" height="20" bgcolor="#4c9ae5"><strong>CHAMFER ANGLE, WIDTH AND RADIUS</strong>
</td>
</tr>
</tbody>
</table>
<table width="520" cellspacing="0" cellpadding="0" border="1">
<tbody style="text-align: center;">
<tr>
<td rowspan="2" class="TableText_bold" bgcolor="#cccccc">
<div align="center"><strong>Angle</strong>
</div>
</td>
<td colspan="2" class="Title_white_bold" bgcolor="#333333">
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>Mild Steel (mm)</strong></span>
</div>
</td>
</tr>
<tr class="Title_white_bold">
<td class="TableText" width="127" bgcolor="#333333"><span style="color: rgb(0, 0, 0);"><strong></strong></span><span style="color: rgb(255, 255, 255);"></span>
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>X</strong></span>
</div>
</td>
<td class="TableText" width="128" bgcolor="#333333"><span style="color: rgb(255, 255, 255);"><strong></strong></span>
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>Y</strong></span>
</div>
</td>
</tr>
<tr>
<td class="TableText_bold" width="257" bgcolor="#cccccc">
<div align="center"><strong>45°</strong>
</div>
</td>
<td class="TableText">
<div align="center">2
</div>
</td>
<td class="TableText">
<div align="center">2
</div>
</td>
</tr>
</tbody>
</table>
<p><br>
</p>
<table width="520" cellspacing="0" cellpadding="0" border="1">
<tbody style="text-align: center;">
<tr>
<td class="TableText_bold" bgcolor="#cccccc">
<div align="center"><strong>Material</strong>
</div>
</td>
<td class="Title_white_bold" bgcolor="#333333">
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>Mild Steel (mm)</strong></span>
</div>
</td>
</tr>
<tr>
<td class="TableText_bold" width="257" bgcolor="#cccccc">
<div align="center"><strong>Radius (mm)</strong>
</div>
</td>
<td class="TableText" width="257">
<div align="center">2
</div>
</td>
</tr>
</tbody>
</table>
<p>Specifications are subject to change without notice.
</p>
<p>NOTE: Data is provided by the manufacturer.
</p>
<p><strong>WARRANTY: 1 YEAR</strong> – Limited
</p>
<ul>

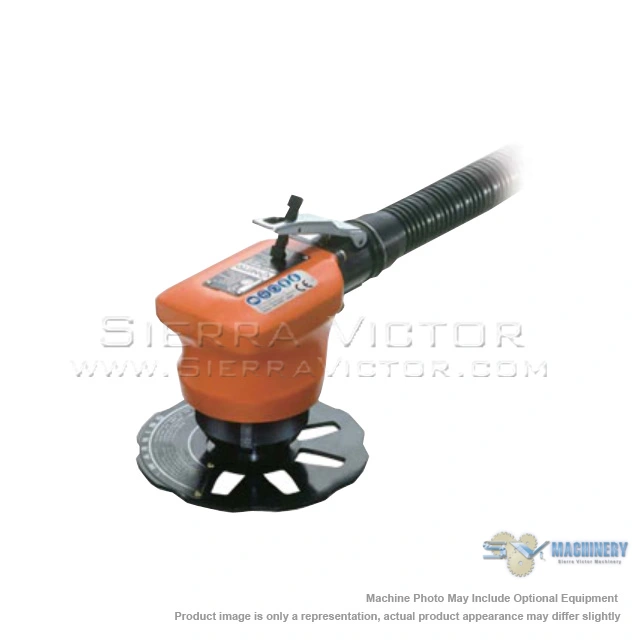

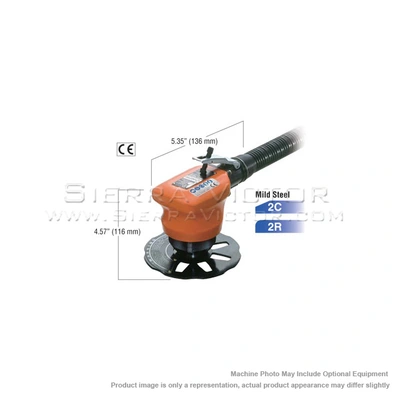

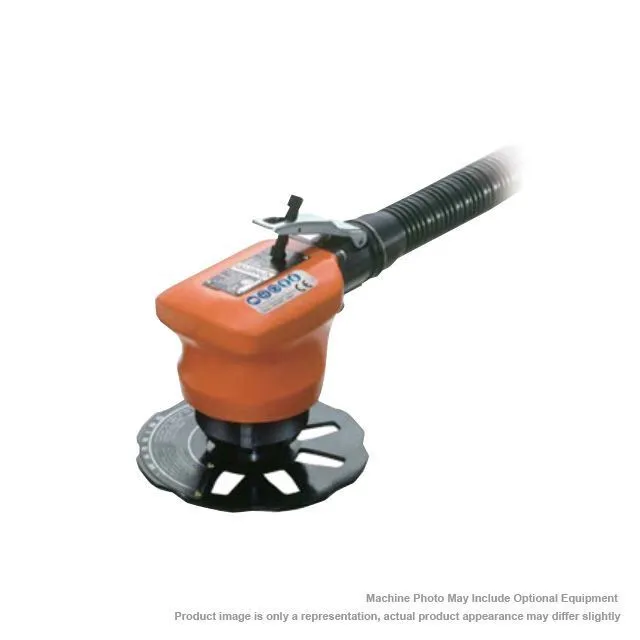

<li><strong>Pneumatic Radial Chamfering Tool</strong></li>
<li><strong>Hand beveler, ideal for edge beveling circular, elliptical and straight line profiles</strong></li>
<li>Lightweight and compact for most beveling and chamfering applications</li>
<li>Uniquely designed to chamfer circular, elliptical and straight line profiles</li>
<li>Chamfers exterior and/or Interior edges</li>
<li>Chamfer widths up to 5/64" (2mm) for CB-02 at 45°</li>
<li>Optional attachment PN#TB02437 available for chamfering and/or beveling thin materials</li>
<li>Uses indexable carbide insert</li>
</ul>
<p><strong>ACCESSORIES INCLUDED:</strong>
</p>
<ul>
<li>Threaded adapter PT1/4” x NPT1/4”</li>
<li>Straight Cutting Tip</li>
<li>Hook Spanner</li>
<li>Cutting Depth Adjustment Gauge</li>
<li>Torx 9 (T-9) Spanner Wrench</li>
<li>Protective Cap</li>
</ul>
<p><b>OPTIONAL ITEMS - CALL FOR PRICE:</b></p>
<table class="TableText1" width="520" cellspacing="0" cellpadding="0" border="1">
<tbody style="text-align: center;">
<tr class="Title_white1" bgcolor="#333333">
<td class="optional_accessories" width="76">
<div class="Title_white_bold" align="center">
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>PART #
</strong></span>
</div>
</div>
</td>
<td width="438" bgcolor="#333333">
<div class="Title_white_bold" align="center">
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>ITEM</strong></span>
</div>
</div>
</td>
</tr>
<tr>
<td class="optional_accessories" bgcolor="#CCCCCC">
<div align="center">TV7A010
</div>
</td>
<td>
<div align="center">Cutting Tips for CB-02: Straight Tip (2 pcs./set)
</div>
</td>
</tr>
<tr>
<td class="optional_accessories" bgcolor="#CCCCCC">
<div align="center">TV7A011
</div>
</td>
<td>
<div align="center">Cutting Tipsfor CB-02: 1/16” (2 mm) Radius Tip (2 pcs./set)
</div>
</td>
</tr>
<tr>
<td class="optional_accessories" bgcolor="#CCCCCC">
<div align="center">TB02437
</div>
</td>
<td>
<div align="center">Optional attachment for chamfering and/or beveling thin materials
</div>
</td>
</tr>
</tbody>
</table>
