<table width="520" cellspacing="0" cellpadding="0" border="1">
<tbody style="text-align: center;">
<tr>
<td class="TableText" width="199" bgcolor="#cccccc">
<div align="center">Air Pressure
</div>
</td>
<td class="TableText" width="214">
<div align="center">85 PSI
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Air Consumption
</div>
</td>
<td class="TableText">
<div align="center">31.8 CFM
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Chamfering Capacity (Mild Steel)
</div>
</td>
<td class="TableText">
<div align="center">Up to 5/16” (7 mm) Chamfer or 1/16” (2 mm), <br>
1/8” (3 mm), 5/32” (4 mm) Radius
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Chamfering Capacity (Stainless Steel)
</div>
</td>
<td class="TableText">
<div align="center">Up to 1/8” (3 mm) Chamfer or 1/16” (2 mm), <br>
1/8” (3 mm), 5/32” (4 mm) Radius
</div>
</td>
</tr>
<tr>
<td class="TableText" height="23" bgcolor="#cccccc">
<div align="center">Chamfer Angle
</div>
</td>
<td class="TableText">
<div align="center">15 - 45 Degrees
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Weight
</div>
</td>
<td class="TableText">
<div align="center">6.4 lbs. (2.9 kg)
</div>
</td>
</tr>
</tbody>
</table>
<p><br>
</p>
<table width="520" cellspacing="0" cellpadding="0" border="0">
<!--DWLayoutTable-->
<tbody>
<tr>

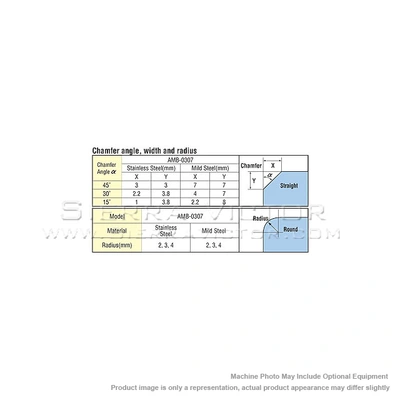

<td class="spacer_text" width="400" valign="middle" nowrap="nowrap" height="20" bgcolor="#4c9ae5">BEVEL ANGLE, WIDTH AND RADIUS
</td>
</tr>
</tbody>
</table>
<table width="520" cellspacing="0" cellpadding="0" border="1">
<tbody style="text-align: center;">
<tr>
<td rowspan="3" class="TableText_bold" bgcolor="#cccccc">
<div align="center">Angle
</div>
</td>
<td colspan="6" class="Title_white_bold" bgcolor="#333333"><span style="color: rgb(255, 255, 255);"><strong></strong></span>
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>AMB-0907</strong></span>
</div>
</td>
</tr>
<tr>
<td colspan="3" class="Title_white_bold" bgcolor="#333333">
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>Stainless Steel (mm)</strong></span>
</div>
</td>
<td colspan="3" class="Title_white_bold" bgcolor="#333333">
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>Mild Steel (mm)</strong></span>
</div>
</td>
</tr>
<tr class="Title_white_bold">
<td class="TableText" width="167" bgcolor="#333333">
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>A</strong></span>
</div>
</td>
<td class="TableText" width="167" bgcolor="#333333"><span style="color: rgb(255, 255, 255);"><strong></strong></span>
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>B</strong></span>
</div>
</td>
<td class="TableText" width="167" bgcolor="#333333"><span style="color: rgb(255, 255, 255);"><strong></strong></span>
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>C</strong></span>
</div>
</td>
<td class="TableText" width="167" bgcolor="#333333">
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>A</strong></span>
</div>
</td>
<td class="TableText" width="167" bgcolor="#333333"><span style="color: rgb(255, 255, 255);"><strong></strong></span>
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>B</strong></span>
</div>
</td>
<td class="TableText" width="146" bgcolor="#333333"><span style="color: rgb(255, 255, 255);"><strong></strong></span>
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>C</strong></span>
</div>
</td>
</tr>
<tr>
<td class="TableText_bold" width="199" bgcolor="#cccccc">
<div align="center">45°
</div>
</td>
<td class="TableText">
<div align="center">3
</div>
</td>
<td class="TableText">
<div align="center">3
</div>
</td>
<td class="TableText">
<div align="center">4.2
</div>
</td>
<td class="TableText">
<div align="center">7
</div>
</td>
<td class="TableText">
<div align="center">7
</div>
</td>
<td class="TableText">
<div align="center">9.9
</div>
</td>
</tr>
<tr>
<td class="TableText_bold" bgcolor="#cccccc">
<div align="center">30°
</div>
</td>
<td class="TableText">
<div align="center">2.2
</div>
</td>
<td class="TableText">
<div align="center">3.8
</div>
</td>
<td class="TableText">
<div align="center">4.4
</div>
</td>
<td class="TableText">
<div align="center">4
</div>
</td>
<td class="TableText">
<div align="center">7
</div>
</td>
<td class="TableText">
<div align="center">8.1
</div>
</td>
</tr>
<tr>
<td class="TableText_bold" bgcolor="#cccccc">
<div align="center">15°
</div>
</td>
<td class="TableText">
<div align="center">1
</div>
</td>
<td class="TableText">
<div align="center">3.8
</div>
</td>
<td class="TableText">
<div align="center">3.9
</div>
</td>
<td class="TableText">
<div align="center">2.2
</div>
</td>
<td class="TableText">
<div align="center">8
</div>
</td>
<td class="TableText">
<div align="center">8.3
</div>
</td>
</tr>
</tbody>
</table>
<p>Specifications are subject to change without notice.
</p>
<p>NOTE: Data is provided by the manufacturer.
</p>
<p><strong>WARRANTY: 1 YEAR</strong> – Limited
</p>
<ul>

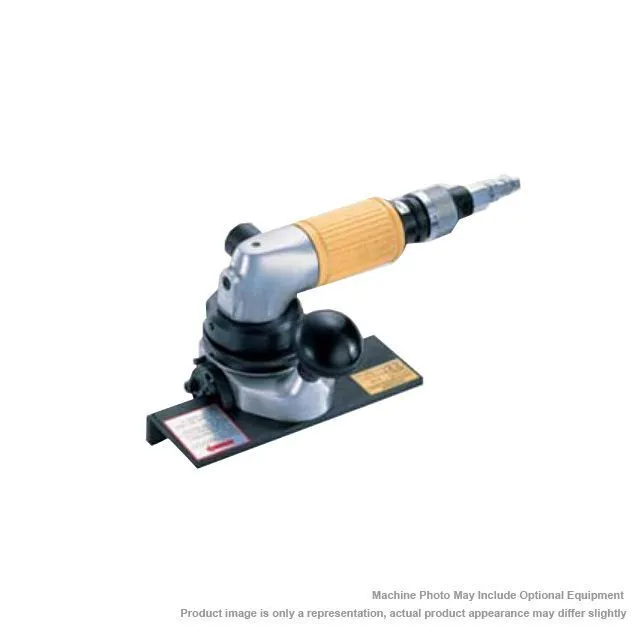

<li>Handy Pneumatic Chamfering Tool</li>
<li>Lightweight design for portable edge beveling application</li>
<li>Ideal for beveling plate, outer pipe, tube and other profiles</li>
<li>Designed to bevel stainless steel and carbon steel</li>
<li>Adjustable to bevel angle from 15° to 45°</li>
<li>Uses an indexable carbide insert</li>
<li>Bevel depth up to 9/32" at 45°</li>
<li>Outer edge pipe beveling > 12" (300mm) minimum diameter</li>
</ul>
<p><strong>ACCESSORIES INCLUDED:</strong>
</p>
<ul>
<li>Threaded Adapter PT3/8” x NPT 3/8”</li>
<li>3 mm Allen Wrench</li>
<li>4 mm Allen Wrench</li>
<li>Straight Cutting Tip</li>
<li>(2) Hex. Nut M8</li>
<li>(2) Hex. Socket Set Screw 8 mm x 25 mm</li>
<li>Torx 15 (T-15) Spanner Wrench</li>
</ul>
